1. Informació important de seguretat
Read all instructions carefully before using the appliance. Keep this manual for future reference. Failure to follow these safety instructions may result in electric shock, fire, or damage to the appliance.
- Seguretat elèctrica: Ensure the appliance is connected to a properly grounded power outlet. Do not use extension cords or multiple socket adapters. Disconnect from power before cleaning or maintenance.
- Ventilació: Ensure adequate air circulation around the appliance. Do not block ventilation openings. Maintain a minimum clearance as specified in the installation section.
- Materials inflamables: No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
- Nens: Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat. Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
- Eliminació: Dispose of the appliance in accordance with local regulations for waste disposal, especially for refrigerants and flammable blowing gas.
2. Producte acabatview
The Cecotec CoolMarket Combi Origin 300 is a retro-style fridge-freezer designed for efficient food storage. It features a total capacity of 300 liters, internal LED lighting, a dedicated Crisper Box for fresh produce, and adjustable temperature control.
Imatge: Frontal view of the Cecotec CoolMarket Combi Origin 300 retro fridge-freezer. This appliance features a distinct retro design with a vibrant green finish and chrome handles, offering a stylish and functional addition to any kitchen.
Característiques principals:
- 300-liter capacity for organized food storage.
- Energy efficiency class E for reduced energy consumption.
- Internal LED lighting for bright and energy-efficient illumination.
- Glass shelves for easy cleaning and durability.
- Crisper Box for optimal storage of fruits and vegetables.
- Chrome handle for a classic aesthetic and comfortable grip.
- Adjustable temperature control for precise cooling.
3. Configuració i instal·lació
3.1 Desembalatge
Carefully remove all packaging materials. Inspect the appliance for any damage during transit. Keep packaging materials out of reach of children.
3.2 Col·locació
Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources (e.g., oven, radiator). Ensure there is sufficient space around the appliance for proper air circulation. The appliance should be placed on a firm, level surface.
Image: Dimensional diagram of the fridge-freezer. The image illustrates the appliance's height (191.5 cm), width (59.5 cm), and depth (60 cm), crucial for planning its placement in a kitchen space.
Image: The fridge-freezer positioned in a kitchen. This image demonstrates the appliance's freestanding nature and how it integrates into a kitchen environment, highlighting the need for adequate surrounding space.
3.3 Neteja inicial
Before first use, clean the interior and all accessories with a damp cloth and a mild detergent. Wipe dry thoroughly.
3.4 Connexió d'alimentació
Plug the appliance into a dedicated, grounded electrical outlet. Allow the fridge-freezer to stand for at least 2-4 hours before plugging it in to allow refrigerants to settle.
4. Instruccions de funcionament
4.1 Control de temperatura
The temperature inside the refrigerator compartment can be adjusted using the thermostat dial located inside the fridge. Turn the dial to select your desired cooling level. Higher numbers typically indicate colder temperatures.

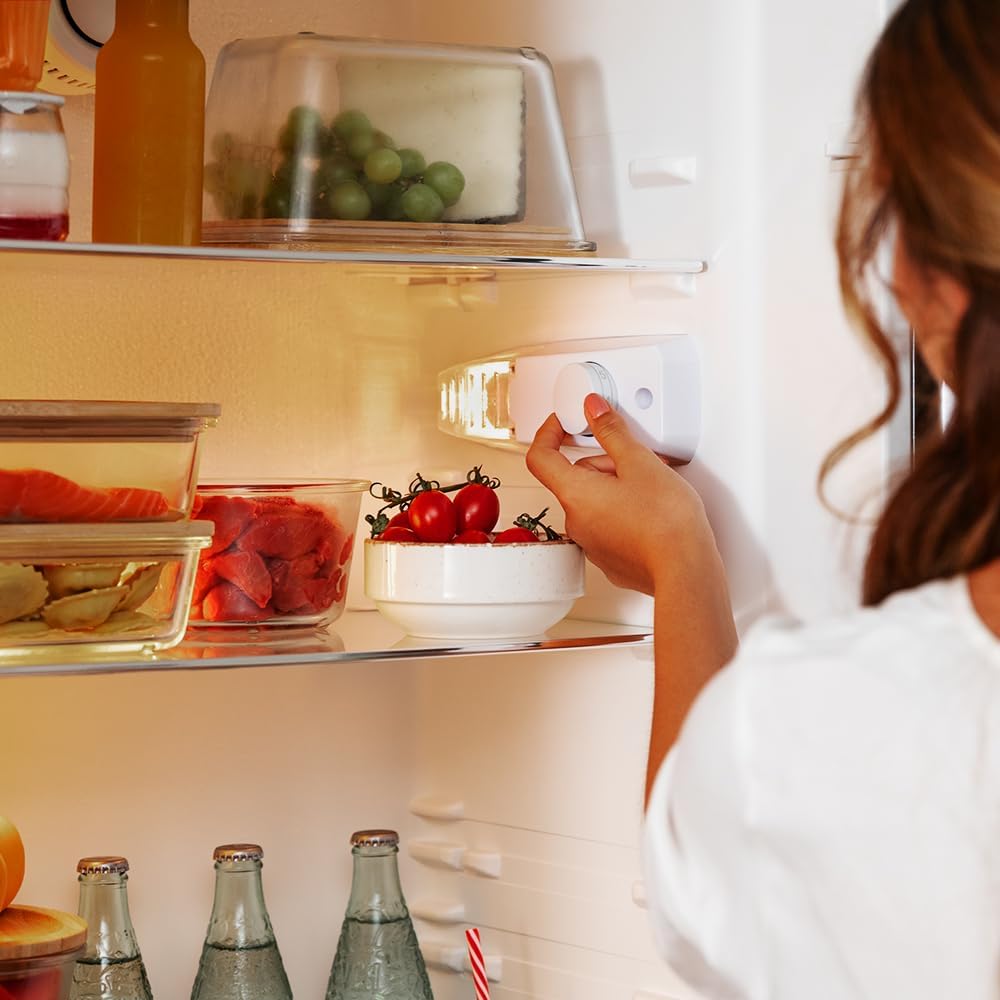

Image: A hand adjusting the internal temperature control dial. This image demonstrates the location and method for setting the desired cooling level within the refrigerator.
4.2 Using the Crisper Box
The Crisper Box is designed to maintain optimal humidity levels for storing fruits and vegetables, helping them stay fresh longer. Place produce directly into the drawer.

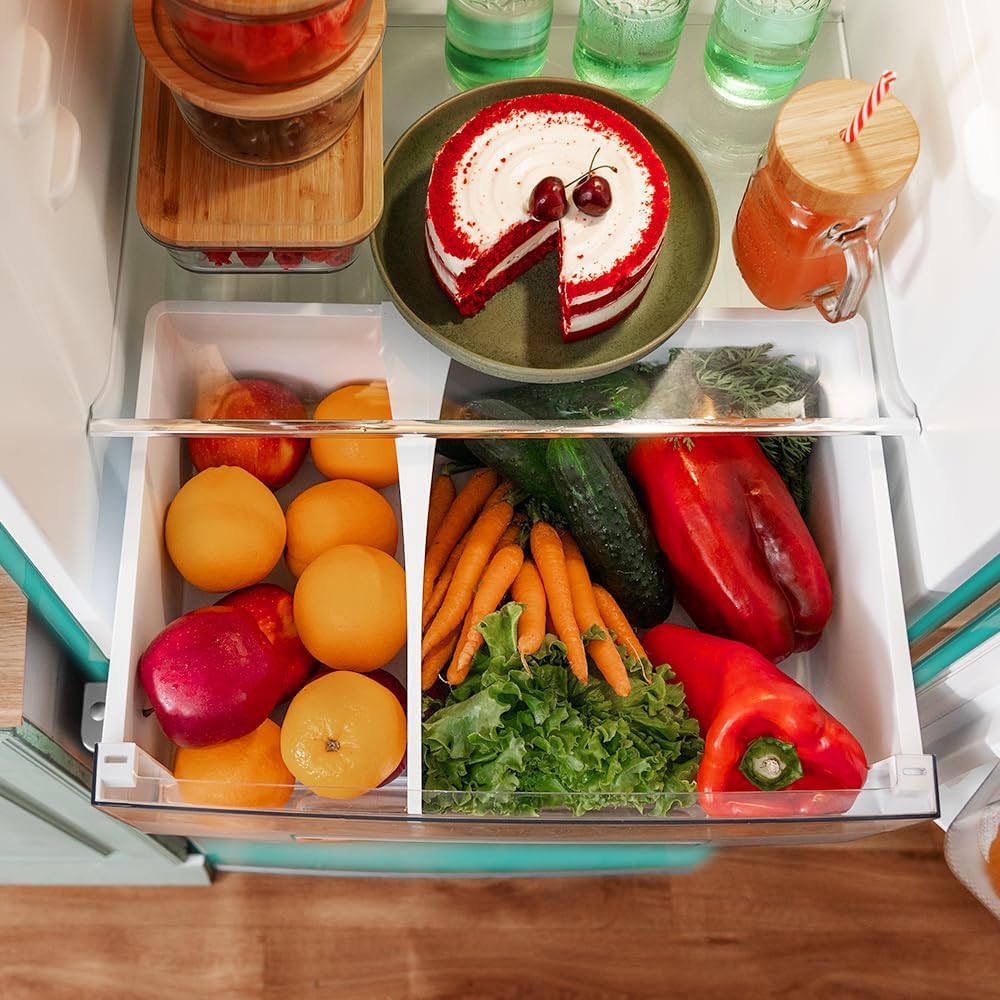

Image: The Crisper Box filled with fresh produce. This illustrates the dedicated compartment for fruits and vegetables, designed to preserve their freshness.
4.3 Prestatges ajustables
The glass shelves can be adjusted to different heights to accommodate items of various sizes. To adjust, carefully lift the shelf, pull it out, and reposition it on the desired support level.
4.4 Il·luminació LED interna
The refrigerator is equipped with energy-efficient LED lighting that illuminates the interior when the door is opened. These lights are designed for long life and do not require user maintenance.
5. Manteniment i Neteja
5.1 Neteja general
Always unplug the appliance before cleaning. Clean the interior and exterior surfaces regularly with a soft cloth and a mild, non-abrasive detergent. Avoid using harsh chemicals or abrasive cleaners that could damage surfaces. Dry thoroughly after cleaning.
5.2 Descongelació
This appliance features a frost-free defrost system, which automatically prevents ice buildup in the freezer compartment. Manual defrosting is generally not required.
5.3 Chrome Handle Care
To maintain the shine of the chrome handles, wipe them regularly with a soft, damp cloth. Avoid abrasive cleaners or polishes that could scratch the finish.
Imatge: Primer pla view of the appliance's chrome handles. This detail highlights the retro design element and the material that requires gentle cleaning to maintain its appearance.
6. Solució De Problemes
Abans de contactar amb el servei d'atenció al client, comproveu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| L'aparell no funciona. | No hi ha font d'alimentació; el cable d'alimentació no està connectat. | Comproveu la connexió elèctrica i la presa de corrent. |
| La temperatura no és prou freda. | Temperatura massa alta; porta oberta massa sovint; menjar calent a dins. | Adjust thermostat to a colder setting; avoid frequent door openings; allow hot food to cool before storing. |
| Soroll inusual. | L'aparell no està anivellat; els objectes toquen la paret posterior. | Ajusteu els peus anivelladors; assegureu-vos que res toqui l'aparell. |
| La llum LED no funciona. | Light bulb failure (rare for LED); power issue. | Ensure power is connected. If problem persists, contact service. |
7. Especificacions
| Característica | Especificació |
|---|---|
| Marca | Cecotec |
| Model | CoolMarket Combi Origin 300 |
| Dimensions del producte (P x A x A) | 60 cm x 59.5 cm x 191.5 cm |
| Capacitat total | 300 litres |
| Configuració | Combi (Top-Freezer, Bottom-Refrigerator) |
| Tipus d'instal·lació | Autònom |
| Nombre de portes | 2 |
| Sistema de descongelació | Sense glaçades |
| Voltage | 220 V |
| Classe d'eficiència energètica | E |
| Característiques especials | Adjustable shelves, Crisper Box, LED interior lighting |
Image: Energy efficiency label and capacity details. This graphic displays the appliance's energy class (E), refrigerator capacity (216L), freezer capacity (84L), and noise level (41dB).
8. Garantia i Suport
Per obtenir informació sobre la garantia i assistència al client, consulteu la targeta de garantia inclosa amb la compra o visiteu el lloc web oficial de Cecotec. weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
