Cecotec Cecofry Rain 5.5L Oil-Free Deep Fryer

1. Introducció

Thank you for choosing the Cecotec Cecofry Rain 5.5L Oil-Free Deep Fryer. This appliance is designed to provide a healthier way to cook your favorite foods, utilizing hot air circulation to achieve crispy results with little to no oil. It features a generous 5.5-liter capacity, a built-in oil spray system, and a user-friendly touch control panel with various preset functions.

Please read this instruction manual thoroughly before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.

Informació important de seguretat

• Col·loqueu sempre l'aparell sobre una superfície estable i resistent a la calor, allunyada de les parets o altres aparells per permetre una ventilació adequada.
• No submergiu la unitat principal, el cable ni l'endoll en aigua ni en cap altre líquid.
• Assegureu-vos que el voltagEl volum indicat a l'aparell coincideix amb la xarxa elèctrica localtage abans de connectar.
• Superviseu els nens quan l'aparell estigui en ús.
• No feu funcionar l'aparell si el cable o l'endoll estan danyats, o si l'aparell no funciona correctament o ha estat danyat de qualsevol manera.
• Desendolleu l'aparell de la presa de corrent quan no l'utilitzeu i abans de netejar-lo.
• No bloquegeu les reixetes d'entrada o sortida d'aire durant el funcionament.
• The surfaces of the appliance may become hot during use. Use oven mitts when handling hot components.

2. Producte acabatview i Components

Familiarize yourself with the different parts of your Cecofry Rain Deep Fryer.

Figure 2.1: Cecotec Cecofry Rain 5.5L Oil-Free Deep Fryer with included accessories. This image displays the main unit, the removable basket, and the various cooking and cleaning tools that come with the appliance, such as a baking pan, pizza pan, oil spray bottle, spatula, and brush.

Figura 2.2: Frontal view of the Cecotec Cecofry Rain 5.5L Oil-Free Deep Fryer, showcasing its sleek design and the included silicone accessories pack, which consists of a brush, spatula, baking pan, and a silicone mat.

Components principals:

• Unitat principal: Conté l'element calefactor i el ventilador.
• Tauler de control: Touch-sensitive display for operation.
• Cistella/Calaix per fregir: Cistella extraïble per guardar aliments.
• Oil Spray Reservoir: Integrated compartment for oil.
• Reixetes d'entrada/sortida d'aire: Per a la circulació de l'aire.
• Cable d'alimentació: Per a connexió elèctrica.

Accessoris inclosos:

• Silicone Accessories Pack (brush, spatula, baking pan, silicone mat)
• Built-in oil spray bottle

3. Configuració i primer ús

3.1 Desembalatge

1. Carefully remove the deep fryer and all accessories from the packaging.
2. Traieu qualsevol adhesiu o etiqueta de l'aparell.
3. Conserveu l'embalatge per a futurs emmagatzematges o transports.

3.2 Abans del primer ús

1. Wash the frying basket and any accessories (baking pan, silicone mat, etc.) thoroughly with hot water, mild dish soap, and a non-abrasive sponge.
2. Esbandiu i assequeu completament totes les peces.
3. Netegeu l'interior i l'exterior de la unitat principal amb un anunciamp tela.
4. Assegureu-vos que totes les peces estiguin completament seques abans d'endollar l'aparell.

3.3 Col·locació

• Place the deep fryer on a stable, level, and heat-resistant surface.
• Ensure there is at least 10 cm (4 inches) of clear space around the back and sides of the appliance to allow for proper air circulation.
• No col·loqueu l'aparell a prop de materials inflamables ni de fonts de calor.

4. Instruccions de funcionament

4.1 Tauler de control acabatview

The Cecofry Rain features a multi-function touch control panel for easy operation.

Figure 4.1: Detail of the touch control panel, showing icons for power, various cooking modes, DIY, temperature, timer, and oil spray functions. Also visible is the integrated oil spray nozzle.

Common icons include:

• Botó d'encesa: Per encendre/apagar l'aparell.
• Control de temperatura: Ajustar la temperatura de cocció.
• Control del temporitzador: Estableix el temps de cocció.
• Menús predefinits: Icons representing different food types (e.g., fries, chicken, fish, cake).
• Funció de bricolatge: For custom settings.
• Oil Spray Function: Activates the built-in oil spray.

4.2 Funcionament bàsic

1. Plug the power cord into a grounded wall outlet. The appliance will enter standby mode.
2. Premeu el botó d'engegada per encendre la pantalla.
3. Pull out the frying basket and place your ingredients inside. Do not overfill the basket.
4. Feu lliscar la cistella de fregir de nou a l'aparell fins que encaixi al seu lloc.
5. Configuració de la temperatura i el temps:
   • Press the Temperature icon and use the Up/Down arrows to adjust the temperature (e.g., 180°C).
   • Press the Timer icon and use the Up/Down arrows to set the cooking time (e.g., 15 minutes).
6. Press the Start/Pause button (often the Power button again or a dedicated play icon) to begin cooking.
7. Durant la cocció, podeu treure el cistell per sacsejar o girar el menjar. L'aparell es posarà en pausa automàticament i es reprendrà quan torneu a introduir el cistell.
8. Un cop el temporitzador arribi a zero, l'aparell emetrà un so, indicant que la cocció s'ha completat.
9. Traieu amb cura la cistella i aboqueu el menjar cuit en un plat.

4.3 Ús dels menús predefinits

The Cecofry Rain offers 8 preset menus for common dishes, simplifying the cooking process.

1. After placing food in the basket, press the Power button to activate the display.
2. Tap the desired preset menu icon (e.g., fries, chicken). The appliance will automatically set the optimal temperature and time for that dish.
3. You can adjust the preset temperature and time manually if needed using the Temperature and Timer controls.
4. Premeu el botó Inici/Pausa per començar a cuinar.

4.4 Using the DIY Function

The DIY function allows you to customize temperature and time settings for unique recipes.

1. After placing food in the basket, press the Power button.
2. Select the DIY icon.
3. Manually set your desired temperature and cooking time using the respective controls.
4. Premeu el botó Inici/Pausa per començar a cuinar.

4.5 Built-in Oil Spray Function

The unique built-in oil spray allows for automatic or manual oil application during cooking, enhancing crispiness and flavor.

Figure 4.2: Filling the integrated oil spray reservoir. The image shows oil being poured into the designated opening on the top of the appliance.

Figure 4.3: The Cecofry Rain in use, with an inset demonstrating the oil spray function applying a fine mist of oil onto food during cooking.

1. Omplir el dipòsit d'oli: Open the cap on the top of the appliance and carefully pour a small amount of cooking oil into the reservoir. Do not overfill.
2. Activating Spray: During cooking, you can press the Oil Spray icon on the control panel to activate the spray function. The appliance may have automatic spraying at certain intervals or manual activation. Refer to the specific model's detailed instructions for spray levels (7 levels mentioned in description).
3. The spray function helps achieve a crispier texture and can be used with oil or water for different effects.

4.6 Cooking Examples

Figure 4.4: The deep fryer basket filled with perfectly cooked french fries, demonstrating the appliance's capability for crispy results.

Figure 4.5: A whole roasted chicken and potatoes cooked in the Cecofry Rain deep fryer, showcasing its capacity and versatility for larger meals.

Figure 4.6: Salmon fillets and roasted potatoes prepared in the Cecofry Rain, highlighting its ability to cook various types of food.

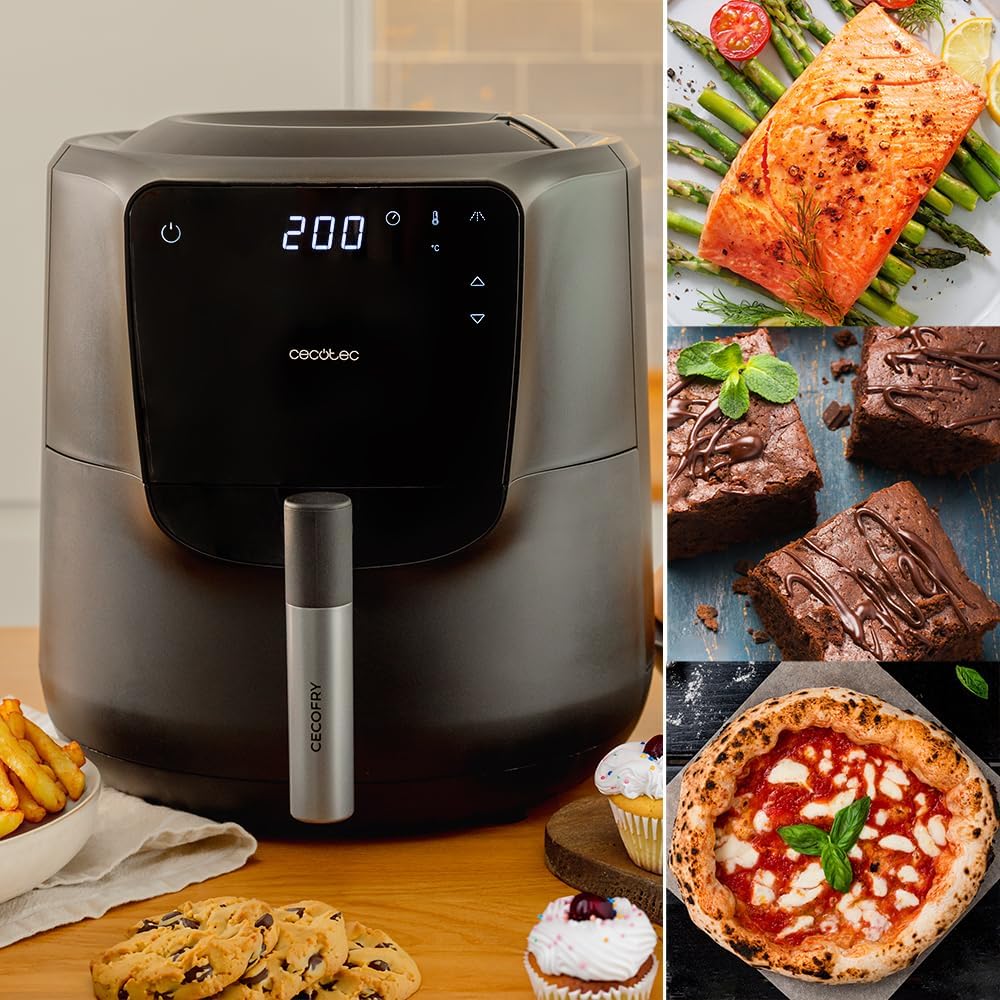

Figure 4.7: The Cecofry Rain alongside a variety of baked items like muffins and pizza, illustrating its versatility beyond frying, including baking functions.

The Cecofry Rain is capable of cooking a wide range of dishes. Always refer to specific recipes for optimal temperature and time settings. For best results, preheat the fryer before adding food, and shake or turn food halfway through cooking.

5. Manteniment i Neteja

Una neteja regular garanteix la longevitat i el rendiment òptim de la fregidora.

5.1 Neteja general

1. Desconnecteu sempre l'aparell i deixeu-lo refredar completament abans de netejar-lo.
2. Netegeu l'exterior de l'aparell amb anunciamp tela. No utilitzeu netejadors abrasius.
3. Remove the frying basket and wash it with hot water, dish soap, and a non-abrasive sponge. The basket and accessories are often dishwasher-safe, but hand-washing is recommended for longevity.
4. Netegeu l'interior de l'aparell amb anunciamp drap. Per a residus persistents, feu servir un detergent suau.
5. Assegureu-vos que totes les peces estiguin completament seques abans de guardar o reutilitzar l'aparell.

5.2 Funció d'autoneteja

The Cecofry Rain features a self-cleaning function for the oil spray system and internal components.

Figure 5.1: Preparing the deep fryer for self-cleaning by pouring water into the top reservoir. This function helps maintain the internal components and the oil spray system.

1. Ensure the appliance is cool and empty of food.
2. Pour a small amount of water (and optionally a few drops of mild dish soap) into the oil spray reservoir.
3. Activate the self-cleaning function via the control panel (refer to your specific model's instructions for the exact icon or sequence).
4. The appliance will run a cycle to clean the internal spray mechanism and heating element area.
5. After the cycle, unplug the appliance and wipe down any remaining moisture.

5.3 Emmagatzematge

• Before storing, ensure the appliance is completely clean and dry.
• Store the deep fryer in a cool, dry place, away from direct sunlight and moisture.
• If storing for an extended period, consider using the original packaging to protect it from dust and damage.

6. Solució De Problemes

If you encounter any issues with your Cecofry Rain Deep Fryer, refer to the following common problems and solutions.

7. Especificacions

Technical details for the Cecotec Cecofry Rain 5.5L Oil-Free Deep Fryer.

• Marca: Cecotec
• Número de model: 03305
• Capacitat: 5.5 litres
• Potència/Wattage: 1550 watts
• Voltage: 240 Volts
• Dimensions del producte: 32P x 29A x 38H centímetres (aprox. 32 x 29 x 38 cm)
• Pes de l'article: 5.12 quilos
• Material: Silicone (for accessories), other materials for main unit.
• Característiques especials: Temperature Control, Timer, Built-in Oil Spray, Self-cleaning function, 8 Preset Menus.

8. Garantia i Suport

8.1 Informació de la garantia

This Cecotec product is covered by a standard manufacturer's warranty against defects in materials and workmanship from the date of purchase. The specific duration and terms of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage resulting from misuse, neglect, unauthorized repairs, or normal wear and tear.

8.2 Atenció al client

For technical assistance, warranty claims, or general inquiries regarding your Cecotec Cecofry Rain Deep Fryer, please contact the retailer where you purchased the product or visit the official Cecotec weblloc web per obtenir informació de contacte d'assistència.

You may find additional resources, FAQs, and contact information on the official Cecotec support page: www.cecotec.com/en/support
