1. Introducció
This manual provides essential information for the safe and efficient use of your Cecotec Bolero CoolMarket Chest 142 Freezer. Please read these instructions carefully before installation and operation, and retain them for future reference.
Imatge 1.1: Frontal view of the Cecotec Bolero CoolMarket Chest 142 Freezer with the lid open, showing the interior and a storage basket.
Instruccions importants de seguretat
- Assegureu-vos que l'aparell estigui ben connectat a terra.
- No utilitzeu dispositius mecànics o altres mitjans per accelerar el procés de descongelació, diferents dels recomanats pel fabricant.
- No danyeu el circuit de refrigerant.
- No utilitzeu aparells elèctrics dins dels compartiments d'emmagatzematge d'aliments de l'aparell, tret que siguin del tipus recomanat pel fabricant.
- Mantenir les obertures de ventilació, a la carcassa de l'aparell o a l'estructura integrada, lliures d'obstruccions.
- Aquest aparell està dissenyat només per a ús domèstic.
- Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
2. Configuració
2.1 Desembalatge
- Traieu tots els materials d'embalatge, inclosa l'escuma i la cinta adhesiva.
- Inspect the freezer for any damage during transit. If damage is found, do not plug in the appliance and contact customer support.
- Mantenir els materials d'embalatge fora de l'abast dels nens.
2.2 Col·locació
Choose a suitable location for your freezer, ensuring proper ventilation and stability.
- Place the freezer on a firm, level surface to prevent vibrations and noise.
- Allow sufficient space around the appliance for proper air circulation (at least 10 cm on sides and back).
- Avoid placing the freezer in direct sunlight or near heat sources such as stoves, radiators, or heaters.
- The appliance is designed for ambient temperatures between 10°C and 43°C (Climate Class T).

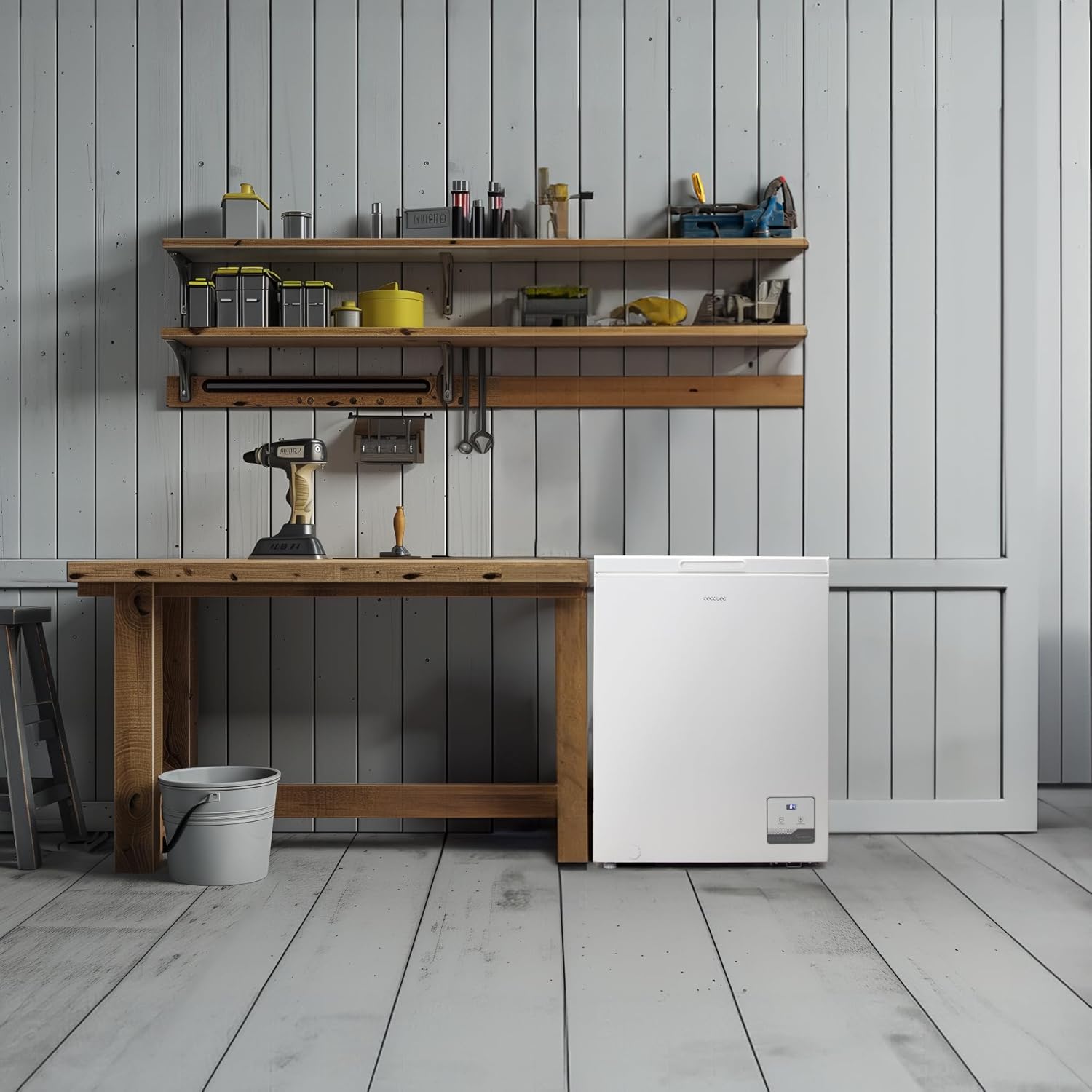

Image 2.1: The freezer positioned in a room, demonstrating suitable placement with adequate surrounding space.
Image 2.2: Visual representation of the freezer's dimensions: 83.5 cm (height), 55.6 cm (depth), and 63.5 cm (width).
2.3 Abans del primer ús
- Netegeu l'interior del congelador amb anuncisamp drap i detergent suau. Assecar bé.
- After placement, allow the appliance to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle.
- Connect the power cord to a dedicated, properly grounded electrical outlet (220V).
3. Instruccions de funcionament
3.1 Tauler de control
The freezer features an electronic control panel for easy temperature management and function selection.
Imatge 3.1: Detallada view of the electronic control panel, including the digital display and control buttons.
- Visualització: Shows the current temperature inside the compartment.
- Temperature Adjustment Buttons (-/+): Use these buttons to set the desired temperature. Press and hold for 3 seconds to unlock the controls.
- Fast Freeze Button: Activates the fast freezing function. Press and hold for 3 seconds to activate.
3.2 Configuració de temperatura
Per ajustar la temperatura:
- Press and hold the '-' button for 3 seconds to unlock the control panel.
- Use the '+' or '-' buttons to select your desired temperature. The display will show the set temperature, then revert to the actual internal temperature after a few seconds.
- Recommended freezer temperature is -18°C.
3.3 Dual Function (Freezer/Refrigerator)
This appliance offers a dual function, allowing it to operate as either a freezer or a refrigerator.
Image 3.2: Visual representation of the dual function, showing the appliance's versatility for both freezing and refrigeration.
To switch between modes, refer to the specific instructions in your full user manual, as this typically involves a specific sequence on the control panel to select the desired temperature range (e.g., freezer range -12°C to -24°C, refrigerator range 8°C to 2°C).
3.4 Congelació ràpida
The fast freezing function rapidly lowers the temperature to quickly freeze fresh food, preserving its quality and nutrients.
Imatge 3.3: Ex.ample of various frozen fruits, demonstrating the effectiveness of the fast freezing function.
- To activate, press and hold the 'Fast Freeze' button for 3 seconds. The indicator light will illuminate.
- Place fresh food to be frozen into the compartment.
- The function will automatically switch off after a set period (usually 24-48 hours) or can be manually deactivated by pressing the button again.
3.5 Internal Basket
The removable internal basket helps organize smaller items and provides easy access to frequently used foods.
Image 3.4: A user demonstrating the use of the internal storage basket for organizing frozen goods.
4. Manteniment
4.1 Neteja
Una neteja regular garanteix un rendiment i una higiene òptims.
- Always unplug the freezer from the power outlet before cleaning.
- Netegeu l'interior amb un drap suau dampened with a solution of mild detergent and warm water. Avoid abrasive cleaners or solvents.
- Netegeu les superfícies exteriors amb un damp tela.
- Ensure all surfaces are thoroughly dried before plugging the appliance back in.
4.2 Descongelació
Defrost the freezer when the frost layer reaches approximately 5 mm thickness to maintain efficiency.
- Desendolleu el congelador de la presa de corrent.
- Traieu tots els aliments i guardeu-los en un altre congelador o nevera.
- Leave the lid open to allow the frost to melt naturally. You can place towels at the bottom to absorb water.
- Do not use sharp objects or heating devices to remove frost, as this can damage the appliance.
- Un cop descongelat, netegeu i eixugueu bé l'interior abans de tornar-lo a endollar i tornar-hi el menjar.
5. Solució De Problemes
Abans de contactar amb el servei d'atenció al client, comproveu els següents problemes comuns:
| Problema | Causa possible | Solució |
|---|---|---|
| El congelador no funciona. | Sense font d'alimentació. | Check if the power cord is plugged in correctly and if the circuit breaker is tripped. |
| La temperatura no és prou freda. | Temperature setting is too high; lid not closed properly; excessive food load; poor ventilation. | Adjust temperature to a lower setting; ensure lid is sealed; reduce food load; ensure adequate space around the freezer. |
| Acumulació excessiva de gelades. | Lid not sealed properly; frequent opening of the lid; high humidity. | Check lid seal for damage; avoid opening lid unnecessarily; defrost the appliance. |
| Sorolls inusuals. | Appliance not level; objects touching the back of the freezer. | Ensure the freezer is on a level surface; move objects away from the back. |
6. Especificacions
Technical details for the Cecotec Bolero CoolMarket Chest 142 Freezer, Model 02448.
| Característica | Detall |
|---|---|
| Marca | Cecotec |
| Número de model | 02448 |
| Capacitat | 142 litres |
| Dimensions (L x A x A) | 55.6 x 63.5 x 83.5 cm |
| Pes | 23.3 quilos |
| Classe Energètica | E |
| Consum anual d'energia | 182 kWh / any |
| Voltage | 220 Volts |
| Poder | 61.11 watts |
| Nivell de soroll | 39 dB |
| Tipus d'instal·lació | Autònom |
| Orientació de la porta | Top-opening |
| Door Finish Material | Acer inoxidable |
| Característiques especials | Inverter Plus Motor, Dual Function (Freezer/Refrigerator), Fast Freezing, Electronic Control, Inner Basket |
Image 6.1: EU Energy Label providing key energy efficiency and performance data. For more details, visit the Base de dades EPREL.
7. Garantia i assistència
Your Cecotec Bolero CoolMarket Chest 142 Freezer is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
- Les peces de recanvi estan disponibles durant un període de 10 anys a partir de la data de compra.
- For technical assistance, repairs, or to inquire about spare parts, please contact Cecotec customer support. Contact details can typically be found on the manufacturer's official weblloc web o al manual d'usuari complet.
