DROK DC 8-100V 500A Battery Coulometer User Manual

1. Introducció

The DROK DC 8-100V 500A Battery Coulometer is a versatile multi-tester designed to monitor various battery parameters. It functions as a coulometer, watt meter, voltmeter, and ampmeter, providing real-time data on voltage, current, power, and battery capacity. This device is suitable for a wide range of applications including RVs, solar power systems, golf carts, and car audio setups.

2. Característiques del producte

• Parameter Monitoring: Mesures Voltage (8-100V), Current (0.2-500A), Power (0-50KW), and Capacity (0.1-99999AH).

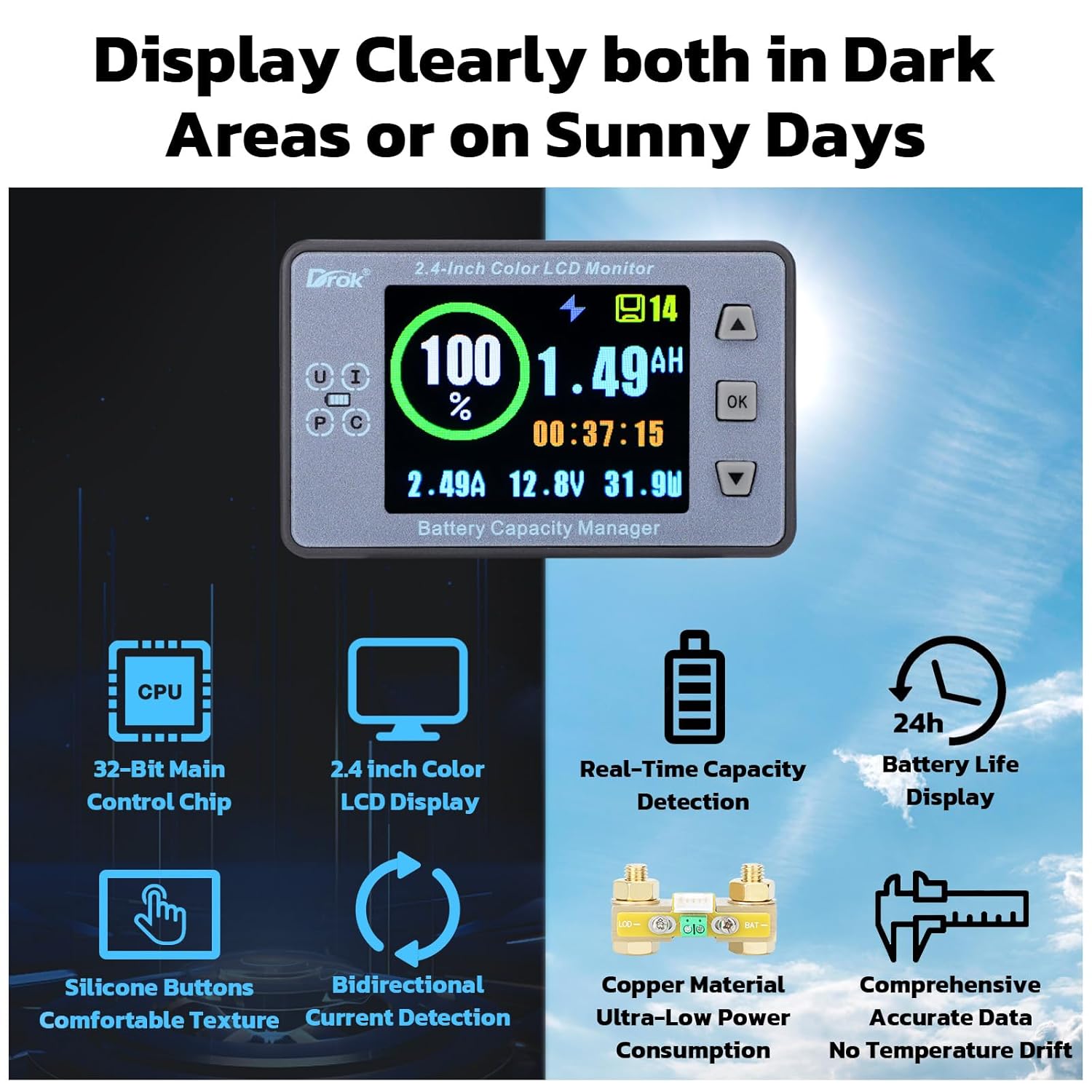

• Pantalla d'alta precisió: Features a 2.4-inch LCD color screen for clear visibility of parameters in various lighting conditions.
• Backlight Alarm Function (LBR): Activates a flashing backlight when remaining capacity is below 20% or voltage està per sota del Vol baixtage Protection (LVP) threshold. Also flashes during charging if current exceeds the Screen Turn-off Current (STI).
• Aplicació àmplia: Suitable for battery charge/discharge testing, capacity monitoring in solar panels, and as a general voltage, ampere, and power meter for various DC systems.

3. Especificacions

4. Contingut del paquet

El paquet inclou els articles següents:

• DROK 2.4-inch Color LCD Monitor
• Shunt (Current Sensor)
• Funda protectora transparent
• Connection Cables (short and long)
• Clau anglesa
• Copper Lugs

5. Configuració

5.1 Esquema de cablejat

Proper wiring is crucial for accurate measurements. Refer to the diagram below for connecting the coulometer to your battery, load, and charger.

• Connecteu el B- terminal of the shunt to the negative terminal of your battery.
• Connecteu el BAT- terminal of the shunt to the negative terminal of your load (L-) and the negative terminal of your charger (C-).
• Connect the positive terminal of your battery (B+) to the positive terminal of your load (L+) and the positive terminal of your charger (C+).
• Connect the small white connector cable from the shunt to the display unit.

5.2 Configuració inicial

After wiring, configure the device settings for optimal performance. Press and hold the OK button to enter the setup menu. Use the Amunt (▲) i Avall (▼) arrows to navigate between settings. Press OK to enter a setting, use arrows to adjust values, and press OK again to confirm and exit the setting. Press and hold OK for 5 seconds to save and exit the settings menu.

1. BAT (Battery Total Capacity): Set the total capacity of your battery bank in Amp-hours (Ah). For example, for a 200Ah battery, set BAT to 200.
2. BPC (Available Capacity Percentage): Set the current state of charge percentage. If your battery is fully charged, set this to 100%. This value will be automatically adjusted by the device during operation.
3. LVP (Low Voltage Protecció): Estableix el volum baixtage alarm threshold. When the battery voltage drops below this value, the capacity will automatically clear, and the backlight may flash if LBR is enabled. For LiFePO4 batteries, a setting around 11.2V (for a 12V system) is often recommended.
4. OVP (Over Voltage Protecció): Estableix el volum màximtage value. When the battery voltage exceeds this value (e.g., during charging), the capacity will automatically fill up to 100%. For LiFePO4 batteries, 14.4V or 14.5V is typical for a 12V system.
5. CLR (Current Clear Function): If the display shows a non-zero current when no load is connected, enter this function and short press ▲ to clear the no-load current.
6. PAI (Current Clear Value): This setting helps to zero out minor current measurement errors after CLR. If the current is lower than the set PAI value, the display will show zero current. A typical value might be 0.06A.
7. STE (Screen Turn Off Time): Set the time in seconds after which the screen will automatically turn off if the working time exceeds this duration.
8. STI (Screen Turn Off Current): Set the current value. If the measured current is lower than this value, the screen will automatically turn off after the STE time. If the current rises above this value, the screen will turn back on.

6. Instruccions de funcionament

The coulometer provides various functions to monitor and manage your battery system. The display shows real-time parameters and status indicators.

• CLR (Current Clear Function): Used to zero out any residual current reading when no load is present. Access via setup menu.
• BAT (Battery Total Capacity): Configures the maximum Amp-hour capacity of the battery. Access via setup menu.
• BPC (Available Capacity Percentage): Sets or displays the current battery capacity as a percentage. Access via setup menu.
• LED (LCD Screen Backlight Brightness): Adjusts the backlight intensity from level 0-10. Access via setup menu.
• STE (Screen Turn Off Time): Sets the duration (in seconds) after which the screen will automatically turn off under low current conditions. Access via setup menu.
• STI (Screen Turn Off Current): Defines the current threshold below which the screen will turn off after the STE time. Access via setup menu.
• BKC (Screen Display Colors): Allows selection between two display color schemes: black-white and colorful. Access via setup menu.
• LAG (Language): Selects the display language (English/Chinese). Access via setup menu.
• LVP (Low Voltage Protecció): Sets the minimum voltage threshold. If voltage drops below this, capacity is cleared. Access via setup menu.
• LBR (Backlight Alarm): Toggles the backlight alarm function. When enabled, the backlight flashes if capacity is low (<20%), voltage is below LVP, or charging current is high (above STI). Access via setup menu.
• ADS (Communication Address): Used for communication settings, typically for advanced setups. Access via setup menu.
• PAI (Current Zeroing Value): Helps maintain accurate zero current readings by setting a threshold below which current is considered zero. Access via setup menu.
• OVP (Over Voltage Protecció): Estableix el volum màximtage threshold. If voltage exceeds this, capacity is set to 100%. Access via setup menu.

7. Manteniment

• Mantingueu el dispositiu net i lliure de pols. Feu servir un drap suau i sec per netejar-lo.
• Avoid exposing the device to extreme temperatures, humidity, or direct sunlight for prolonged periods.
• Ensure all connections are secure and free from corrosion. Periodically check wiring for wear or damage.
• The clear sliding cover provides protection against rain and dust; ensure it is properly installed.

8. Solució De Problemes

• Inaccurate Current Reading (Non-zero when no load): Utilitza el CLR function in the setup menu to clear the no-load current. If minor drift persists, adjust the PAI setting to a small value (e.g., 0.06A) to zero out tiny measurement errors.
• Display Not Turning Off/On Automatically: Comproveu el STE (Screen Turn Off Time) and ITS (Screen Turn Off Current) settings. Ensure STI is set appropriately for your system's idle current.
• Capacitat Percenttage Drift: Assegureu-vos el BAT (Battery Total Capacity) setting is accurate for your battery bank. Verify LVP i OVP settings are correctly configured for your battery chemistry to allow the device to recalibrate capacity at low and high voltage punts.
• Sense pantalla: Check power connections to the display unit and ensure the battery voltage is within the 8-100V operating range.
• Backlight Flashing Unexpectedly: Review el LBR (Backlight Alarm) setting. It may be flashing due to low capacity (<20%), low voltage (below LVP), or high charging current (above STI).

9. Garantia

This DROK coulometer includes a one-year warranty from the date of purchase.

10. Suport

For further assistance, technical support, or warranty claims, please contact DROK customer service through your retailer or the official DROK website. Please have your model number (200650) and purchase information ready.
