Manual d'usuari del teclat mecànic sense fil transparent LOFREE 1%

1. Introducció i finalview

The LOFREE 1% Transparent Wireless Mechanical Keyboard is a compact 68-key keyboard designed for both aesthetic appeal and high performance. Featuring a transparent PC material chassis and keycaps, it offers a unique visual experience while providing a comfortable and responsive typing experience with pre-lubed Kailh Jellyfish switches. This manual provides essential information for setting up, operating, and maintaining your keyboard.

Figure 1.1: The LOFREE 1% Transparent Wireless Mechanical Keyboard, showcasing its full transparent design and 68-key layout.

2. Característiques clau

• 1% Inspiration Design: Crafted with transparent PC material for both the chassis and keycaps, highlighting the internal craftsmanship and providing a minimalist aesthetic.
• High Transparency Keycaps: Utilizes premier PC material for keycaps, achieving 99% high transparency for a clear view of the switches and backlighting.
• Smooth Typing Experience: Equipped with pre-lubed Kailh Jellyfish Switches, featuring PC housings, transparent stems, and gold-plated springs for improved tactile feel, minimized noise, and maximized rebound.
• Durable Keycap Legends: Character legends on each keycap are processed with pad printing and UV coating to ensure non-fading and resistance to fingerprints.
• Connectivitat de mode dual: Supports both Bluetooth and USB-C wired connections, offering flexibility for various devices.
• Llarga vida útil de la bateria: Provides up to 60 hours of continuous use or up to one week of normal usage in Bluetooth mode.
• White LED Backlighting: Features white LED backlighting with 7 distinct effects for enhanced visibility and ambiance.

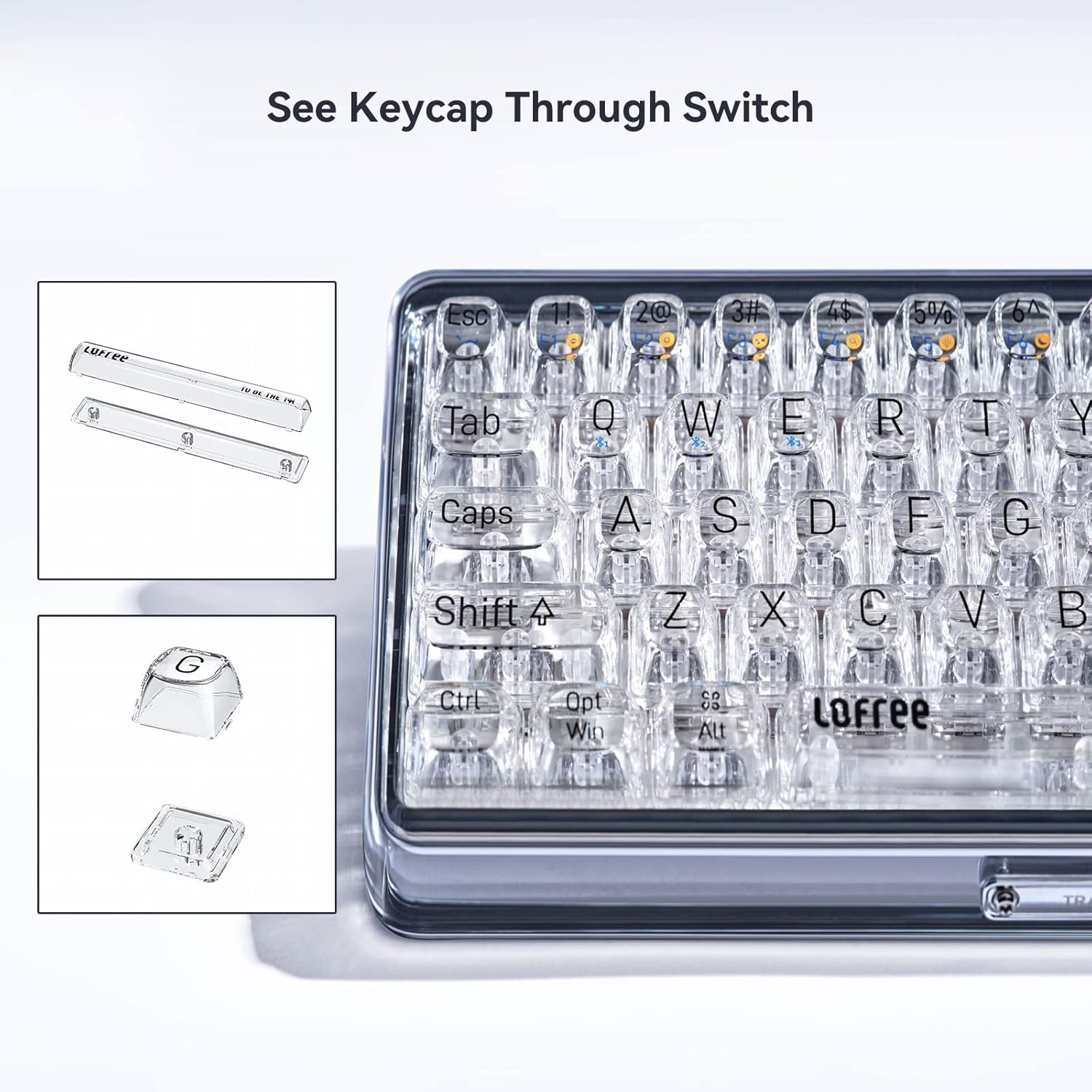

Figura 2.1: Primer pla view of the transparent keycaps and switches, demonstrating the keyboard's unique see-through design.

Figura 2.2: Detallada view of the pre-lubed Kailh BOX Jellyfish Switches, designed for smooth and quiet operation.

Figure 2.3: The keyboard illuminated by its white LED backlighting, showcasing one of the 7 available lighting effects.

Figure 2.4: The LOFREE 1% keyboard demonstrating its compatibility with various devices, including laptops, tablets, and smartphones.

3. Què hi ha a la caixa

Upon unboxing your LOFREE 1% keyboard, please ensure all the following items are present:

• LOFREE 1% Transparent Wireless Mechanical Keyboard
• Cable USB (per a càrrega i connexió amb cable)
• Manual d'usuari (aquest document)

4. Configuració

4.1 Càrrega inicial

Before first use, it is recommended to fully charge your keyboard. Connect the provided USB-C cable to the keyboard's USB-C port and the other end to a USB power source (e.g., computer USB port, wall adapter). The LED indicator will show charging status and turn off when fully charged.

4.2 Connectivitat

4.2.1 Connexió Bluetooth

1. Ensure the keyboard is powered on and in Bluetooth mode. There is typically a switch on the keyboard to toggle between wired and wireless modes.
2. Press and hold the Fn key along with one of the Bluetooth pairing keys (e.g., Fn + 1, Fn + 2, Fn + 3) to enter pairing mode. The indicator light will flash rapidly.
3. On your device (Laptop, PC, Tablet, Smartphone), go to Bluetooth settings and search for new devices.
4. Select "LOFREE 1%" from the list of available devices.
5. Follow any on-screen prompts to complete the pairing process. The indicator light on the keyboard will become solid once connected.

4.2.2 Connexió per cable

To use the keyboard in wired mode, simply connect the provided USB-C cable from the keyboard to your computer's USB port. The keyboard will automatically switch to wired mode and function without needing a Bluetooth connection. This mode also charges the keyboard's internal battery.

5. Instruccions de funcionament

5.1 Funcions clau

The LOFREE 1% keyboard features a compact 68-key layout. Many keys have secondary functions accessible via the Fn (Function) key. Refer to the keycap legends for specific combinations.

• Fn + F1-F12: Typically control multimedia functions (e.g., volume, play/pause, track skip) or system functions (e.g., brightness).
• Fn + Other Keys: May activate specific shortcuts or toggle modes as indicated by the secondary legends on the keycaps.

5.2 LED Backlight Effects

The keyboard supports 7 different white LED backlight effects. Use the designated Fn key combinations (refer to your keyboard's specific keycaps, often Fn + Right Shift or similar) to cycle through these effects or adjust brightness.

6. Manteniment

Proper maintenance ensures the longevity and performance of your LOFREE 1% keyboard.

• Neteja: Utilitzeu un drap suau i sense pelusa lleugerament dampened with water or a mild cleaning solution to wipe the keycaps and chassis. Avoid harsh chemicals or abrasive materials. For dust between keys, use compressed air.
• Emmagatzematge: Guardeu el teclat en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Eviteu líquids: While the keyboard is durable, it is not waterproof. Avoid spilling liquids on it.

7. Solució De Problemes

If you encounter issues with your LOFREE 1% keyboard, try the following solutions:

• El teclat no respon: Ensure the keyboard is charged. Try connecting via the USB-C cable to rule out battery or Bluetooth issues.
• Problemes de connexió Bluetooth: Ensure the keyboard is in pairing mode. Delete the keyboard from your device's Bluetooth list and attempt to re-pair. Ensure your device's Bluetooth is enabled and working.
• Les claus no funcionen: Check for debris under the keycaps. If a specific key is not working, it might indicate a switch issue.
• Backlight not working/dim: Ensure the keyboard is charged. Use the Fn key combinations to adjust brightness or cycle through effects.
• Lag or delay: Ensure the keyboard is close to your device for Bluetooth connection. Avoid interference from other wireless devices.

If problems persist, please refer to the manufacturer's official support channels.

8. Especificacions

9. Garantia i Suport

For information regarding warranty coverage, technical support, or service inquiries, please refer to the official LOFREE website or the documentation included with your purchase. You may also contact LOFREE customer service directly through their provided contact channels.
