Introducció
This manual provides essential information for the setup, operation, and maintenance of your Casio AP-270 CELVIANO Digital Piano. Designed to offer a natural playing feel and rich, authentic tones, this instrument combines advanced technology with elegant design. Please read this manual thoroughly to ensure proper use and to maximize your musical experience.
Què s'inclou
Your Casio AP-270 CELVIANO Digital Piano package includes the following components:
- Casio AP-270 CELVIANO Digital Piano (Brown)
- Furniture Bench
- Auriculars
- Adaptador de CA
- DVD instructiu Austin Bazaar
- Drap de polir
- Manual d'usuari (aquest document)
Image: The complete Casio AP-270 CELVIANO Digital Piano bundle, showcasing the brown digital piano, matching bench, headphones, and various instructional materials.
Característiques clau
- Multi-dimensional Morphing AiR Sound Source: This advanced sound source meticulously reproduces the rich, resonating tones inherent to a grand piano, with expanded memory for longer sampling duration and enhanced waveform data quality.
- Tri-sensor Scaled Hammer Action Keyboard II: Experience a natural playing feel that closely mimics a grand piano. The three-sensor system accurately detects key touches, replicating the unique sounding timing of an acoustic instrument.
- Simulated Ebony and Ivory Keys: The keys provide a luxurious feel and texture, along with a smooth touch. The detailed crimp surface finish helps prevent finger slippage during extended play.
- Two Legendary Grand Piano Sounds: Select between two distinct world-renowned grand piano sounds to suit various musical genres and performance environments. One offers powerful, richly reverberating performances, ideal for classical pieces, while the other provides crisp, straightforward sound, suitable for jazz and pop.
- Damper Resonance: A stereo resonance simulator on all 88 keys naturally reproduces the deep, beautiful resonance created by using a damper pedal, including the resonance from the lifting of the dampers
- Obra de concert: Features high-quality audio data recordings of 10 live orchestra performances, allowing pianists to play along and experience a magnificent performance.
- Connectivitat: Class-compliant USB connects to the Casio Music Space iOS/Android app for lessons, score viewing, and more. Includes headphone outputs for quiet practice.
Configuració
Seguiu aquests passos per configurar el vostre piano digital:
- Desembalatge: Carefully remove all components from the packaging. Ensure all items listed in the "What's Included" section are present.
- Muntatge: Assemble the digital piano cabinet and attach the keyboard unit according to the separate assembly guide provided in the box. Ensure all screws are tightened securely.
- Muntatge del banc: Assemble the furniture bench as per its instructions.
- Connexió d'alimentació: Connect the supplied AC adapter to the DC IN terminal on the piano and then plug it into a standard wall outlet.
- Auriculars: For private practice, plug your headphones into one of the 3.5mm headphone jacks located on the front of the piano.
- Connexió USB (opcional): To connect to a computer or smart device for use with the Casio Music Space app, use a standard USB cable (not included) to connect the piano's USB port to your device.

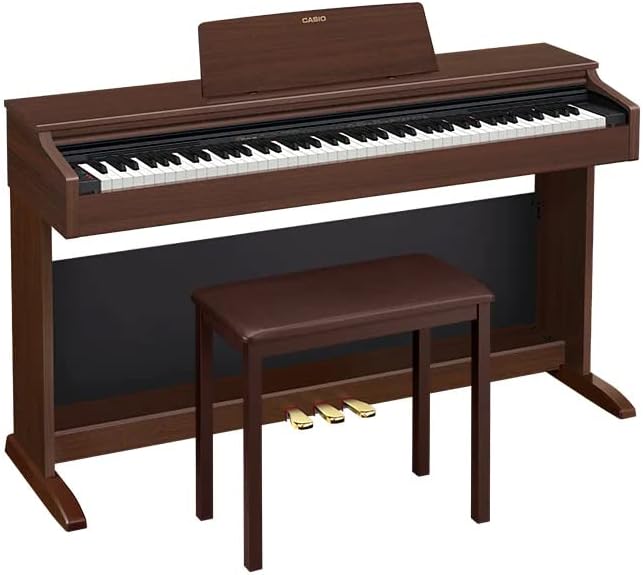

Image: A side perspective of the Casio AP-270 CELVIANO Digital Piano, highlighting its cabinet design and the accompanying bench.
Instruccions de funcionament
Encès/Apagat
- Per encendre: premeu la tecla PODER botó.
- Per apagar: premeu i manteniu premut el botó PODER botó fins que la pantalla s'apagui.
Ajust de volum
Utilitza el VOLUM knob located on the front panel to adjust the overall sound output level.
Selecció de tons
Your piano features a variety of tones, including two distinct grand piano sounds. Refer to the detailed tone list in the full user manual for specific tone selection procedures. Generally, tones are selected using dedicated buttons or a combination of function and key presses.
Using Pedals
The Casio AP-270 includes three pedals: Damper (Sustain), Soft, and Sostenuto. These function similarly to an acoustic grand piano, allowing for expressive control over your sound.
- Damper Pedal (Right): Sustains notes. The piano features advanced Damper Resonance for realistic sound.
- Soft Pedal (Left): Softens the sound.
- Sostenuto Pedal (Middle): Sustains only the notes held down at the moment the pedal is pressed.
Obra de concert
Engage the Concert Play feature to play along with pre-recorded orchestral performances. Detailed instructions for selecting and playing along with Concert Play tracks are available in the comprehensive manual.
Casio Music Space App
Enhance your learning and playing experience by connecting your piano to the Casio Music Space app via USB. The app offers interactive lessons, score viewing, and additional features. Download the app from your device's app store and follow the in-app instructions for connection.
Manteniment
- Neteja: Use the provided polishing cloth or a soft, dry cloth to wipe the piano's surface. For stubborn dirt, slightly dampen the cloth with water and wipe gently, then dry immediately. Avoid abrasive cleaners, waxes, or solvents.
- Atenció clau: Wipe the keys with a soft, dry cloth. Do not use chemical cleaners on the keys as they may damage the simulated ebony and ivory finish.
- Emmagatzematge: When not in use for extended periods, cover the piano to protect it from dust. Store in a stable environment, away from direct sunlight, extreme temperatures, and high humidity.
- Apagar: Always turn off the piano and unplug the AC adapter when not in use or during electrical storms.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No hi ha so dels altaveus/auriculars. | Volume too low; AC adapter not connected; headphones not fully inserted. | Augmentar VOLUM knob; ensure AC adapter is securely connected; re-insert headphones firmly. |
| Keys feel unresponsive or sticky. | Dust or debris under keys; environmental factors (humidity). | Gently clean around keys with a soft brush; ensure piano is in a stable environment. If problem persists, contact support. |
| Piano does not power on. | AC adapter not connected or faulty; power outlet issue. | Check AC adapter connection to piano and wall outlet; try a different power outlet. |
| El so està distorsionat o és sorollós. | Volume too high; external interference; faulty cable. | Lower volume; move piano away from other electronic devices; check headphone/audio cables. |
For issues not listed here, please refer to the comprehensive troubleshooting section in the full user manual or contact Casio customer support.
Especificacions
- Nom del model: CELVIANO
- Número de model de l'article: CAS-AP270BN-COMBO-PRO
- Nombre de claus: 88
- Tipus de teclat: Tri-sensor Scaled Hammer Action Keyboard II
- Font del so: Multi-dimensional Morphing AiR Sound Source
- Color: marró
- Dimensions del producte: 60 x 17 x 23 polzades
- Font d'alimentació: Adaptador de CA
- Presa per a auriculars: Jack de 3.5 mm
- Tecnologia de connectivitat: Auxiliar, USB
- Programari compatible: Casio Music Space
- Nivell d'habilitat: Principiant
- Franja d'edat: Adult
Garantia i Suport
Per obtenir informació detallada sobre la garantia, consulteu la targeta de garantia inclosa amb el producte o visiteu el lloc web oficial de Casio. website. Casio provides comprehensive support for its products.
- Online Lessons: Register on the Casio website to unlock one free month of access to Playground Sessions, offering step-by-step lessons for learning your favorite songs.
- Aplicació Casio Music Space: Utilize the Casio Music Space app for additional learning resources and interactive features.
- Atenció al client: For technical assistance or service inquiries, please contact Casio customer support through their official weblloc web o la informació de contacte que es proporciona a la documentació del producte.
Always ensure you are using official Casio resources for support and information.
