SCUBAPRO R105 Octopus Instruction Manual

1. Introducció

The SCUBAPRO R105 Octopus is a reliable secondary regulator designed for dependable breathing performance in various diving conditions. It features a classic downstream valve design, a dive/pre-dive VIVA switch, and a reversible hose attachment for versatile use. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your R105 Octopus.

Please read this manual thoroughly before using the product. Proper understanding and adherence to these instructions are crucial for your safety and the longevity of the equipment.

2. Informació de seguretat

ADVERTIMENT: Diving with compressed air is inherently dangerous and requires proper training and certification. This equipment should only be used by certified divers who have received appropriate instruction on its use and maintenance.

• Always perform a thorough pre-dive safety check on all your equipment, including the R105 Octopus, before every dive.
• Ensure all connections are secure and free from leaks.
• Never attempt to service or repair the regulator yourself beyond the scope described in this manual. Refer to an authorized SCUBAPRO technician for all repairs and annual servicing.
• Familiarize yourself with the operation of the dive/pre-dive switch before entering the water.
• The R105 Octopus is intended as a secondary air source. Always have a primary regulator and an alternative air source readily available.
• Esbandiu bé el regulador amb aigua fresca després de cada ús.

Failure to follow these safety guidelines can result in serious injury or death.

3. Producte acabatview

The SCUBAPRO R105 Octopus is engineered for reliability and ease of use as an alternate air source. Key features include:

• Classic Downstream Valve: Provides consistent and dependable breathing performance.
• Metal Valve Housing: Enhances durability and overall reliability of the unit.
• Reversible Hose Attachment: Allows for flexible configuration on either the left or right side, making it suitable for pony or deco tanks.
• High-Visibility Yellow Super-Flow Hose: A 39-inch (1-meter) long hose with an oversized bore to maximize airflow during inhalation, easily identifiable in emergencies.
• Compact Hi-Flow Mouthpiece: Designed to improve airflow and provide comfort for various mouth sizes.
• Dive/Pre-Dive VIVA Switch: Prevents free-flow when not in use and optimizes breathing performance during a dive.

Figure 3.1: The SCUBAPRO R105 Octopus, showing the yellow hose, regulator body, and attachment clip.

4. Configuració

Proper setup of your R105 Octopus is crucial for safe diving. Follow these steps:

1. Attach to First Stage: Connect the yellow super-flow hose of the R105 Octopus to an available low-pressure port on your first stage regulator. Ensure the connection is finger-tight and secure. Do not overtighten.
2. Dirigiu la mànega: Route the hose in a manner that allows for easy deployment and access by you or a buddy in an emergency. The long, yellow hose is designed for this purpose.
3. Secure the Octopus: Use the provided clip or a suitable alternative to secure the R105 Octopus to your BCD (Buoyancy Control Device) in a highly visible and easily accessible location, typically on the chest area.
4. Comprovació prèvia a la immersió: Before each dive, pressurize your system and test the R105 Octopus. Breathe from it to ensure it delivers air smoothly. Check for any leaks around the hose connections or the regulator body.

Figure 4.1: Detail of the R105 Octopus mouthpiece and the VIVA switch, indicating the 'DIVE' position.

5. Funcionament

The R105 Octopus is designed for straightforward operation as an alternate air source.

• Pre-Dive/Surface Use (Pre-Dive Position): When the regulator is not in use or you are on the surface, set the VIVA switch to the "Pre-Dive" position. This minimizes the chance of free-flow, especially when entering the water or if the regulator is dropped.
• Underwater Use (Dive Position): Before descending or if you need to use the octopus underwater, rotate the VIVA switch to the "Dive" position. This optimizes airflow and breathing performance.
• Respiració: When needed, place the mouthpiece in your mouth and breathe normally. The classic downstream valve design ensures smooth and consistent air delivery.
• Neteja: To clear water from the regulator, press the purge button located on the front cover, or exhale sharply into the mouthpiece.

Figura 5.1: Frontal view of the R105 Octopus, highlighting the purge button and the SCUBAPRO logo.

6. Manteniment

Proper maintenance extends the life of your R105 Octopus and ensures its reliable performance.

• Esbandida: After every dive, thoroughly rinse the entire regulator in fresh, clean water. Ensure the dust cap is securely in place on the first stage (if still attached) to prevent water from entering the first stage. Depress the purge button several times while rinsing to flush out any salt or debris from inside the second stage.
• Assecat: Allow the regulator to air dry completely in a shaded, well-ventilated area, away from direct sunlight. Do not use heat to dry.
• Emmagatzematge: Store the R105 Octopus in a cool, dry place, away from chemicals, solvents, and extreme temperatures. Avoid kinking the hose during storage.
• Servei periòdic: Your SCUBAPRO R105 Octopus requires periodic professional servicing by an authorized SCUBAPRO technician. Refer to your SCUBAPRO dealer for recommended service intervals, typically annually or every 100 dives, whichever comes first.
• Inspecció: Regularly inspect the hose for cracks, cuts, or bulges. Check the mouthpiece for tears or damage. Replace any damaged components immediately.

7. Solució De Problemes

This section addresses common issues you might encounter with your R105 Octopus. For problems not listed here, or if solutions do not resolve the issue, contact an authorized SCUBAPRO service center.

8. Especificacions

Detailed specifications for the SCUBAPRO R105 Octopus:

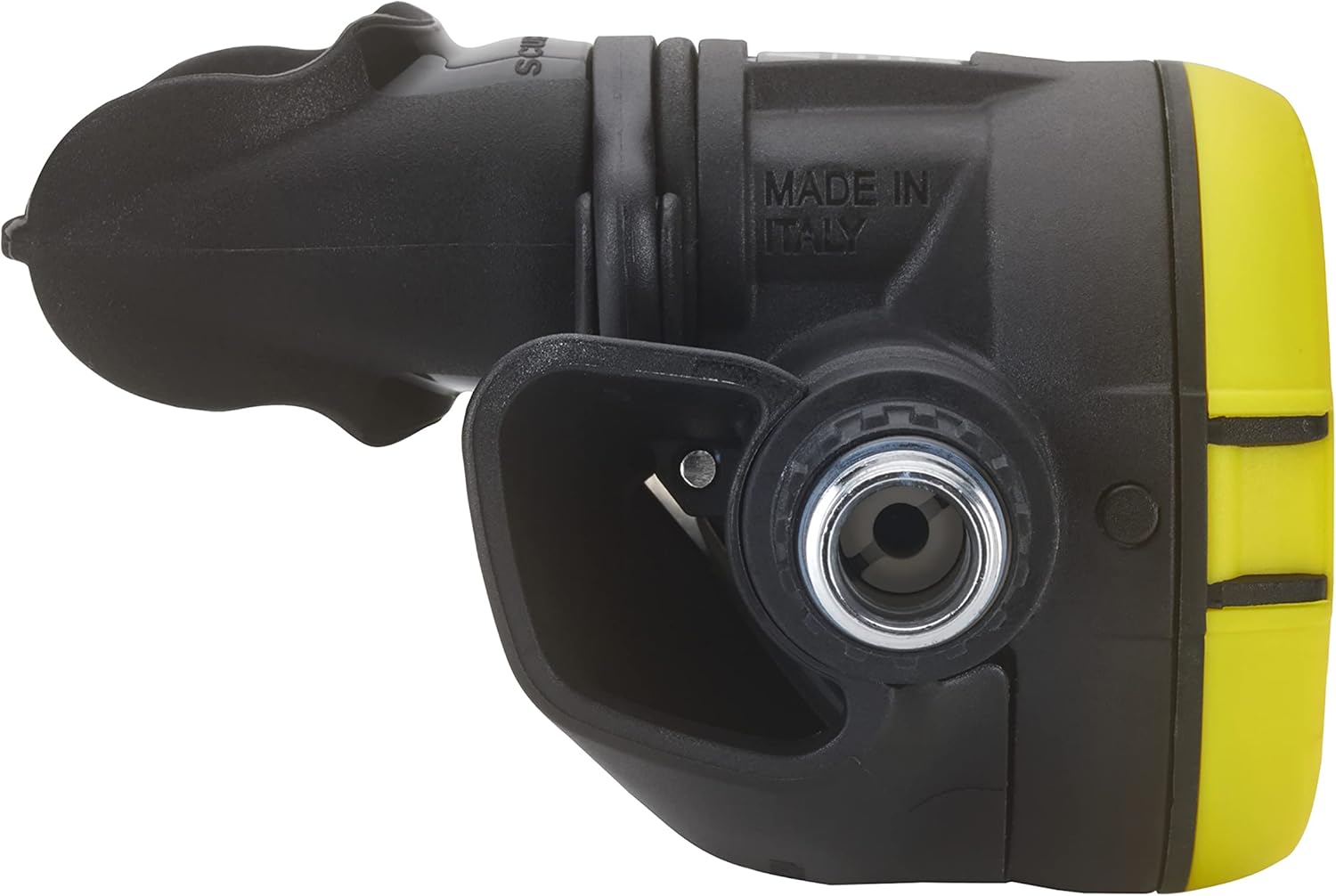

Figura 8.1: lateral view of the R105 Octopus, showing the hose attachment and manufacturing details.

9. Informació de la garantia

The SCUBAPRO R105 Octopus comes with a limited warranty. For specific details regarding the terms, conditions, and duration of your warranty, please refer to the warranty card included with your product or visit the official SCUBAPRO weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

10. Atenció al client

If you have any questions, require technical assistance, or need to arrange for service, please contact your authorized SCUBAPRO dealer or visit the official SCUBAPRO weblloc web per a recursos d'atenció al client.

SCUBAPRO Official Weblloc: www.scubapro.com

Always ensure that any service or repairs are performed by certified SCUBAPRO technicians to maintain product integrity and warranty validity.
