1. Introducció
This manual provides essential instructions for the safe assembly, operation, and maintenance of your ModernLuxe Triple Bunk Bed. Please read all instructions carefully before assembly and use. Retain this manual for future reference.
Informació important de seguretat:
- Seguiu sempre les instruccions de muntatge amb precisió.
- Assegureu-vos que totes les connexions siguin segures abans de fer-les servir.
- La llitera de dalt no és adequada per a nens menors de 6 anys.
- No permeteu saltar al llit.
- Use only mattresses of the specified size.
2. Característiques del producte
The ModernLuxe Triple Bunk Bed is designed to maximize space and provide comfortable sleeping arrangements for up to three individuals. Key features include:
- Triple Bed Configuration: Accommodates three single beds (90 x 200 cm) in a vertical arrangement.
- Construcció d'alta qualitat: Made from durable pine wood for stability and longevity.
- Disseny per estalviar espai: Utilizes vertical space efficiently, ideal for smaller rooms or multiple occupants.
- Disseny convertible: Can be configured as a triple bunk bed, a twin-over-twin bunk bed with a separate single bed, or three individual single beds.
- Seguretat millorada: Features high guardrails on the top and middle bunks, fixed for security. The bottom bed is designed to be close to the floor for added safety.
- Integrated Ladders: Two built-in ladders provide safe access to the middle and top bunks.
- Slat Support System: Strong slatted bases eliminate the need for a box spring or foundation.
Image: The ModernLuxe Triple Bunk Bed fully assembled with mattresses and bedding, showcasing its three-tier design.
3. Dimensions
Refer to the diagram below for detailed product dimensions. All measurements are in centimeters (CM).
Image: A technical diagram illustrating the dimensions of the ModernLuxe Triple Bunk Bed, including height, width, and length measurements for each section and ladder.
- Longitud total: 204 cm
- Amplada total: 103.7 cm
- Alçada total: 193.5 cm
- Mattress Size (each bed): 90 x 200 cm (not included)
- Height between bottom and middle bunk: 66 cm
- Height between middle and top bunk: 66 cm
4. Configuració (instruccions de muntatge)
Assembly of the ModernLuxe Triple Bunk Bed requires two adults. Please ensure you have sufficient space and all components before beginning. The package includes all necessary hardware and a detailed step-by-step instruction manual. Follow the provided manual for specific assembly steps.
4.1 Desembalatge i preparació
- Carefully unpack all components and hardware.
- Verify that all parts listed in the separate assembly guide are present.
- Col·loqueu els components sobre una superfície suau i neta per evitar ratllades.
4.2 Passos de muntatge
- Begin by assembling the base frames for each bed according to the separate instruction manual.
- Attach the side rails and support slats for the bottom bed.
- Proceed to assemble the middle bed frame, ensuring guardrails are correctly oriented.
- Attach the middle bed frame to the upright posts.
- Assemble the top bed frame and attach it to the upper section of the upright posts.
- Securely attach both integrated ladders.
- Tighten all bolts and screws using the provided tools. Do not overtighten.

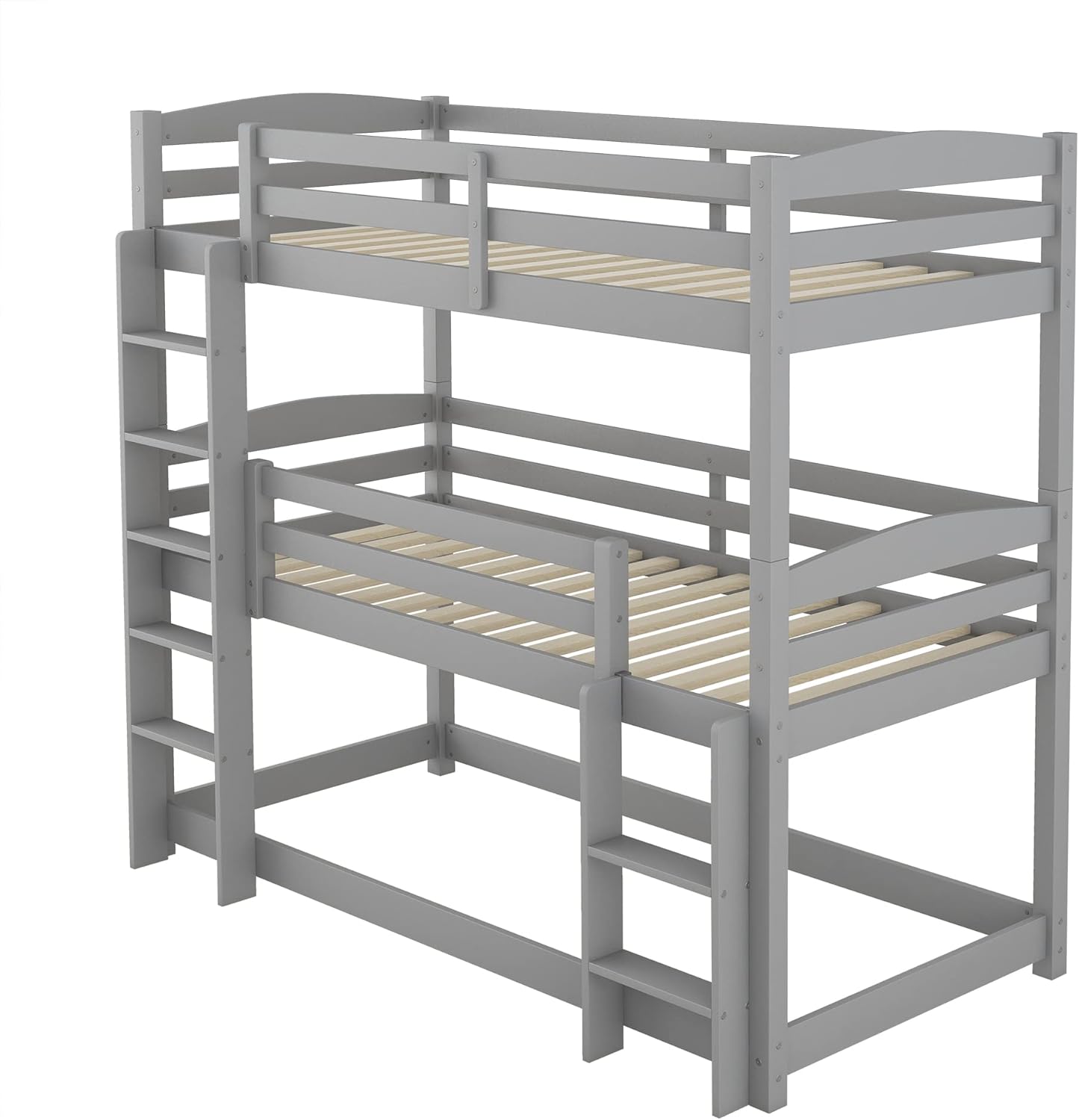

Image: The ModernLuxe Triple Bunk Bed frame shown without mattresses, highlighting the sturdy wooden construction and integrated ladders.

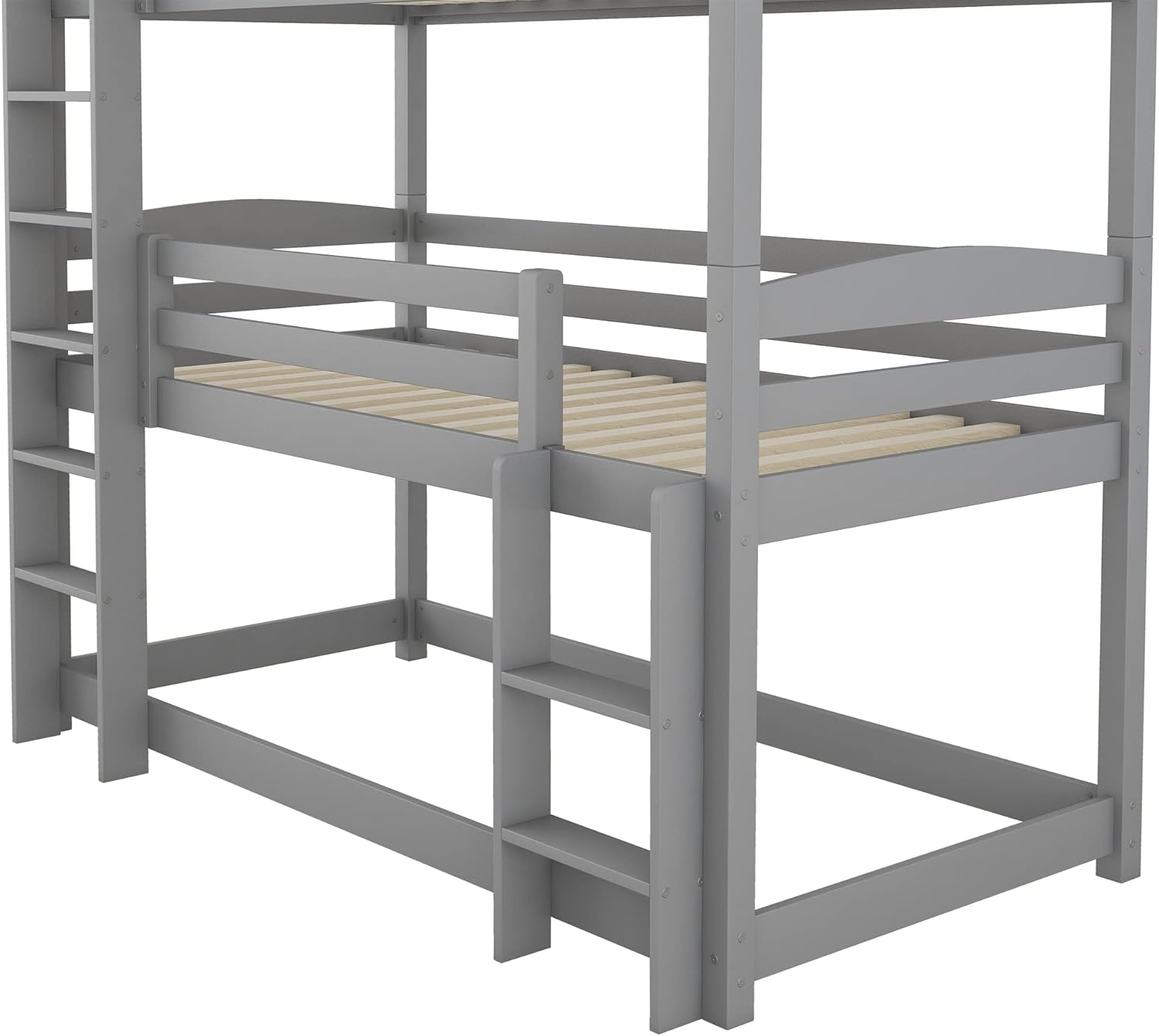

Imatge: Un primer pla view of the middle and bottom sections of the bunk bed, showing the slatted base and the lower ladder access.
5. Instruccions de funcionament
This triple bunk bed offers versatile sleeping arrangements. Ensure all users understand the safety guidelines.
5.1 Safety Guidelines for Use
- Always use the integrated ladders for access to the middle and top bunks. Do not climb on the side rails.
- Ensure guardrails are always in place on the top and middle bunks.
- Do not attach or hang items from any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, or jump ropes.
- Periodically check and ensure that the guardrail, ladder, and other components are in their proper position and that all connectors are tight.
- Prohibit more than one person on the top or middle bunk at any time.
5.2 Opcions de configuració
The ModernLuxe Triple Bunk Bed can be configured in several ways to suit your needs:
- Triple Bunk Bed: The standard configuration, providing three stacked single beds.
- Bunk Bed with Separate Single Bed: The top and middle beds can form a traditional bunk bed, while the bottom bed can be used as a standalone single bed.
- Three Separate Single Beds: The entire structure can be disassembled into three individual single beds.
Image: The bunk bed configured as a twin-over-twin bunk bed alongside a separate single bed, demonstrating its versatility.

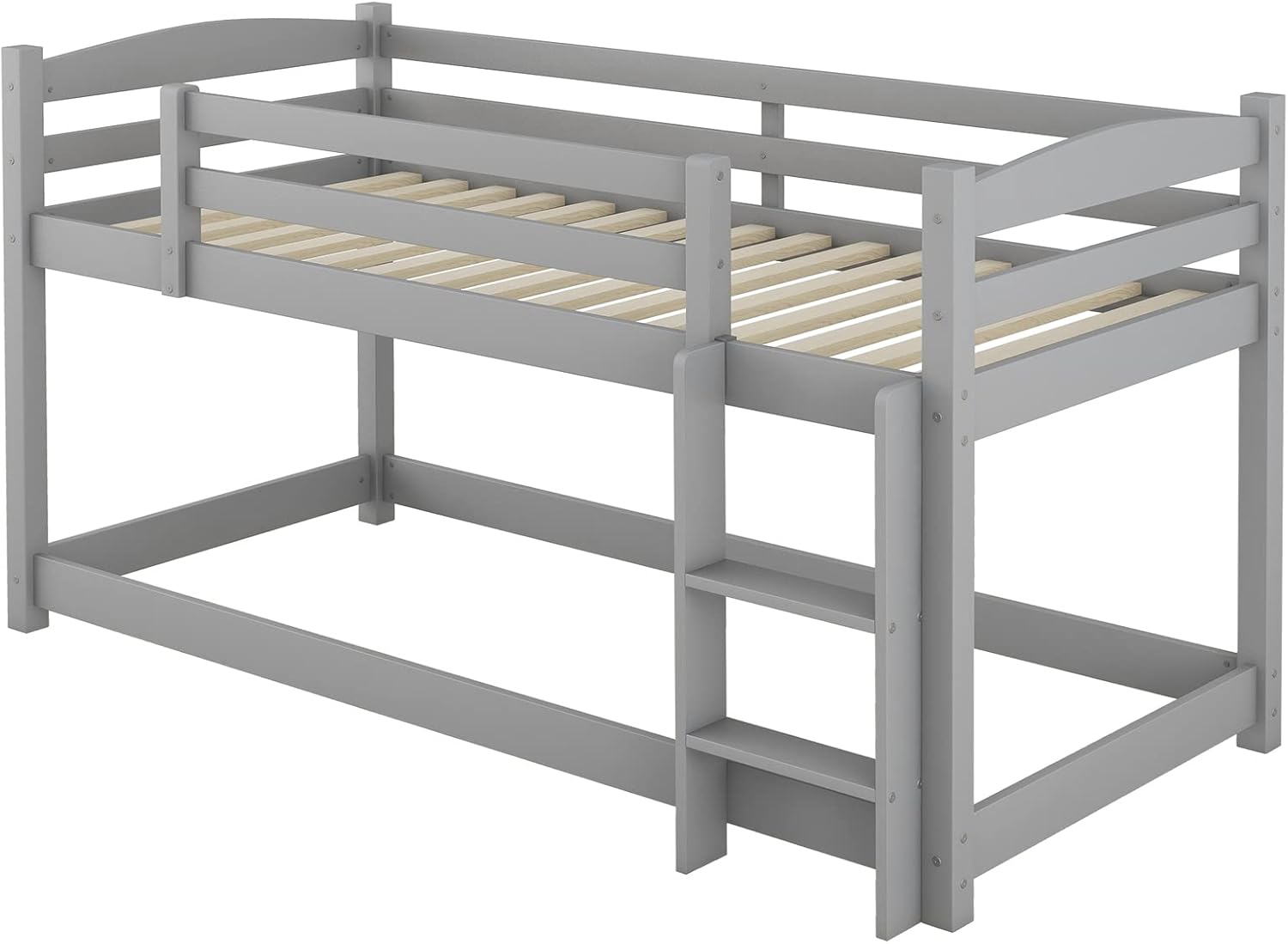

Image: The ModernLuxe bunk bed in a two-tier configuration, suitable for two users.
6. Manteniment
Proper maintenance will ensure the longevity and safety of your ModernLuxe Triple Bunk Bed.
6.1 Neteja
- Netegeu les superfícies de fusta amb un drap suauamp tela.
- Eviteu utilitzar productes químics agressius, netejadors abrasius o poliments que puguin danyar l'acabat.
- Dry immediately with a clean cloth to prevent water marks.
6.2 Comprovacions periòdiques
- Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections.
- Tighten any loose hardware to maintain structural integrity. Do not overtighten.
- Check for any signs of wear, damage, or splintering in the wood. Address any issues promptly.
7. Solució De Problemes
Si teniu algun problema amb el vostre llit de dues places, consulteu els següents problemes i solucions habituals:
- Problema: The bed feels wobbly or unstable.
Solució: Check all assembly bolts and screws. Ensure they are fully tightened. Verify that the bed is placed on a flat, level surface. - Problema: Sorolls de grinyols.
Solució: Squeaking often indicates loose connections. Re-tighten all hardware. You may also apply a small amount of paraffin wax or silicone spray to the joints where wood meets wood, or where metal hardware connects. - Problema: Difficulty assembling a specific part.
Solució: Refer to the detailed assembly manual provided with the product. Ensure you are using the correct hardware for each step. If issues persist, contact customer support.
8. Especificacions
| Especificació | Detall |
|---|---|
| Marca | ModernLuxe |
| Número de model | 02 |
| ASIN | B0BS8D62RK |
| Material | Fusta de pi |
| Color | Gris |
| Dimensions totals (L x A x A) | 204 cm x 103.7 cm x 193.5 cm |
| Mida de matalàs recomanada | 90 x 200 cm (each bed) |
| Maximum Weight Recommendation (each bed) | 56 quilograms (aprox. 123.2 lliures) |
| Pes de l'article | 56 quilograms (aprox. 123.2 lliures) |
| Muntatge obligatori | Sí |
| Data de primera disponibilitat | 17 de gener de 2023 |
9. Garantia i Suport
ModernLuxe products are manufactured to high standards. For specific warranty information, please refer to the documentation included with your purchase or contact the retailer where the product was purchased.
If you require assistance with assembly, have questions about product use, or need to report a missing or damaged part, please contact ModernLuxe customer support. Have your model number (02) and purchase details ready when contacting support.
Contact information can typically be found on the packaging or the retailer's weblloc.
