1. Introducció
This manual provides instructions for the assembly, operation, and maintenance of your Lionel Silver Bells Express Toy Train Set. This battery-powered model train set is designed for children aged 4 years and up, offering an engaging and interactive experience with authentic train sounds, lights, and remote control functionality.
Image 1: The Lionel Silver Bells Express Toy Train Set in its entirety.
2. Informació de seguretat
ADVERTÈNCIA: PERILL D'ASFIXIA - Peces petites. No apte per a nens menors de 3 anys.
- Es requereix assemblea d'adults.
- Mantingueu les peces petites allunyades dels nens petits.
- Ensure all track pieces are securely connected to prevent derailment.
- No barregeu piles velles i noves. No barregeu piles alcalines, estàndard (carboni-zinc) o recarregables (níquel-cadmi).
- Remove batteries from the train and remote control when not in use for extended periods.
3. Què hi ha a la caixa
Your Lionel Silver Bells Express Toy Train Set includes the following components:
- 1 x Battery-Powered Steam Locomotive
- 1 x Tender
- 1 x Silver Bell Ornament (removable, sits on tender)
- 1 x Passenger Coach Car
- 1 x Observation Car
- 24 peces de pista de plàstic corbades
- 8 peces de pista de plàstic recte
- 1 x comandament a distància sense fil
Image 2: All included components of the train set.
4. Configuració
4.1. Muntatge de la via
The track system allows for three different layouts. Connect the track pieces by aligning the connectors and pressing them firmly together until they click into place. Ensure all connections are secure to prevent the train from derailing.
- Oval Layout: Use all 24 curved and 8 straight pieces to create a 73.2 x 50-inch oval.
- Circle Layout: Use 16 curved pieces to create a 47.75-inch circle.
- Rounded Square Layout: Use 24 curved and 8 straight pieces to create a 53 x 53-inch rounded square.
Image 3: Various track layouts possible with the included pieces.
4.2. Instal·lació de la bateria
The train set requires (6) C Cell batteries for the locomotive and (3) AAA Alkaline batteries for the remote control. Batteries are not included.
- Locate the battery compartment on the underside of the locomotive and the back of the remote control.
- Using a Phillips head screwdriver (not included), open the battery compartment cover.
- Introduïu les piles, assegurant-vos de la polaritat correcta (+/-) tal com s'indica a l'interior del compartiment.
- Col·loqueu la coberta i fixeu-la amb el cargol.
Image 4: Battery compartment for the locomotive.
4.3. Connexió de vagons de tren
Connect the train cars using the fixed knuckle couplers. Gently push the cars together until the couplers interlock. Ensure all cars are securely connected before placing the train on the track.

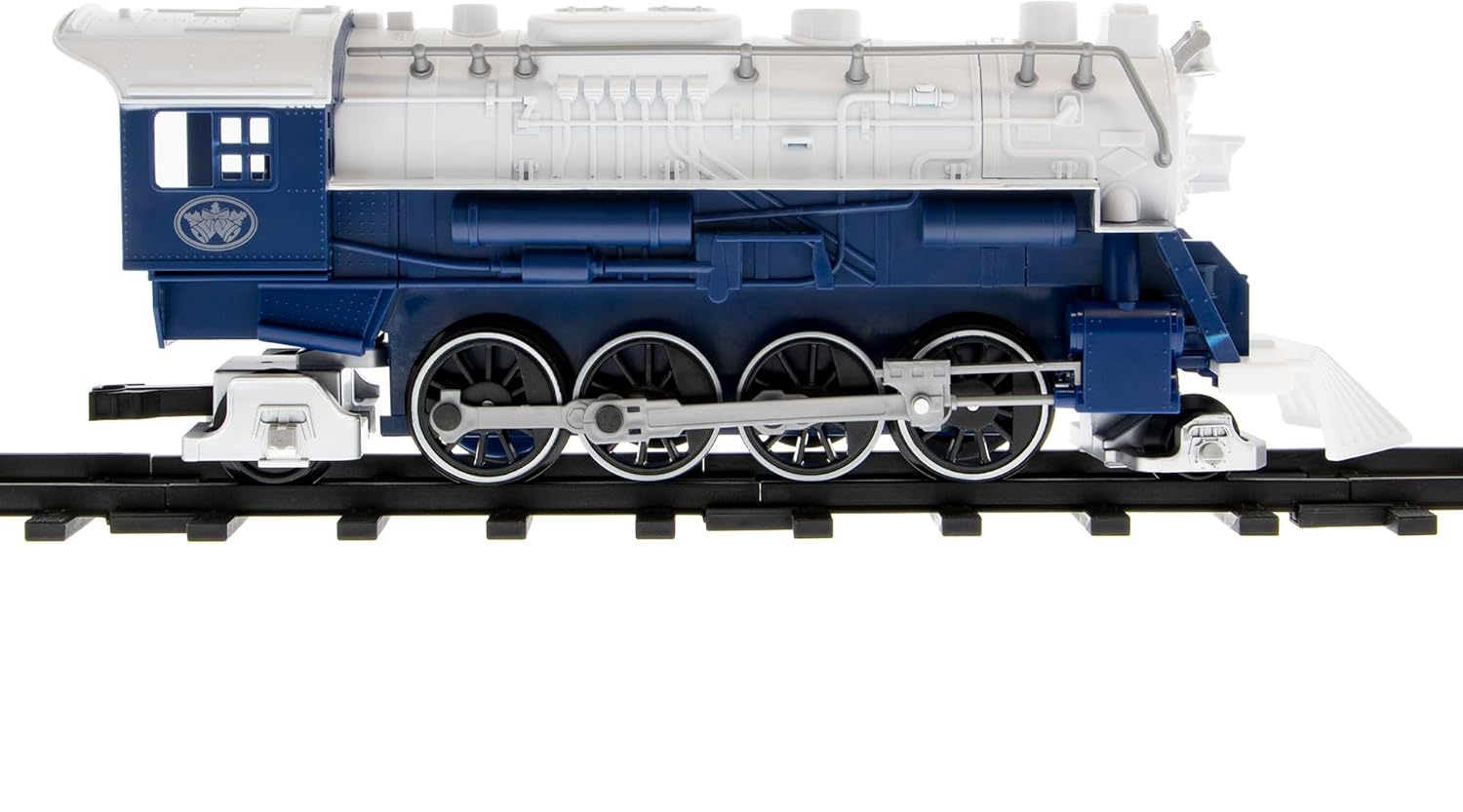

Image 5: The Steam Locomotive.
Image 6: The Tender with the removable Silver Bell Ornament.
Image 7: A Passenger Coach Car.
Image 8: An Observation Car.
5. Instruccions de funcionament
5.1. Funcions de control remot
The train is controlled by a wireless remote control. Familiarize yourself with the remote's buttons:
- Control de direcció: A large dial or switch typically controls forward and reverse movement.
- Control de velocitat: Adjust the speed of the train using the designated control.
- Botó de campana: Activates the authentic bell sound.
- Botó de xiulet: Activates the authentic whistle sound.
- Special Announcements Button: Triggers various announcements.
Image 9: The Wireless Remote Control.
Image 10: Remote control functions for sounds.
5.2. Engegar el tren
- Place the assembled train cars securely on the track.
- Ensure batteries are correctly installed in both the locomotive and the remote control.
- Turn on the power switch on the locomotive (usually located on the underside or side).
- Engegueu el comandament a distància.
- Use the direction control on the remote to start the train moving forward or in reverse.
The locomotive features a working headlight for enhanced realism.
5.3. Vídeo oficial del producte
Watch this official product video from Lionel LLC for a demonstration of the Silver Bells Express Toy Train Set in action:
Video 1: Official demonstration of the Lionel Silver Bells Express Toy Train Set, showcasing les seves característiques i funcionament.
6. Manteniment
- Neteja: Wipe the train and track pieces with a soft, dry cloth to remove dust and debris. Do not use harsh chemicals or abrasive cleaners.
- Cura de la bateria: Remove batteries from the train and remote control when not in use for extended periods to prevent leakage and damage.
- Emmagatzematge: Store the train set in its original packaging or a suitable container in a dry, cool place to protect it from dust and damage.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El tren no es mou. |
|
|
| El tren descarrila amb freqüència. |
|
|
| Sounds or lights not working. |
|
|
8. Especificacions
| Característica | Detall |
|---|---|
| Dimensions del producte | 22 x 4 x 18.9 polzades |
| Pes de l'article | 6.55 lliures |
| Número de model | 712091 |
| Edat recomanada pel fabricant | 4 anys i més |
| Piles necessàries | 6 C batteries (locomotive), 3 AAA batteries (remote) - Not included |
| Opcions de disseny de la pista | Circle, Oval, Rounded Square |
| Característiques | Battery-powered steam locomotive, working headlight, fixed knuckle couplers, wireless remote control, authentic train sounds (bell, whistle, special announcements), removable Silver Bell Ornament. |
9. Garantia i Suport
For warranty information or customer support, please refer to the manufacturer's official weblloc web o contacteu directament amb el seu servei d'atenció al client. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
Fabricant: Lionel
