INGCO SDS Plus Hammer Drill Bit Set (10 PCS)

1. Introducció

Thank you for choosing the INGCO SDS Plus Hammer Drill Bit Set. This set provides a range of durable drill bits designed for efficient drilling in masonry, concrete, and other hard materials when used with an SDS Plus rotary hammer drill. Please read this manual carefully before use to ensure safe and effective operation and to prolong the life of your drill bits.

This manual contains important information regarding the proper installation, operation, maintenance, and troubleshooting of your drill bit set.

2. Informació de seguretat

Always observe basic safety precautions when using power tool accessories. Failure to do so may result in serious injury or damage to the product.

• Utilitzeu equips de protecció individual (EPI): Always wear safety glasses, hearing protection, and gloves when operating a hammer drill with these bits.
• Inspeccioneu les broques abans d'usar-les: Check drill bits for any signs of damage, cracks, or excessive wear. Do not use damaged bits.
• Peça de treball segura: Assegureu-vos que el material que es perfora estigui ben fixatamppremut o subjectat per evitar el moviment durant el funcionament.
• Utilitzeu la broca correcta per al material: These SDS Plus bits are specifically designed for masonry and concrete. Using them on other materials may cause damage to the bit or workpiece.
• Eviteu el sobreescalfament: Allow the drill bit to cool periodically during extended use. Excessive heat can reduce bit life and performance.
• Desconnecteu l'alimentació: Always disconnect the hammer drill from the power source before changing bits or performing any maintenance.

3. Producte acabatview

The INGCO SDS Plus Hammer Drill Bit Set includes 10 pieces of various sizes, featuring an SDS Plus shank type for quick and secure insertion into compatible rotary hammer drills. These bits are constructed for durability and efficient material removal.

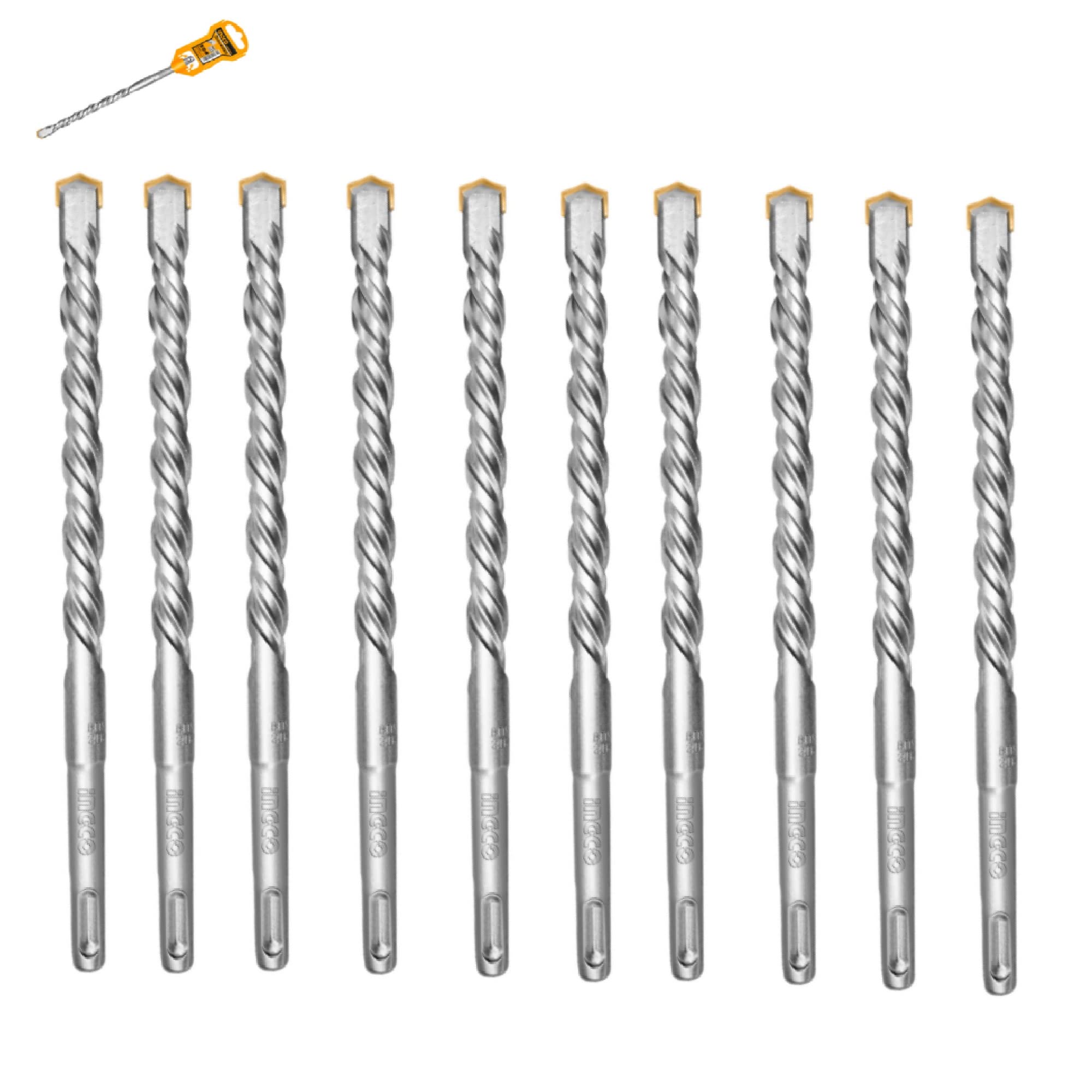

Figure 1: INGCO SDS Plus Hammer Drill Bit Set. This image displays the complete set of ten drill bits, showcasing their SDS Plus shanks and spiral flute design, ready for use with a rotary hammer drill.

4. Configuració

Follow these steps to properly install an SDS Plus drill bit into your rotary hammer drill:

1. Assegureu-vos que l'alimentació estigui apagada: Disconnect the hammer drill from the power supply to prevent accidental startup.
2. Canya neta: Wipe the SDS Plus shank of the drill bit clean to remove any dust or debris. A small amount of grease can be applied to the shank for smoother insertion and removal, and to reduce wear.
3. Bit d'inserció: Push the SDS Plus drill bit firmly into the chuck of the hammer drill. You should feel a click as the bit locks into place.
4. Verifica el bloqueig: Pull on the drill bit to ensure it is securely seated and locked in the chuck. SDS Plus bits are designed to have a slight amount of play (movement) once installed; this is normal and allows for the hammering action.

5. Instruccions de funcionament

Proper operation ensures efficiency and safety:

1. Seleccioneu el mode: Set your rotary hammer drill to the appropriate mode (hammer drilling for masonry/concrete).
2. Marca el punt de perforació: Clearly mark the exact spot where you intend to drill.
3. Comença lentament: Begin drilling at a slow speed to create a pilot indentation, preventing the bit from wandering.
4. Aplicar una pressió constant: Once the bit has started, apply steady, firm pressure. Allow the hammer action to do the work; excessive force is not required and can damage the bit or drill.
5. Neteja els residus: Periodically withdraw the bit slightly from the hole to allow dust and debris to escape, especially in deep holes.
6. Mantenir el control: Always maintain a firm grip on the hammer drill and be prepared for torque reactions.

6. Manteniment

Regular maintenance helps extend the life of your drill bits:

• Neteja: After each use, clean the drill bits to remove dust, debris, and any residue. A wire brush can be effective for cleaning the flutes.
• Lubricació: Apply a thin layer of light oil or grease to the SDS Plus shank periodically to prevent rust and ensure smooth operation within the drill chuck.
• Emmagatzematge: Store the drill bits in their original case or a suitable container to protect them from damage and corrosion. Keep them in a dry environment.
• Inspecció: Regularly inspect the carbide tip for wear or damage. A dull or chipped tip will reduce drilling efficiency and can cause overheating. Replace worn bits promptly.

7. Solució De Problemes

Problemes comuns i les seves solucions:

• La broca no perfora eficaçment:
  • Check if the hammer drill is set to the hammer drilling mode.
  • Inspect the drill bit tip for wear or damage. A dull tip will not cut efficiently.
  • Ensure sufficient pressure is applied, but do not force the drill.
• Bit Getting Stuck in Hole:
  • Retireu la broca periòdicament per eliminar les restes del forat.
  • Ensure the drill is held straight and not at an angle.
  • If stuck, try rotating the bit manually or gently wiggling it while pulling. Do not use excessive force.
• Vibracions o sorolls excessius:
  • Check if the bit is properly seated in the chuck.
  • Inspeccioneu la broca per si hi ha doblegaments o danys.

8. Especificacions

9. Informació de la garantia

This INGCO product is manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty documentation provided with your purchase or visit the official INGCO website. Warranty coverage typically applies to manufacturing defects and does not cover normal wear and tear, misuse, or damage caused by improper operation.

10. Atenció al client

If you have any questions, require technical assistance, or need to report an issue with your INGCO SDS Plus Hammer Drill Bit Set, please contact INGCO customer support. Contact details can typically be found on the product packaging or the official INGCO weblloc.
