Vente-unique RAVENA Sliding Glass Partition User Manual

1. Introducció

This manual provides essential information for the safe and correct installation, operation, and maintenance of your Vente-unique RAVENA Sliding Glass Partition. Please read these instructions thoroughly before assembly and use, and retain them for future reference.

The RAVENA sliding glass partition is designed to elegantly divide interior spaces while maximizing natural light. It features a robust powder-coated aluminum frame and durable tempered glass panels, offering a functional and aesthetic solution for various room configurations.

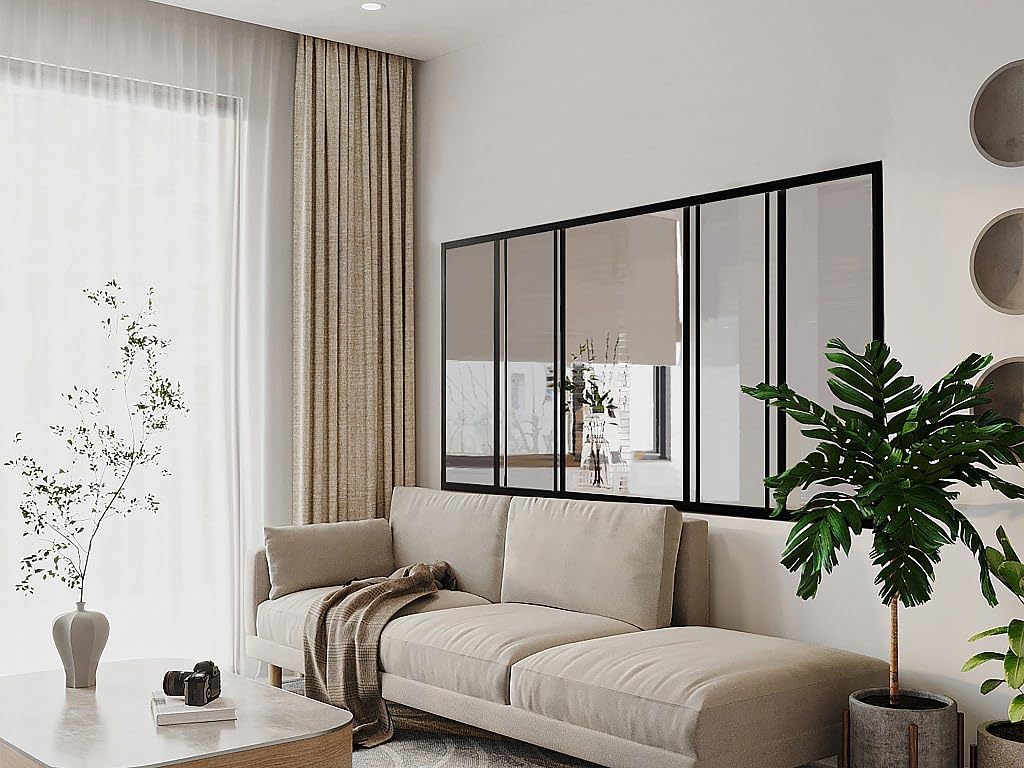

Image 1.1: The RAVENA sliding glass partition seamlessly integrated into a living room setting, demonstrating its ability to divide space while maintaining an open feel.

2. Informació de seguretat

Seguretat general:

• Always handle glass panels with care. Tempered glass is strong but can shatter if struck forcefully at the edges.
• Wear appropriate personal protective equipment (PPE) during installation, including safety gloves and eye protection.
• Ensure the installation area is clear of obstructions and that the floor is stable.
• Mantingueu els nens i les mascotes allunyats de la zona d'instal·lació.

Seguretat de la instal·lació:

• This product requires assembly. Follow all steps in the installation guide precisely.
• Ensure the wall structure is capable of supporting the weight of the partition (approximately 23.6 kg). The minimum wall thickness required is 6 mm.
• Use appropriate tools and ensure they are in good working condition.
• It is recommended that two or more people assist with the installation due to the size and weight of the components.

3. Contingut del paquet

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact Vente-unique customer support.

• Paquet 1: Approximately 113 cm (Length) x 39 cm (Width) x 12 cm (Height), Weight: 21 kg. Contains glass panels and smaller frame components.
• Paquet 2: Approximately 180 cm (Length) x 8 cm (Width) x 8 cm (Height), Weight: 2 kg. Contains main aluminum rails.
• Assembly hardware (screws, connectors, rollers)
• Manual d'instruccions

4. Especificacions

Image 4.1: Technical drawing illustrating the key dimensions of the RAVENA partition, including overall length (1800mm), height (1050mm), depth (35mm), and sliding opening width (510mm).

5. Configuració i instal·lació

The RAVENA sliding glass partition is designed for self-assembly. For optimal safety and performance, professional installation is recommended. Ensure you have all necessary tools before starting.

5.1 Comprovacions prèvies a la instal·lació

• Unpack all components and check against the package contents list.
• Inspect all parts for any damage. Do not proceed with installation if components are damaged.
• Confirm the installation surface (wall, floor, ceiling) is level, structurally sound, and meets the minimum wall thickness requirement of 6 mm.

5.2 Passos de muntatge (General Over)view)

1. Assemble the main aluminum frame according to the detailed diagrams provided in the separate assembly guide.
2. Install the top and bottom rails securely to the designated wall/ceiling and floor areas. Ensure they are perfectly level and aligned to allow smooth sliding.
3. Carefully insert the tempered glass panels into the frame and secure them as per the instructions.
4. Attach the sliding mechanisms (rollers) to the bottom of the sliding panels and guide them into the bottom rail.
5. Install any remaining decorative or functional elements, such as handles or termination posts (e.g., BAYVIEW posts for end-of-wall installations, sold separately).

Image 5.1: Detail of the bottom rail and roller system, crucial for the smooth operation of the sliding panels.

Image 5.2: A closer look at the upper part of the sliding mechanism, showing how the panels are guided along the top rail.

6. Funcionament

The RAVENA partition features a smooth sliding mechanism for easy opening and closing. To operate:

• Grasp the edge or handle of the sliding glass panel.
• Gently push or pull the panel along the top and bottom rails.
• Avoid forcing the panel if it encounters resistance. Check for obstructions in the rails.
• Ensure the panel is fully closed or open to prevent accidental movement.

Image 6.1: A user demonstrating the smooth sliding operation of a glass panel.

7. Manteniment

Regular maintenance will ensure the longevity and appearance of your RAVENA sliding glass partition.

7.1 Cleaning the Glass Panels

• Use a soft, lint-free cloth and a standard glass cleaner.
• Avoid abrasive cleaners or scouring pads, which can scratch the glass surface.
• Wipe the glass dry immediately after cleaning to prevent water spots.

7.2 Cleaning the Aluminum Frame

• Wipe the aluminum frame with a soft cloth dampacabat amb aigua i sabó suau.
• Do not use harsh chemicals, solvents, or abrasive cleaners, as these can damage the powder-coated finish.
• Dry the frame thoroughly to prevent water marks.

7.3 Rail and Roller Maintenance

• Periodically inspect the top and bottom rails for any debris (dust, dirt, pet hair) that might impede smooth sliding.
• Clean the rails using a vacuum cleaner with a narrow attachment or a damp tela.
• Check the rollers for smooth movement. If they become stiff, a small amount of silicone-based lubricant can be applied, avoiding oil-based lubricants that attract dust.

8. Solució De Problemes

This section addresses common issues you might encounter with your RAVENA sliding glass partition.

8.1 Panel Does Not Slide Smoothly

• Comproveu si hi ha obstruccions: Inspect the top and bottom rails for any debris. Clean the rails thoroughly.
• Lubricació: Apply a small amount of silicone spray lubricant to the rollers and inside the rails.
• Alineació: Ensure the rails are properly aligned and level. If not, re-adjust according to the installation guide.

8.2 Glass Panel Appears Loose

• Comproveu els elements de fixació: Verify that all screws and fasteners securing the glass panels within the aluminum frame are tight. Do not overtighten.
• Frame integrity: Ensure the overall frame structure is rigid and properly assembled.

8.3 Scratches on Glass or Frame

• Minor scratches on glass may be reduced with specialized glass scratch repair kits, but deep scratches may require professional attention or panel replacement.
• Scratches on the powder-coated aluminum frame can sometimes be touched up with appropriate paint, but prevention through careful handling is best.

9. Garantia i Suport

For specific warranty details, please refer to the purchase documentation or contact Vente-unique customer service directly. Information regarding the availability of spare parts is currently not provided.

If you require further assistance, have questions about installation, or need to report a defect, please contact Vente-unique customer support through their official channels. You can often find contact information on the Vente-unique website or your purchase invoice.

For more information about Vente-unique products, visit their official store: Vente-unique Store on Amazon.
