Mont Alpi MAi805-D90KEGFC Deluxe L-shaped Outdoor Kitchen Island User Manual

1. Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Mont Alpi MAi805-D90KEGFC Deluxe L-shaped Outdoor Kitchen Island. Please read all instructions carefully before assembly and use. Retain this manual for future reference.

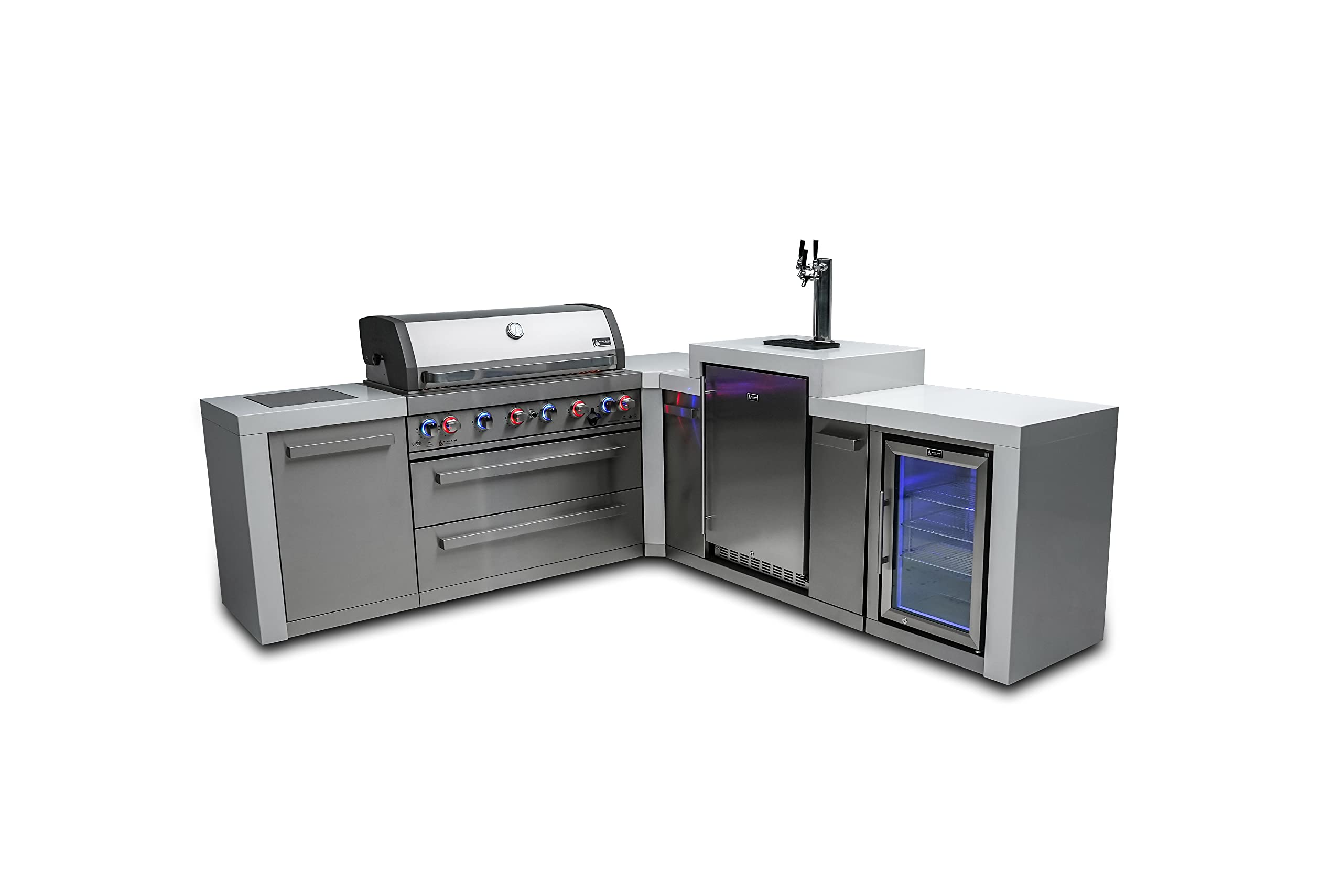

Figura 1: Mésview of the Mont Alpi MAi805-D90KEGFC Deluxe L-shaped Outdoor Kitchen Island.

2. Informació de seguretat

Always prioritize safety when operating any outdoor cooking appliance. Failure to follow these instructions could result in fire, explosion, or burn hazard, which could cause property damage, personal injury, or death.

• Només per a ús exterior: This appliance is designed for outdoor use only. Do not operate indoors.
• Ventilació: Ensure adequate ventilation around the unit. Do not obstruct airflow.
• Liquidació: Maintain proper clearance from combustible materials. Refer to local codes for specific requirements.
• Fuites de gas: Comproveu regularment si hi ha fuites de gas amb una solució d'aigua i sabó. No utilitzeu mai una flama oberta per comprovar si hi ha fuites.
• Nens i animals de companyia: Keep children and pets away from the appliance during operation and while it is hot.
• Superfícies calentes: Surfaces can become extremely hot. Use heat-resistant gloves and tools.
• Seguretat elèctrica: Ensure all electrical connections are properly grounded and protected from weather.

3. Producte acabatview i Característiques

The Mont Alpi MAi805-D90KEGFC is a deluxe L-shaped outdoor kitchen island constructed from 304 stainless steel, designed for durability and resistance to outdoor elements. It features a comprehensive cooking and entertainment setup.

3.1 Island Components

• Construcció: Made from 304 heavy-duty stainless steel with white granite countertops and waterfall sides.
• Mobilitat: Equipped with gliding castor wheels for easy movement and increased stability.
• Emmagatzematge: Large soft-closing drawers underneath the grill and storage shelves in the 90-degree corner cart.
• Tauler posterior: Fully covered back with strategically placed vents and access holes for 110V power cords.

3.2 Grill System

• Cremadors: Six tubular stainless steel high-efficiency main burners and a rear height-adjustable ceramic infrared rotisserie burner, producing 115,000 BTUs.
• Cremador lateral: A 16" x 14" ceramic infrared side burner for searing, pan frying, and boiling.
• Zona de cuina: Generous cooking area of 38" x 18" (990 square inches total including side burner).
• Reixes: 8mm stainless steel cooking grids and flame tamers/heat plates.
• Caputxa: Double-lined grill hood with a temperature gauge for heat retention.
• Il·luminació: Two cooking surface halogen lights and color-changing knob lights (blue when off, red when on).
• Encesa: Electronic ignition system.
• Neteja: Easy access full front pull-out grease tray.

Figure 2: Key features of the grill, including rotisserie, temperature gauge, sear plates, and illuminated knobs.

Figure 3: The infrared side burner offers powerful, controllable heat for versatile cooking.

3.3 Kegerator Module

• Capacitat: 3-tap kegerator dispenser, accommodating up to 3 slim kegs.
• Control de temperatura: Digital LED display and intuitive controls for precise temperature management.
• Versatilitat: Includes a ball valve with male and female thread for dispensing soft drinks, seltzers, and other beverages. Can also function as a refrigerator.
• Característiques: Granite top finish matching the outdoor kitchen island, convenient door ajar alarm function.

3.4 unitat de refrigeració

• Construcció: Outdoor-rated MAF compact refrigerator made with heavy-duty 304 stainless steel.
• Visibilitat: Stylish glass door for easy viewing of contents and interior LED blue lighting.
• Emmagatzematge: Adjustable shelves for various item sizes.
• Seguretat: Lockable door to secure contents.
• Dimensions: 18.5"W x 17.5"D x 27"H.

Figura 4: Interior view of the refrigerator unit, showing adjustable shelves and blue LED lighting.

3.5 Accessoris inclosos

• 120V 4-Watt heavy-duty electric motor rotisserie kit (holds up to 25 lbs).
• White granite chopping board.
• Matching 90-degree corner cart with storage shelves.
• Waterproof outdoor-rated weather cover.
• Bottle opener.

3.6 Fuel Conversion

The grill comes ready for propane use with a hose and regulator. It can be converted to natural gas. All Mont Alpi grills include both propane and natural gas orifices. To convert, remove the propane orifices on each burner and use the natural gas hose and regulator (conversion kit sold separately).

4. Configuració

The Mont Alpi outdoor kitchen island arrives largely pre-assembled. Modular attachment is required for the L-shaped configuration. The 90-degree corner (MA90C) cart requires assembly.

4.1 Desembalatge i col·locació

1. Carefully unpack all components and inspect for any shipping damage.
2. Choose a level, stable outdoor location with adequate clearance from combustible materials.
3. Lock the castor wheels to secure the units in place.

4.2 Modular Assembly

1. Assemble the 90-degree corner cart according to the separate instructions provided with that unit.
2. Align the main grill unit, kegerator unit, and other modules as desired for the L-shaped configuration.
3. Secure the modules together using the provided attachment hardware.

4.3 Connexions de gas i electricitat

1. Propà: Connect the propane hose and regulator to a certified propane tank. Ensure all connections are tight.
2. Natural Gas (if converted): If converting to natural gas, ensure the conversion is performed by a qualified technician. Connect the natural gas line according to local codes.
3. Elèctrica: Plug the 110V power cords for the rotisserie, lights, kegerator, and refrigerator into grounded outdoor-rated outlets.

Figure 5: Dimensional diagram of the MAi805-D series, showing overall width, depth, and height.

5. Instruccions de funcionament

5.1 Funcionament de la graella

1. Lighting Main Burners: Open the grill hood. Turn the desired burner knob to the 'HIGH' position and press the electronic ignition button until the burner ignites. Repeat for other burners.
2. Control de temperatura: Adjust burner knobs to achieve desired cooking temperature. The temperature gauge on the hood provides an internal reading.
3. rostit: Secure food onto the rotisserie spit. Insert the spit into the motor and turn on the rotisserie motor. Use the rear infrared burner for even cooking.
4. Cremador lateral: Open the side burner lid. Turn the knob to 'HIGH' and ignite. Adjust flame as needed.
5. Llums internes: Use the dedicated switch to turn on the internal halogen lights for better visibility.
6. Llums de pom: The control knobs illuminate blue when off and red when on, indicating active burners.

5.2 Kegerator and Refrigerator Operation

1. Encès: Ensure both units are plugged into a grounded 110V outlet.
2. Configuració de la temperatura: Use the digital LED display and controls on the kegerator to set the desired temperature. The refrigerator also has temperature control settings.
3. Carregant: Load kegs into the kegerator and beverages/food into the refrigerator. Ensure proper airflow around items.
4. Dispensing (Kegerator): Connect the tap system to the kegs. Pull the tap handle to dispense.
5. Alarma de porta: The kegerator features a door ajar alarm function.
6. Porta amb pany: Use the provided key to lock the refrigerator door for security.

6. Manteniment

Regular cleaning and maintenance will ensure the longevity and optimal performance of your outdoor kitchen.

6.1 Cleaning the Grill

• Reixes: After each use, while the grill is still warm, brush the cooking grates with a wire brush.
• Safata de greix: Regularly empty and clean the pull-out grease tray to prevent grease fires.
• Exterior: Clean stainless steel surfaces with a stainless steel cleaner and a soft cloth. Wipe in the direction of the grain.
• Cremadors: Periodically inspect burner ports for blockages and clean as necessary.

6.2 Kegerator and Refrigerator Care

• Interior: Clean the interior with a mild detergent and water. Rinse thoroughly and dry.
• Exterior: Wipe down stainless steel and glass surfaces with a soft cloth and appropriate cleaner.
• Bobines del condensador: Periodically clean the condenser coils to ensure efficient operation.

6.3 Atenció general

• Granite Countertops: Clean with a mild soap and water solution. Avoid abrasive cleaners.
• Weather Cover: Use the provided weather cover when the unit is not in use to protect it from the elements.
• Hivernització: In colder climates, follow proper winterization procedures for gas lines and refrigeration units.

7. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar. Per a problemes que no figuren aquí, poseu-vos en contacte amb l'atenció al client.

8. Especificacions

9. Garantia i Suport

9.1 Garantia limitada de per vida

Mont Alpi offers a limited lifetime warranty on all products, demonstrating commitment to quality and customer satisfaction. Specific limitations apply; refer to the warranty card included with your product for full details.

Figure 6: Mont Alpi Lifetime Warranty emblem.

9.2 Atenció al client

For any questions, concerns, or assistance with your Mont Alpi outdoor kitchen, please contact customer support. Contact information can be found on the Mont Alpi official weblloc web o la documentació de la compra.
