Introducció
These DBPOWER Smart Jump Starter Clamps are designed as a replacement or upgrade for compatible DBPOWER 12V car jump starters. They feature an integrated LCD screen for real-time voltage display and incorporate multiple protection systems to ensure safe and reliable operation during vehicle jump-starting.
Safety Information and Protection Systems
The intelligent jumper clamps are equipped with 8 protection systems to prevent common misoperations and ensure user safety. Always follow these guidelines when using the clamps.
Imatge: This diagram illustrates the eight built-in protection systems: Surge Voltage Protection, Overcurrent Protection, Reverse Polarity Protection, High Temperature Protection, High Voltage Protection, Short Circuit Protection, Over Discharge Protection, and Reverse Connection Protection. These features safeguard both the user and the vehicle's battery.
- Surge Voltage Protecció: Prevents damage from sudden voltage pics.
- Protecció contra sobreintensitat: Guards against excessive current flow.
- Protecció de polaritat inversa: Alerta i impedeix l'operació si clampestan connectats incorrectament als terminals de la bateria.
- Protecció d'alta temperatura: Shuts down operation if the unit overheats.
- Vol. Alttage Protecció: Protects against overvoltage condicions.
- Protecció contra curtcircuits: Evita danys per curtcircuits accidentals.
- Protecció per sobre descàrrega: Protects the jump starter battery from being excessively drained.
- Protecció de connexió inversa: Ensures correct connection to the vehicle battery.
Característiques del producte
- Pantalla LCD: Mostra el volum de la bateria en temps realtage, eliminating the need for a separate voltmeter.
- Material durador: Constructed with high-quality ABS material and full copper cables for stable and insulated performance.
- Seguretat millorada: Upgraded design for improved protection and reliability compared to older models.
Imatge: This image highlights the upgraded material design and the integrated LCD display of the DBPOWER Smart Jumper Clamp, contrasting it with a generic clamp lacking these features.

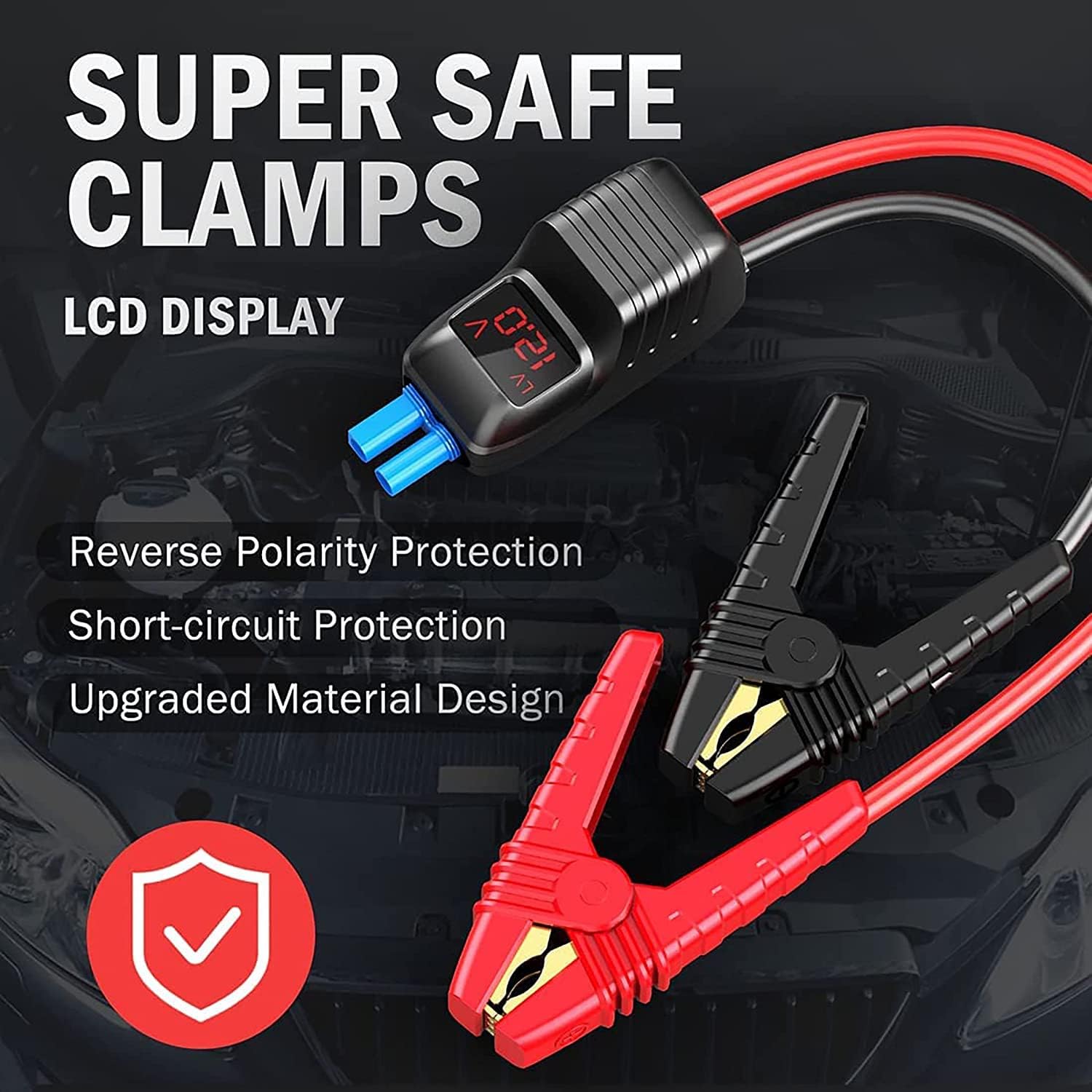

Imatge: Un detallat view of the DBPOWER Smart Jumper Clamps, emphasizing the LCD display and the robust construction designed for reverse polarity and short-circuit protection.
Compatibilitat
These smart jumper clamps are specifically designed to be compatible with the following DBPOWER 12V car jump starter models:
- DBPOWER DJS80
- DBPOWER G15
- DBPOWER G16
Imatge: This image shows the DBPOWER Smart Jumper Clamps connected to different compatible DBPOWER jump starter units, including models DJS80, G15, and G16, demonstrating their intended use.
Instruccions de funcionament
Steps to Jump Start Your Car
- Connect to the Jump Starter: Inseriu el connector blau del llamp intel·ligentamps into the corresponding port on your DBPOWER jump starter. Ensure a secure connection.
- Connectar Clamps a la bateria del cotxe: Connecteu el cl vermell positiu (+)amp to the positive (+) terminal of the car battery. Attach the black negative (-) clamp to the negative (-) terminal of the car battery. The LCD screen on the clamps will display the battery voltage.
- Start the Car Engine: Un cop el clamps are correctly connected and the jump starter is ready (refer to your jump starter's manual for specific indicators), start your car's engine.
- Retireu el Clamps: After the car engine starts, immediately remove the clamps from the car battery, first the black negative (-) clamp, then the red positive (+) clamp. Disconnect the clamps de l'arrencada de salt.
Imatge: This visual guide demonstrates the four steps for jump starting a car: 1. Connect the clamps to the jump starter. 2. Connect the clamps to the car battery. 3. Start the car engine. 4. Remove the clamps.
LCD Display Indicators and Troubleshooting
The integrated LCD screen provides important feedback during operation. Observe the display for status and error messages.
Imatge: This image displays the LCD screen of the smart clamps, showing various indicators such as current voltage (e.g., 13.0V), and error codes like LV (Low Voltage), HV (High Voltage), RC (Reverse Charge), SC (Short Circuit), HT (High Temperature), and Overload. These indicators assist in diagnosing issues during jump-starting.
| Indicador | Significat | Acció |
|---|---|---|
| Voltage Display (e.g., 12.0V) | Vol actualtage de la bateria del vehicle. | Proceed with jump start if voltage is low but within acceptable range for jump starting. |
| LV (Low Voltage) | Vol. De la bateria del vehicletage és massa baixa. | Ensure jump starter is fully charged. Check battery connections. |
| HV (Vol. alttage) | Vol. De la bateria del vehicletage és massa alta. | Do not attempt to jump start. Consult a mechanic. |
| RC (Reverse Charge) | Indicates reverse charging or incorrect connection. | Comproveu clamp connections to battery terminals. Ensure red is to positive (+), black to negative (-). |
| SC (Short Circuit) | A short circuit has been detected. | Desconnecteu immediatament el clamps. Inspect cables and terminals for damage or improper contact. |
| HT (High Temperature) | El clamps or jump starter are overheating. | Disconnect and allow the unit to cool down before attempting further use. |
| Sobrecàrrega | Excessive current draw detected. | Ensure the vehicle's electrical system is not drawing too much power. Consult vehicle manual. |
Especificacions
| Característica | Detall |
|---|---|
| Número de model | F15A |
| Voltage | 12 Volts |
| Pes de l'article | 231 g |
| Material | High-quality ABS, Copper |
| UPC | 840164806472 |
| Compatible Jump Starters | DBPOWER DJS80, G15, G16 |
Manteniment i emmagatzematge
- Mantingueu el clamps clean and dry. Wipe off any dirt, oil, or battery acid residue after each use.
- Inspeccioneu els cables i el clamps regularly for any signs of damage, fraying, or corrosion. Do not use if damaged.
- Emmagatzemar el clamps in a cool, dry place, away from direct sunlight and extreme temperatures.
- Assegureu-vos que el clamps are disconnected from the jump starter and vehicle battery when not in use.
Atenció al client
For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your original DBPOWER jump starter unit or visit the official DBPOWER weblloc.
