Monster DNA Max Portable Bluetooth Speaker User Manual

Introducció

This manual provides essential information for the safe and efficient operation of your Monster DNA Max Portable Bluetooth Speaker. Please read this manual thoroughly before using the product and retain it for future reference.

Figure 1: Monster DNA Max Portable Bluetooth Speaker with Wireless Charging Pad.

The Monster DNA Max is a portable Bluetooth speaker designed for immersive audio experiences, featuring 360-degree sound and a 10W Qi certified wireless charging pad. It is built for both indoor and outdoor use with an IP67 waterproof and dustproof rating.

Contingut del paquet

Assegureu-vos que tots els elements siguin presents al paquet:

• Monster DNA Max Portable Bluetooth Speaker
• Coixinet de càrrega sense fil
• Cable de càrrega
• Manual d'usuari (aquest document)

Configuració

Càrrega inicial

Before first use, fully charge your Monster DNA Max speaker.

1. Connect the charging cable to the Wireless Charging Pad.
2. Connect the other end of the charging cable to a suitable power source (e.g., USB wall adapter, computer USB port).
3. Place the Monster DNA Max speaker onto the Wireless Charging Pad. Ensure the speaker is properly aligned for optimal charging.
4. The charging indicator on the speaker will illuminate to show charging status. A full charge provides up to 13 hours of playback.

Figure 2: Wireless Qi Charging capability for the speaker and other compatible devices.

The included 10W Qi Certified Charging Pad allows for convenient wireless charging of your speaker or other Qi-compatible devices like smartphones.

Emparellament Bluetooth

Per connectar l'altaveu a un dispositiu amb Bluetooth:

1. Power on the Monster DNA Max speaker.
2. L'altaveu entrarà automàticament en mode d'emparellament Bluetooth, cosa que s'indicarà amb un llum LED intermitent.
3. Al dispositiu (telèfon intel·ligent, tauleta, etc.), activeu el Bluetooth i cerqueu els dispositius disponibles.
4. Select "Monster DNA Max" from the list of found devices.
5. Un cop connectat, l'altaveu emetrà una confirmació audible i el LED s'il·luminarà fixament.

Nota: The speaker supports Bluetooth Dual Pairing, allowing connection to up to two source devices simultaneously.

Instruccions de funcionament

Controls bàsics

The Monster DNA Max features intuitive touch controls on its top panel.

• Botó d'encesa: Mantingueu premut per activar o desactivar l'altaveu.
• Puja el volum (+): Premeu per augmentar el volum.
• Baixar el volum (-): Premeu per reduir el volum.
• Botó Reproduir/Pausa: Premeu per reproduir o posar en pausa l'àudio.
• Botó Bluetooth: Press and hold to enter pairing mode, or short press to disconnect/reconnect.

Party Mode (Multi-Speaker Sync)

Synchronize your music with up to 99 other Monster DNA speakers for an expansive audio experience.

1. Ensure all speakers are charged and powered on.
2. Connect your primary device to one Monster DNA speaker via Bluetooth. This will be the "Master" speaker.
3. On the Master speaker, activate Party Mode (refer to specific button combination in quick start guide if available, otherwise assume a dedicated button or long press of Bluetooth button).
4. On the other Monster DNA speakers (Slave speakers), activate Party Mode. They will automatically search for and connect to the Master speaker.
5. Once connected, audio played on the Master speaker will be synchronized across all connected Slave speakers.

Figure 3: Multiple Monster DNA speakers synchronized in Party Mode for a wider soundstage.

Party Mode allows you to connect up to 99 Monster DNA speakers for a synchronized audio experience, ideal for larger gatherings or outdoor events.

Omnidirectional Audio

The Monster DNA Max is engineered with four internal, uniformly positioned speaker drivers to deliver 360-degree immersive sound. This design ensures consistent audio quality regardless of the speaker's placement in a room or outdoor setting.

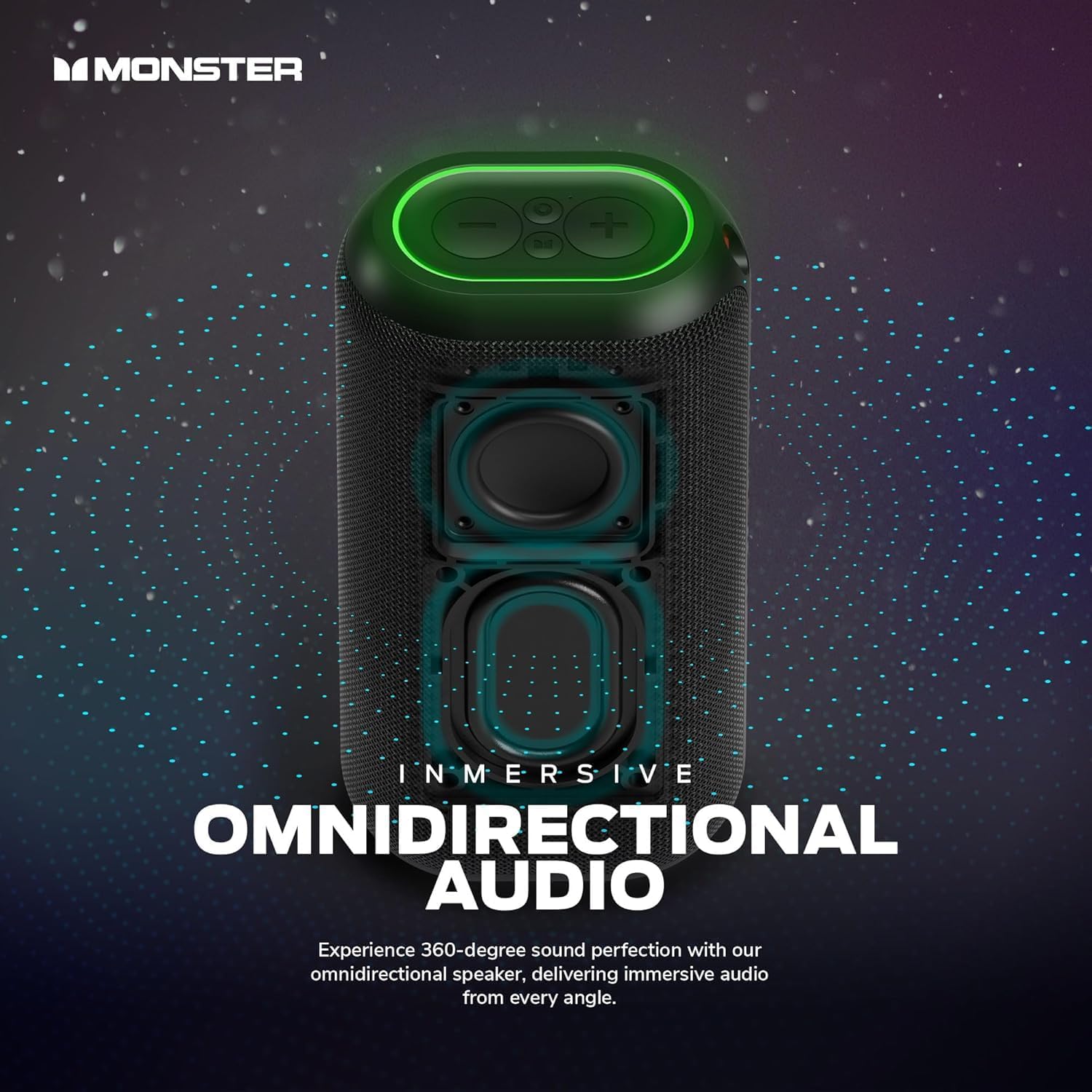

Figure 4: Internal speaker configuration for 360-degree omnidirectional sound.

The speaker's design ensures sound is projected evenly in all directions, providing an immersive listening experience from any angle.

Manteniment

Neteja

To clean your speaker, use a soft, dry, lint-free cloth. Do not use abrasive cleaners, alcohol, or chemical solvents, as these may damage the surface.

Resistència a l'aigua i a la pols (IP67)

The Monster DNA Max has an IP67 rating, meaning it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for up to 30 minutes.

• Ensure all ports and covers are securely closed before exposing the speaker to water or dust.
• After exposure to water, wipe the speaker dry with a clean cloth before charging or opening any ports.
• No submergiu l'altaveu intencionadament durant períodes prolongats ni més enllà de la profunditat especificada.

Figure 5: The IP67 rating ensures the speaker is suitable for use near water, such as pools or beaches.

The IP67 rating provides robust protection against dust and water, making the speaker ideal for various outdoor environments.

Resolució de problemes

Especificacions

Informació de la garantia

The Monster DNA Max Portable Bluetooth Speaker comes with a Limited Warranty. Please refer to the warranty card included in your product packaging for detailed terms and conditions, including coverage period and claim procedures. Retain your proof of purchase for warranty service.

Suport

For technical support, customer service, or further inquiries regarding your Monster DNA Max speaker, please visit the official Monster weblloc web o poseu-vos en contacte amb la seva línia d'atenció al client.

• Oficial Weblloc: www.monsterproducts.com
• Fabricant: Lifeworks Technology, Inc
