Introducció
The Monster DNA One Portable Bluetooth Speaker is designed to deliver immersive 360-degree sound in a compact, durable package. Featuring IP67 waterproof and dustproof rating, a 10W wireless charging pad, and up to 13 hours of battery life, it is ideal for both indoor and outdoor use. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your speaker.
Image: The Monster DNA One speaker, black, standing upright on its wireless charging pad, which emits a blue glow. This illustrates the speaker's design and charging capability.
Què hi ha a la caixa
- Monster DNA One Portable Bluetooth Speaker
- Coixinet de càrrega sense fil
- Cable de càrrega
Configuració
1. Càrrega inicial
Before first use, fully charge your Monster DNA One speaker. Place the speaker onto the included wireless charging pad. Connect the charging cable to the pad and a suitable power source (e.g., USB wall adapter, computer USB port). The indicator light on the speaker will show charging status.

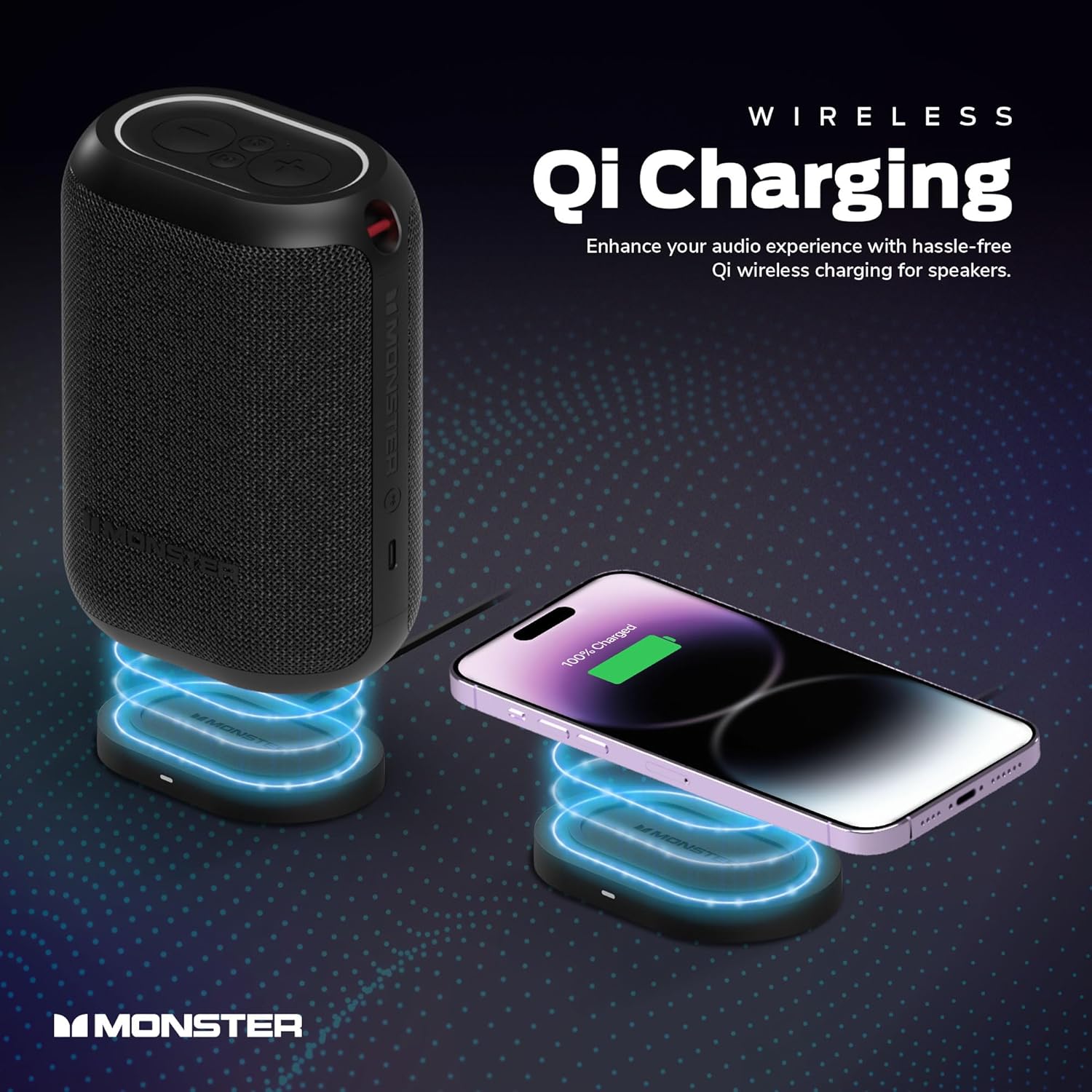

Image: A black Monster DNA One speaker and a smartphone are shown wirelessly charging on two separate Qi charging pads, both emitting blue light. This highlights the speaker's wireless charging capability and the included charging pad.
2. Encès / apagat
To power on the speaker, press and hold the power button located on the top panel until you hear an audible cue and the indicator lights illuminate. To power off, press and hold the power button again until the lights turn off.
3. Emparellament Bluetooth
- Ensure the speaker is powered on and in pairing mode (indicator light will blink).
- Al dispositiu (telèfon intel·ligent, tauleta, ordinador portàtil), activeu el Bluetooth i cerqueu els dispositius disponibles.
- Select "Monster DNA One" from the list of devices.
- Once paired, the speaker will provide an audible confirmation, and the indicator light will become solid.
The speaker supports Bluetooth Dual Pairing, allowing connection to two source devices simultaneously.
Instruccions de funcionament
Reproducció d'àudio
- Reproduir/pausa: Press the Play/Pause button on the top panel.
- Control de volum: Feu servir el botó '+' per augmentar el volum i el botó '-' per disminuir-lo.
- Omet la pista: Double-press the '+' button for next track, double-press the '-' button for previous track.
Imatge: Primer pla de dalt view of the Monster DNA One speaker's control panel, showing the illuminated volume up, volume down, and multi-function buttons. This illustrates the intuitive control layout.
Party Mode (Multi-Speaker Sync)
The Monster DNA One speaker features a Party Mode, allowing you to synchronize music with up to 99 other Monster DNA speakers for an expansive audio experience.
- Ensure all speakers are charged and powered on.
- Pair one speaker to your device as the primary speaker.
- On the primary speaker, press the Party Mode button (often indicated by a chain link or multi-speaker icon).
- On the secondary speakers, also press the Party Mode button. They will automatically search for and connect to the primary speaker.
- Once connected, all speakers will play the same audio simultaneously.
Image: Several Monster DNA speakers are strategically placed around an outdoor patio table where people are socializing, illustrating the Party Mode feature for synchronized audio across multiple units.
Wireless Charging Pad Usage
The included 10W Qi Certified Charging Pad can be used to charge your Monster DNA One speaker or any other Qi-enabled smartphone or device.
- Connecteu la plataforma de càrrega a una font d'alimentació mitjançant el cable subministrat.
- Place your Qi-enabled device directly onto the center of the charging pad.
- Assegureu-vos que el dispositiu estigui correctament alineat per a una càrrega òptima.
Image: A white Monster DNA One speaker is shown wirelessly charging on a white Qi charging pad, with blue glowing rings indicating the charging process. Text overlay highlights "QI Charger Included" and "10W Qi Charging Pad Included Works with most Qi enabled products."
Manteniment
Neteja
Per netejar l'altaveu, feu servir un drap suau iamp cloth. Do not use abrasive cleaners, alcohol, or chemical solvents, as these may damage the surface. Ensure the charging port cover is securely closed before cleaning or exposing to water.
Resistència a l'aigua i a la pols (IP67)
The Monster DNA One speaker is IP67 rated, meaning it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. While durable, avoid prolonged submersion or exposure to high-pressure water jets.
Image: A black Monster DNA One speaker is placed on the edge of a swimming pool, with water splashing around it, demonstrating its IP67 waterproof capability for outdoor and poolside use.
Emmagatzematge
Guardeu l'altaveu en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes. Si l'emmagatzemeu durant un període prolongat, carregueu la bateria periòdicament per mantenir-ne la vida útil.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| L'altaveu no s'encén. | Bateria baixa. | Charge the speaker fully using the wireless charging pad. |
| No es pot emparellar per Bluetooth. | L'altaveu no està en mode d'emparellament; el Bluetooth del dispositiu està desactivat; massa lluny de l'altaveu. | Ensure speaker is in pairing mode. Turn device Bluetooth off and on. Move device closer to speaker (within 10 meters). |
| Sense so o so distorsionat. | Volume too low; speaker not connected; audio source issue. | Increase speaker and device volume. Re-pair Bluetooth. Check audio source. |
| La càrrega sense fil no funciona. | Device not Qi-enabled; improper alignment; charging pad not powered. | Ensure device is Qi-enabled. Re-position device on the center of the pad. Verify charging pad is connected to power. |
| Party Mode not syncing. | Speakers too far apart; incorrect activation sequence. | Ensure speakers are within range. Follow Party Mode activation steps carefully. |
Especificacions
- Nom del model: DNA One
- Número de model: 2MNBD1115B9L2
- Tecnologia de connectivitat: Bluetooth
- Tecnologia de comunicació sense fils: Bluetooth
- Rang Bluetooth: 10 metres (30 peus)
- Tipus d'altaveu: Portàtil, a l'aire lliure
- Mode de sortida d'àudio: estèreo
- Configuració del canal de so envoltant: 4.0
- Potència de sortida màxima dels altaveus: 10 watts
- Resposta de freqüència: 150 Hz
- Font d'alimentació: Funciona amb bateria
- Durada de la bateria: Fins a 13 hores
- Temps de càrrega: Aproximadament 13 hores
- Nivell de resistència a l'aigua: Impermeable IP67
- Material: Plàstic
- Dimensions del producte: 9 "P x 4" W x 5" H
- Pes de l'article: 3.72 lliures
- Components inclosos: Wireless Charging Pad and Cable
Garantia i Suport
The Monster DNA One Portable Bluetooth Speaker comes with a Limited Warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Monster weblloc.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Monster customer service through their official weblloc web o la informació de contacte que es proporciona a l'embalatge del producte.
Recursos en línia:
