Introducció
This manual provides essential information for the safe operation, maintenance, and care of your Rattan R Pathfinder Electric Bike. Please read this manual thoroughly before your first ride and retain it for future reference. Understanding the features and proper handling procedures will ensure a safe and enjoyable riding experience.
Informació de seguretat
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Perform pre-ride checks before each use.
- Ús del casc: Always wear a certified bicycle helmet.
- Comprovació prèvia a la conducció: Inspect brakes, tires, battery level, and all fasteners before each ride.
- Lleis de trànsit: Obey all road signs, signals, and local cycling laws.
- Visibilitat: Use lights and reflective gear, especially when riding at dawn, dusk, or night.
- Condicions meteorològiques: Exercise caution in wet or slippery conditions.
- Límit de pes: No supereu la capacitat de càrrega màxima de 400 lliures (181 kg).
Image: The Rattan Pathfinder Electric Bike is designed for various terrains, featuring IPX6 waterproofing and a durable rear rack, as shown with a rider navigating shallow water.
Muntatge i muntatge
The Rattan R Pathfinder Electric Bike arrives 85% pre-assembled. Basic assembly steps include attaching the front wheel, handlebars, pedals, and seat. A tool kit is included for convenience.
Passos de muntatge:
- Desembalatge: Traieu amb cura tots els components de l'embalatge.
- Instal·lació del manillar: Secure the handlebars to the stem, ensuring proper alignment.
- Front Wheel Attachment: Install the front wheel, ensuring the quick-release skewer or axle nuts are tightened securely.
- Instal·lació de pedals: Attach the pedals, noting that the left pedal (L) and right pedal (R) have different threading directions.
- Tija de seient i selló: Insert the seat post into the frame and adjust the saddle height for comfortable riding.
- Instal·lació de la bateria: Assegureu-vos que la bateria estigui ben col·locada al seu compartiment.
- Càrrec inicial: Carregueu completament la bateria abans del primer ús.
For detailed visual instructions, refer to the official assembly video provided by Rattan. If you encounter any difficulties during assembly, please contact customer support.

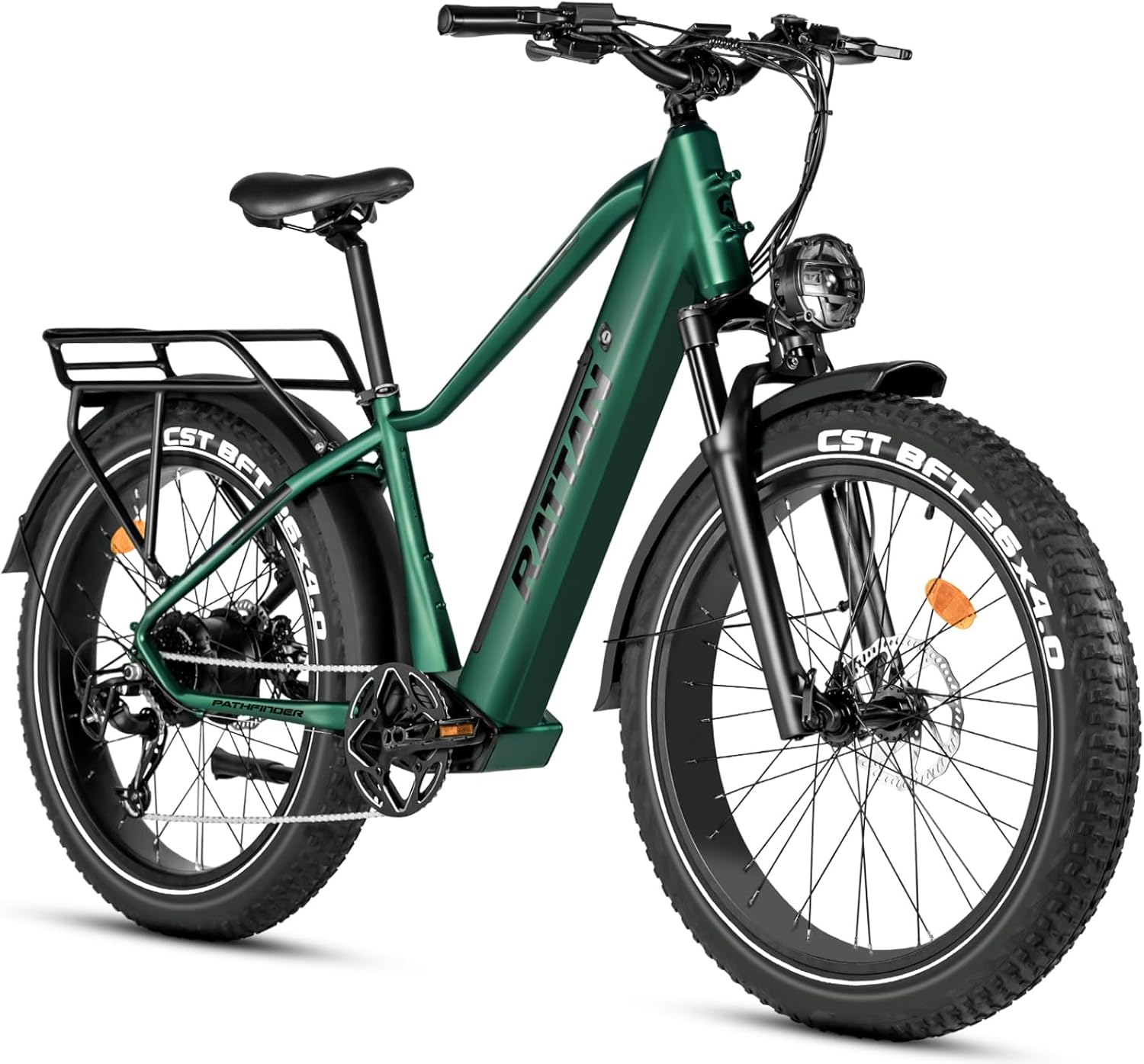

Image: A fully assembled Rattan Pathfinder Electric Bike, ready for use, highlighting its robust design and components.
Operating Your Electric Bike
The Rattan R Pathfinder offers a powerful and intuitive riding experience with its advanced motor, battery, and display system.
Bateria i càrrega:
The bike is equipped with a 48V 15AH removable battery, offering a range of 30-65 miles depending on riding conditions and assist level. The removable design allows for convenient charging both on and off the bike.
- Càrrega: Connect the charger to the battery port and a standard power outlet. The indicator light on the charger will change when fully charged.
- Cura de la bateria: Avoid fully discharging the battery. Store the battery in a cool, dry place and charge it periodically if not in use for extended periods.
Image: The removable in-tube battery of the Rattan Pathfinder, designed for easy charging and enhanced security.
Motor and Pedal Assist:
The 750W brushless motor provides powerful assistance, with a peak power of 1200W and a top speed of 28 mph. The bike features multiple levels of pedal assist (PAS) and a throttle for varying riding needs.
- Assistència al pedaleig (PAS): Select your desired assist level on the LCD display. The motor will provide power as you pedal.
- Acceleració: Use the thumb throttle for instant power without pedaling.
Image: The Rattan Pathfinder's 750W motor provides significant power for uphill climbs and reaching speeds up to 28 MPH.
Full Color LCD Display:
The full-color LCD display provides real-time riding data, including speed, battery level, assist level, and mileage. It also features a USB charging port for your devices and Bluetooth connectivity for the Rattan APP.
- Encès/apagat: Press and hold the power button to turn the display on or off.
- Selecció del mode: Use the '+' and '-' buttons to cycle through pedal assist levels.
- Dades View: Toggle through different data displays (e.g., odometer, trip distance) as needed.
- Càrrega USB: Connect your USB device to the port on the display for charging.
- Connectivitat de l'aplicació: Connect via Bluetooth to the Rattan APP for advanced features and riding data tracking.
Image: The Rattan Pathfinder's smart features include app connectivity for real-time riding information and enhanced control.
Gears and Brakes:
The bike features an 8-speed Shimano gear system for versatile riding and hydraulic disc brakes for reliable stopping power.
- Canvi de marxes: Use the Shimano shifter to change gears according to terrain and speed.
- Frenatge: Apply both front and rear hydraulic disc brakes smoothly for controlled stops.
Image: The Rattan Pathfinder is equipped with 26" x 4" fat tires, 80mm hydraulic suspension, and 180mm hydraulic disc brakes, enabling it to conquer diverse terrains.
Manteniment
Regular maintenance ensures the longevity and optimal performance of your Rattan R Pathfinder Electric Bike.
- Pressió dels pneumàtics: Maintain recommended tire pressure (typically 5-30 PSI for fat tires) for optimal performance and safety. Check before each ride.
- Inspecció de frens: Regularly check brake pads for wear and brake levers for proper function. Adjust or replace as needed.
- Lubricació de la cadena: Mantingueu la cadena neta i lubricada per garantir canvis de marxa suaus i evitar el desgast.
- Cura de la bateria: As mentioned, charge regularly and store properly. Avoid extreme temperatures.
- Neteja general: Netegeu la bicicleta regularment amb anuncisamp drap. Eviteu rentar directament els components elèctrics a alta pressió.
- Comprovació de fixació: Periodically check all bolts and nuts for tightness, especially on critical components like handlebars, wheels, and seat post.
Resolució de problemes
This section addresses common issues you might encounter with your Rattan R Pathfinder Electric Bike.
| Problema | Causa possible | Solució |
|---|---|---|
| La bicicleta no s'encén. | Battery not charged, battery not properly seated, loose connection, display issue. | Charge battery fully. Ensure battery is securely locked in place. Check all cable connections. Contact support if issue persists. |
| El motor no ajuda. | Low battery, PAS level set to zero, brake lever engaged, motor connection issue. | Check battery level. Increase PAS level on display. Ensure brake levers are not squeezed. Inspect motor cable connection. |
| Les marxes no canvien suaument. | Derailleur misalignment, dirty/dry chain, damaged shifter cable. | Clean and lubricate the chain. Adjust derailleur. If necessary, consult a bike mechanic or Rattan support. |
| Els frens es veuen esponjosos o febles. | Air in hydraulic lines, worn brake pads, misaligned calipers. | Bleed hydraulic brakes (professional recommended). Replace worn brake pads. Adjust caliper alignment. |
For issues not listed here or if solutions do not resolve the problem, please contact Rattan customer support.
Especificacions
Key technical specifications for the Rattan R Pathfinder Electric Bike:
| Característica | Detall |
|---|---|
| Tipus de bicicleta | Bicicleta elèctrica |
| Motor | 750W Brushless (1200W Peak) |
| Bateria | 48V 15AH Removable Lithium-ion (750 Watt Hours) |
| Velocitat màxima | 28 MPH |
| Interval | 30-65 Miles (depending on conditions) |
| Mida de la roda | 26 Inches x 4 Inches Fat Tire |
| Engranatges | Shimano de 8 velocitats |
| Frens | Frens de disc hidràulics |
| Suspensió | Front (80mm Hydraulic) |
| Material del marc | Alumini |
| Capacitat de càrrega màxima | 400 kg (181 lliures) |
| Pes de la bicicleta | 77 kg (35 lliures) |
| Alçada recomanada del genet | 1,62 m - 1,93 m |
| Components inclosos | Charger, Electric Bike, Tool Kit |
Image: Detailed dimensions and specifications of the Rattan Pathfinder Electric Bike, including recommended rider height and maximum load capacity.
Garantia i Suport
Rattan provides comprehensive support for your electric bike.
Informació de la garantia:
The Rattan R Pathfinder Electric Bike comes with a 1+1 year repair period i a Política de devolució de 30 dies. This warranty covers manufacturing defects and ensures reliable operation under normal use conditions.
Atenció al client:
For any questions, technical assistance, or warranty claims, please contact Rattan customer service. They aim to respond within 24 hours.
- Mètodes de contacte: Support can be reached via phone or email. Specific contact details are typically provided on the Rattan official weblloc web o a la documentació de la compra.
- Centres de reparació: Rattan currently operates an offline repair center in California, with plans for expansion to other states.
Image: Rattan is committed to providing reliable service and support for its electric bikes, ensuring a smooth experience for riders.
