1. Introducció
The AEG 005073 OBD2 Evol 2 Diagnostic Tool is a universal diagnostic device designed to help you identify and resolve vehicle issues. Compatible with all OBD2-equipped vehicles manufactured since 2000, this tool offers a range of functions including reading and erasing fault codes, analyzing real-time vehicle data, and testing battery and charging systems. Its 2.4-inch color screen ensures clear display and readability.

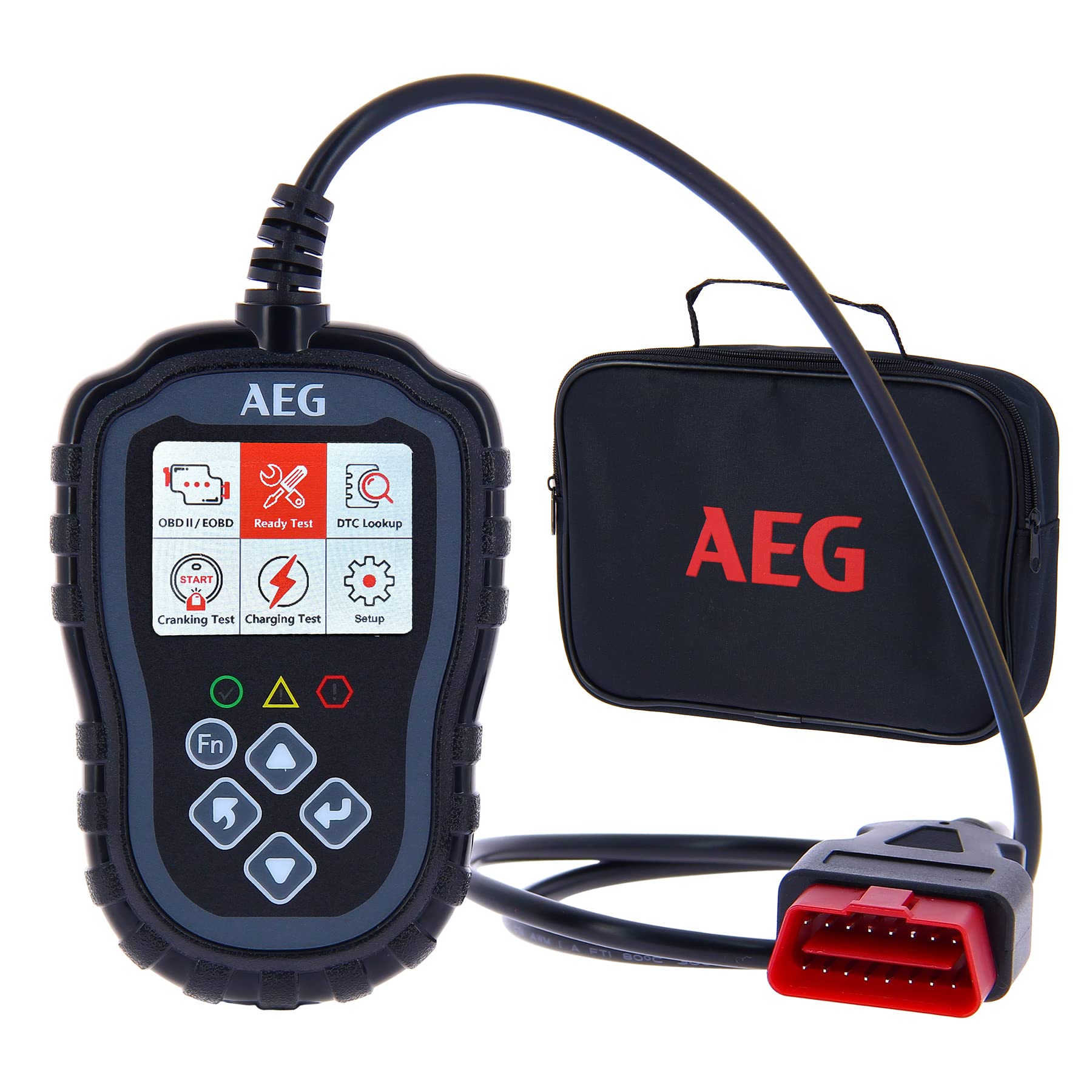

Figure 1: AEG 005073 OBD2 Evol 2 Diagnostic Tool in use.
2. Què hi ha a la caixa
- 1 x AEG 005073 OBD2 Evol 2 Diagnostic Tool
- 1 x bossa d'emmagatzematge
Figure 2: Packaging of the AEG 005073 OBD2 Evol 2 Diagnostic Tool.
3. Configuració
- Localitza el port OBD2: The OBD2 port is typically located under the dashboard on the driver's side. Refer to your vehicle's manual if you cannot find it.
- Connecteu l'eina: Plug the diagnostic tool's connector firmly into the vehicle's OBD2 port.
- Engegar l'encesa: Turn the vehicle's ignition to the 'ON' position (do not start the engine unless performing a cranking test). The tool will power on automatically.
- Escolliu l'idioma: Navigate to the 'Setup' menu to select your preferred language (French, English, Spanish, Portuguese, Italian, German, Dutch, Finnish, Polish are available).
Figure 3: Connecting the diagnostic tool to the vehicle's OBD2 port.
Video 1: Demonstration on how to use an OBDII diagnostic tool, including connection and basic operation.
4. Instruccions de funcionament
The AEG 005073 OBD2 Evol 2 offers multiple diagnostic functions accessible via its intuitive menu. Ensure the ignition is ON for all diagnostic procedures.
Figure 4: Main menu of the diagnostic tool showing various functions.
4.1. Reading and Erasing Fault Codes
This function allows you to identify the cause of the 'Check Engine' light and clear it after repairs.
- Al menú principal, seleccioneu Llegir codis a view Codis de diagnòstic d'errors (DTC) actuals, pendents o permanents.
- The tool will display detailed explanations for each code (e.g., EGR, temperature sensors, air intake circuit, injection, spark plugs).
- After addressing the issue, select Esborrar codis from the main menu. Confirm the action to clear the codes and turn off the 'Check Engine' light.

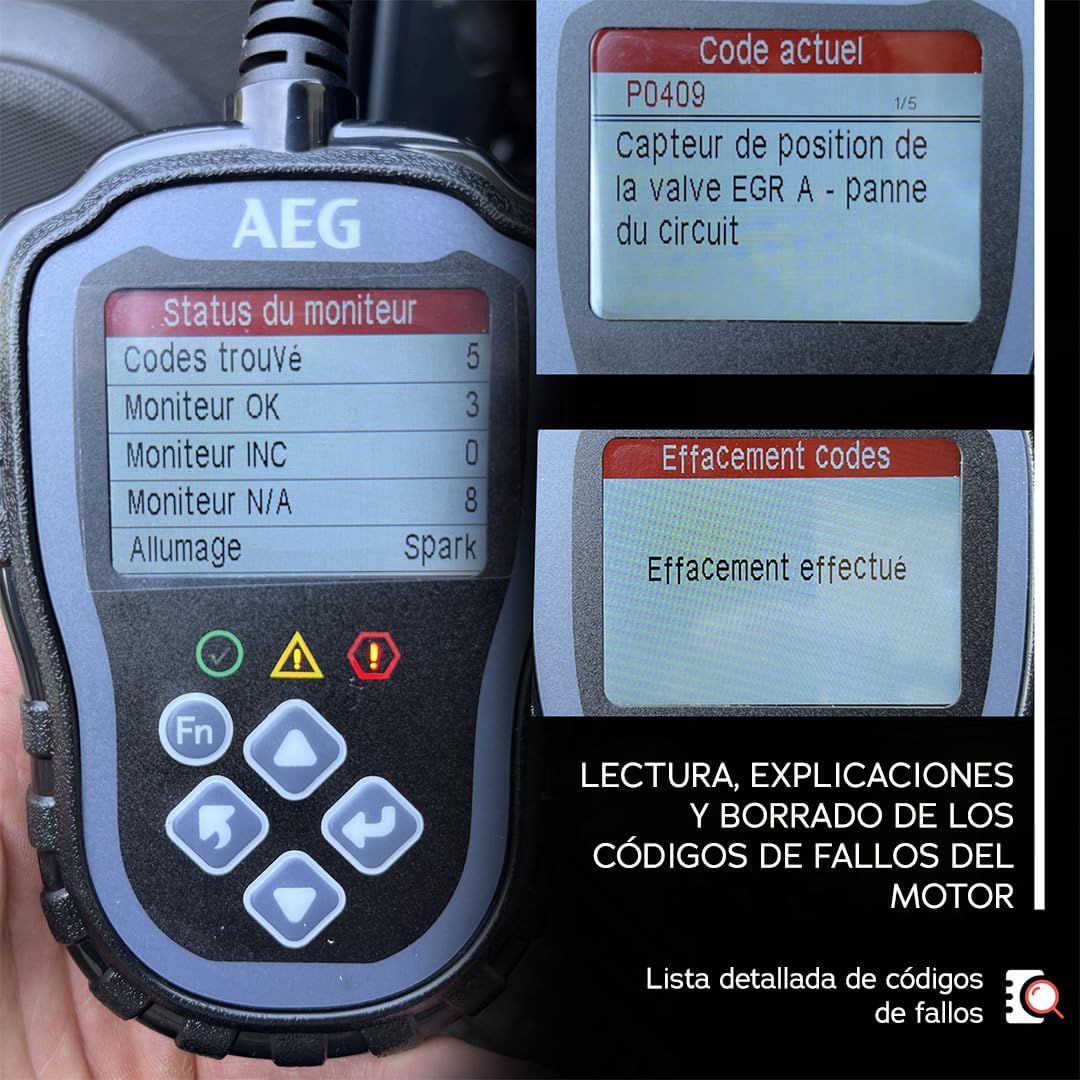

Figure 5: Display of a fault code and the option to erase codes.
Video 2: Introduction to the functions of an automotive code reader, including reading and erasincodis g.
4.2. Real-time Data Stream Analysis
Monitor various vehicle parameters in real-time to diagnose performance issues.
- Seleccioneu Flux de dades des del menú principal.
- View live data such as speed sensor, engine RPM, aspirated air temperature, coolant temperature, supported protocol, conduit pressure, lambda probe status, etc.
Figure 6: Real-time data stream and freeze frame data display.
4.3. Freeze Frame Analysis
Retrieve data recorded at the moment an anomaly occurred, providing a snapshot of vehicle conditions to aid in precise diagnosis.
- Seleccioneu 'Imatge congelada' des del menú principal.
- Review the stored data related to vehicle components and conditions at the time of the fault.
4.4. I/M Readiness Test (Emission Systems Diagnostic)
Check the status of emission systems and sensors to ensure your vehicle is ready for inspection.
- Seleccioneu 'Ready Test' or "Preparació I/M".
- The tool will display the status of various monitors (MIS, FUE, CCM, CAT, HCAT, EVAP, A/C, AIR, O2S, HRT, EGR).
Figure 7: I/M Readiness display for emission system checks.
4.5. Prova de la bateria i del sistema de càrrega
Assess the health of your vehicle's battery and charging circuit.
- Prova d'arrencada: Seleccioneu 'Cranking Test' per mostrar el volum de la bateriatage during engine startup, indicating battery health.
- Prova de càrrega: Seleccioneu 'Charging Test' to display the alternator/battery voltage both off-load and under load, checking the charging circuit status.
Figure 8: Battery and charging system test results.
Video 3: Demonstration of a 2-in-1 OBD2 scanner and battery tester, including battery and charging tests.
4.6. Cerca DTC
Access a comprehensive directory of Diagnostic Trouble Codes and their explanations.
- Seleccioneu 'Consulta de DTC' des del menú principal.
- Enter a DTC to view its detailed definition and potential causes.
Vídeo 4: Acabatview of the AEG OBD2 Evolution diagnostic tool, demonstrating its ease of use and key functions.
5. Supported Protocols
The AEG 005073 OBD2 Evol 2 Diagnostic Tool supports the following OBD2 protocols:
- SAE J1850 PWM (41.6 KBAUD)
- SAE J1850 VPW (10.4 KBAUD)
- ISO 9141-2 (5BAUD INIT, 10.4 KB AUD)
- ISO 14230-4 KWP 2000 (5BAUD INIT, 10.4 KB AUD)
- ISO 14230-4 KWP 2000 (FAST INIT, 10.4 KB AUD)
- ISO 15765-4 CAN (11BIT ID, 500 KB AUD)
- ISO 15765-4 CAN (29BIT ID, 500 KB AUD)
- ISO 15765-4 CAN (11BIT ID, 250 KB AUD)
- ISO 15765-4 CAN (29BIT ID, 250 KB AUD)
Figure 9: Supported OBD2 protocols for wide vehicle compatibility.
6. Manteniment
- Keep the tool clean and dry. Use a soft, damp drap per netejar l'exterior.
- Avoid exposing the tool to extreme temperatures, direct sunlight, or corrosive chemicals.
- Store the tool in its provided pouch when not in use to prevent damage.
- Do not attempt to disassemble or repair the tool yourself. Contact customer support for assistance.
7. Solució De Problemes
7.1. Tool Does Not Power On
- Ensure the tool is securely connected to the vehicle's OBD2 port.
- Verifiqueu que el contacte d'encesa del vehicle estigui en la posició "ON".
- Comproveu que la bateria del vehicle estigui prou carregada.
7.2. Communication Error
- Confirm the vehicle is OBD2 compliant (manufactured after 2000).
- Ensure the connection to the OBD2 port is secure.
- Try the tool on a different OBD2 compliant vehicle to rule out a vehicle-specific issue.
7.3. Lectures inexactes
- Ensure the vehicle's engine is running (for live data and some tests) or ignition is on (for code reading).
- Verify that the tool's software is up to date (if applicable, check manufacturer's weblloc).
8. Especificacions
- Model: 005073
- Mida de la pantalla: 2.4 inches (color display)
- Font d'alimentació: Electric cable (via OBD2 port)
- Pes: 420 g
- Idiomes admesos: French, English, Spanish, Portuguese, Italian, German, Dutch, Finnish, Polish
- Funcions: Read/Erase DTCs, Live Data Stream, Freeze Frame, I/M Readiness, Cranking Test, Charging Test, DTC Lookup
- Compatibilitat: Universal for OBD2 vehicles from 2000 onwards
9. Garantia i Suport
For warranty information and technical support, please refer to the documentation included with your product or visit the official AEG weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
