Jebao AFD-6 Solar Automatic Pond Fish Feeder Instruction Manual

1. Introducció

Thank you for choosing the Jebao AFD-6 Solar Automatic Pond Fish Feeder. This device is designed to provide convenient and consistent feeding for your pond fish, ensuring their health and well-being. With its solar-powered operation and weatherproof design, it offers a reliable solution for outdoor use without the need for complex wiring.

This manual provides essential information for the safe and efficient operation of your new feeder. Please read it thoroughly before installation and use, and retain it for future reference.

Figure 1: Jebao AFD-6 Solar Automatic Pond Fish Feeder and its retail packaging.

2. Instruccions de seguretat

To ensure safe operation and prevent damage to the product or injury, please observe the following safety precautions:

• Llegeix totes les instruccions: Before operating the feeder, read and understand all instructions in this manual.
• Només per a ús exterior: This feeder is designed for outdoor use. Ensure it is placed in a stable location where it will not be easily knocked over.
• Proximitat de l'aigua: While designed to be rainproof, avoid submerging the unit in water. Do not place it directly in the pond where it could fall in.
• Font d'alimentació: The feeder is primarily solar-powered. If using the power adapter for initial charging or troubleshooting, ensure it is connected to a suitable power outlet away from water sources.
• Nens i animals de companyia: Keep the feeder out of reach of small children and pets to prevent accidental ingestion of fish food or damage to the unit.
• Manteniment: Disconnect any external power source before performing maintenance or cleaning.
• Temperatura: Do not expose the feeder to extreme temperatures outside its operating range.
• Modificacions: Do not attempt to modify or disassemble the feeder. Repairs should only be performed by qualified personnel.
• Tipus d'aliment: Use only dry fish pellets or flakes suitable for automatic feeders. Do not use wet or sticky food, which can clog the dispenser.

3. Components del producte

The Jebao AFD-6 feeder comes with the following main components:

• Main Feeder Unit with integrated solar panel and LED display
• Food Dispensing Funnel
• Power Adapter (for initial charging or backup)
• Bateria interna (preinstal·lada)
• Manual d'instruccions (aquest document)

Figure 2: All components included with the Jebao AFD-6 Solar Automatic Pond Fish Feeder.

4. Configuració

4.1 Col·locació

Choose a suitable location for the feeder near your pond. The location should:

• Rebre ample direct sunlight throughout the day for optimal solar charging.
• Be stable and level to prevent the feeder from tipping over.
• Allow the dispensed food to fall directly into the pond without obstruction.
• Be easily accessible for refilling and maintenance.

4.2 Muntatge

1. Attach the food dispensing funnel to the outlet port at the bottom front of the main feeder unit. Ensure it is securely fastened.
2. If the internal battery is not pre-installed or needs to be connected, follow the instructions provided with the battery to connect it to the feeder's internal power port.

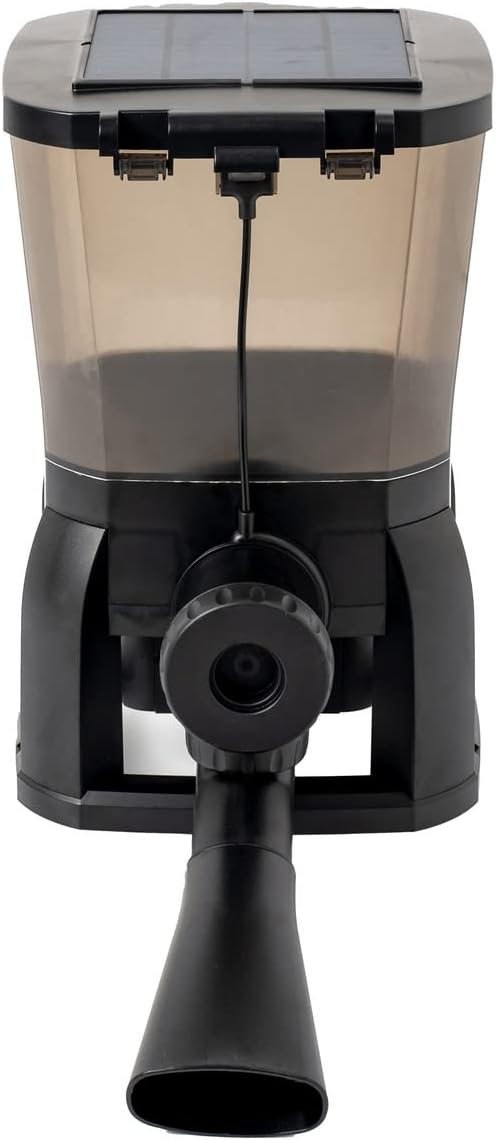

Figura 3: Frontal view of the feeder with the dispensing funnel attached.

4.3 Initial Charging (Optional)

While the unit is solar-powered, it is recommended to fully charge the internal battery using the provided power adapter before first use, especially if the unit has been stored for a long time or if sunlight is limited.

• Connect the power adapter to the charging port on the feeder.
• Connecteu l'adaptador a una presa de corrent estàndard.
• Allow the unit to charge for several hours until the battery indicator on the LED display shows a full charge.

4.4 Omplir l'alimentador

1. Open the lid on top of the feeder unit.
2. Pour dry fish pellets or flakes into the food tank. Do not overfill.
3. Close the lid securely to maintain food freshness and prevent moisture ingress.

5. Instruccions de funcionament

The Jebao AFD-6 features a clear LED display and intuitive buttons for programming.

Figure 4: LED display and control buttons for programming the feeder.

5.1 Funcions dels botons

• ON/OFF: Encén o apaga la unitat.
• RELOJ: Entra al mode de configuració de l'hora.
• ALIMENTACIÓ: Manually dispenses food once.
• Mode: Cycles through programming modes (e.g., setting feeding times, quantity).
• Fletxes AMUNT/AVALL: Adjust values (time, quantity).
• SET: Confirms selection or saves settings.

5.2 Configuració de l'hora actual

1. Premeu el botó RELOJ button. The hour digit will flash.
2. Utilitza el Amunt/Avall fletxes per ajustar l'hora.
3. Premeu RELOJ again to move to the minute digit.
4. Utilitza el Amunt/Avall arrows to adjust the minute.
5. Premeu SET to confirm and save the current time.

5.3 Programming Feeding Times and Quantity

The feeder allows up to 6 feeding times per day, with 9 different quantity options for each feeding.

1. Premeu el botó MODE button to enter the feeding program setting. The display will show "1" (for the first feeding time) and the hour digit will flash.
2. Utilitza el Amunt/Avall arrows to set the desired hour for the first feeding.
3. Premeu MODE to move to the minute digit. Adjust with Amunt/Avall fletxes.
4. Premeu MODE again. The display will show the current food quantity setting (e.g., "P1" for quantity level 1).
5. Utilitza el Amunt/Avall arrows to select the desired food quantity (P1 to P9, where P9 is the largest quantity).
6. Premeu SET to confirm the settings for the first feeding time.
7. Repeat steps 1-6 for additional feeding times (up to 6). After setting the 6th time, pressing MODE again will cycle back to the first setting or exit programming mode.
8. To disable a specific feeding time, set its time to "--:--" or a similar indicator if available on the display, or simply do not set it.

5.4 Alimentació manual

To dispense food manually at any time, simply press the ALIMENTACIÓ button. The feeder will dispense a single portion of food according to the last set quantity.

5.5 Càrrega solar

The integrated solar panel on top of the unit continuously charges the internal battery when exposed to direct sunlight. Ensure the solar panel is clean and unobstructed for efficient charging.

6. Manteniment

Regular maintenance will ensure the longevity and optimal performance of your Jebao AFD-6 feeder.

• Cleaning the Food Tank: Periodically empty and clean the food tank to prevent mold or bacterial growth, especially if using different types of food. Use a damp cloth and mild detergent, then rinse thoroughly and ensure it is completely dry before refilling.
• Neteja del dispensador: Check the dispensing mechanism and funnel for any clogs or residue. Clean as needed to ensure smooth food delivery.
• Neteja de panells solars: Netegeu el panell solar regularment amb un drap suau iamp drap per eliminar la pols, la brutícia o les restes que puguin reduir l'eficiència de la càrrega.
• Cura de la bateria: If the feeder will not be used for an extended period, fully charge the battery and store the unit in a cool, dry place. Avoid completely draining the battery frequently.
• Emmagatzematge d'hivern: In regions with freezing temperatures, it is recommended to bring the feeder indoors during winter months to prevent damage from ice and extreme cold.

7. Solució De Problemes

If you encounter issues with your Jebao AFD-6 feeder, please refer to the following common problems and solutions:

8. Especificacions

Key technical specifications for the Jebao AFD-6 Solar Automatic Pond Fish Feeder:

Figure 5: Product dimensions of the Jebao AFD-6 Solar Automatic Pond Fish Feeder.

9. Garantia i Suport

For information regarding the product warranty, please refer to the warranty card included with your purchase or contact the retailer from whom you purchased the Jebao AFD-6 feeder.

If you require technical support or have questions not covered in this manual, please contact Jebao customer service or your local distributor. Please have your product model number (AFD-6) and purchase details ready when contacting support.

Nota: Les especificacions i les característiques del producte estan subjectes a canvis sense previ avís.
