FOXWELL NT1009 & NT301 Diagnostic Tools User Manual

1. Introducció

This manual provides comprehensive instructions for the operation and maintenance of your FOXWELL NT1009 Bluetooth Bi-Directional Scan Tool and the FOXWELL NT301 OBD2 Scanner. These tools are designed to assist mechanics, workshops, and car owners in diagnosing and maintaining vehicle systems. Please read this manual thoroughly before operating the devices.

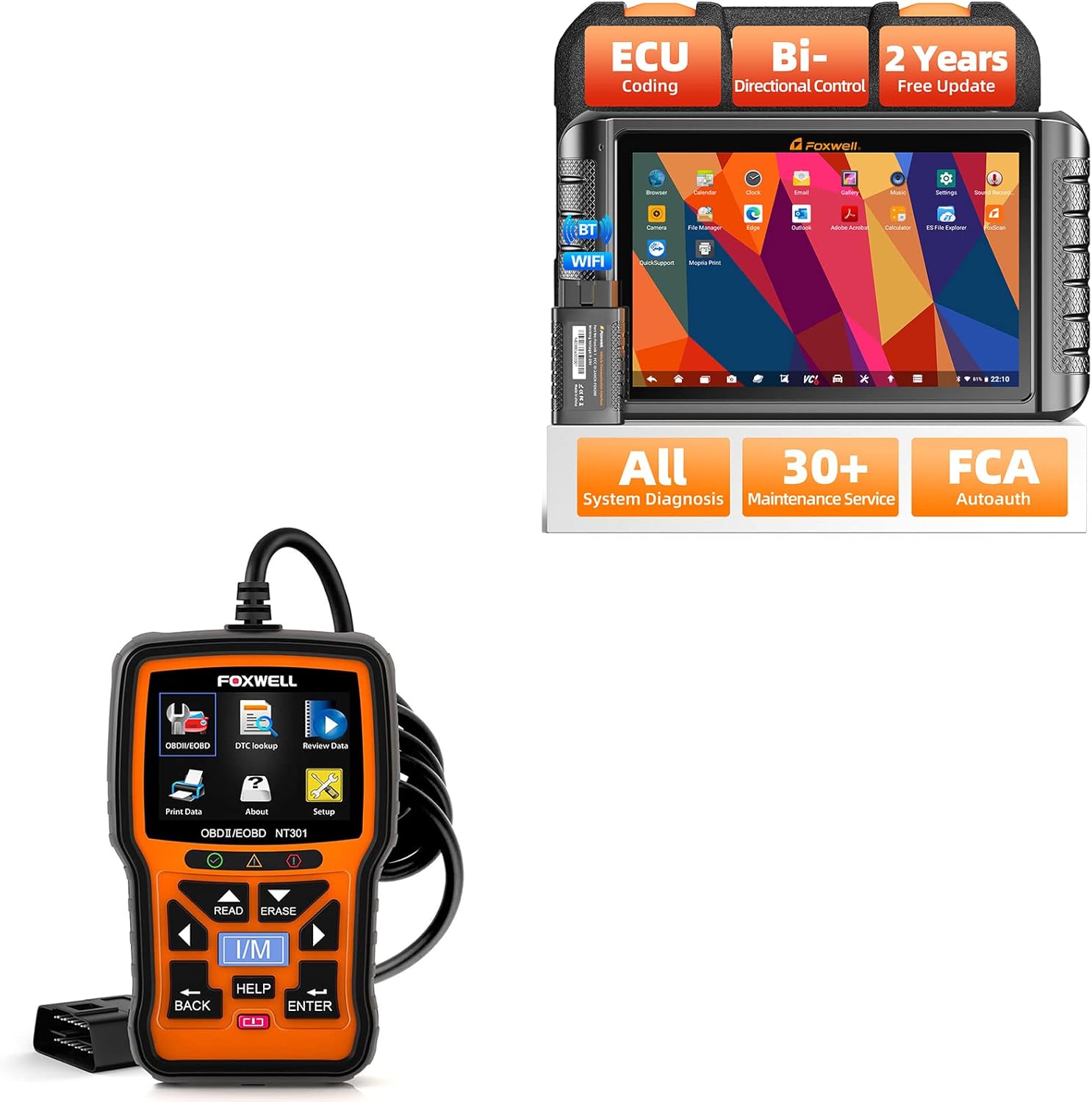

Figure 1.1: The FOXWELL NT1009 diagnostic tablet and the NT301 OBD2 scanner.

2. Producte acabatview - FOXWELL NT1009

The FOXWELL NT1009 is an advanced diagnostic tablet offering a wide range of functions for comprehensive vehicle analysis and maintenance.

Característiques principals:

• Diagnòstic sense fil: Connects via Bluetooth for flexible operation.
• Codificació de la ECU: Supports advanced control module coding, including offline ECU coding for BMW E/F chassis.
• Control bidireccional: Capable of commanding vehicle components to perform active tests and pinpoint faults.
• OE-Level All System Diagnosis: Accesses nearly all control modules (Engine, ABS, Airbag, Transmission, TPMS, SAS, etc.) to read/clear DTCs, view dades en directe i recuperar informació de la ECU.
• 30+ Maintenance Services: Includes common service functions such as Oil Reset, ABS Bleeding, Throttle Relearn, Injector Coding, TPMS Reset, BMS, Power Balance, and more.
• Funcions guiades per VAG: Provides guided functions for VW, Audi, Skoda, and SEAT vehicles for matching, calibration, and basic settings.
• Funcions ocultes del pinzell: Activates hidden features and disables annoying settings for various car brands (e.g., Audi, BMW, Skoda, SEAT).
• Compatibilitat àmplia de vehicles: Supports over 120 brands and 100,000 car models from 1996 to 2022, including CAN/CAN-FD/KWP/DoIP protocols.
• FCA SGW Bypass: Compatible with Chrysler/Dodge/Jeep/Alfa Romeo/Fiat after 2018 via AutoAuth.
• Especificacions del maquinari: Features a 10.1-inch screen, Android 9.0, 2GB RAM + 64GB ROM, 8000mAh battery, Bluetooth, Wi-Fi, 500W rear camera, and a 2.0GHz 4-core processor.

Figure 2.1: The FOXWELL NT1009 tablet highlighting its core capabilities.

Figura 2.2: Detallat a sobreview of the NT1009's valuable functions.

Figure 2.3: Hardware specifications of the NT1009 tablet.

3. Producte acabatview - FOXWELL NT301

The FOXWELL NT301 is a professional OBD2/EOBD diagnostic code reader designed for quick and efficient check engine light diagnostics.

Característiques principals:

• Llegir/Esborrar DTC: Retrieves and erases diagnostic trouble codes.
• Check Engine Light (CEL) Turn Off: Resets the Malfunction Indicator Lamp (MIL).
• Dades en directe: Displays real-time sensor data from the vehicle's ECU.
• Emissions Readiness Status: Comprova l'estat dels monitors relacionats amb les emissions.
• Retrieve VIN: Automatically retrieves Vehicle Identification Number.
• Prova del sensor d'O2: Locates bad O2 sensors.
• Reset Monitors: Resets various vehicle monitors.
• OBDII 10 Modes: Supports all 10 modes of OBDII test for a complete diagnosis.

Figure 3.1: The FOXWELL NT301 OBD2 scanner interface.

Figure 3.2: Key diagnostic capabilities of the NT301 scanner.

4. Guia de configuració

4.1. FOXWELL NT1009 Initial Setup

1. Encès: Press and hold the power button to turn on the NT1009 tablet.
2. Selecció d'idioma: Segueix les instruccions que apareixen a la pantalla per seleccionar l'idioma que prefereixis.
3. Connexió Wi-Fi: Connect the tablet to a stable Wi-Fi network for software updates and online features. Navigate to Configuració > Xarxa i Internet > Wi-Fi.
4. Actualització de programari: It is highly recommended to update the software to the latest version upon initial setup. Go to the Actualització application on the main screen and follow the instructions. The NT1009 includes 2 years of free updates.
5. Emparellament Bluetooth: The diagnostic VCI (Vehicle Communication Interface) connects wirelessly via Bluetooth. Ensure the VCI is plugged into the vehicle's OBDII port and the tablet's Bluetooth is enabled. The tablet should automatically detect and pair with the VCI.

4.2. FOXWELL NT301 Initial Setup

1. Connexió al vehicle: Locate the vehicle's 16-pin Data Link Connector (DLC), usually under the dashboard on the driver's side. Plug the NT301's OBDII cable into the DLC.
2. Encès: The NT301 will power on automatically once connected to the vehicle's DLC.
3. Comprovació del sistema: The device will perform a system check and display the main menu.

5. Instruccions de funcionament

5.1. FOXWELL NT1009 Operation

The NT1009 operates on an Android-based interface, making navigation intuitive.

5.1.1. OE-Level All System Diagnosis

1. Al menú principal, seleccioneu Diagnòstic.
2. Choose the vehicle manufacturer and model. The tool supports auto VIN reading for quick identification.
3. Seleccioneu Escaneig automàtic to perform a comprehensive scan of all available systems (Engine, ABS, Airbag, Transmission, etc.).
4. Review the diagnostic report, which will list detected DTCs and system statuses.
5. Select a specific system to view live data streams, freeze frame data, or clear DTCs.

Figure 5.1: NT1009 performing a comprehensive system diagnosis.

5.1.2. Control bidireccional (prova activa)

Aquesta funció permet enviar ordres als sistemes del vehicle per provar la funcionalitat dels components.

1. After selecting the vehicle and system, navigate to the Prova activa or Control bidireccional menú.
2. Select the component you wish to test (e.g., modulate throttle, test fuel pump, operate windows, test horn).
3. Seguiu les instruccions que apareixen a la pantalla per activar-lo i observar la resposta del component.

5.1.3. ECU Coding & Hidden Functions

The NT1009 supports advanced ECU coding and activation of hidden features.

1. Accedeix al Codificació ECU or Funcions especials menu for your specific vehicle.
2. For ECU Coding (e.g., BMW E/F chassis), select the desired module and follow prompts to match replaced ECUs, recode parts, or activate/deactivate functions.
3. For hidden functions, select the relevant option to enable or disable specific vehicle behaviors (e.g., seat belt chime, auto-lock features).
4. Precaució: Always ensure you understand the implications of ECU coding and hidden function activation before proceeding. Incorrect operations can lead to vehicle malfunctions.

Figure 5.2: NT1009's ECU Coding and Hidden Functions interface.

5.1.4. Serveis de manteniment (més de 30 funcions)

The NT1009 provides a wide array of reset, calibration, and relearn functions.

1. Al menú principal, seleccioneu Manteniment.
2. Choose the required service (e.g., Oil Reset, ABS Bleeding, TPMS Reset, Injector Coding).
3. Follow the on-screen instructions, which may include specific vehicle procedures.
4. For VAG guided functions, select the appropriate option and follow the step-by-step guidance for matching, calibration, or basic settings.

Figura 5.3: Mésview of the 30+ maintenance services available on the NT1009.

5.2. FOXWELL NT301 Operation

The NT301 is designed for straightforward OBDII diagnostics.

1. Llegir codis: Al menú principal, seleccioneu Llegir codis to display current, pending, and permanent Diagnostic Trouble Codes (DTCs).
2. Esborra codis: After repairs, select Esborra codis to clear DTCs and turn off the Check Engine Light (CEL). Ensure the ignition is on but the engine is off before erasincodis g.
3. Dades en directe: Seleccioneu Dades en directe a view real-time sensor data. This can help in identifying intermittent issues.
4. Preparació I/M: Utilitza el JO SÓC button to check the readiness status of emission-related monitors. This is useful for pre-smog checks.
5. Cerca DTC: Utilitza el Cerca DTC function to get detailed descriptions of generic (P0, P2, P3, B0, C0, U0) and manufacturer-specific (P1, P3, B1, B2, C1, C2, U1, U2) codes.
6. Review Dades: Access previously recorded data or freeze frame data.

6. Manteniment

• Neteja: Utilitzeu un suau, damp cloth to clean the device surfaces. Avoid abrasive cleaners or solvents.
• Emmagatzematge: Store the diagnostic tools in a dry, cool environment away from direct sunlight and extreme temperatures.
• Software Updates (NT1009): Regularly check for and install software updates via Wi-Fi to ensure optimal performance and expanded vehicle coverage. The NT1009 comes with 2 years of free updates.
• Cable Inspection (NT301): Periodically inspect the OBDII cable for any signs of damage or wear.

7. Solució De Problemes

8. Especificacions

FOXWELL NT1009:

• Sistema operatiu: Android 9.0
• Processador: Quadrucs de 2.0 GHz
• Memòria: 2 GB de RAM, 64 GB de ROM
• Visualització: Pantalla tàctil LCD de 10.1 polzades
• Bateria: Polímer de liti de 8000 mAh
• Connectivitat: Bluetooth, WiFi
• Càmera: 500W Rear Camera
• Protocols admesos: CAN, CAN-FD, KWP, DoIP, and more.
• Actualització: 2 anys d'actualització gratuïta

FOXWELL NT301:

• Visualització: LCD retroil·luminat
• Connectivitat: 16-pin OBDII cable
• Potència: 8 to 18 V provided via vehicle battery
• Protocols admesos: All OBDII protocols (CAN, J1850 PWM, J1850 VPW, ISO9141, KWP2000)

9. Garantia i Suport

For warranty information, technical support, or service inquiries, please refer to the official FOXWELL weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

Official FOXWELL Store: Visit the FOXWELL Store on Amazon
