Jebao EOW Smart Wave Maker Circulation Pump User Manual

1. Introducció

Gràcies per la compraasing the Jebao EOW Smart Wave Maker Circulation Pump. This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your new wave maker. Please read this manual thoroughly before use and retain it for future reference.

The Jebao EOW Wave Maker is designed to create natural water movement in your aquarium, promoting a healthy environment for aquatic life. It features a compact design, quiet operation, and can be controlled via Wi-Fi using the Jebao App or through its manual controller.

Figure 1: The Jebao EOW-3M Smart Wave Maker pump shown alongside its retail packaging.

2. Instruccions de seguretat

• Desconnecteu sempre l'alimentació abans de realitzar qualsevol manteniment o instal·lació.
• Do not operate the pump dry. Ensure it is fully submerged in water before turning on.
• This appliance is for indoor use only and intended for use with aquariums.
• Assegureu-vos que el cable d'alimentació no estigui danyat ni pinçat.
• Keep the controller and power adapter away from water.
• Do not attempt to repair the unit yourself. Refer to qualified service personnel.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents al paquet:

• Jebao EOW Smart Wave Maker Pump
• Controlador amb pantalla LCD
• Power Adapter (US plug)
• Base Magnètica
• Manual d'usuari (aquest document)

Figura 2: Mésview of the Jebao EOW-3M Smart Wave Maker package contents.

4. Configuració i instal·lació

1. Posicionament de la bomba:

   Select a suitable location within your aquarium for the wave maker. The pump features a 3D rotation angle, allowing you to adjust the output water direction for optimal flow. Position it to create desired water movement without disturbing substrate or delicate corals.



   Figura 3: Frontal view de la bomba.



   Figura 4: lateral view de la bomba.

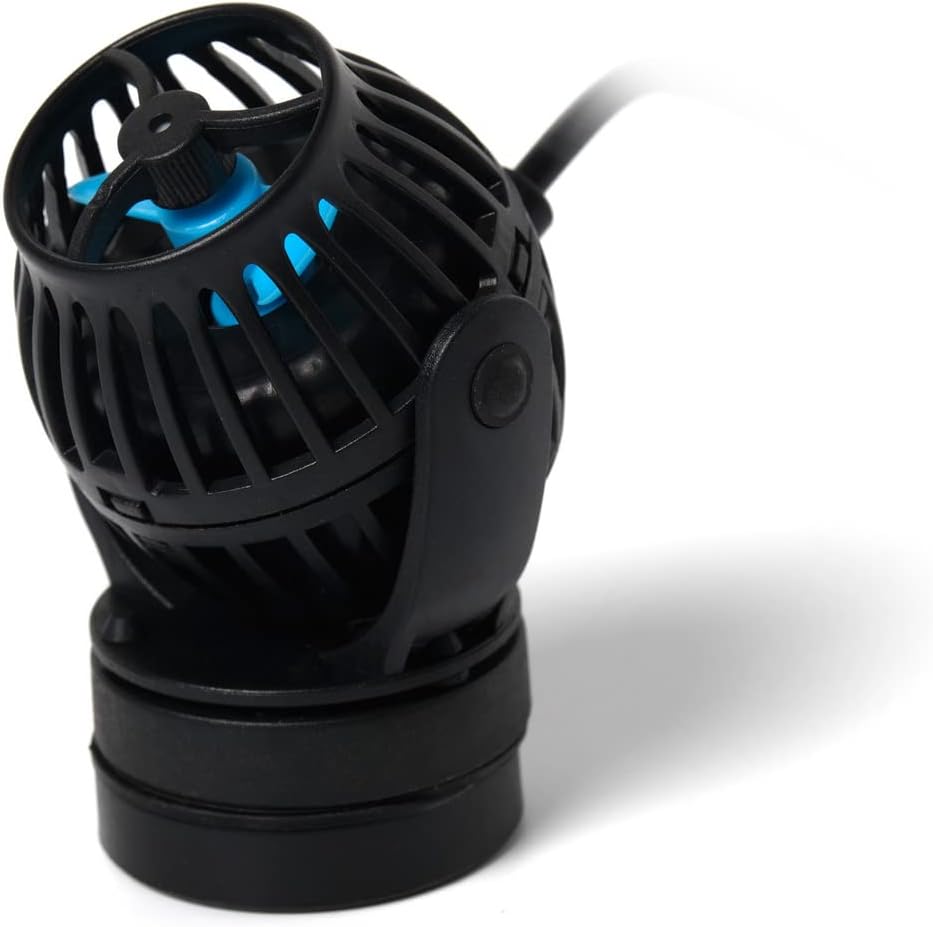

   Figura 5: Angle view of the pump, demonstrating its adjustability.



   Figura 6: posterior view de la bomba.
2. Attaching with Magnetic Base:

   The wave maker uses a strong magnetic base for secure attachment. Place the pump unit inside the aquarium at the desired location. Align the external magnet on the outside of the aquarium glass directly opposite the internal magnetic base. The strong magnetic force will hold the pump firmly in place. Ensure the glass thickness is within the recommended limits for the magnet's strength.

3. Connexió del controlador:

   Connect the pump's cable to the designated port on the controller. Ensure the connection is secure.

4. Potència de connexió:

   Connect the power adapter to the controller, then plug the power adapter into a standard 120V AC outlet. Ensure a drip loop is formed with the power cord to prevent water from traveling along the cord to the outlet.

5. Instruccions de funcionament

5.1. Control manual

The LCD display controller allows for direct manual operation and mode selection. Refer to the controller's specific buttons and display indicators for adjusting flow modes, intensity, and other settings. Typically, buttons are provided for increasing/decrementasing flow, changing modes (e.g., constant flow, wave mode, random flow), and a feed mode button.

5.2. Wi-Fi Control (Jebao App)

For advanced control and programming, download the official Jebao App from the App Store (iOS) or Google Play Store (Android). Follow the in-app instructions to connect your wave maker to your home Wi-Fi network.

The app provides features such as:

• Customizable flow patterns and intensity levels.
• Scheduling daily flow cycles.
• Feed mode activation with adjustable duration.
• Firmware updates for the device.

Ensure your smartphone is connected to a 2.4GHz Wi-Fi network during the initial setup process for the wave maker.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your wave maker.

• Cleaning the Impeller: Periodically, disconnect the pump from power and remove it from the aquarium. Carefully disassemble the front cage and impeller cover to access the impeller. Clean any algae, debris, or calcium buildup from the impeller and its housing using a soft brush and warm water. Do not use harsh chemicals.
• Checking the Magnetic Base: Ensure the magnetic base is clean and free of debris that could scratch the aquarium glass.
• Inspecting Cables: Regularly check the power cord and pump cable for any signs of wear, cuts, or damage. Replace if necessary.
• Immersió: Always ensure the pump is fully submerged during operation to prevent overheating and damage.

7. Solució De Problemes

If you encounter issues with your Jebao EOW Smart Wave Maker, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Jebao customer support.

8. Especificacions

9. Garantia i Suport

Jebao products are manufactured to high-quality standards. For warranty information and customer support, please refer to the official Jebao weblloc web o contacteu amb el vostre distribuïdor. Conserveu el rebut de compra com a comprovant de compra.

Pot haver-hi plans de protecció disponibles per a una cobertura ampliada. Consulteu amb el vostre distribuïdor per obtenir més informació sobre els plans de protecció disponibles.
