HARIO NXAR-5 Coffee Siphon Next Coffee Drip User Manual

Introducció

This manual provides detailed instructions for the safe and effective use of your HARIO NXAR-5 Coffee Siphon Next Coffee Drip. Please read this manual thoroughly before operating the appliance and retain it for future reference. The HARIO NXAR-5 is designed to brew up to 5 cups (600ml) of coffee using the siphon method, known for producing a clean and aromatic brew.

Informació important de seguretat

• Always handle glass components with care. Glass can break if dropped or subjected to sudden temperature changes.
• Use only the provided heat source or a compatible alternative designed for siphon coffee makers. Ensure proper ventilation when using an alcohol or butane burner.
• Do not touch hot surfaces during or immediately after brewing. Use the handle and allow components to cool before handling.
• Mantenir fora de l'abast dels nens i mascotes.
• Ensure the siphon is placed on a stable, heat-resistant surface during operation.
• Do not overfill the lower chamber with water or the upper chamber with coffee grounds.
• Only glass components are dishwasher safe. Refer to the cleaning section for detailed instructions.

Components acabatsview

Familiarize yourself with the parts of your HARIO NXAR-5 Coffee Siphon:

• Upper Chamber (Funnel)
• Lower Chamber (Carafe)
• Stand with Handle
• Filter Assembly (Cloth filter or Metal filter)
• Alcohol Burner (or compatible heat source)
• Measuring Spoon/Stirrer

Descripció de la imatge: An assembled Hario NXAR-5 Coffee Siphon, showing the upper and lower glass chambers, the metal stand with a black handle, and the alcohol burner base underneath. This image illustrates the complete product structure.

Configuració i ús inicial

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge. Inspeccioneu-ho per veure si hi ha algun dany.
2. Neteja inicial: Wash all glass components (upper and lower chambers) and the filter assembly with warm, soapy water. Rinse thoroughly and dry.
3. Muntar el suport: Place the lower chamber onto the metal stand. Ensure it is securely seated.
4. Preparació del filtre:
   • Cloth Filter: Attach the cloth filter to the spring-loaded chain. Insert the chain into the upper chamber, pulling the spring hook through the bottom opening until the filter is centered.
   • Filtre metàl·lic: Place the metal filter into the upper chamber, ensuring it sits flat at the bottom.
5. Prepare Burner: If using the alcohol burner, fill it with denatured alcohol (not included) to the recommended level. Ensure the wick is properly positioned.

Instruccions de funcionament

Elaboració de cafè

1. Add Water to Lower Chamber: Fill the lower chamber with hot water (preferably pre-heated to reduce brewing time) up to the desired mark (e.g., 5 cups / 600ml).


   Descripció de la imatge: The Hario NXAR-5 Coffee Siphon with clear water visible in the lower, spherical chamber. The upper chamber is empty and positioned above, ready for coffee grounds. This shows the initial step of adding water.

2. Add Coffee Grounds to Upper Chamber: Grind your coffee beans to a medium-fine consistency. Add the desired amount of coffee grounds to the upper chamber. A general guideline is 10-12 grams of coffee per 100ml of water.


   Descripció de la imatge: Un primer pla view of the upper glass chamber of the Hario NXAR-5 Coffee Siphon, containing dark coffee grounds. The chamber is tilted slightly, indicating it's being prepared for brewing. This illustrates the step of adding coffee grounds.
3. Insert Upper Chamber: Carefully insert the upper chamber into the lower chamber, ensuring a snug, airtight seal. The filter should be positioned correctly.
4. Aplicar calor: Place the lit alcohol burner (or alternative heat source) directly under the lower chamber. The water will begin to heat and rise into the upper chamber.
5. Procés d'elaboració: Once most of the water has transferred to the upper chamber and mixed with the coffee grounds, stir gently with the provided stirrer for about 30 seconds to ensure even saturation. Allow to brew for 1-2 minutes, depending on desired strength.
6. Remove Heat: Remove the heat source. As the lower chamber cools, a vacuum will form, drawing the brewed coffee back down through the filter into the lower chamber.

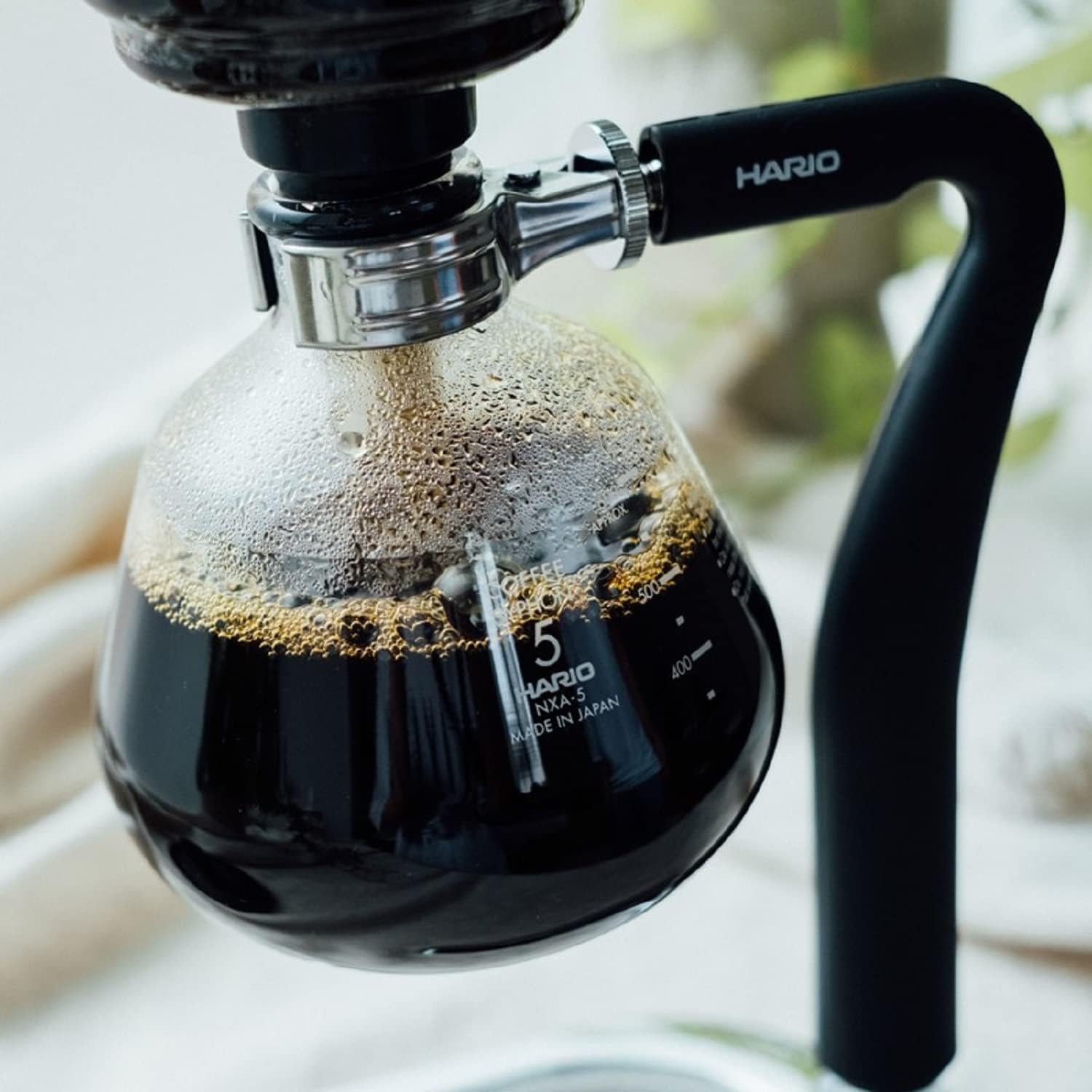

   Descripció de la imatge: A close-up of the lower, spherical chamber of the Hario NXAR-5 Coffee Siphon, now filled with dark, freshly brewed coffee. The measurement markings "5" and "600ml" are visible on the glass. This image shows the final stage of brewing where coffee has returned to the lower chamber.

7. Remove Upper Chamber: Once all the coffee has returned to the lower chamber, carefully remove the upper chamber by gently twisting and pulling. Place it in its designated holder or on a heat-resistant surface.
8. Servir: Pour the freshly brewed coffee from the lower chamber into your cups.


   Descripció de la imatge: A hand pouring dark, brewed coffee from the lower chamber of the Hario NXAR-5 Coffee Siphon into a clear glass cup. The coffee stream is visible, indicating the serving process.



   Descripció de la imatge: The Hario NXAR-5 Coffee Siphon sitting on a wooden table, with two cups of freshly brewed coffee next to it. Steam is visibly rising from the coffee in the cups, suggesting it's hot and ready to be enjoyed.

Cura i Manteniment

Neteja

• Components de vidre: The upper and lower glass chambers are dishwasher safe. For hand washing, use a soft sponge and mild detergent. Avoid abrasive cleaners or scrubbers that could scratch the glass.
• Cloth Filter: After each use, rinse the cloth filter thoroughly under running water to remove all coffee grounds. Store it submerged in clean water in the refrigerator to prevent drying out and to maintain freshness. Replace the cloth filter periodically (e.g., every 30-50 uses or when it shows signs of wear).
• Filtre metàl·lic: Rinse thoroughly after each use. If necessary, use a small brush to remove any trapped coffee particles.
• Stand and Burner: Netegeu amb un anunciamp cloth. Do not immerse the burner in water.

Emmagatzematge

Store all components in a clean, dry place. Ensure glass parts are protected from impacts.

Resolució de problemes

Especificacions

• Model: NXAR-5
• Marca: HARIO
• Capacitat: 5 Cups (600 ml)
• Color: Negre
• Dimensions del producte: 16.34" de profunditat x 5.15" d'amplada x 7.28" d'alçada (aprox. 41.5 cm de profunditat x 13.1 cm d'amplada x 18.5 cm d'alçada)
• Pes de l'article: 2.05 lliures (aprox. 930 g)
• Material: Heat-resistant glass, metal, silicone
• Tipus de cafetera: Siphon Coffee Maker
• Usos específics per al producte: Elaboració de cafè
• Mode de funcionament: Manual
• Components inclosos: Upper chamber, lower chamber, stand, filter assembly, alcohol burner, measuring spoon/stirrer.
• Apte per a rentavaixelles: Glass components only.
• Origen: Fabricat al Japó

Garantia i Suport

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official HARIO weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
