Pagani Design PD1653 Automatic Mechanical Watch User Manual

1. Introducció

Thank you for choosing the Pagani Design PD1653 Automatic Mechanical Watch. This timepiece combines sophisticated mechanical engineering with a distinctive aesthetic, featuring a skeleton dial and a vibrant rainbow bezel. This manual provides essential information for the proper setup, operation, and maintenance of your watch to ensure its longevity and accurate performance.

Image: Pagani Design PD1653 Automatic Watch with Rainbow Bezel. This image showcases the watch's unique design with its skeleton dial and colorful bezel.

2. Producte acabatview

The Pagani Design PD1653 is an automatic mechanical wristwatch designed for men. It features a skeleton dial that reveals the intricate workings of its self-winding movement. The watch is equipped with a durable stainless steel case, a striking rainbow-colored bezel, and is available with either a stainless steel bracelet or a rubber strap. It offers 100 meters of water resistance, making it suitable for daily wear and light water activities.

Característiques principals:

• Moviment: Self-winding automatic mechanical movement.
• Marca: Skeleton design with visible gears.
• Bisell: Dazzling rainbow-colored bezel.
• Subdials: Features for day of the week (9 o'clock), calendar date (3 o'clock), and a 24-hour indicator.
• Material de la caixa: Corrosion-resistant 316L stainless steel.
• Opcions de corretja: Stainless steel bracelet or rubber strap.
• Resistència a l'aigua: 100 metres (10 caixers automàtics).

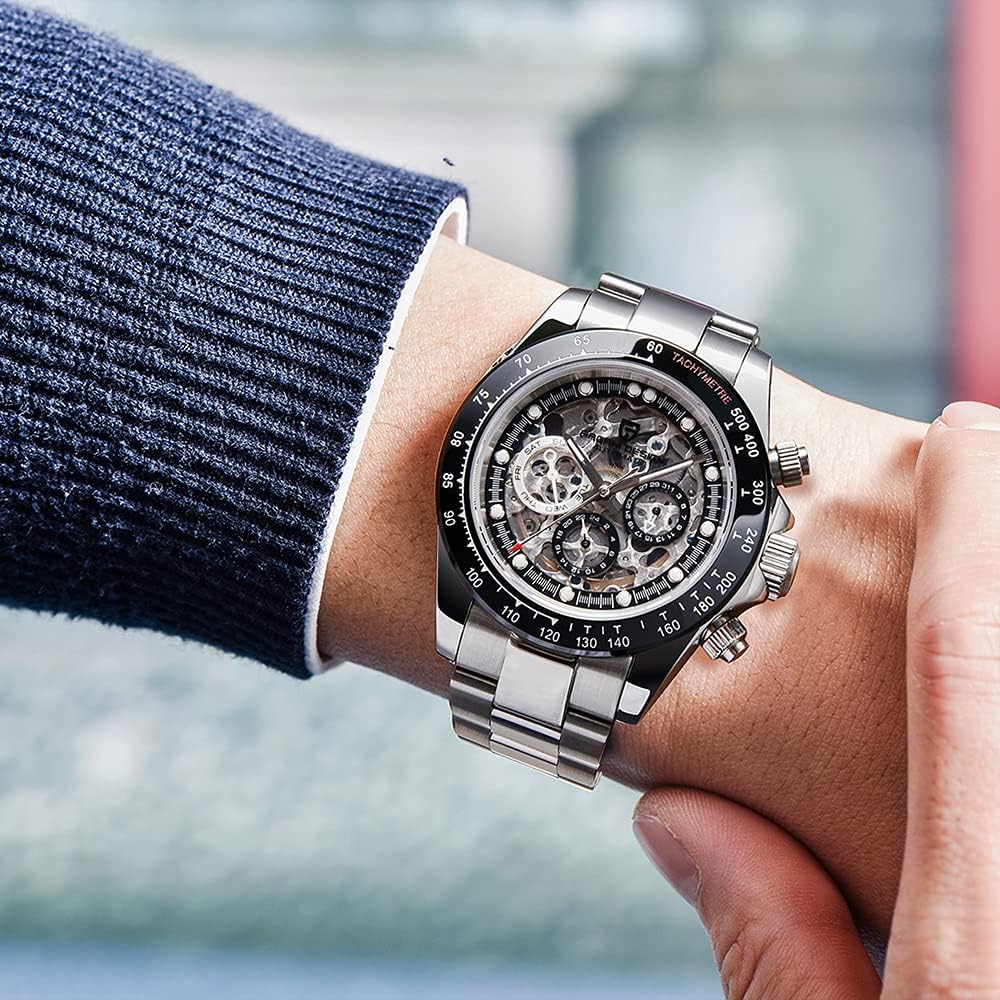

Imatge: Frontal view of the Pagani Design PD1653 watch. This image highlights the skeleton dial and the rainbow bezel.

Imatge: Part posterior view of the Pagani Design PD1653 watch, showcasing the automatic mechanical movement through the exhibition case back.

3. Configuració i funcionament inicial

3.1 Enrotllament inicial

As an automatic mechanical watch, your PD1653 is powered by the movement of your wrist. However, for the first use or after a period of inactivity, manual winding is required to build up the power reserve.

1. Ensure the crown (3) is fully pushed in and screwed down.
2. Unscrew the crown (3) by turning it counter-clockwise until it springs out slightly.
3. Rotate the crown (3) clockwise 20-25 times. This will manually wind the mainspring and provide initial power to the movement.
4. Empenyeu la corona cap enrere i enrosqueu-la en sentit horari per garantir la resistència a l'aigua.

3.2 Setting Time, Day, and Date

The watch features sub-dials for the day of the week and calendar date, controlled by specific buttons and the crown.

Image: Watch dial with numbered labels indicating the week sub-dial (1), calendar sub-dial (2), and crown (3).

• Configuració de l'hora:
  1. Unscrew the crown (3) and pull it out to the outermost position.
  2. Turn the crown (3) to adjust the hour and minute hands to the correct time.
  3. Once set, push the crown back in and screw it down clockwise.
• Setting the Day of the Week (Sub-dial at 9 o'clock):
  1. The button at the top right of the watch case controls the day of the week sub-dial (1).
  2. Press this button repeatedly to advance the day of the week until the correct day is displayed.
• Setting the Calendar Date (Sub-dial at 3 o'clock):
  1. The button at the bottom right of the watch case controls the calendar date sub-dial (2).
  2. Press this button repeatedly to advance the date until the correct date is displayed.

4. Operating Your Automatic Watch

4.1 Mecanisme de bobinatge automàtic

Your Pagani Design PD1653 watch is equipped with an automatic movement. This means that the watch is wound by the natural motion of your wrist. An oscillating weight inside the watch turns with your movements, winding the mainspring and storing energy. When fully wound, the watch typically has a power reserve of approximately 36-40 hours.

If the watch stops due to lack of movement, simply wear it for a few hours or manually wind it as described in Section 3.1 to restart it.

4.2 Resistència a l'aigua

The watch is rated for 100 meters (10 ATM) of water resistance. This means it can withstand splashes, rain, and brief immersion in water, such as during hand washing or light swimming. However, it is no suitable for showering, bathing, sauna, or diving.

Important: Always ensure the crown is fully pushed in and screwed down tightly before any contact with water to maintain water resistance.

Image: Sapphire crystal with a water droplet. This illustrates the watch's durable and water-resistant crystal.

5. Manteniment i cura

Proper care will help preserve the appearance and functionality of your Pagani Design watch.

• Neteja: Wipe the watch case, crystal, and strap regularly with a soft, dry cloth. For stainless steel parts, a slightly damp es pot utilitzar un drap, seguit d'assecat immediat.
• Eviteu productes químics: No exposeu el rellotge a productes químics agressius, dissolvents o detergents, ja que poden danyar la caixa, la corretja o els segells.
• Extrems de temperatura: Eviteu exposar el rellotge a temperatures extremes (calor o fred) o canvis sobtats de temperatura, ja que poden afectar el moviment i la resistència a l'aigua.
• Camps magnètics: Keep the watch away from strong magnetic fields (e.g., speakers, refrigerators, certain electronic devices), as magnetism can affect the accuracy of mechanical movements.
• Comprovació de la resistència a l'aigua: If the watch is frequently exposed to water, it is recommended to have the water resistance seals checked periodically by a qualified watchmaker.

Image: Stainless steel bracelet and rubber strap options. Both materials require specific care to maintain their condition.

6. Solució De Problemes

If you encounter issues with your watch, please refer to the following common troubleshooting steps:

• Mira No correr ni perdre temps:
  • Ensure the watch is sufficiently wound. If it has been stationary, manually wind it 20-25 turns (refer to Section 3.1).
  • Wear the watch regularly for several hours to allow the automatic movement to build up power reserve.
  • Check if the watch has been exposed to strong magnetic fields. If so, demagnetization by a professional may be required.
• Condensation Inside the Crystal:
  • Small amounts of condensation that disappear quickly are usually normal due to temperature changes.
  • If condensation persists or appears as large droplets, it indicates a breach in water resistance. Stop using the watch immediately and seek professional service to prevent further damage to the movement.
• Buttons/Crown Not Functioning:
  • Ensure the crown is unscrewed and pulled out to the correct position for adjustment.
  • Do not force buttons or the crown. If they feel stuck, do not attempt to operate them forcefully.

Per a problemes que no es cobreixin aquí, poseu-vos en contacte amb l'atenció al client.

7. Especificacions

8. Garantia i Suport

Pagani Design is committed to customer satisfaction and product quality.

• Garantia de devolució de diners: We offer a 30-day money-back guarantee for quality-related issues on all Pagani Design watch purchases.
• Garantia: Your watch is covered by a 1-year warranty from the date of purchase against manufacturing defects. This warranty does not cover damage resulting from improper handling, accidents, or normal wear and tear.
• Atenció al client: For any questions, concerns, or warranty claims, please contact our customer support team through the retailer where you purchased the watch.
