Introducció
Gràcies per la compraasing the Timex Alarm Clock. This compact digital clock is designed for convenience and functionality, featuring a large display, temperature sensor, and battery operation. Please read this manual carefully to ensure proper setup and operation of your device.
Contingut del paquet
- Timex Alarm Clock (Model T108BC/T108)
- Manual d'usuari
Nota: Es necessiten 3 piles AAA per al funcionament i no estan incloses.
Informació de seguretat
- No barregeu piles velles i noves.
- No barregeu piles alcalines, estàndard (carboni-zinc) o recarregables (níquel-cadmi).
- Remove batteries if the unit is not to be used for an extended period.
- Mantingueu el dispositiu allunyat de temperatures extremes, llum solar directa i humitat.
- No intenteu desmuntar ni modificar la unitat. Això anul·larà la garantia.
- Eliminar les bateries correctament d'acord amb la normativa local.
Característiques del producte

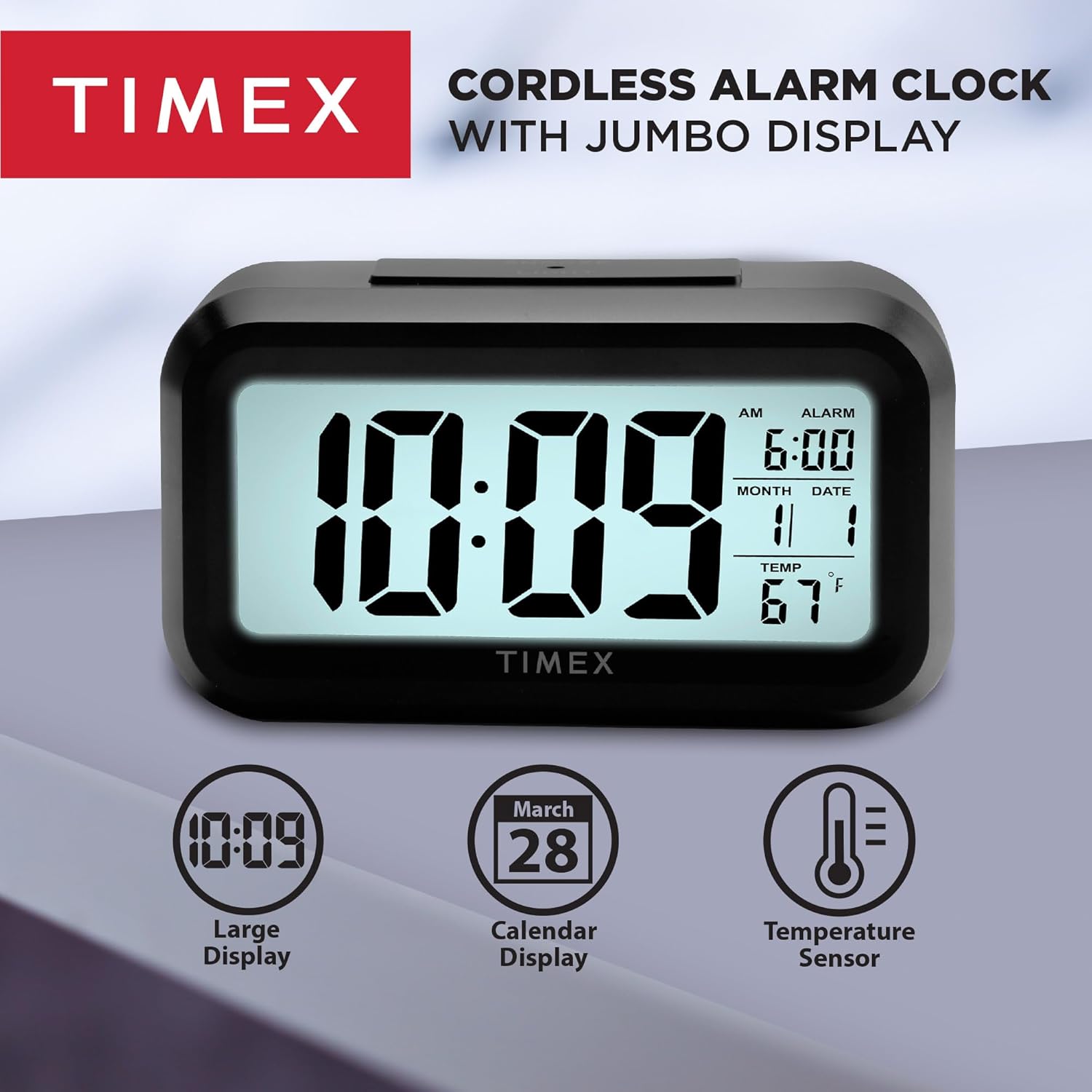

This image illustrates the key features of the Timex Alarm Clock, including its large display, calendar function, and integrated temperature sensor.

The clock features an auto light sensor that can automatically activate the backlight when the room becomes dark, enhancing visibility.
- Rellotge despertador digital: A compact and portable solution for timekeeping and alarms.
- Sensor de temperatura: Built-in sensor displays current indoor temperature in Fahrenheit or Celsius, updating every 60 seconds.
- Pantalla LCD gran: A 1.5-inch backlit display with large, easy-to-read numbers.
- Funciona amb bateria: Operates on 3 AAA batteries (sold separately) for cordless use, ideal for travel or bedrooms.
- Sensor de llum automàtic: An optional feature that activates ambient light when the room darkens, providing continuous visibility.
- Botó Posposa/Llum: A large button on top for temporary backlight activation and alarm snooze.
Configuració
Instal·lació de la bateria
- Localitzeu el compartiment de la bateria a la part posterior del rellotge.
- Obriu la tapa del compartiment de la bateria.
- Introduïu 3 piles AAA noves, assegurant-vos de la polaritat correcta (+ i -).
- Tanqueu bé la tapa del compartiment de la bateria.
Encès inicial
Once batteries are installed, the clock display will activate. You may need to set the time and date immediately.

This image displays the rear panel of the alarm clock, highlighting the battery compartment and various control buttons for setting time, date, and alarm functions.
Instruccions de funcionament
Refer to the diagram of the back panel controls for button locations.

This image shows the front display of the alarm clock with annotations pointing to the backlit display, snooze/light button, alarm display, indoor temperature, and calendar display.
Configuració de l'hora i la data
- Feu lliscar el LOCK/DATE SET/TIME SET switch on the back to the HORA CONFIGURADA posició.
- Utilitza el HORA button to adjust the hour. Observe the AM/PM indicator for 12-hour format.
- Utilitza el MINUTE/DATE per ajustar el minut.
- Feu lliscar el 12/24 TIME/YEAR SET switch to select between 12-hour and 24-hour time formats.
- Once the time is set, slide the LOCK/DATE SET/TIME SET tornar a BLOC.
- To set the date, slide the LOCK/DATE SET/TIME SET canviar a DATA DEFECTADA posició.
- Utilitza el ANY botó per configurar l'any.
- Utilitza el MES per configurar el mes.
- Utilitza el MINUTE/DATE per configurar el dia.
- Once the date is set, slide the LOCK/DATE SET/TIME SET tornar a BLOC.
Configuració de l'Alarma
- Feu lliscar el LOCK/ALARM SET/TIME SET canviar a CONJUNT D'ALARMES posició.
- Utilitza el HORA button to adjust the alarm hour. Observe the AM/PM indicator.
- Utilitza el MINUTE/DATE botó per ajustar el minut de l'alarma.
- Once the alarm time is set, slide the switch back to BLOC.
Alarm On/Off and Snooze
- To turn the alarm ON, fes lliscar el ALARMA ON / OFF switch on the side of the clock to ON. An alarm icon will appear on the display.
- To turn the alarm OFF, fes lliscar el ALARMA ON / OFF canviar a OFF. The alarm icon will disappear.
- Quan soni l'alarma, premeu el botó gran SNOOZE / LIGHT button on top of the clock to temporarily silence the alarm. The alarm will sound again after approximately 9 minutes.
- To stop the alarm completely, slide the ALARMA ON / OFF canviar a OFF.
Selecció de la unitat de temperatura
- Localitza el ° C / ° F interruptor a la part posterior del rellotge.
- Slide the switch to select either Celsius (°C) o Fahrenheit (°F) for the temperature display.
Sensor de llum ambiental
- Localitza el AMBIENT LIGHT SENSOR ON/OFF interruptor a la part posterior del rellotge.
- Feu lliscar el commutador a ON to enable the automatic backlight feature. The display will illuminate dimly in dark environments.
- Feu lliscar el commutador a OFF to disable this feature. The backlight will only activate when the SNOOZE / LIGHT es prem el botó.
Manteniment
Neteja
- Netegeu el rellotge amb un drap suau i sec.
- No utilitzeu netejadors abrasius ni dissolvents, ja que poden danyar la superfície.
Canvi de bateria
- When the display becomes dim or the clock functions erratically, it is time to replace the batteries.
- Seguiu els passos d'instal·lació de la bateria que s'indiquen a la secció "Configuració".
- Ensure to replace all 3 AAA batteries simultaneously with new ones.
Resolució de problemes
| Problema | Solució |
|---|---|
| La pantalla del rellotge està en blanc o fosca. |
|
| L'alarma no sona. |
|
| Hora o data incorrecta mostrada. |
|
| La lectura de temperatura sembla inexacta. |
|
Especificacions
- Números de model: T108BC, T108
- Marca: Timex
- Fabricant: SDI Technologies, Inc.
- Tipus de visualització: LCD digital
- Mida de la pantalla: 1.5 inches (Jumbo)
- Color: Negre
- Font d'alimentació: 3 piles AAA (no incloses)
- Característiques especials: Alarm, Temperature Sensor, Large Display, Backlight, Auto Light Sensor
- Pes de l'article: Aproximadament 0.42 lliures
- Dimensions: Approximately 5.4" W x 3" H x 1.9" D (Refer to image for visual representation)

This image provides a visual representation of the alarm clock's dimensions, indicating its height, width, and depth.
Informació de la garantia
This product is covered by a limited warranty from the manufacturer. Please refer to the warranty card included with your purchase or visit the official Timex weblloc web per obtenir informació detallada sobre els termes i condicions de la garantia. Conserveu el comprovant de compra per a reclamacions de garantia.
Atenció al client
For technical assistance, troubleshooting not covered in this manual, or general inquiries, please contact Timex customer support. Contact information can typically be found on the manufacturer's weblloc web o a l'embalatge del producte.
