Perfit Liner Hard Tri-fold Truck Bed Tonneau Cover User Manual

Producte acabatview

The Perfit Liner Hard Tri-fold Truck Bed Tonneau Cover is designed to provide robust protection and easy access for your truck bed. Constructed from high-strength materials including Fiberglass Reinforced Polymer (FRP), Alloy Steel, and Polypropylene, it offers superior durability and resistance to various environmental conditions. This cover is compatible with specific Chevrolet Silverado and GMC Sierra models and bed sizes, ensuring a precise fit and enhanced security for your cargo.

Key features include waterproof, snow-proof, and dirt-proof capabilities, sound insulation, and heat absorption. Its tri-fold design allows for convenient partial or full bed access without requiring drilling for installation.

Image: Perfit Liner Hard Tri-fold Tonneau Cover installed on a truck bed, showcasing és elegant i baix en valorfile design and secure fit.

Image: Diagram illustrating how to measure truck bed length from bulkhead to tailgate, emphasizing compatibility for 6.5 FT beds.

Compatibilitat

This tonneau cover is compatible with the following truck models and bed sizes:

• 2014-2025 Chevrolet Silverado 1500 (6.5 FT / 79" bed)
• 2014-2025 GMC Sierra 1500 (6.5 FT / 79" bed)
• 2015-2019 Chevrolet Silverado 2500 HD / 3500 HD (6.5 FT / 79" bed)
• 2015-2019 GMC Sierra 2500 HD / 3500 HD (6.5 FT / 79" bed)

Què hi ha a la caixa

• Tonneau cover
• Maquinari
• Guia d'instal·lació
• Muntatge clamps

Configuració i instal·lació

The Perfit Liner Hard Tri-fold Tonneau Cover features a no-drill installation process. Follow these steps for proper setup:

1. Desempaquetar components: Carefully remove all components from the packaging. Verify all parts listed in the "What's in the Box" section are present.
2. Col·loca la coberta: Place the tri-fold cover onto the truck bed rails, ensuring the front section is aligned with the bulkhead.
3. Front segur Clamps: Locate the front clamps on the underside of the cover. Rotate the screw to align the jig with the truck track. Tighten the clamps securely to the truck bed rails.
4. Unfold and Align: Carefully unfold the cover sections towards the tailgate. Ensure each section lays flat and is properly aligned with the truck bed.
5. Secure Rear Clamps: Once unfolded, secure the rear clamps to the truck bed rails. These clamps typically feature a lever mechanism for quick locking.
6. Ajustaments finals: Comproveu tots els clamps for tightness and ensure the cover is evenly seated on the bed rails for optimal sealing.

Imatge: Secció transversal view illustrating the Fiberglass Reinforced Polymer (FRP) surface panels and Polypropylene (PP) honeycomb core design, highlighting material strength and stability.

Instruccions de funcionament

The hard tri-fold design allows for flexible access to your truck bed:

• Full Bed Access: To fully open the cover, release the rear clamps, then lift and fold each section towards the cab. Secure the folded cover using the integrated straps near the cab to prevent it from unfolding during transit.
• Partial Bed Access (2/3): For access to the front two-thirds of the bed, release the rear clamps and fold the last section forward. This provides ample space for smaller items while keeping the front section covered.
• Posició bloquejada: When fully closed, ensure all clamps are securely fastened. The cover works in conjunction with your truck's tailgate lock to provide enhanced security for your cargo.

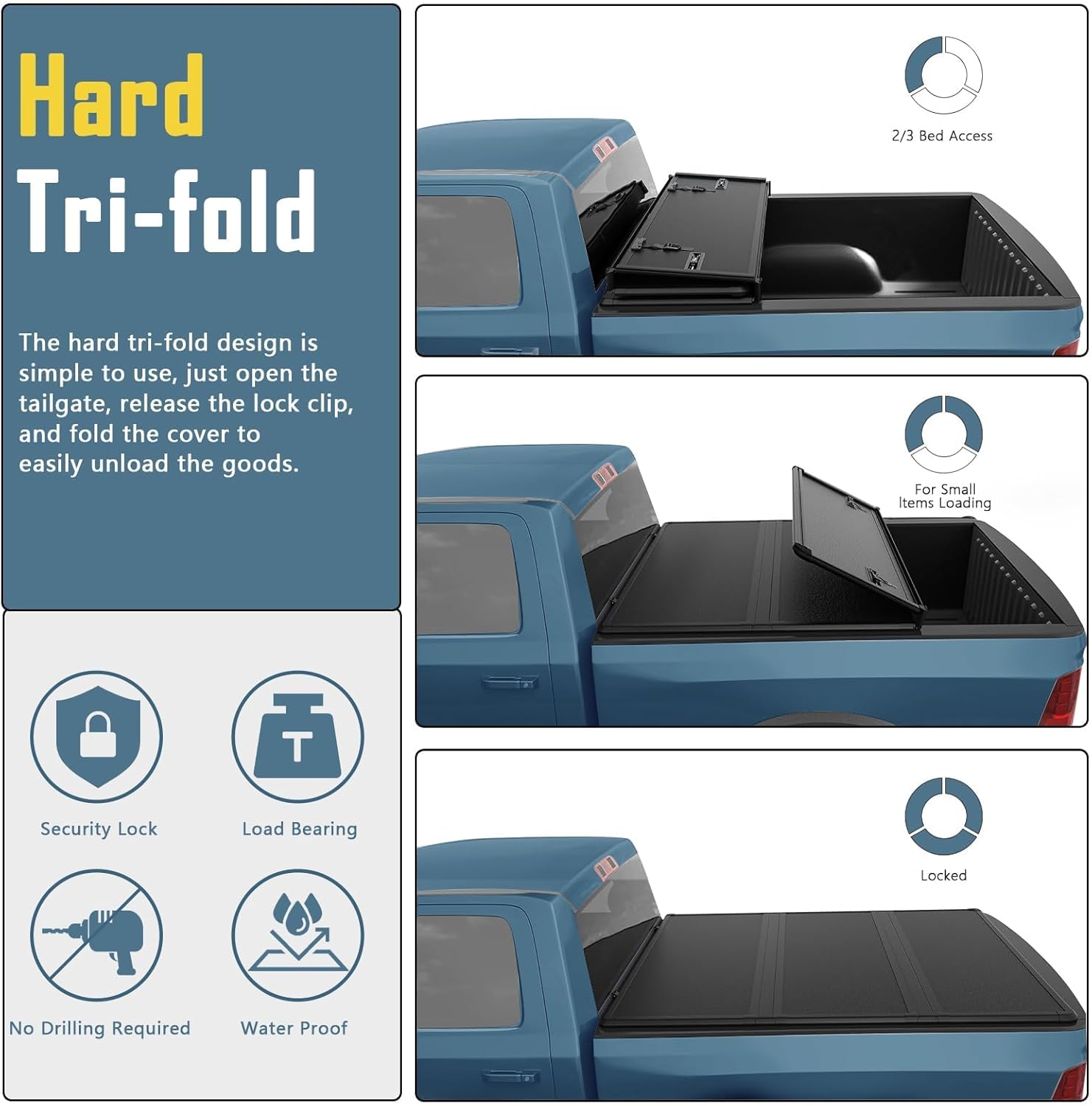

Image: Visual representation of the tonneau cover in various states: fully closed and locked, folded to allow 2/3 bed access, and partially folded for small item loading.

Image: Illustration highlighting the cover's robust security, deterring common theft methods like prying or drilling.

Manteniment

To ensure the longevity and optimal performance of your Perfit Liner Tonneau Cover, regular maintenance is recommended:

• Neteja: Clean the cover regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the matte black texture or sealing components. Rinse thoroughly and allow to air dry.
• Seals and Hinges: Periodically inspect the rubber seals along the edges and between the panels for any signs of wear or damage. Ensure hinges operate smoothly. Lubricate hinges if necessary with a silicone-based lubricant.
• Clamps: Check the tightness of all mounting clamps periodically, especially after initial installation and after driving on rough terrain. Re-tighten as needed to maintain a secure fit.
• Protecció meteorològica: The cover is designed to be waterproof, snow-proof, and dirt-proof. However, in extreme weather conditions, it is advisable to clear heavy snow accumulation to prevent excessive weight on the panels.

Image: Demonstrates the cover's performance in diverse conditions, including snow, rain, dust, and its ability to prevent cargo mess, save fuel, and protect against leaves and sun.

Image: Compares Perfit Liner's seamless design and fixed socket for stability and multi-layer sealing for superior waterproofing against common issues found in other covers.

Resolució de problemes

If you encounter any issues with your tonneau cover, consider the following common solutions:

• Fuga d'aigua:
  • Ensure all seals are properly seated and free from debris.
  • Check that the cover is centered and evenly aligned on the truck bed rails.
  • Comproveu tots els clamps estan ben ajustades.
  • Inspect the truck bed rails for any irregularities that might prevent a proper seal.
• Dificultat per plegar/desplegar:
  • Check for any obstructions on the truck bed rails or within the folding mechanism.
  • Ensure the release levers are fully disengaged before attempting to fold.
  • Lubricate hinges and moving parts if they appear stiff.
• Loose Fit/Movement:
  • Re-tighten all mounting clamps.
  • Confirm the cover is correctly positioned on the bed rails.

If problems persist, refer to the "Warranty & Support" section for further assistance.

Especificacions

Garantia i suport

Garantia: This Perfit Liner Tonneau Cover comes with a 3-year warranty, as indicated by its special features. For specific warranty claims and details, please retain your proof of purchase.

Devolucions: The product is eligible for 30-day easy returns.

Atenció al client: If you have any problems with your cover, Perfit Liner tonneau cover experts are available to assist you. You can visit the official Perfit Liner store on Amazon for more information and support resources.
