1. Introducció
Thank you for choosing FLITI Solar Outdoor Lights. This manual provides essential information for the safe and efficient use of your new solar security lights. Please read these instructions carefully before installation and retain them for future reference.
Image 1.1: FLITI Solar Outdoor Light overview.
2. Característiques del producte
- Il·luminació súper brillant: Equipped with 210 high-quality LED lamp beads, providing up to 2500 lumens of 6500K bright white light.
- Tecnologia solar avançada: High-quality solar panels ensure efficient charging and reliable performance.
- Adjustable Three Heads: The solar panel and the three lamp heads can be rotated independently, allowing for a 270° wide-angle illumination and multi-directional lighting.
- Sensor de moviment sensible: An upgraded infrared digital motion sensor detects movement up to 35 feet away with a 270° sensing angle, activating the lights from dusk to dawn.
- Durador i impermeable: IP65 waterproof rating ensures the lights withstand various weather conditions, including rain and heavy snow.
- Instal·lació sense fil: Designed for quick and simple installation without the need for wiring or external electricity.
Image 2.1: Advanced Solar Powered LED Technology.
Image 2.2: Three Heads Adjustable Design.
Image 2.3: Sensitive Motion Sensor capabilities.

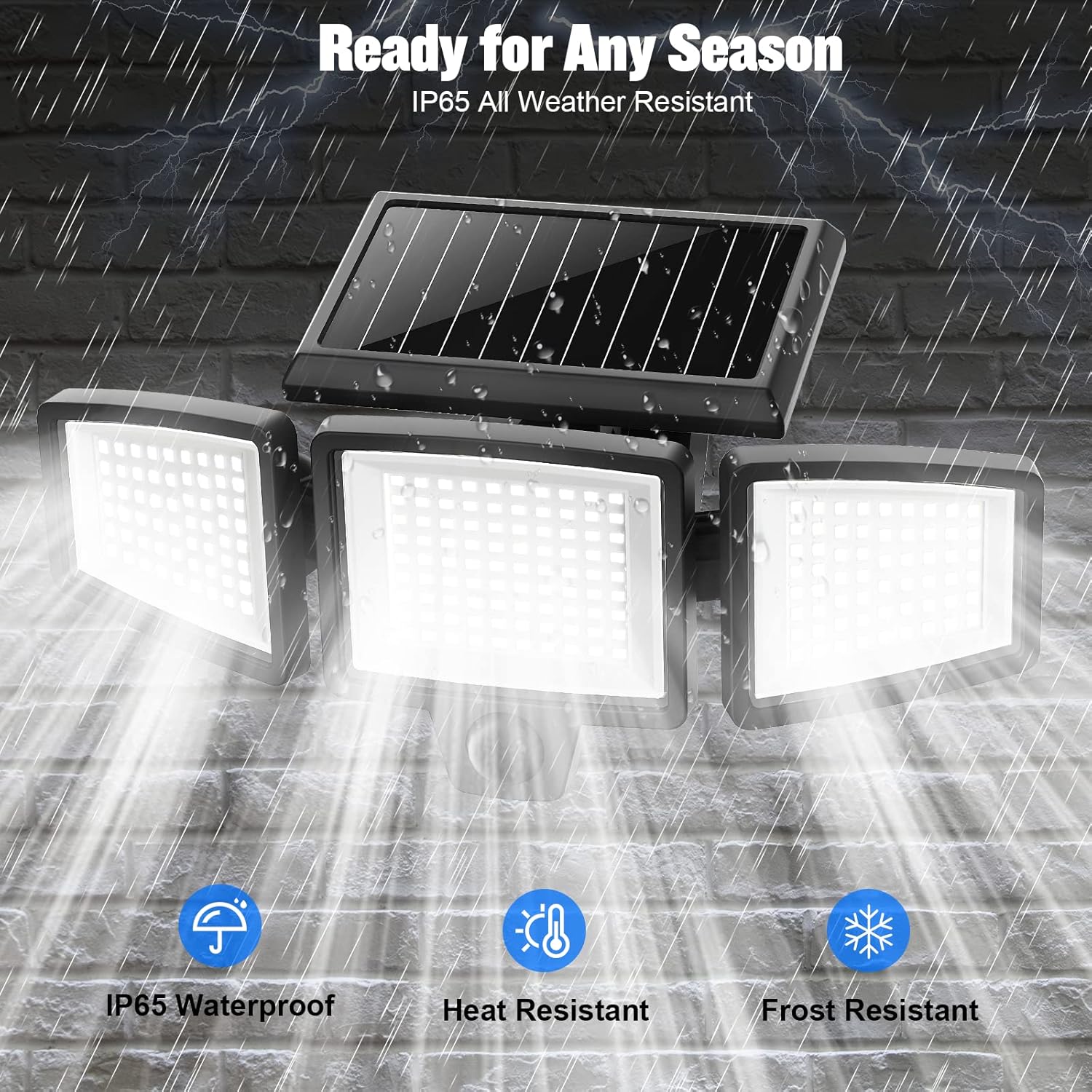

Image 2.4: IP65 All Weather Resistant design.
3. Contingut del paquet
Si us plau, comproveu l'embalatge per assegurar-vos que tots els components hi són i no estan danyats:
- FLITI Solar Outdoor Lights (2 units)
- Maquinari de muntatge (cargols, tacs de paret)
- Control remot
- Manual d'instruccions (aquest document)
4. Informació de seguretat
- No desmunteu ni modifiqueu el producte. Les modificacions no autoritzades poden causar danys o lesions.
- Mantingueu el producte allunyat del foc i de les altes temperatures.
- Ensure the mounting surface is sturdy enough to support the weight of the light fixture.
- Avoid looking directly into the LED lights when they are on, as this may cause temporary vision impairment.
- Elimineu el producte i els seus components de manera responsable d'acord amb la normativa local.
5. Configuració i instal·lació
The FLITI Solar Outdoor Lights are designed for easy, wireless installation. Follow these steps for optimal performance:
- Trieu una ubicació: Select an outdoor location that receives direct sunlight for at least 6-8 hours daily. This is crucial for the solar panel to charge the internal battery effectively. Avoid areas under eaves, trees, or other obstructions that might block sunlight.
- Marca els punts de perforació: Hold the light fixture against the desired wall or mounting surface. Use a pencil to mark the positions for the mounting screws.
- Forats: Using an appropriate drill bit, drill holes at the marked positions. Insert the provided wall plugs into the drilled holes.
- Muntar la llum: Align the light fixture with the drilled holes and secure it firmly using the provided screws.
- Ajustar Lamp Heads and Solar Panel: Once mounted, adjust the three lamp heads and the solar panel to your desired angles. Ensure the solar panel is positioned to receive maximum sunlight.
6. Instruccions de funcionament
Your FLITI Solar Outdoor Light operates automatically based on light conditions and motion detection:
- Càrrega automàtica: Durant el dia, el panell solar converteix la llum solar en electricitat i l'emmagatzema a la bateria interna.
- Activació automàtica: At dusk, the light will enter standby mode. When the motion sensor detects movement within its range (up to 35 feet and 270° angle), the lights will automatically turn on at full brightness.
- Desactivació automàtica: After a period of no motion detection, the lights will either dim or turn off completely, depending on the selected operating mode.
- Comandament a distància: Use the included remote control to select different lighting modes and adjust settings as desired. Refer to the 'Remote Control Functions' section for details.
7. Funcions de control remot
The remote control allows you to customize the operation of your solar lights. While specific button functions may vary slightly, common modes typically include:
- Mode sensor de moviment: Light turns on at full brightness when motion is detected and turns off after a set time without motion.
- Dim Light + Motion Sensor Mode: Light stays on at a dim level and brightens to full when motion is detected, then returns to dim.
- Mode sempre encès: Light stays on at a constant brightness (often dim to conserve battery) from dusk till dawn.
- Botó On/Off: Encendre o apagar el llum manualment.
Refer to the labels on your specific remote control for precise button functions and mode descriptions.
8. Manteniment
Regular maintenance ensures the longevity and optimal performance of your solar lights:
- Netegeu el panell solar: Netegeu periòdicament el panell solar amb un drap suau iamp drap per eliminar la pols, la brutícia, les fulles o la neu. Un panell net garanteix la màxima absorció de la llum solar i l'eficiència de càrrega.
- Comproveu el muntatge: Occasionally inspect the mounting screws and brackets to ensure the light fixture remains securely attached to the wall.
- Elimina les obstruccions: Ensure no new obstructions (e.g., growing branches) are blocking direct sunlight to the solar panel or interfering with the motion sensor's field of view.
9. Solució De Problemes
If your FLITI Solar Outdoor Light is not functioning as expected, consider the following:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s'encén a la nit. |
|
|
| Light stays dim or only works for a short period. |
|
|
| El sensor de moviment no detecta moviment. |
|
|
10. Especificacions
| Característica | Especificació |
|---|---|
| Número de model | solar-ac-3.2 |
| Sortida de llum | 2500 lúmens |
| Temperatura de color | 6500 Kelvin (llum blanca) |
| Nombre de LED | 210 |
| Interval del sensor de moviment | Fins a 35 peus (10.6 metres) |
| Angle del sensor de moviment | 270° |
| Angle d'il·luminació | 270° (adjustable heads) |
| Font d'alimentació | Energia solar |
| Material | Plàstic |
| Resistència a l'aigua | Impermeable IP65 |
| Tipus d'instal·lació | Wall Mount / Semi Flush Mount |
| Components inclosos | Maquinari de muntatge, comandament a distància |
| Pes de l'article | 0.5 Kilograms (1.1 pounds) per unit |
| Nombre d'articles | 2 |
11. Garantia i Suport
FLITI Solar Outdoor Lights come with a 1 any de garantia des de la data de compra. Aquesta garantia cobreix defectes de fabricació i defectes de materials en condicions d'ús normal.
La garantia no cobreix els danys causats per:
- Instal·lació o ús incorrecte.
- Accidents, abuse, or neglect.
- Reparacions o modificacions no autoritzades.
- Natural disasters or extreme weather conditions beyond IP65 rating.
For warranty claims, technical support, or any questions regarding your product, please contact FLITI customer service through your original purchase platform or the contact information provided with your product packaging.
