ENERMAX Revolution D.F. 2 1200W Full Modular Power Supply User Manual

1. Introducció

Thank you for choosing the ENERMAX Revolution D.F. 2 1200W Full Modular Power Supply. This power supply unit (PSU) is designed to provide stable and efficient power to your high-performance computer system. It is compliant with the latest ATX 3.0 and PCIe 5.0 standards, featuring a dedicated 12VHPWR connector for modern graphics cards. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your PSU.

Figure 1.1: ENERMAX Revolution D.F. 2 1200W Power Supply with included modular cables.

2. Informació de seguretat

Please read and understand all safety warnings before installing or operating the power supply. Failure to follow these instructions may result in electric shock, fire, or damage to the product and other components.

• No obriu la font d'alimentació casing: Vol. Alttages are present inside, even when the system is off. There are no user-serviceable parts inside. Opening the casing anul·larà la garantia.
• Ensure proper grounding: Always connect the PSU to a grounded power outlet.
• Utilitzeu el voltage: Comproveu que l'entrada voltage selector (if present) is set to the correct voltage for your region before connecting to power. This unit supports 100-240V auto-sensing.
• Eviteu la humitat: Do not expose the PSU to water or high humidity. Operate in a dry environment.
• Ventilació adequada: Assegureu-vos que hi hagi un flux d'aire adequat al voltant de la font d'alimentació. No bloquegeu les obertures de ventilació.
• Manipular amb cura: Avoid dropping or subjecting the PSU to strong impacts.
• Desconnecteu l'alimentació: Always disconnect the AC power cord from the wall outlet before installing, removing, or cleaning the PSU or any other computer components.

3. Contingut del paquet

Carefully unpack the box and ensure all items are present. If any items are missing or damaged, contact your retailer or Enermax support.

• ENERMAX Revolution D.F. 2 1200W Power Supply Unit
• Joc de cables modulars (com es detalla a continuació)
• Cable d'alimentació CA
• Cargols de muntatge
• Manual d'usuari (aquest document)

Modular Cable Types Included:

Figura 3.1: Mésview of included modular cables.

• Motherboard 24 (20+4) pin x1
• PCIe 6+2 pin x8
• CPU 4+4 pin x2
• SATA x8
• 4P Molex x4
• FDD x1

4. Producte acabatview

The ENERMAX Revolution D.F. 2 1200W PSU is engineered for high performance and reliability. Key features include:

• Intel ATX 3.0 Certified: Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform with a 16-Pin PCIe 12VHPWR Cable.
• 200% Power Excursion: Upgraded circuit design allows its peak power wattage output to reach 200%, meaning the 1200W model can stably provide 2400W for 100µs (microseconds) to support instant power excursions.
• Semi-Fanless Mechanics: Enables the PSU fan to be static while the system load is below 20% for absolute silence.
• Dust-Free Rotation Feature: An auto-cleaning solution that enables the PSU fan to blow away dust accumulating around the fan blade and frame upon power up.
• Industrial-grade, 100% Japanese 105°C-rated Capacitors: Delivers steady, reliable power and dependable electrical performance.

Identificació de components:

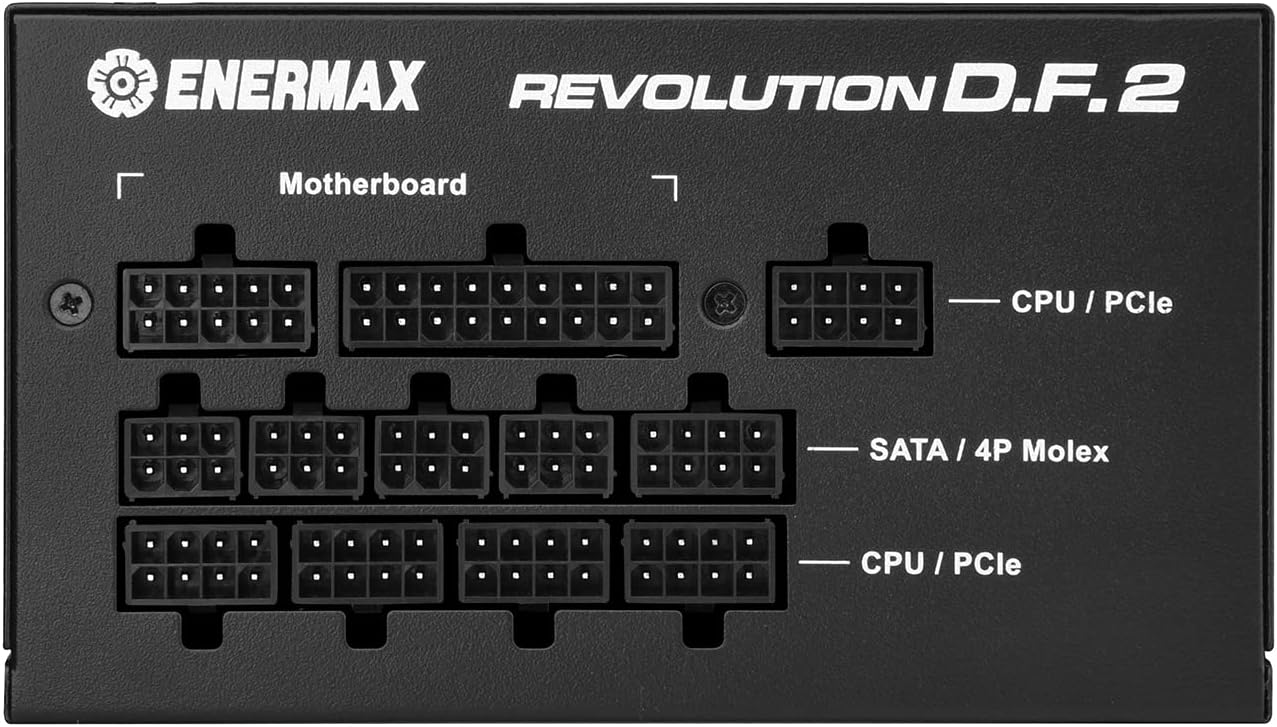

Figure 4.1: Modular Cable Ports (Motherboard, CPU/PCIe, SATA/4P Molex).

Figure 4.2: Rear Panel (AC Inlet, Power Switch).

5. Configuració i instal·lació

Follow these steps to install your ENERMAX Revolution D.F. 2 1200W Power Supply into your computer system.

1. Prepareu el vostre sistema: Assegureu-vos que l'ordinador estigui completament apagat i desendollat ​​de la presa de corrent. Obriu la carcassa de l'ordinador.
2. Remove old PSU (if applicable): Disconnect all cables from your old power supply. Unscrew and remove the old PSU from its mounting bracket in the case.
3. Mount the new PSU: Carefully slide the ENERMAX Revolution D.F. 2 PSU into the PSU mounting bay of your computer case. Secure it with the provided mounting screws. Ensure the fan is facing the correct direction for optimal airflow (typically facing down if your case has a bottom vent, or up if it's a top-mounted PSU).
4. Connect essential cables:
   • Connect the 24-pin ATX motherboard cable to the corresponding port on your motherboard and the PSU.
   • Connect the 4+4 pin CPU power cable(s) to your motherboard's CPU power connector(s) and the PSU.
5. Connect peripheral cables:
   • Connect PCIe 6+2 pin cables to your graphics card(s) and the PSU. For high-power GPUs, utilize the 12VHPWR cable if applicable, ensuring it is fully seated.
   • Connecteu els cables d'alimentació SATA als vostres SSD, HDD i unitats òptiques.
   • Connect 4P Molex cables for any other peripherals requiring them.


   Figura 5.1: Example of modular cables connected to the PSU.

6. Gestió de cables: Route cables neatly to improve airflow and aesthetics within your case. Utilize cable ties or straps if necessary.
7. Tanca el cas: Un cop totes les connexions estiguin ben fetes, tanqueu la carcassa de l'ordinador.
8. Connecteu l'alimentació de CA: Plug the provided AC power cord into the PSU's AC inlet and then into a grounded wall outlet.

6. Instruccions de funcionament

Operating your ENERMAX Revolution D.F. 2 PSU is straightforward. Once installed, it will manage power delivery automatically.

• Encès: Flip the main power switch on the back of the PSU to the 'I' (On) position. Then, press the power button on your computer case to start your system.
• Semi-Fanless Mechanics (ECO Mode): The PSU fan will remain off when the system load is below 20% to provide silent operation. As the load increases, the fan will automatically spin up to maintain optimal temperatures.
• Dust-Free Rotation: Upon system startup, the PSU fan will briefly spin in reverse to dislodge any accumulated dust before resuming normal operation. This is an automatic self-cleaning function.

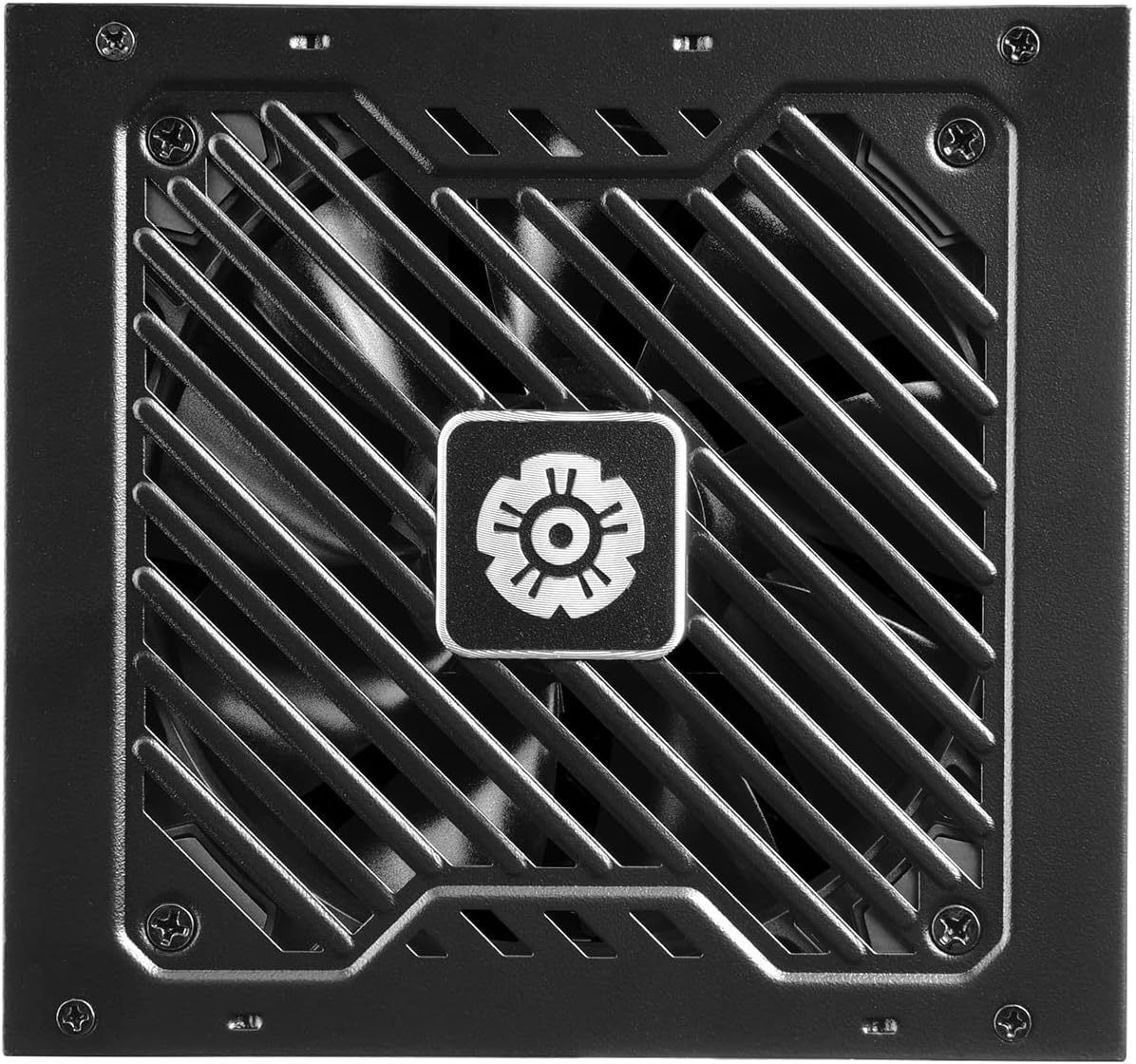

Figure 6.1: The PSU fan, featuring Dust-Free Rotation and Semi-Fanless Mechanics.

7. Manteniment

Regular maintenance helps ensure the longevity and efficiency of your power supply.

• Neteja de pols: While the PSU features Dust-Free Rotation, it is still recommended to periodically clean the exterior of the PSU and the fan grille using compressed air or a soft brush. Ensure the system is powered off and unplugged before cleaning.
• Inspecció del cable: Periodically check all modular cable connections to ensure they are securely seated.
• Condicions ambientals: Ensure the PSU operates within recommended temperature and humidity ranges. Avoid extreme conditions.

8. Solució De Problemes

If you encounter issues with your ENERMAX Revolution D.F. 2 PSU, refer to the following common troubleshooting steps:

• Sense energia:
  • Check if the AC power cord is securely plugged into both the PSU and the wall outlet.
  • Ensure the main power switch on the PSU is in the 'I' (On) position.
  • Verifiqueu que la presa de corrent funciona connectant-hi un altre dispositiu.
  • Check all internal cable connections (24-pin ATX, CPU, PCIe) to ensure they are fully seated.
• Inestabilitat/Avaries del sistema:
  • Assegureu-vos que els requisits d'alimentació del vostre sistema no superin la capacitat de 1200 W de la font d'alimentació.
  • Check for loose cable connections, especially to the motherboard and graphics card.
  • Assegureu-vos que hi hagi una ventilació adequada a l'interior de la carcassa del vostre PC per evitar el sobreescalfament dels components, inclosa la font d'alimentació.
• El ventilador no gira:
  • The PSU features Semi-Fanless Mechanics; the fan will not spin if the system load is below 20%. This is normal operation.
  • If the system is under load and the fan is still not spinning, ensure no obstructions are blocking the fan.
• Sorolls inusuals:
  • A brief reverse spin at startup is normal due to the Dust-Free Rotation feature.
  • If persistent or loud noises occur, ensure the PSU is securely mounted and not vibrating against the case.

If problems persist after following these steps, please contact Enermax customer support for further assistance. Do not attempt to repair the unit yourself.

9. Especificacions

Detailed technical specifications for the ENERMAX Revolution D.F. 2 1200W Power Supply.

10. Garantia i Suport

For detailed warranty information, please refer to the official Enermax website or the warranty card included with your product. Enermax provides technical support for its products.

If you require assistance, please visit the official Enermax support page or their Amazon store:

• Enermax Store on Amazon: Visit Enermax Store
