Kitchen Couture Air Fryer XXL Digital Oven User Manual

1. Introducció

Thank you for choosing the Kitchen Couture 20 Litre Air Fryer XXL Digital Oven. This versatile appliance is designed to simplify your cooking experience, offering a wide range of functions including air frying, steaming, roasting, grilling, and baking. With its intuitive LED display, touch controls, and pre-set modes, preparing healthy and delicious meals for your family has never been easier. This manual provides essential information for the safe and efficient operation of your new appliance.

Si us plau, llegiu aquest manual detingudament abans del primer ús i guardeu-lo per a futures consultes.

2. Instruccions de seguretat importants

Quan utilitzeu aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat per reduir el risc d'incendi, descàrrega elèctrica i lesions a les persones, incloses les següents:

• Llegiu totes les instruccions abans d’utilitzar l’aparell.
• No toqueu superfícies calentes. Utilitzeu nanses o poms.
• Per protegir-vos contra les descàrregues elèctriques, no submergiu el cable, els endolls ni la unitat principal en aigua ni en altres líquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• L'ús d'accessoris no recomanats pel fabricant de l'aparell pot causar lesions.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
• Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
• No utilitzeu l'aparell per a un altre ús que el previst.
• Assegureu-vos que hi hagi una ventilació adequada al voltant de l'aparell durant l'ús.
• The appliance is equipped with a child lock feature for safety. Refer to the operating section for activation.

3. Contingut del paquet

Carefully unpack your Kitchen Couture Air Fryer XXL Digital Oven and check that all items are present and in good condition. If any items are missing or damaged, please contact customer support.

• 1 x Kitchen Couture 20 Litre Steam Air Fryer Unit
• 1 x Steam Tray (non-stick)
• 1 x Grill Tray (non-stick)
• 1 x reixeta de filferro
• 1 x User Manual and Recipe Booklet

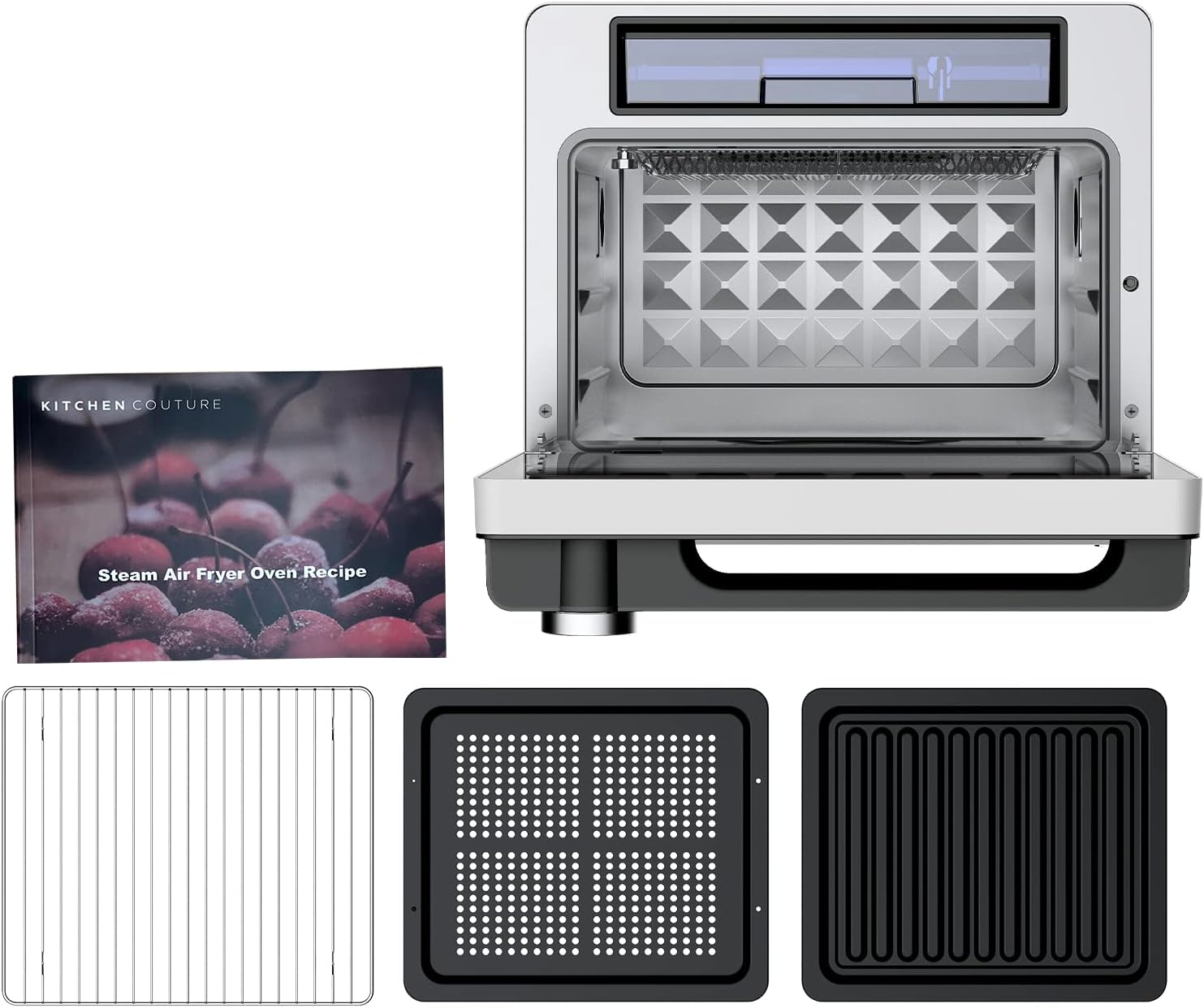

Figure 3.1: Included accessories for the Kitchen Couture Air Fryer.

4. Producte acabatview

The Kitchen Couture Air Fryer XXL Digital Oven combines multiple cooking functionalities in one compact unit. Its design focuses on ease of use and efficient cooking.

4.1 Característiques clau

• Seamless LED Display with Touch Buttons and Selector Knob: For intuitive control and program selection.
• Large 20 Litre Capacity: Suitable for cooking meals for the entire family.
• Wide Temperature Range (40°C - 232°C): Accommodates various cooking requirements.
• 11 modes preprogramats: Includes Pure Steam, Bake With Steam, Dehydrate, Toast, Steamed Fish, Convection, Air Frying, Baking, Roast, Self Cleaning, and Fermentation.
• Glass Door and Internal Light: Allows monitoring of food during cooking without opening the door.
• Family-Friendly Features: Automatic timer shut-off, delayed start, and child lock for enhanced safety and convenience.
• Pre-programmed Cleaning and Descale Functions: Simplifies maintenance.
• Internal Auto Menu: Contains 30 delicious recipes for inspiration.
• Durable SPCC + Teflon Coated Trays: Non-stick surfaces for easy cleaning.

Figura 4.1: Frontal view of the appliance with control panel.

Figura 4.2: Detallada view del panell de control.

5. Configuració

Abans del primer ús, seguiu aquests passos per preparar l'aparell:

1. Desembalar: Remove all packaging materials, stickers, and labels from the appliance and its accessories.
2. Neteja: Netegeu l'exterior de l'aparell amb anunciamp cloth. Wash the steam tray, grill tray, and wire rack with warm, soapy water. Rinse thoroughly and dry completely.
3. Col·locació: Place the appliance on a stable, heat-resistant, and level surface. Ensure there is at least 10 cm of clear space on all sides and above the appliance for proper ventilation. Do not place it directly against a wall or under cabinets.
4. Primer ús de la cremació: Before cooking food, run the appliance empty for approximately 15-20 minutes at 200°C (Air Fry mode) to burn off any manufacturing residues. A slight odor or smoke may be present; this is normal and will dissipate. Ensure the area is well-ventilated during this process.
5. Water Tank (for Steam Functions): For steam functions, fill the water tank located at the top of the unit with distilled or filtered water. Do not exceed the MAX fill line. The water level sensor will ensure sufficient water levels.

Figure 5.1: Ensure proper placement and ventilation for the appliance.

6. Instruccions de funcionament

Your Kitchen Couture Air Fryer offers a variety of cooking modes and features. Familiarize yourself with the control panel and functions for optimal results.

6.1 Tauler de control acabatview

The control panel features an LED display, touch buttons for various functions, and a selector knob for adjusting time and temperature.

6.2 Funcionament bàsic

1. Encès: Plug the appliance into a grounded electrical outlet. Press the Power button (⏻) per engegar la unitat.
2. Seleccioneu el mode: Use the touch buttons to select your desired cooking mode (e.g., Air Fry, Steam, Bake, Roast). The selected mode icon will illuminate on the LED display.
3. Ajustar la configuració: Use the selector knob to adjust the cooking temperature and time. Press the knob to toggle between temperature and time settings.
4. Comença a cuinar: Once settings are configured, press the Start/Pause button to begin cooking.
5. Seguiment: The internal light allows you to monitor food progress through the glass door.
6. Apagat automàtic: L'aparell s'apagarà automàticament quan el cicle de cocció s'hagi completat.

6.3 Modes de cocció

The appliance features 11 pre-programmed modes and an Auto Menu with 30 recipes:

• Pure Steam: Ideal for vegetables, dumplings, and seafood. Ensure water tank is filled.
• Bake With Steam: Combines steam and convection for moist baked goods.
• Deshidratar: Per assecar fruites i verdures i fer cecina.
• Torrades: For bread and similar items.
• Steamed Fish: Optimized setting for fish.
• Convecció: General oven function for even cooking.
• Fregit a l'aire: Per a resultats cruixents amb poc o gens d'oli.
• Cocció: Funció de forn estàndard.
• rostit: For meats and larger items.
• Fermentació: Per fer fermentar la massa o fer iogurt.
• Cavity Clean / Descale: Self-cleaning functions (refer to Maintenance section).

Figura 6.1: Example of food being cooked using steam and air fry functions.

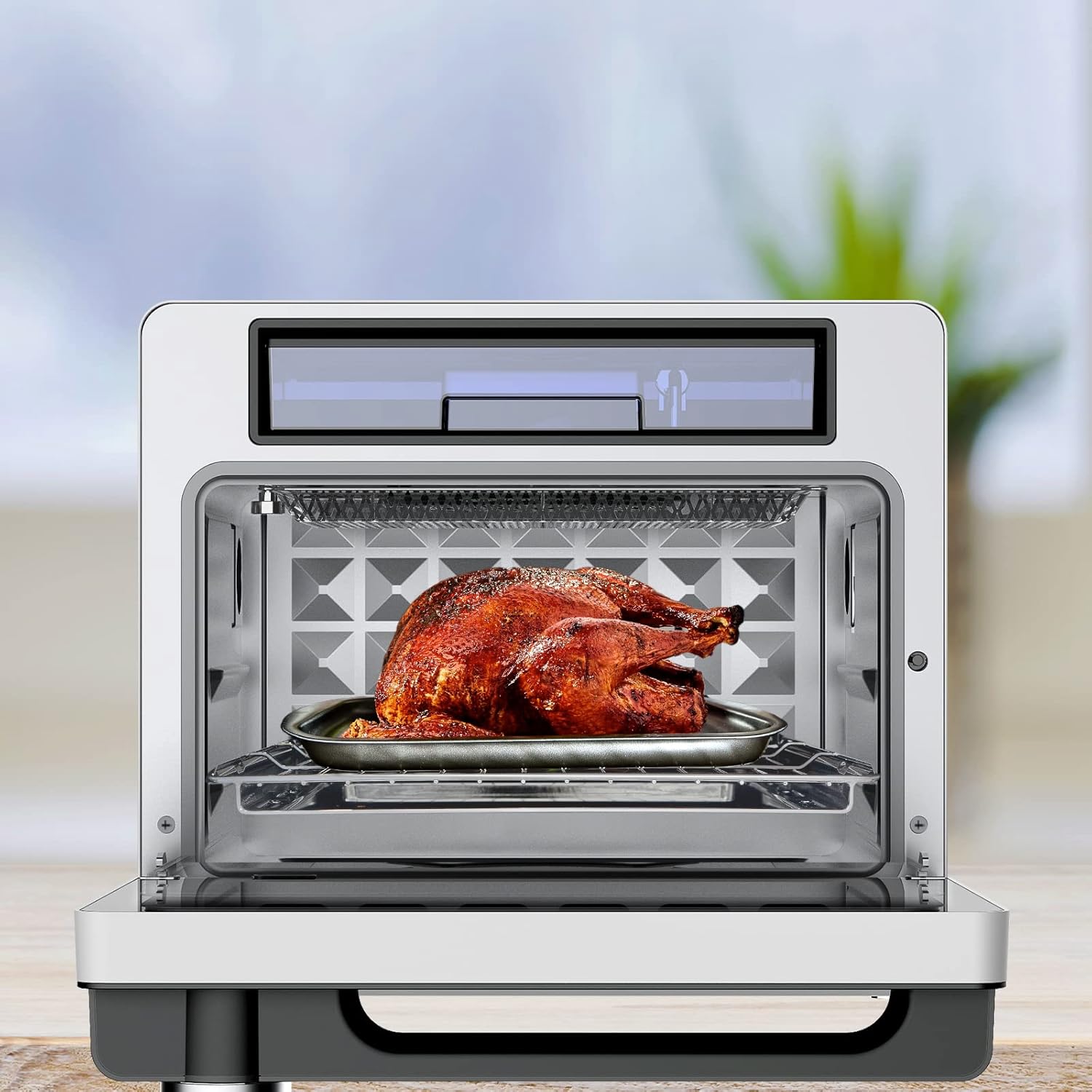

Figure 6.2: Roasting a whole chicken in the appliance.

6.4 Child Lock and Delayed Start

• Bloqueig per a nens: To activate, press and hold the child lock icon for 3 seconds. The display will show a lock symbol. To deactivate, repeat the process.
• Inici retardat: This feature allows you to set a cooking program to start at a later time. Consult the recipe booklet or the appliance's internal menu for specific instructions on setting delayed start times.

7. Manteniment i Neteja

Una neteja i un manteniment regulars garantiran la longevitat i el rendiment òptim del vostre electrodomèstic.

7.1 Neteja diària

1. Desconnecta i refresca: Desendolleu sempre l'aparell de la presa de corrent i deixeu-lo refredar completament abans de netejar-lo.
2. Accessoris: Wash the steam tray, grill tray, and wire rack with warm, soapy water. The non-stick coating makes them easy to clean. Rinse and dry thoroughly.
3. Interior: Netegeu la cavitat interior amb anunciamp cloth and mild detergent. For stubborn food residue, use a non-abrasive sponge.
4. Exterior: Netejar l'exterior amb un d, suauamp tela. No utilitzeu netejadors abrasius ni fregalls.

7.2 Cavity Clean and Descale Functions

The appliance features pre-programmed functions for deep cleaning and descaling:

• Cavity Clean: This function helps to clean the interior of the oven. Fill the water tank, select the 'Cavity Clean' mode, and start the cycle. Follow the on-screen prompts.
• Descalcificar: Over time, mineral deposits can build up, especially when using steam functions. The 'Descale' function helps remove these deposits. Fill the water tank with a descaling solution (as per manufacturer's instructions for descaling kitchen appliances) or a mixture of water and white vinegar (1:1 ratio). Select the 'Descale' mode and start the cycle. After the cycle, rinse the water tank and run a 'Pure Steam' cycle with clean water to flush out any residue.

Always ensure the water tank is clean and free of debris, and the NTC Temperature sensor is clear for accurate readings.

8. Solució De Problemes

If you encounter any issues with your appliance, please refer to the following common problems and solutions before contacting customer support.

9. Especificacions

Detailed technical specifications for the Kitchen Couture Air Fryer XXL Digital Oven.

Figure 9.1: Appliance dimensions.

10. Garantia i Suport

Your Kitchen Couture 20 Litre Air Fryer XXL Digital Oven comes with a 12 mesos de garantia from the date of purchase. This warranty covers manufacturing defects and faulty workmanship under normal household use.

La garantia no cobreix:

• Damage caused by misuse, abuse, neglect, or accident.
• Damage caused by failure to follow operating instructions.
• Desgast normal.
• Danys causats per reparacions o modificacions no autoritzades.

For warranty claims or technical support, please contact Kitchen Couture customer service. Keep your proof of purchase for warranty validation.

For further assistance, please visit the official Kitchen Couture weblloc web o consulteu la informació de contacte que es proporciona a la documentació de compra.
