AgiiMan Pool Cover Pump User Manual

Producte acabatview

The AgiiMan Pool Cover Pump is a highly efficient and portable submersible water pump designed for quick and effective water removal from various sources. With a powerful 75W motor, it can drain up to 850 gallons per hour, making it ideal for pool covers, ponds, water tanks, and flooded areas. Its durable ABS construction ensures longevity, while safety features like automatic temperature protection provide reliable operation. The pump comes complete with a long power cord and drainage hose, along with multiple adapters for broad compatibility.

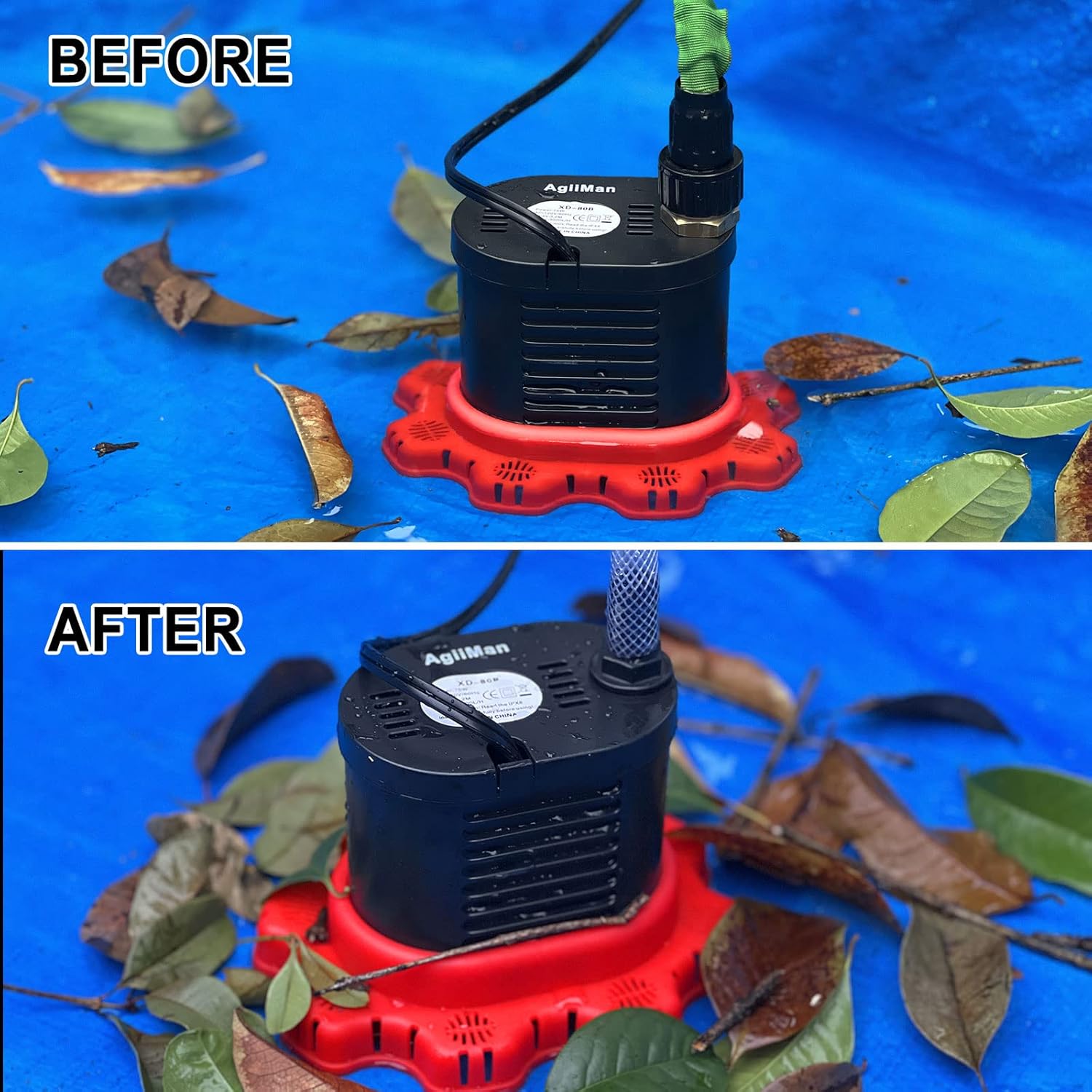

Image: AgiiMan Pool Cover Pump, showcasinel seu disseny compacte i els accessoris inclosos.

Característiques clau

• Drenatge eficient: The 75W pool cover pump has a drainage capacity of up to 3000L/H (850 GPH) and a maximum head of 3.2m (10.5 ft), which can quickly drain large amounts of water from pool covers, helping to prevent water accumulation, reduce the weight of the pool cover, and extend its lifespan.
• Durador i fiable: Made of high-quality ABS, this pool cover pump has strong corrosion resistance and durability. It features automatic power-off protection when the water pump for pool draining reaches 95℉ (35℃), and will automatically turn on when the temperature drops. With a super long 25-foot power cord, it prevents electrical shock and ensures safety.
• Nice Compatibility: This pool cover pump comes with three different sized connectors - 1/2 inch, 3/4 inch, and 1 inch, which makes the submersible water pump easy to connect to pipes of different sizes without the need for additional adapters or accessories, saving both cost and time.
• Portàtil i lleuger: This pool cover pump is lightweight and compact, making it easy to transport and store. You can place the sump pump submersible in your garage, storage room, or outdoors. It doesn't take up too much space, and is a great helper for solving water discharge problems.
• Multiusos: The water pump electric is not only suitable for pool covers, but also for other water sources such as ponds, water tanks, sewage pits, and more. This pool cover water removal pump can quickly drain large amounts of water, making it a practical tool for solving various water discharge problems. This makes it an essential device for both households and commercial places.

Contingut del paquet

The AgiiMan Pool Cover Pump package includes the following items:

• 1 x AgiiMan Pool Cover Pump
• 1 x 16-foot Drainage Hose
• 1 cable d'alimentació de 25 peus
• 3 x Adapters (1/2 inch, 3/4 inch, and 1 inch)

Image: The AgiiMan Pool Cover Pump shown with its included 16-foot drainage hose, 25-foot power cord, and three different sized adapters.

Especificacions

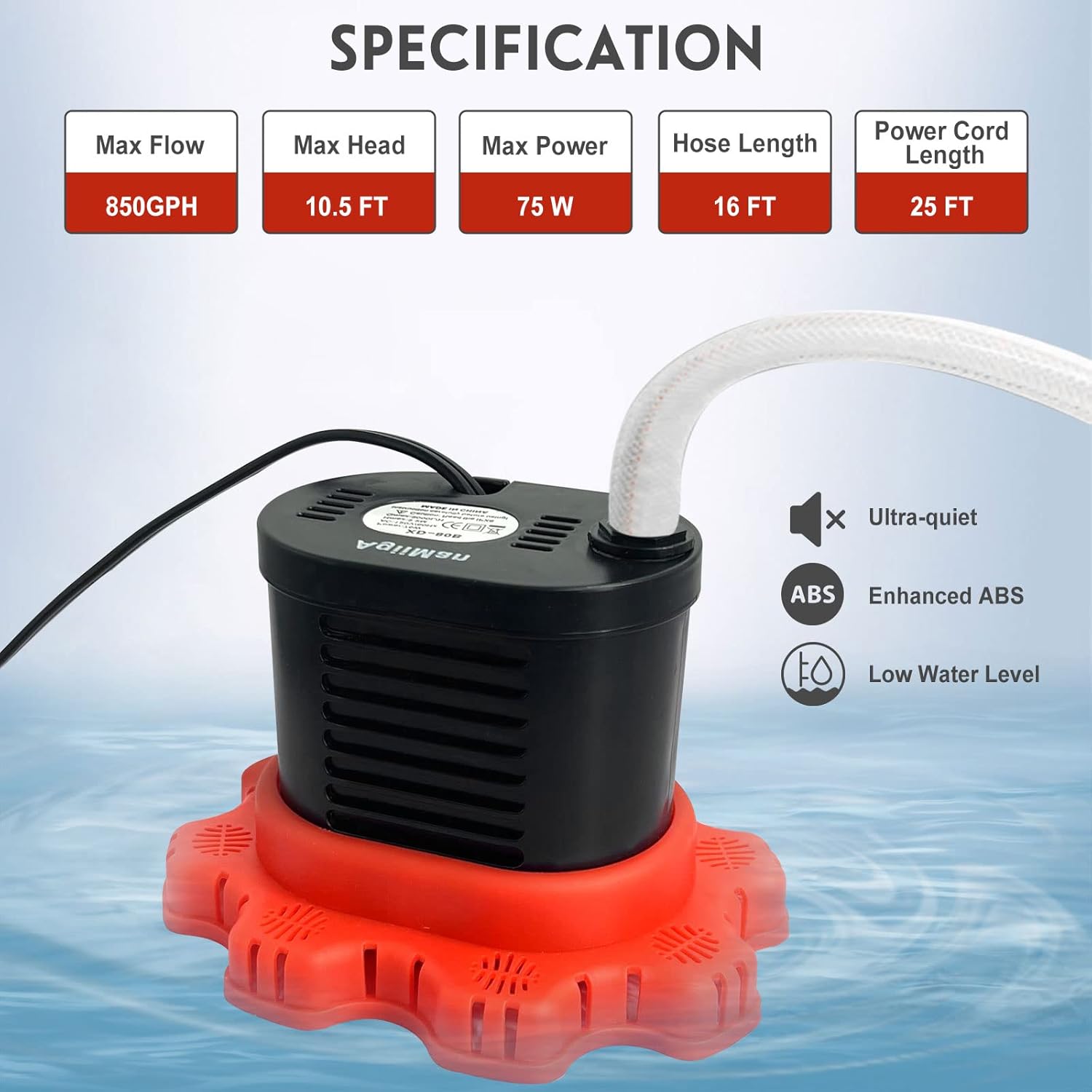

Image: Diagram illustrating key specifications of the AgiiMan Pool Cover Pump, including flow rate, head, power, hose length, and power cord length.

Informació de seguretat

Please read and understand all safety instructions before operating the pump. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Assegureu-vos sempre que el cable d'alimentació i l'endoll estiguin en bon estat abans d'utilitzar-lo. No l'utilitzeu si està danyat.
• Do not operate the pump in water temperatures exceeding 95℉ (35℃). The pump features automatic power-off protection at this temperature.
• Assegureu-vos que la bomba estigui completament submergida en aigua durant el funcionament per evitar que es sobreescalfi.
• Do not use the pump for flammable, corrosive, or chemical liquids.
• Mantingueu els nens i les mascotes allunyats de la bomba en funcionament.
• Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o neteja.
• The pump is designed for water drainage only. Do not use for other purposes.

Configuració

1. Trieu una ubicació: Place the pump on a stable, flat surface within the water to be drained. Ensure it is fully submerged.
2. Attach Drainage Hose: Select the appropriate adapter (1/2 inch, 3/4 inch, or 1 inch) for your drainage hose. Screw the adapter onto the pump's outlet. Connect the 16-foot drainage hose to the adapter.
3. Position Drainage Hose: Direct the other end of the drainage hose to a suitable drainage area, ensuring the water will not cause damage or create a hazard.
4. Connectar l'alimentació: Plug the 25-foot power cord into a grounded 110V electrical outlet. Ensure your hands are dry when handling the plug.

Imatge: Primer pla view of the AgiiMan Pool Cover Pump's outlet with three different sized hose adapters (1/4", 1/2", 3/4") for versatile connection options.

Instruccions de funcionament

1. Iniciar el bombament: Once the pump is set up and submerged, plug it into the power outlet. The pump will begin operating immediately.
2. Monitor de funcionament: Observe the water level and ensure the pump is effectively draining the water. The pump is designed for 360-degree pumping and can filter impurities like leaves and sand.
3. Apagat automàtic: The pump will automatically shut off if the water temperature reaches 95℉ (35℃) to prevent damage. It will automatically restart once the temperature drops.
4. Low Water Level Operation: The pump can effectively drain water down to a low level of 0.4 inches.
5. Finalització: Once the desired water level is reached or the area is drained, unplug the pump from the power outlet.

Image: The AgiiMan Pool Cover Pump actively pumping water, demonstrating its high-speed flow capability.

Image: The AgiiMan Pool Cover Pump operating at a low water level, highlighting its ability to drain water down to 0.4 inches.

Manteniment

Regular maintenance ensures optimal performance and extends the lifespan of your AgiiMan Pool Cover Pump.

• Neteja: After each use, rinse the pump thoroughly with clean water to remove any debris, leaves, or sediment.
• Inspeccionar per danys: Periodically inspect the power cord, plug, and pump housing for any signs of wear or damage. Do not use if damaged.
• Clear Intake: Ensure the pump's intake area (bottom base) is free from obstructions to maintain efficient water flow.
• Emmagatzematge: When not in use, store the pump in a dry, cool place, away from direct sunlight and extreme temperatures.

Resolució de problemes

Aplicacions

The AgiiMan Pool Cover Pump is versatile and can be used for various water drainage needs:

• Pool covers (above ground and in-ground)
• Piscines
• Estanys
• Dipòsits d'aigua
• Sewage pits
• Flooded basements or areas
• General water removal tasks

Image: Collage showing the AgiiMan Pool Cover Pump being used for various applications, including draining a swimming pool, watering a garden, clearing a puddle, and maintaining a fish pond.

Garantia i Suport

AgiiMan provides customer support for its products. For warranty information, technical assistance, or any inquiries, please refer to the contact information provided with your purchase or visit the official AgiiMan weblloc.

You can also visit the AgiiMan Store on Amazon for more information: AgiiMan Amazon Store
