Shimano CUES FD-U4000-D Front Derailleur User Manual

1. Introducció

The Shimano CUES FD-U4000-D is a high-performance front derailleur engineered for 9/10-speed mountain bike drivetrains utilizing double chainring setups. It incorporates Side Swing technology and a Direct Mount for smooth, precise, and reliable shifting across various terrains. This manual provides essential information for the proper installation, operation, and maintenance of your derailleur.

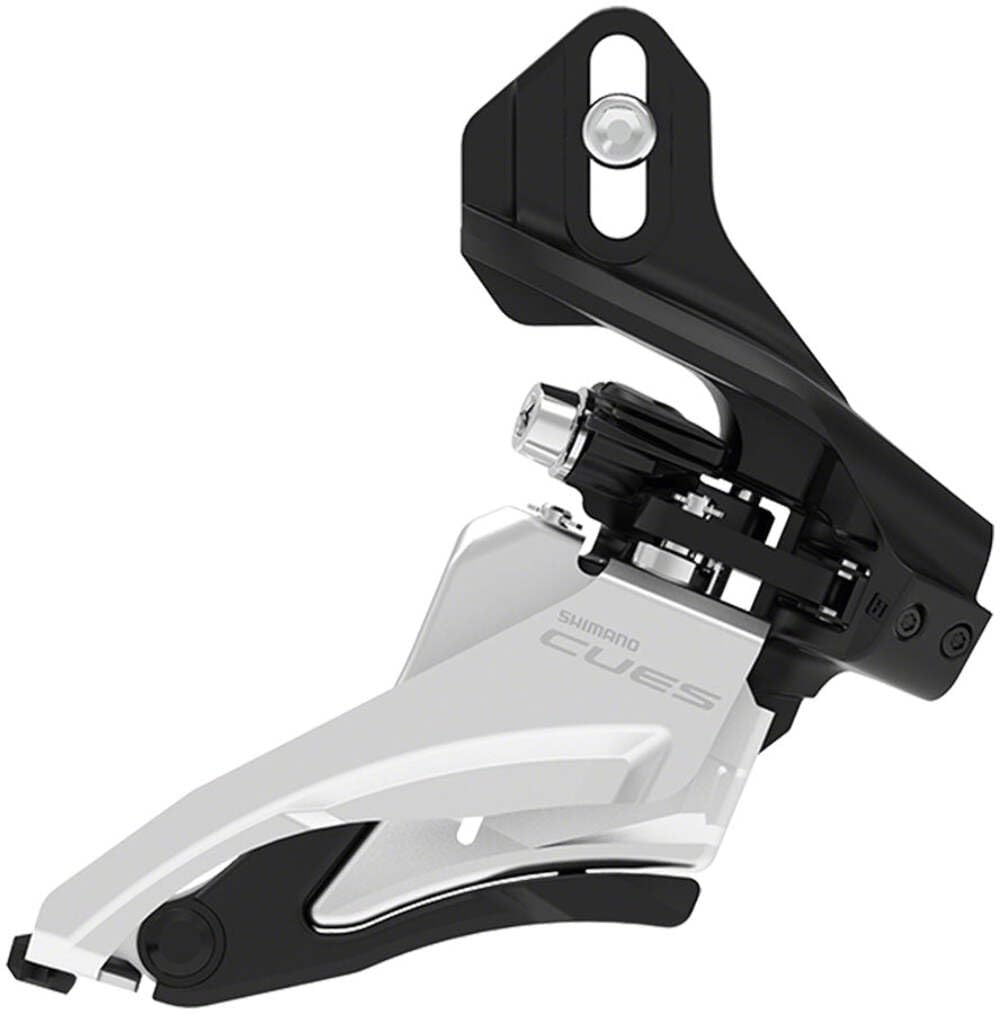

Image: Shimano CUES FD-U4000-D Front Derailleur, showcasing its design and mounting.

2. Informació de seguretat

Always wear appropriate safety gear, including a helmet, when cycling. Ensure all bicycle components, including this front derailleur, are correctly installed and tightened to the manufacturer's specified torque values. Improper installation can lead to component failure, loss of control, serious injury, or damage to your bicycle. If you are unsure about any installation or adjustment procedures, consult a qualified bicycle mechanic. Keep hands and clothing clear of moving parts during operation.

3. Contingut del paquet

• 1 x Shimano CUES FD-U4000-D Front Derailleur

4. Configuració i instal·lació

4.1 Compatibilitat

The FD-U4000-D front derailleur is designed exclusively for the Shimano LINKGLIDE shifting system. It is compatible with 9-speed and 10-speed mountain bike drivetrains and double chainring setups. Ensure your crankset has a maximum large chainring size of 36 or 40 teeth. The derailleur is optimized for a chainstay angle between 64 and 69 degrees and works with chainlines spanning 48.8 to 51.8mm.

4.2 Muntatge

This derailleur features a Direct Mount interface. Securely attach the derailleur to the frame's direct mount tab using the appropriate bolt. Refer to your bicycle frame manufacturer's specifications for torque values. Ensure the derailleur cage is parallel to the chainrings.

4.3 Cable Routing and Tension

The FD-U4000-D utilizes a front pull cable setup. Route the shift cable from your shifter, through any frame guides, and attach it to the derailleur's cable fixing bolt. Adjust cable tension to ensure smooth and responsive shifting. Initial tension should be set so that the chain moves to the small chainring when the shifter is in the lowest gear position.

4.4 Limit Screw Adjustment

Adjust the High (H) and Low (L) limit screws to prevent the chain from overshifting off the chainrings. The 'L' screw controls the inward movement (towards the frame) and the 'H' screw controls the outward movement (away from the frame). Adjust these screws so that the inner and outer plates of the derailleur cage are just clear of the chain when it is on the smallest and largest chainrings, respectively, without allowing the chain to fall off.

5. Instruccions de funcionament

The FD-U4000-D front derailleur facilitates shifting between your bicycle's two front chainrings. Use your front shifter to engage the derailleur. Shift to the larger chainring for higher speeds and greater resistance, typically used on flat terrain or descents. Shift to the smaller chainring for easier pedaling, ideal for climbing or when less resistance is desired. Always shift smoothly and avoid applying excessive force to the pedals during a shift. To prevent premature wear and maintain optimal performance, avoid 'cross-chaining' – using the largest front chainring with the largest rear cog, or the smallest front chainring with the smallest rear cog.

6. Manteniment

6.1 Neteja

Regularly clean the derailleur body, cage, and pivot points to remove dirt, mud, and grime. Use a mild detergent and water, or a bicycle-specific cleaner. Rinse thoroughly and dry completely after cleaning.

6.2 Lubricació

Apply a small amount of bicycle-specific lubricant to the pivot points of the derailleur and the shift cable where it enters the housing. Wipe off any excess lubricant to prevent dirt accumulation.

6.3 Inspecció

Periodically inspect the derailleur for signs of wear, damage, or corrosion. Check that all bolts are securely tightened. Verify that the shift cable is free from fraying or kinks and that cable tension is correct. Ensure the derailleur cage is not bent and moves freely without obstruction.

7. Solució De Problemes

7.1 Poor Shifting Performance

• Símptoma: Slow or inconsistent shifts, difficulty moving to larger or smaller chainring.
• Possible causa: Incorrect cable tension, dirty or worn cable/housing, misaligned derailleur, incorrect limit screw adjustment.
• Solució: Check and adjust cable tension. Inspect and replace cable/housing if necessary. Verify derailleur alignment and adjust limit screws as described in Section 4.4.

7.2 Chain Rubs Derailleur Cage

• Símptoma: Chain rubs against the inner or outer plate of the derailleur cage in certain gear combinations.
• Possible causa: Incorrect limit screw adjustment, misaligned derailleur, incorrect cable tension, cross-chaining.
• Solució: Fine-tune limit screws (H and L) to provide adequate clearance. Ensure the derailleur cage is parallel to the chainrings. Adjust cable tension. Avoid extreme cross-chaining gear combinations.

8. Especificacions

9. Garantia i Suport

9.1 Informació de la garantia

This Shimano CUES FD-U4000-D Front Derailleur is covered by a Limited Warranty. For specific details regarding the terms and conditions of this warranty, please refer to the official Shimano warranty documentation provided with your product or visit the official Shimano weblloc.

9.2 Atenció al client

For technical assistance, spare parts, or further inquiries, please contact your authorized Shimano dealer or visit the official Shimano website for customer support resources. When contacting support, please have your product model name (FD-U4000-D) and any relevant purchase information available.
