1. Introducció
Gràcies per la compraasing the purevox Waterproof Bluetooth Motorcycle ATV Stereo Speakers Soundbar. This high-performance audio system is designed for outdoor enthusiasts, offering superb crystal sound quality and advanced waterproof capabilities. It features an aluminum housing and a built-in power amplifier, perfect for motorcycles, scooters, ATVs, and electric bikes.
Key features include Bluetooth wireless connectivity, AUX-in, USB and microSD card support for MP3 files, and an FM radio with a digital clock display.
Image 1.1: The purevox Waterproof Bluetooth Motorcycle ATV Stereo Speakers Soundbar, showcasing its compact design and integrated controls.
2. Contingut del paquet
Si us plau, comproveu que tots els articles siguin presents i en bon estat en obrir el paquet.
- purevox Stereo Speakers Soundbar (Main Unit)
- Suports de muntatge
- Cargols
- Manual d'usuari (aquest document)
Image 2.1: Illustration of the product packaging and its contents, including the soundbar, mounting hardware, and user manual.
3. Producte acabatview
Familiarize yourself with the components and controls of your purevox soundbar.
Image 3.1: Detailed diagram illustrating the various parts and control buttons of the soundbar, including mounting brackets, speakers, display, and input ports.
- Suports de muntatge
- Waterproof speakers
- AMS/SEL button
- Prev./VOL- button
- Power switch/Mute button
- Botó de canvi de mode
- Clock setup button
- Botó Següent/VOL+
- Mostra
- Port AUX-IN
- Interfície USB
- TF slot (microSD card slot)
4. Configuració i instal·lació
This section provides instructions for mounting and wiring your soundbar. Ensure your vehicle's handlebar distance is between 9.8-11 inches (250-280mm) and the diameter is 0.78-0.9 inches (20mm) for proper fitment.
4.1 Mounting the Soundbar
The soundbar is designed for handlebar mounting. The mounting brackets are adjustable to fit handlebars with a diameter of 0.78-0.9 inches.
Image 4.1: Step-by-step guide for disassembling the mounting clip, showing how to remove the screw and pull out the aluminum clip.
- Remove the screw from the mounting bracket.
- Pull out the aluminum clip from the bracket.
- Position the soundbar on your handlebar, ensuring the handlebar spacing is between 9.8-11 inches (250-280mm).
- Secure the soundbar using the provided screws and clips.
Image 4.2: The soundbar mounted on a motorcycle handlebar, demonstrating the proper installation position.
4.2 Instruccions de cablejat
The soundbar requires a standard 12V power connection. There are two wiring options:
Image 4.3: A detailed diagram showing two wiring options for the soundbar, including connections to positive, negative, and ignition wires.
Opció A: Connexió directa
- Fil VERMELL: Connect to Positive (+) electrode of the battery.
- cable NEGRE: Connect to Negative (-) electrode of the battery.
- GREEN wire: Connect to Negative (-) electrode of the battery.
Avantatges: Easy installation, no cutting or hardwiring required.
Contres: May drain the battery if left connected when the vehicle is off. Radio presets may be lost if unplugged.
Option B: Ignition Controlled Connection
- Fil VERMELL: Connect to Positive (+) electrode of the battery.
- GREEN wire: Connect to Negative (-) electrode of the battery.
- cable NEGRE: Connect to the Ignition control line.
Avantatges: Does not drain the battery when the vehicle is off. Radio presets are saved.
Contres: Requires cutting and hardwiring. Professional installation recommended if unsure.
Important: The location of the ignition switch varies by motorcycle/ATV model. Refer to your vehicle's owner's manual or consult a professional installer.
Video 4.1: A short demonstration of the soundbar mounted on a motorcycle, showing its integration with the vehicle's controls and display. This video provides a visual reference for the installed product.
5. Instruccions de funcionament
5.1 Engegada/Apagada i control de volum
- Potència: Premeu el botó PWR botó per encendre o apagar la unitat.
- Volum: Utilitza el VOL+ i VOL- botons per ajustar el nivell de volum.
- Silenciar: Premeu breument PWR button while the unit is on to mute/unmute the audio.
5.2 Selecció del mode
Premeu el botó MODE button to cycle through available audio sources:
- Mode Bluetooth: Connecteu-vos sense fil al vostre telèfon intel·ligent o a altres dispositius compatibles amb Bluetooth.
- Mode de ràdio FM: Sintonitza les emissores de ràdio FM.
- Mode USB: Reprodueix MP3 files from a USB drive inserted into the USB interface.
- MicroSD Mode: Reprodueix MP3 files from a microSD card inserted into the TF slot.
- Mode d'entrada AUX: Connect external audio devices via the 3.5mm AUX-IN jack.
5.3 Vinculació Bluetooth
To pair your device with the soundbar:
- Ensure the soundbar is powered on and in Bluetooth mode. The display will indicate Bluetooth pairing readiness.
- On your smartphone or Bluetooth device, search for available Bluetooth devices.
- Select "purevox MT487" (or similar name) from the list to connect.
- Un cop emparellat, podeu reproduir àudio sense fil.
Image 5.1: Visual representation of a smartphone wirelessly connecting to the soundbar via Bluetooth, highlighting the convenience of wireless audio streaming.
5.4 Funcionament de la ràdio FM
- In FM Radio mode, press the AMS/SEL button to auto-scan and save available stations.
- Utilitza el Prev./VOL- i Següent / VOL + buttons to navigate between saved stations or manually tune.
5.5 Configuració del rellotge
Premeu el botó CLK button to enter clock setting mode. Use the volume buttons to adjust hours and minutes, and the CLK botó de nou per confirmar.
6. Manteniment
To ensure the longevity and optimal performance of your purevox soundbar, follow these maintenance guidelines:
- Neteja: Utilitzeu un suau, damp cloth to wipe down the exterior. Avoid harsh chemicals or abrasive cleaners.
- Cura impermeable: While the unit is waterproof (Level 4), avoid submerging it. Ensure all ports are dry before connecting external devices.
- Emmagatzematge: Si l'emmagatzemeu durant un període prolongat, desconnecteu-lo de la xarxa elèctrica i guardeu-lo en un lloc fresc i sec.
- Bateria (comandament a distància): The remote control requires 1 CR2032 battery. Replace when necessary, ensuring correct polarity.

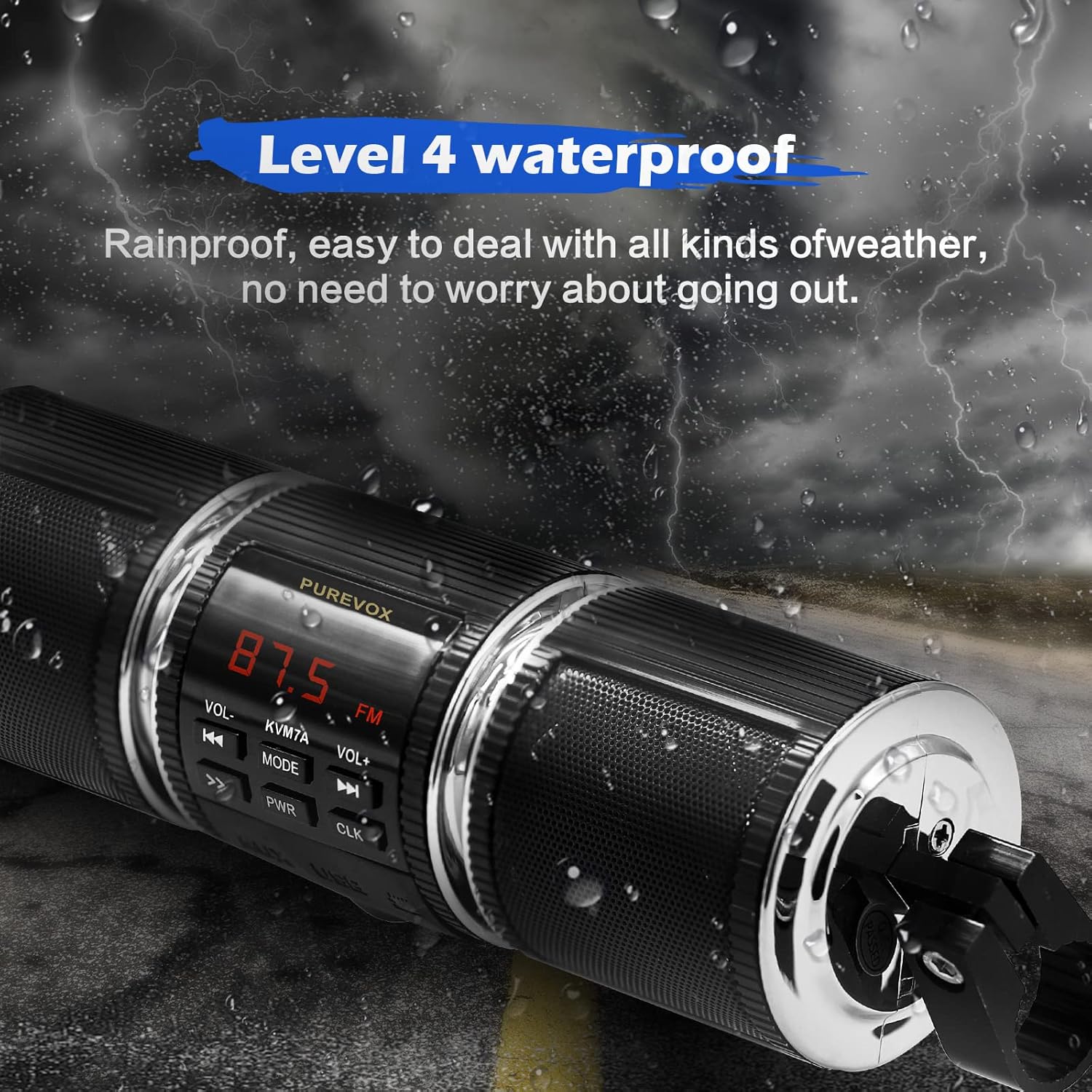

Image 6.1: The soundbar shown with water droplets, emphasizing its Level 4 waterproof design, which makes it resistant to rain and splashes.
7. Solució De Problemes
Si teniu problemes amb la barra de so, consulteu els problemes i solucions més comuns següents:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense poder | Loose wiring connection; Blown fuse; Vehicle battery low. | Check all wiring connections. Inspect the fuse and replace if necessary. Check vehicle battery voltage. |
| Sense so | Volume too low; Mute activated; Incorrect source selected; Device not paired (Bluetooth). | Increase volume. Press PWR button to unmute. Press MODE to select correct source. Re-pair Bluetooth device. |
| Bluetooth no connectat | La barra de so no està en mode d'emparellament; Dispositiu massa lluny; Interferències. | Assegureu-vos que la barra de so estigui en mode Bluetooth. Acosteu el dispositiu. Desactiveu els altres dispositius Bluetooth. |
| Mala recepció FM | Weak signal; Antenna obstruction. | Relocate vehicle to an area with better signal. Ensure antenna is not obstructed. |
| L'USB/MicroSD no es reprodueix | Sense suport file format; Corromput files; Drive/card not inserted correctly. | Assegureu-vos files are MP3 format. Reinsert USB drive/microSD card. Try a different drive/card. |
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | purevox |
| Nom del model | MT487 |
| Tipus d'altaveu | Outdoor, Soundbar |
| Tipus de muntatge | Bar Mount, Motorcycle Mount |
| Material | Metall |
| Color | Negre |
| Dimensions del producte | 9 "P x 3.14" W x 3.14" H |
| Pes de l'article | 1.19 lliures |
| Font d'alimentació | Corded Electric (12V Input) |
| Potència de sortida màxima dels altaveus | 7 watts |
| Impedància | 8 ohms |
| Nivell de resistència a l'aigua | Waterproof (Level 4) |
| Tecnologia de comunicació sense fils | Bluetooth |
| Interval Bluetooth | 100 metres (aprox. 328 peus) |
| Tecnologia de connectivitat | Auxiliar, Bluetooth, USB |
| Dispositius compatibles | Reproductor de MP3, Smartphone |
| Components inclosos | Manual d'usuari |
| Battery (for remote) | Necessita 1 pila CR2032 |
9. Garantia i Suport
9.1 Garantia limitada
This purevox product is covered by a limited warranty. Please refer to the warranty card included in your package for specific terms and conditions, including coverage duration and limitations. Keep your purchase receipt as proof of purchase for warranty claims.
9.2 Atenció al client
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact purevox customer support. Contact information can typically be found on the product packaging, the official purevox weblloc web o a través del vostre distribuïdor.
You can also visit the official purevox store on Amazon for more information and support: purevox Store
