Introducció
Thank you for choosing the Silonn Ice Maker. This manual provides important information regarding the safe operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.
The Silonn Ice Maker is designed to produce ice cubes efficiently for home, office, bar, or party use. It features a high daily output, quick ice production, and convenient self-cleaning functionality.
Instruccions importants de seguretat
Per reduir el risc d'incendi, descàrrega elèctrica o lesions quan utilitzeu la màquina de gel, seguiu aquestes precaucions bàsiques:
- Llegiu totes les instruccions abans d'utilitzar.
- Do not touch the evaporator when the unit is making ice, as it may cause frostbite.
- No submergiu el cable, l'endoll ni cap part de la unitat en aigua ni en altres líquids.
- És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
- Eviteu utilitzar accessoris no recomanats pel fabricant.
- No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
- No utilitzar a l'aire lliure.
- No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
- No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
- Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
- No utilitzeu l'aparell per a un altre ús que el previst.
- Unplug the ice maker before cleaning or performing any maintenance.
- Ensure the ice maker is placed on a stable, level surface.
- Utilitzeu només aigua potable.
Producte acabatview

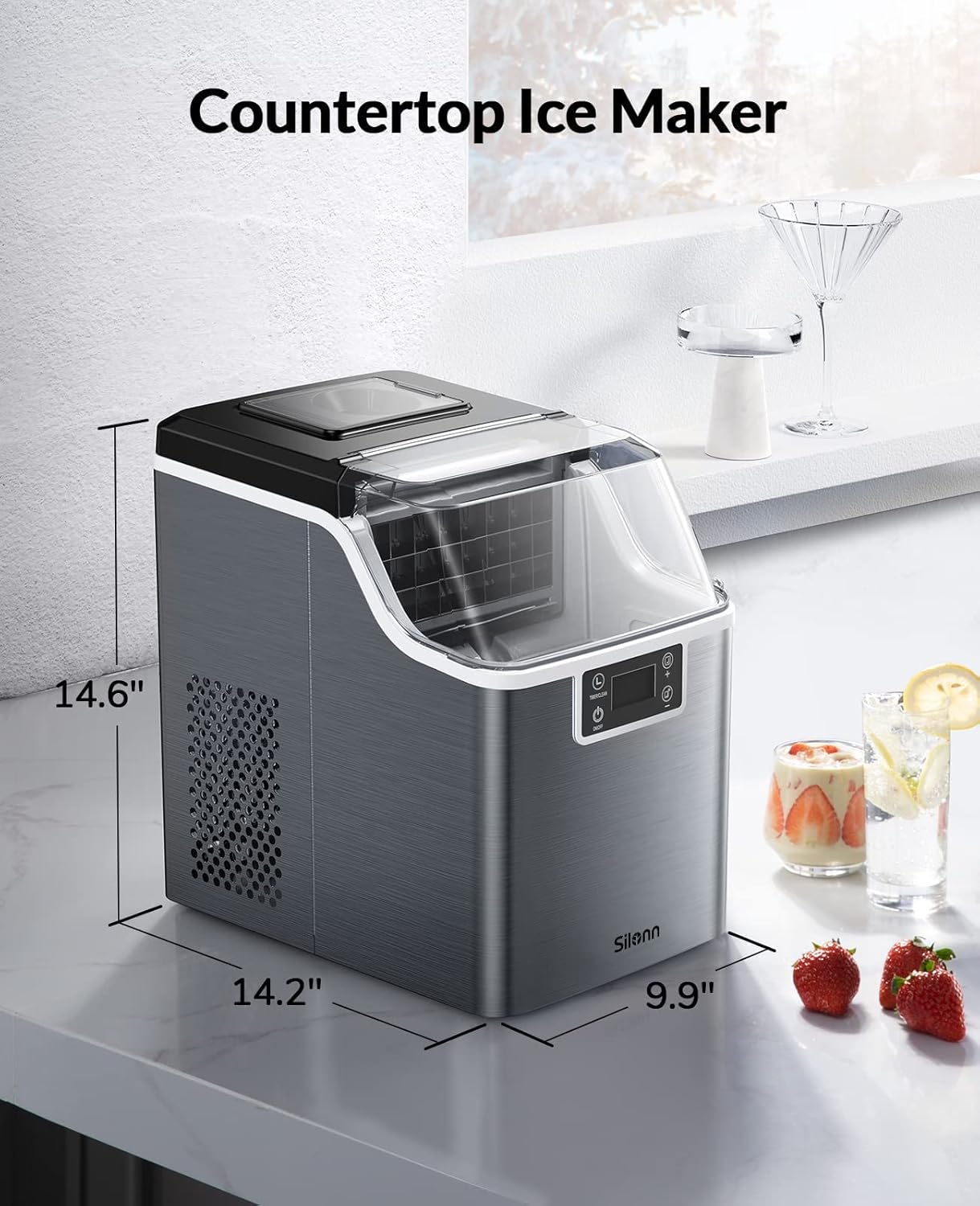

The Silonn Ice Maker is a compact and efficient appliance designed for countertop use. It features a stainless steel exterior and an intuitive control panel.
Configuració i primer ús
Desembalatge:
- Traieu tots els materials d'embalatge i la cinta adhesiva.
- Check that all accessories are included: Ice Scoop, Ice Basket, User Manual.
- Clean the interior of the ice maker with a soft cloth and warm water before first use.
Col·locació:
- Place the ice maker on a flat, stable surface away from direct sunlight and heat sources.
- Ensure there is adequate ventilation around the unit (at least 4 inches of space on all sides).
Connexió d'alimentació:
- Plug the ice maker into a grounded 115V AC outlet.
Ompliment d'aigua:
The Silonn Ice Maker offers two convenient ways to add water:
Emplenament manual:
Open the top lid and pour potable water directly into the water reservoir until it reaches the MAX fill line. The water tank capacity is 3.2 liters.
Illustration of the two water supply methods: manual pouring into the 3.2L water tank or using a compatible bottled water dispenser (bottle not included). Bottled Water Supply:
Place a compatible 5-liter (1.32 gallon) water bucket (not included) onto the bottle base on top of the unit. Ensure it is securely seated.
Detail of the bottle base on top of the ice maker, designed to accommodate standard bottled water containers for automatic water supply.
Instruccions de funcionament
Tauler de control acabatview
- Timer/Clean Button: Used to select operating modes or initiate the self-cleaning function.
- Botó On/Off: Encén o apaga la unitat.
- Time Increase/Reduce Buttons (+/-): Adjusts the ice-making cycle time or sets the On/Off timer.
- Pantalla LCD: Displays current mode, timer settings, and alerts.
Fer gel
- Assegureu-vos que el dipòsit d'aigua estigui ple.
- Premeu el botó On/Off button to start the ice-making process.
Ajust del gruix del gel:
You can control the thickness of the ice cubes by adjusting the ice-making cycle time using the +/- buttons. Longer cycles produce thicker ice.
- 11 minuts: Thin ice cubes, ideal for smoothies.
- 15 minuts: Medium ice cubes, suitable for retaining freshness of food.
- 20 minuts: Thick ice cubes, best for cooling drinks slowly.
Visual guide to ice cube thickness settings, demonstrating how different cycle durations (11, 15, or 20 minutes) yield thin, medium, or thick ice cubes, respectively, for various applications. - The ice maker can produce 24 ice cubes in as little as 13 minutes, with a daily output of up to 45 pounds. The ice basket can hold approximately 2.6 pounds of ice.
- When the ice basket is full, the weight sensor will automatically stop the ice-making process. Remove ice to resume production.
- If the water level is low, the ice maker will automatically alarm, indicating that refilling is needed.
Applications of Ice Cubes
Manteniment i Neteja
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Silonn Ice Maker.
Funció d'auto-neteja
The ice maker is equipped with a convenient self-cleaning function:
- Assegureu-vos que la unitat estigui buida de gel i aigua.
- Fill the water reservoir with clean water. You may add a small amount of white vinegar or a food-grade ice maker cleaner for enhanced cleaning.
- Manteniu premut el botó Timer/Clean button for a few seconds to activate the self-cleaning cycle.
- The cleaning cycle will run for approximately 20 minutes.
- Once the cycle is complete, drain the water from the unit and rinse the interior thoroughly with clean water.
Neteja manual
- Desconnecteu la màquina de gel abans de netejar-la.
- Traieu la cistella de gel.
- Netegeu l'interior amb un drap suau dampamb aigua tèbia i un detergent suau.
- For mineral buildup, especially in hard water areas, use a solution of water and vinegar or a descaling agent.
- Netegeu l'exterior amb un suau, damp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
- Ensure all parts are dry before plugging the unit back in.
Nota: If you live in an area with high mineral content in the water, using filtered water and regular cleaning is crucial to prevent mineral buildup and clogs.
Guia de resolució de problemes
Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes comuns i les seves solucions:
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina de gel no produeix gel. | No water in reservoir; Unit not plugged in; Ambient temperature too high. | Fill water reservoir; Check power connection; Ensure unit is in a cool environment. |
| Ice cubes are too small or hollow. | Insufficient water; Short ice-making cycle time; Water temperature too high. | Ensure adequate water level; Increase ice-making cycle time using +/- buttons; Use colder water. |
| Ice maker stops working. | Ice basket full; Water level low; Overheating. | Remove ice from basket; Refill water reservoir; Unplug and let cool for 30 minutes. |
| La unitat fa soroll. | Sons de funcionament normal (compressor, bomba d'aigua); Unitat no anivellada. | Ensure unit is on a stable, level surface. Some noise is normal during operation. |
| Fuga d'aigua. | Drain plug not secure; Unit tilted; Internal component issue. | Check and secure drain plug; Ensure unit is level; Contact customer support if issue persists. |
Especificacions del producte
| Característica | Detall |
|---|---|
| Marca | Silonn |
| Nom del model | màquina de gel |
| Número de model | SLIM02 |
| Dimensions del producte (P x A x A) | 12.83" x 14.88" x 10.12" |
| Capacitat diària de gel | 45 lliures |
| Capacitat de la cistella de gel | 2.6 lliures |
| Capacitat del dipòsit d'aigua | 3.2 litres (aprox. 0.85 galons) |
| Wattage | 240 watts |
| Voltage | 115 Volts |
| Refrigerant | R600a |
| Material | Acer inoxidable |
| Pes de l'article | 24.1 lliures |
| Tipus d'instal·lació | Taulell |
| Components inclosos | Ice Scoop, Ice Basket, User manual |
| UPC | 850050494942 |
Garantia i assistència al client
Silonn products are manufactured to the highest quality standards. For warranty information or technical support, please refer to the contact details provided with your product packaging or visit the official Silonn weblloc.
Si us plau, conserveu el comprovant de compra per a qualsevol reclamació de garantia.
