Saramonic WiTalk-WT9S 9-Person 1.9GHz Wireless Intercom System
Manual d'usuari
Introducció
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Saramonic WiTalk-WT9S 9-Person 1.9GHz Wireless Intercom System. This system is designed for professional communication in various environments, including film production, television broadcasting, stage events, and sports. It offers full-duplex communication for up to 9 users.
Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:
- 1x WiTalk-WT9S Master Headset
- 8x WiTalk-WT9S Remote Headsets
- 1x WiTalk Hub Base Station
- 9x Rechargeable Li-polymer Batteries (3.7V 1200mAh)
- 1x 10-Bay Battery Charger
- 1x Power Adapter for Charger
- 1x Protective Hard Case
Image: Complete Saramonic WiTalk-WT9S 9-Person Wireless Intercom System, including headsets, hub, batteries, charger, and protective case.
Producte acabatview
Auriculars mestres
The Master Headset controls the system and initiates communication. It features a single earcup design for comfort and situational awareness.

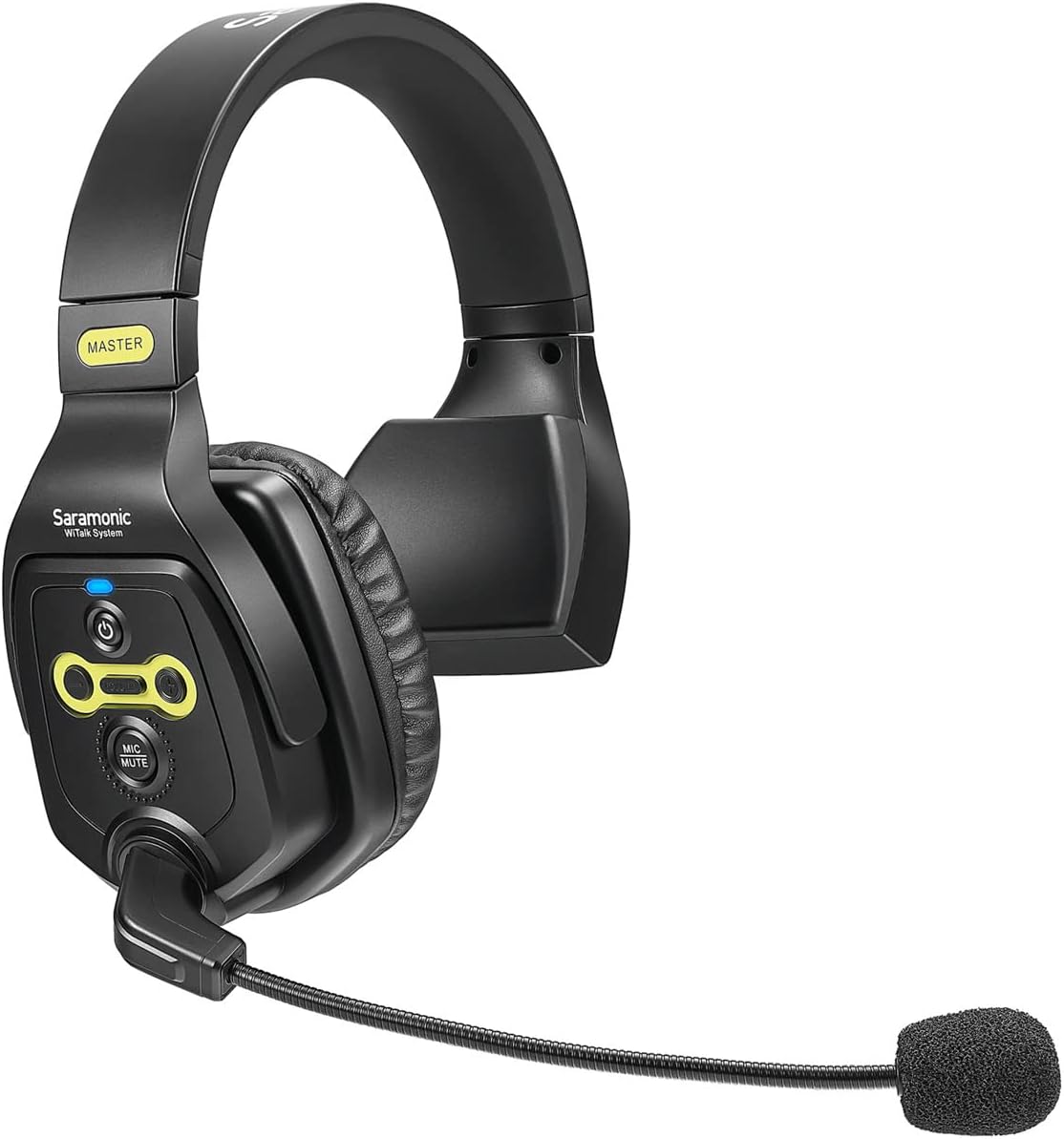

Image: Close-up of the Saramonic WiTalk-WT9S Master Headset, showing controls and microphone.
Auriculars a distància
Remote Headsets connect to the Master Headset for full-duplex communication. They share the same comfortable single earcup design.
Image: Close-up of the Saramonic WiTalk-WT9S Remote Headset, similar in design to the Master but without master controls.
Hub Base Station
The Hub Base Station acts as a central transceiver, extending the system's range and allowing for flexible deployment. It includes a belt clip for portability.
Imatge: Superior view of the Saramonic WiTalk Hub Base Station, showing controls and indicators.
Imatge: Part inferior view of the Saramonic WiTalk Hub Base Station, highlighting the integrated belt clip.
Bateries recarregables
The system uses 3.7V 1200mAh Li-polymer batteries for power. Ensure proper handling and charging.
Image: A single Saramonic rechargeable Li-polymer battery, showing specifications and disposal symbols.
Carregador de bateria de 10 badies
A dedicated 10-bay charger is included for efficient charging of all system batteries.
Image: The Saramonic 10-Bay System Charger, designed to charge multiple batteries simultaneously.
Guia de configuració
- Càrrega de bateries: Insert all rechargeable batteries into the 10-bay charger. Connect the charger to a power source using the provided power adapter. Charging indicators will show the status. Ensure all batteries are fully charged before first use.
- Insereix les piles: Once charged, insert one battery into each Master Headset, Remote Headset, and the Hub Base Station. Ensure correct polarity.
- Encès: Press and hold the power button on each headset and the Hub Base Station until the power indicator illuminates.
- Vinculació del sistema: The headsets and hub are typically pre-paired from the factory. If re-pairing is necessary, refer to the specific pairing instructions in the full technical manual or contact support.
- Wear Headsets: Adjust the headband for a comfortable fit. Position the microphone boom approximately 1-2 inches from your mouth for optimal audio capture.
Instruccions de funcionament
- Silenciació del micròfon: The headsets feature a lever-type switch for microphone control.
- A mut the microphone, raise the microphone boom lever upwards.
- Per habilitar comunicació, lower the microphone boom lever downwards.
- Control de volum: Use the dedicated volume control buttons on the headset to adjust listening levels. The Hub Base Station also has a tactile volume control.
- Interval de comunicació: The system operates on a 1.9GHz frequency, providing a line-of-sight range of up to 1312 feet (400 meters). Obstructions and environmental factors can affect range.
- Full-Duplex Operation: The system supports true full-duplex communication, allowing all 9 users to speak and listen simultaneously without interruption.
Image: Left, headset microphone raised for mute. Right, headset microphone lowered for communication.
Image: Close-up of headset controls, highlighting the volume adjustment buttons.
Image: Visual representation of the system's ultra-long distance transmission capability, up to 400 meters.
Manteniment
- Neteja: Use a soft, dry cloth to clean the headsets and hub. Avoid using liquid cleaners or solvents.
- Cura de la bateria: Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Fully charge batteries before extended storage and recharge every few months to maintain battery health.
- Emmagatzematge: When not in use, store the system components in the provided protective case to prevent damage.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No hi ha àudio dels auriculars | Headset not powered on; Low battery; Microphone muted; Volume too low; Not paired. | Ensure headset is on; Charge battery; Lower mic lever; Increase volume; Verify pairing. |
| Poor communication range | Obstructions between units; Exceeding maximum range; Interference. | Reduce obstructions; Stay within specified range; Move away from potential interference sources. |
| Els auriculars no s'emparellaven | Incorrect pairing procedure; Out of range during pairing. | Refer to the full manual for detailed pairing steps; Ensure units are close during pairing. |
| Durada de la bateria curta | Battery not fully charged; Old or degraded battery. | Ensure full charge; Consider replacing old batteries. |
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | WITALK-WT9S |
| Tecnologia de connectivitat | Sense fil (RF) |
| Interval de freqüència | 1.9GHz (500Hz to 3kHz audio) |
| Interval d'operació | Fins a 400 m (1312 peus) de línia de visió |
| Battery Life (Remote Headsets) | Fins a 18 hores |
| Battery Life (Hub Base Station) | 2.5 hores |
| Material | Faux Leather (earpads, carrying case) |
| Pes de l'article (sistema) | 22 lliures |
| Dimensions del producte | 22.44 x 18.9 x 15.75 polzades |
| Control de soroll | Cancel·lació passiva de soroll |
Garantia i Suport
For warranty information, technical support, or service inquiries, please visit the official Saramonic weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
Official Saramonic Weblloc: www.saramonic.com
