Introducció
The Canon EOS 1300D DSLR Camera, complemented by the EF-S18-55 DC III F3.5-5.6 lens, offers an excellent entry point for photographers seeking to elevate their skills. With its 18-megapixel APS-C sensor, DIGIC 4+ processor for reduced noise, versatile lens range, Full HD video capabilities, 9-point autofocus system, Wi-Fi/NFC connectivity, and creative filters, this camera is a user-friendly, all-in-one solution that empowers users to capture high-quality photos and videos, making it an ideal choice for photography enthusiasts at any level.
Què hi ha a la caixa
- Cos de la càmera Canon EOS 1300D
- EF-S 18-55mm DC III F3.5-5.6 Lens
- Corretja de la càmera
- Lent Cap
- Gorra del cos
Configuració
1. Col·locació de la lent
Align the red dot on the lens with the red dot on the camera body. Turn the lens clockwise until it clicks into place. To remove, press the lens release button and turn the lens counter-clockwise.
2. Inserció de la bateria i la targeta de memòria
Open the battery compartment cover on the bottom of the camera. Insert the battery with the correct orientation. Close the cover. Open the memory card slot cover on the side of the camera. Insert an SD card until it clicks. Close the cover.
3. Engegada inicial
Turn the power switch to 'ON'. The camera will prompt you to set the date, time, and time zone. Follow the on-screen instructions.
Figura 1: Frontal view of the Canon EOS 1300D camera with the EF-S 18-55mm lens.
En funcionament
1. Marcador de mode
El selector de mode a la part superior de la càmera permet seleccionar diversos modes de fotografia:
- Basic Zone Modes: Fully automatic modes for simple point-and-shoot operation (e.g., Scene Intelligent Auto, Flash Off, Creative Auto, Portrait, Landscape, Close-up, Sports).
- Modes de la zona creativa: Provide more control over camera settings (e.g., Program AE (P), Shutter-priority AE (Tv), Aperture-priority AE (Av), Manual Exposure (M)).
- Movie Shooting Mode: For recording Full HD videos.
Figura 2: superior view highlighting the mode dial for selecting shooting options.
2. Basic Controls and LCD Screen
The rear of the camera features a 3.0-inch LCD monitor and various control buttons for navigation and setting adjustments. Use the directional buttons and 'SET' button to navigate menus and confirm selections. The 'DISP' button cycles through display options on the LCD. The 'ISO' button allows quick adjustment of light sensitivity.

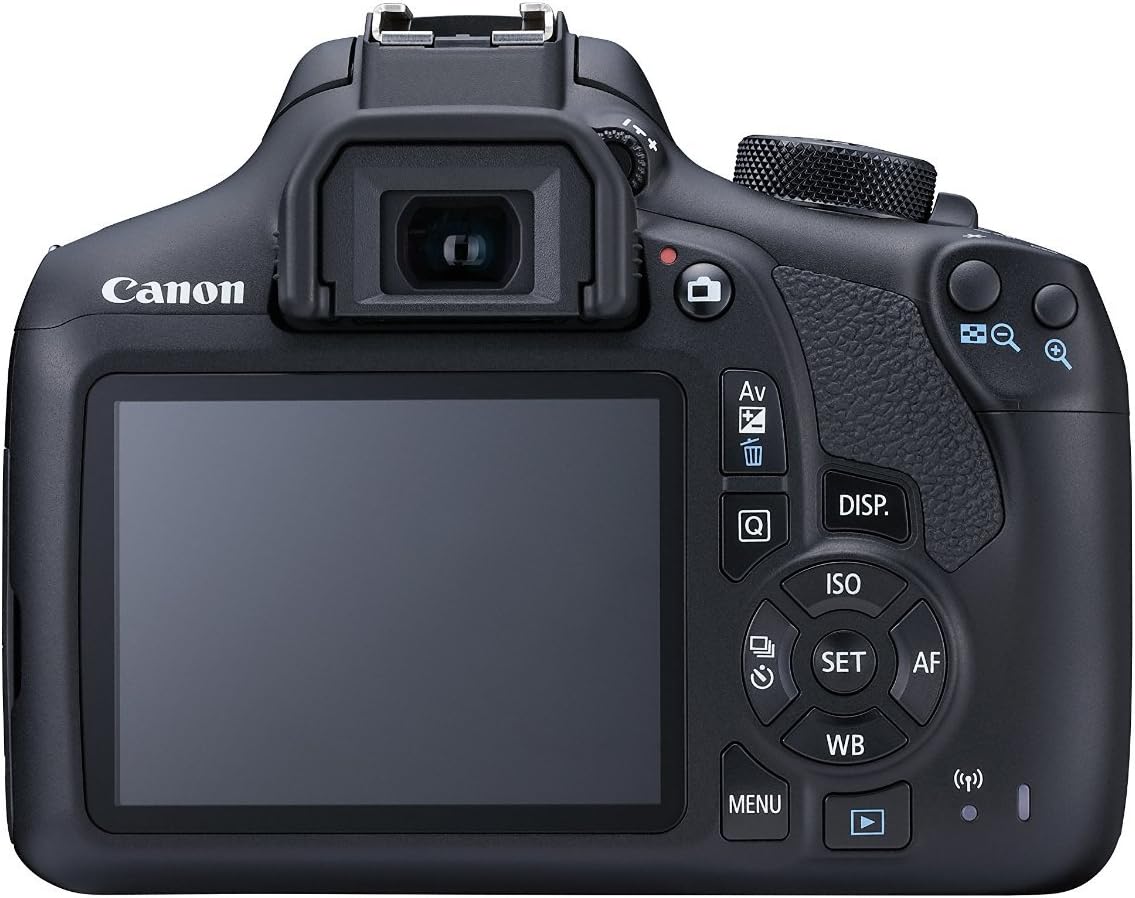

Figura 3: posterior view of the camera with the LCD screen and control layout.
3. Sistema d'enfocament automàtic
The camera features a 9-point autofocus system. In most shooting modes, the camera will automatically select the appropriate AF points. You can also manually select AF points in Creative Zone modes using the AF point selection button.
4. Connectivitat Wi-Fi i NFC
The EOS 1300D is equipped with built-in Wi-Fi and NFC for easy wireless sharing of photos and videos between compatible devices. Refer to the camera's on-screen menu for detailed instructions on connecting to smartphones, tablets, or other Wi-Fi enabled devices.
Figura 4: Costat esquerre view of the camera, showing connectivity ports.
Figura 5: costat dret view of the camera, highlighting the memory card slot and NFC logo.
Manteniment
1. Neteja de la càmera
Use a soft, lint-free cloth to clean the camera body. For the lens, use a lens brush to remove dust, then a lens cleaning cloth with a specialized lens cleaning solution if necessary. Avoid touching the lens surface directly with your fingers.
2. Cura de la bateria
Always use genuine Canon batteries. Store batteries in a cool, dry place. If the camera will not be used for an extended period, remove the battery.
3. Emmagatzematge
Store the camera in a dry, well-ventilated area, away from direct sunlight and extreme temperatures. Use a camera bag for protection during transport.
Resolució de problemes
Problemes comuns i solucions:
- La càmera no s'encén: Comproveu si la bateria està carregada i inserida correctament.
- Les imatges són borroses: Ensure the lens is clean, the autofocus is engaged, and the shutter speed is appropriate for the lighting conditions.
- Error de la targeta de memòria: Torneu a inserir la targeta de memòria. Si el problema persisteix, proveu de formatar la targeta (això esborrarà totes les dades) o utilitzeu una targeta diferent.
- Problemes de connexió Wi-Fi/NFC: Ensure both devices have Wi-Fi/NFC enabled and are within range. Refer to the camera's connectivity settings.
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | EOS 1300D |
| Resolució del sensor fotogràfic | 18 MP |
| Tecnologia del sensor fotogràfic | CMOS |
| Estabilització d'imatge | Òptic |
| Zoom òptic | 3 x |
| Distància focal mínima | 18 mil·límetres |
| Distància focal màxima | 88 mil·límetres |
| Interval ISO | 100-6400 (expandable to H: 12800) |
| Resolució de vídeo | 1080p (Full HD) |
| Mida de la pantalla | 3 polzades |
| Tecnologia de connectivitat | Wi-Fi, NFC |
| Punts d'enfocament automàtic | 9 |
| Admet File Format | RAW, MP4 |
Garantia i Suport
This renewed product comes with a 90-day limited warranty. For technical support or service inquiries, please refer to the official Canon support weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
