VECYS BYCZT573 Bottleless Water Cooler and Ice Maker User Manual

1. Informació important de seguretat

Please read all instructions carefully before using the VECYS BYCZT573 Bottleless Water Cooler and Ice Maker. Retain this manual for future reference.

• Assegureu-vos que l'aparell estigui col·locat en una superfície estable i plana.
• Connecteu-vos només a un subministrament d'aigua potable.
• No submergiu l'aparell, el cable o l'endoll en aigua o altres líquids.
• Desendolleu l'aparell abans de netejar-lo o fer-ne cap manteniment.
• Mantenir els nens allunyats de l'aparell durant el funcionament.
• Aquest aparell està dissenyat només per a ús en interiors.
• No bloquejar les obertures de ventilació.
• The ice produced by this unit is not stored in a freezer compartment and will melt over time. Use ice promptly or transfer to a freezer for long-term storage.
• This model does not provide hot water.

2. Producte acabatview

The VECYS BYCZT573 is a 2-in-1 appliance that provides both chilled water and ice. It features a bottleless design for continuous water supply and an efficient compressor-based cooling system.

Característiques principals:

• Doble funcionalitat: Dispenses cold water and produces ice.
• Disseny sense ampolla: Connects directly to an external water source, eliminating the need for water bottles.
• Capacitat de fabricació de gel: Produces up to 18 pounds (8 kg) of ice daily.
• Refrigeració eficient: Utilizes a high-performance compressor for fast cooling and energy efficiency.
• Esterilització UV: Integrated UV self-cleaning component purifies water for enhanced safety.
• Panell de control LED: Interfície intuïtiva per a un funcionament fàcil.
• Indicadors: Features water shortage and ice-full indicators.
• Llistat per ETL: Certified for safety and quality.

Components del producte:

Familiarize yourself with the main parts of your VECYS BYCZT573 unit.

Figura 2.1: Frontal view of the VECYS BYCZT573 unit, showing the ice dispensing chute, water dispenser, and the external water line connection.

Figure 2.2: Close-up of the LED control panel with icons for power, water dispensing, ice making, and indicators.

3. Configuració i instal·lació

Follow these steps to set up your VECYS BYCZT573 unit.

3.1 Desembalatge

• Traieu amb cura l'aparell del seu embalatge.
• Check for any damage that may have occurred during transit. Contact customer support if any damage is found.
• Ensure all accessories are present: water pipe (118 inches), switch faucet, and Teflon tape.

3.2 Col·locació

• Place the unit on a flat, stable, and heat-resistant surface.
• Ensure there is adequate ventilation around the unit (at least 4 inches of space from walls).
• Eviteu la llum solar directa o la proximitat a fonts de calor.
• Position the unit near a potable water source and an electrical outlet.

Figure 3.1: The VECYS BYCZT573 unit with dimensions: 12.2 inches deep, 14.8 inches wide, and 18.3 inches high, suitable for countertop use.

3.3 Connexió de la línia d'aigua

The VECYS BYCZT573 connects directly to your home's water supply. A universal adapter and pipe are included.

• Tanqueu el subministrament d'aigua principal abans de començar la instal·lació.
• Locate a suitable cold water line connection point, typically under a sink.
• Install the provided switch faucet onto the cold water line. Use Teflon tape on threaded connections to prevent leaks.
• Connect one end of the provided water pipe to the switch faucet.
• Connect the other end of the water pipe to the 'Inlet Line' port at the back of the VECYS unit. Ensure connections are secure.
• Slowly turn on the main water supply and check for any leaks. Tighten connections if necessary.

Figure 3.2: Diagram illustrating the connection of the VECYS BYCZT573 unit to an external water source, typically a kitchen sink faucet.

3.4 Connexió d'alimentació

• Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.
• Allow the unit to stand upright for at least 2 hours before initial use to allow refrigerants to settle.

4. Instruccions de funcionament

The VECYS BYCZT573 offers simple operation via its LED control panel.

4.1 Funcions del tauler de control

Figure 4.1: The LED control panel displays various functions and indicators.

• Botó d'encesa: Encén o apaga la unitat.
• Water Dispense Button: Activates cold water dispensing.
• Ice Making Button: Initiates or stops the ice making cycle.
• UV Sterilization Button: Activates the UV self-cleaning function.
• Water Shortage Indicador: Illuminates when the water tank needs refilling (though bottleless, this indicates an issue with water supply).
• Ice-Full Indicator: S'il·lumina quan la cistella de gel és plena.

4.2 Dispensació d'aigua freda

• Place a glass or container under the water dispenser spout.
• Press the 'Water Dispense' button on the control panel.
• Release the button to stop water flow.

4.3 Fabricació de gel

• Press the 'Ice Making' button on the control panel to start the ice production cycle.
• The unit will begin producing ice. A batch of ice typically takes 6-8 minutes.
• The 'Ice-Full' indicator will light up when the ice basket is full. The unit will automatically pause ice production.
• To resume ice production, remove some ice from the basket.
• Nota: Cold water dispensing and ice making cannot occur simultaneously. The primary function is cold water, with ice making as a secondary feature. Ice cubes will melt if left in the basket as it is not a freezer.

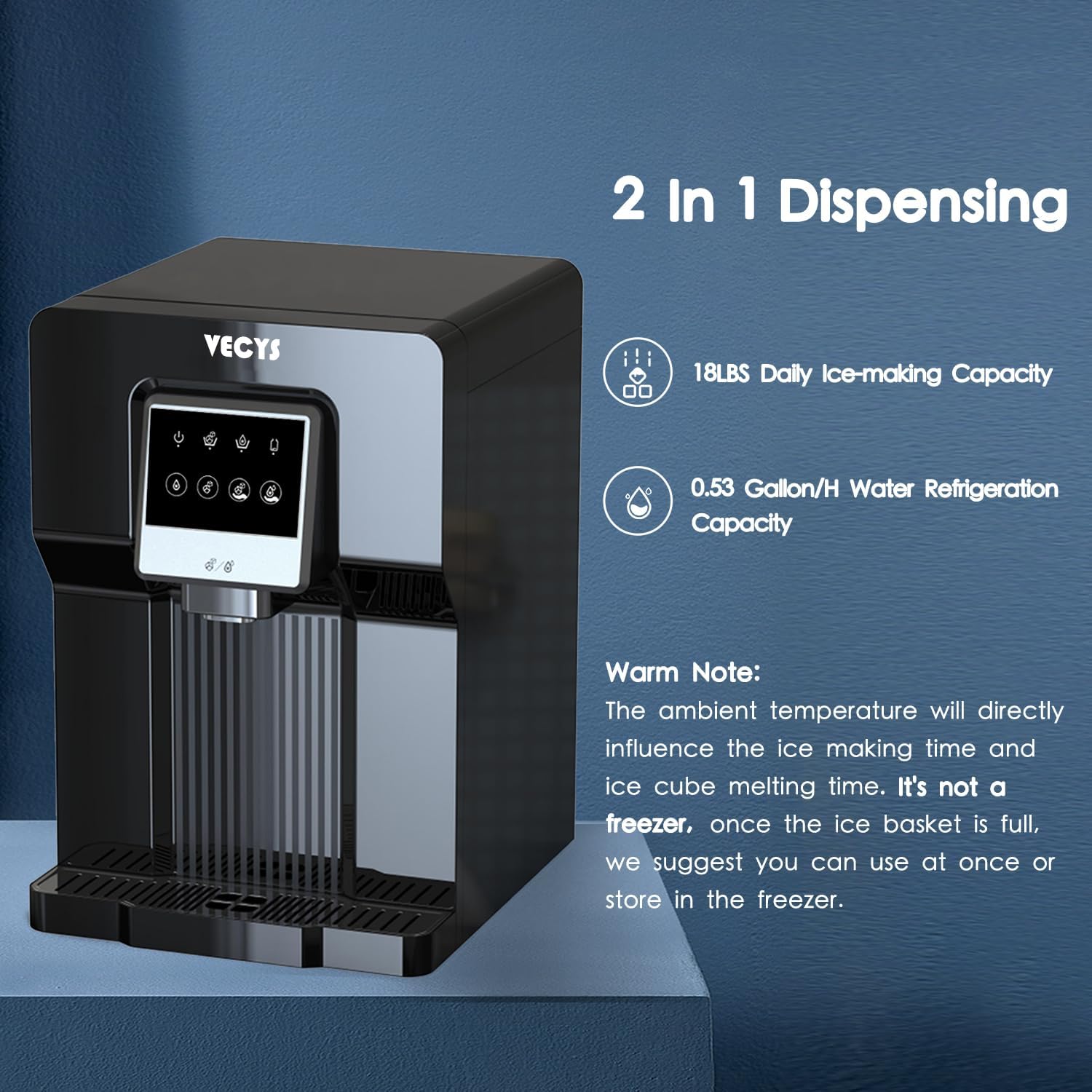

Figura 4.2: Mésview of the 2-in-1 dispensing capabilities, highlighting 18LBS daily ice-making capacity and 0.53 Gallon/H water refrigeration capacity.

5. Manteniment

Regular maintenance ensures optimal performance and longevity of your VECYS BYCZT573 unit.

5.1 UV Self-Cleaning

• The unit is equipped with a UV self-cleaning component to purify the internal water system.
• To activate, press the 'UV Sterilization' button on the control panel.
• Refer to the control panel for the duration of the cleaning cycle.

Figure 5.1: The VECYS BYCZT573 unit highlighting its UV self-cleaning component for water purification.

5.2 Neteja general

• Exterior: Netegeu les superfícies exteriors amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Safata de degoteig: Regularly remove and empty the drip tray. Wash it with mild soap and water, then rinse and dry thoroughly before replacing.
• Neteja interior: Periodically drain the internal water tank. Unplug the unit, disconnect the water inlet, and open the drain plug (located at the back of the unit) to empty the water. Rinse with clean water and drain again.
• Cistella de gel: Clean the ice basket with mild soap and water as needed.

5.3 Compressor Maintenance

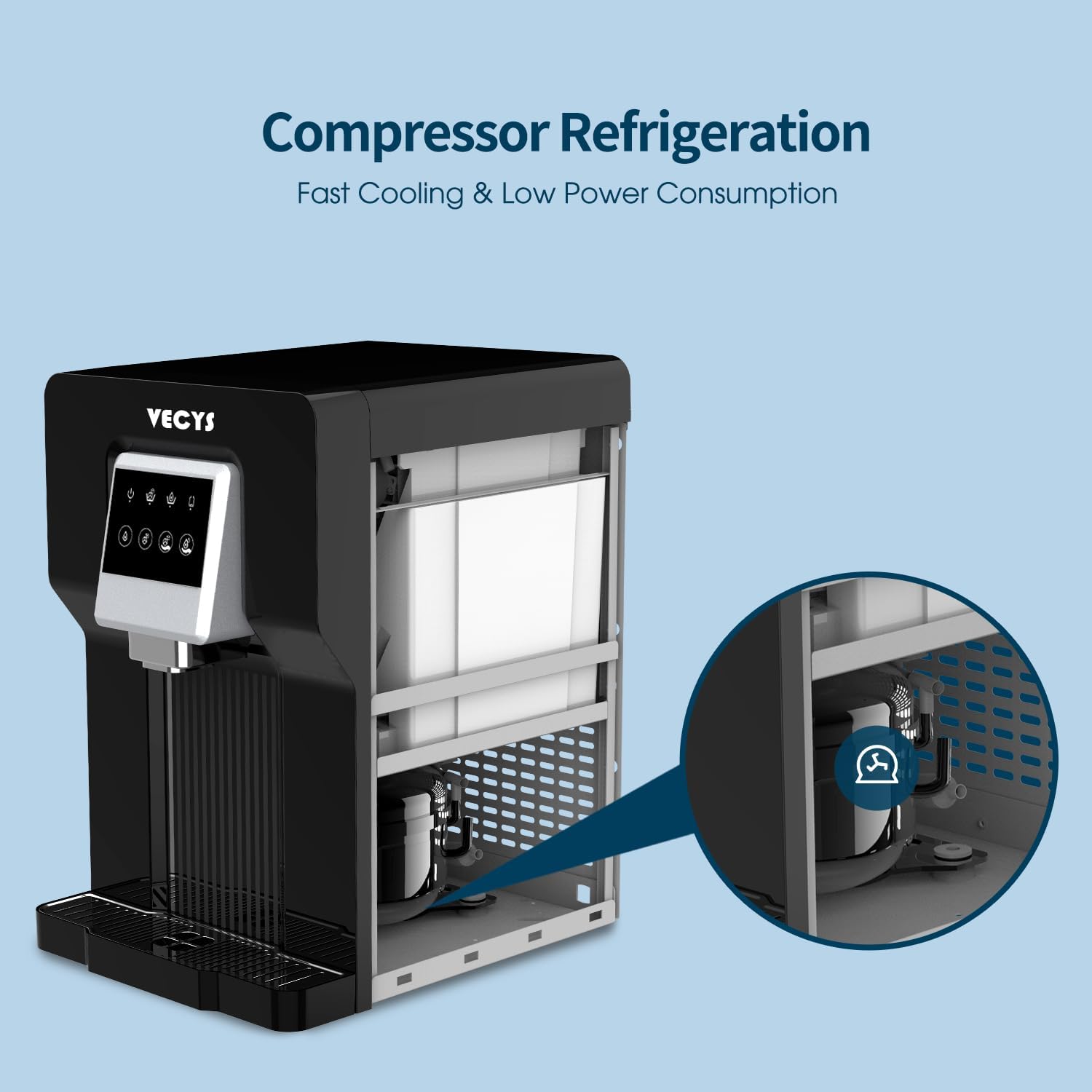

Figura 5.2: Intern view of the VECYS BYCZT573 unit, showing the compressor refrigeration system.

• Ensure the rear ventilation area is clear of obstructions to allow proper airflow for the compressor.
• Dust the condenser coils at the back of the unit periodically using a soft brush or vacuum cleaner to maintain efficiency.

6. Solució De Problemes

If you encounter issues with your VECYS BYCZT573, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact VECYS customer support.

7. Especificacions

8. Garantia i atenció al client

VECYS is committed to customer satisfaction. If you encounter any issues or have questions regarding your BYCZT573 unit, please contact our customer support team.

• Informació de contacte: Refer to the product packaging or the VECYS official weblloc web per obtenir les dades de contacte d'atenció al client més actualitzades.
• Garantia: Els detalls específics de la garantia normalment es proporcionen amb la documentació de compra. Si us plau, conserveu el comprovant de compra per a les reclamacions de garantia.
• Our team is dedicated to providing excellent service and will respond to inquiries within 24 hours.
