1. Introducció
Thank you for choosing the Donner DEK-610S 61-Key Electric Keyboard Piano. This comprehensive kit is designed for beginners and hobbyists, offering a rich musical experience with its versatile features and included accessories. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure you get the most out of your instrument.

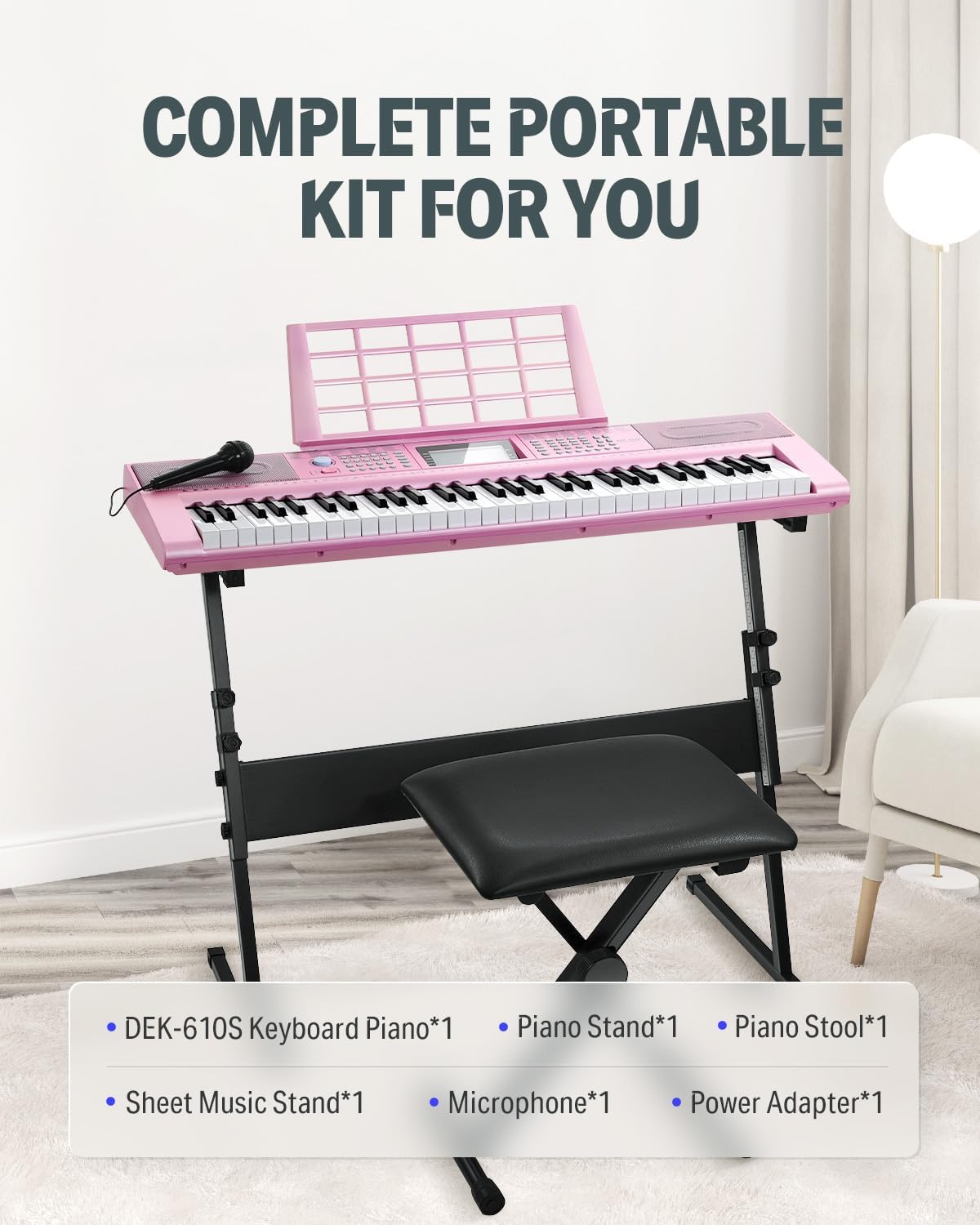

2. Contingut del paquet
Upon opening your Donner DEK-610S kit, please verify that all the following items are included:
- Donner DEK-610S Keyboard Piano (1 unit)
- Adjustable Keyboard Stand (1 unit)
- Adjustable Piano Stool (1 unit)
- Sheet Music Stand (1 unit)
- Microphone (1 unit)
- Adaptador de corrent (1 unitat)
3. Instruccions de configuració
- Muntar el suport del teclat: Unfold the keyboard stand and adjust its height to a comfortable playing position. Ensure all locking mechanisms are securely fastened.
- Col·loca el teclat: Carefully place the DEK-610S keyboard onto the assembled stand. Ensure it is stable and centered.
- Assemble the Piano Stool: Unfold the piano stool and adjust its height as needed for comfortable seating while playing.
- Attach the Sheet Music Stand: Insert the sheet music stand into the designated slot on the top panel of the keyboard.
- Connectar l'alimentació: Plug the power adapter into the DC9V-12V input jack on the rear panel of the keyboard. Then, plug the adapter into a standard electrical outlet.
- Connecteu el micròfon (opcional): If using the microphone, plug its 3.5mm jack into the MIC input on the rear panel of the keyboard.
- Connecteu els auriculars (opcional): For private practice, plug headphones with a 3.5mm jack into the PHONES output on the rear panel.
4. Instruccions de funcionament
4.1 Encès/Apagat
Premeu el botó PODER button located on the control panel to turn the keyboard on or off.
4.2 Pantalla LCD
The integrated LCD display panel provides clear visual feedback on current functions, selected voices, rhythms, tempo, and other operational parameters.
4.3 Voices and Rhythms
The DEK-610S features 249 voices and 249 rhythms. Use the dedicated buttons and numeric keypad on the control panel to select your desired voice (instrument sound) or rhythm (accompaniment style).
4.4 Demo Songs and Teaching Functions
Explore the 50 built-in demo songs. The keyboard also includes 3 teaching functions to assist beginners in learning to play. Refer to the on-screen prompts and specific teaching modes for guided lessons.
4.5 Recording Feature
Use the "Record" function to capture your performances. This allows for playback and self-correction, aiding in practice and improvement. Consult the manual's specific section on recording for detailed steps.
4.6 Audio Output and Speakers
The DEK-610S is equipped with two built-in 10W speakers for clear, room-filling sound. For private practice, connect headphones to the 3.5mm PHONES jack.
5. Manteniment i cura
- Neteja: Feu servir un drap suau i sec per netejar la superfície del teclat. Per a la brutícia persistent, netegeu lleugerament.ampen the cloth with water and a mild soap solution, then wipe dry immediately. Avoid using abrasive cleaners, solvents, or waxes.
- Emmagatzematge: When not in use, store the keyboard in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. If storing for extended periods, consider covering it with a dust cover.
- Manipulació: Always handle the keyboard with care. Avoid dropping it or subjecting it to strong impacts, which can damage internal components.
- Adaptador d'alimentació: Disconnect the power adapter from the wall outlet and the keyboard when not in use or during electrical storms.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No hi ha so dels altaveus. | El volum és massa baix o està silenciat. Els auriculars estan connectats. | Increase the master volume. Unplug headphones if connected. |
| El teclat no s'encén. | Power adapter not connected or faulty. Power outlet not working. | Ensure power adapter is securely connected to both keyboard and outlet. Try a different outlet. |
| Les claus no responen. | Keyboard may be in a specific mode (e.g., demo mode) that disables key input. | Restart the keyboard. Check the selected mode on the LCD display and switch to a standard playing mode. |
| El micròfon no funciona. | Micròfon no connectat correctament. Volum del micròfon massa baix. | Ensure microphone is fully plugged into the MIC input. Adjust microphone volume settings on the keyboard. |
7. Especificacions
| Característica | Detall |
|---|---|
| Marca | Donner |
| Nom del model | DEK-610S |
| Nombre de claus | 61 |
| Veus | 249 |
| Ritmes | 249 |
| Cançons de demostració | 50 |
| Funcions docents | 3 |
| Polifonia | 32-notes |
| Mostra | LCD |
| Altaveus | 2 x 10W Built-in |
| Connectivitat | 3.5mm Jack (Headphones, Mic, Audio Input), USB, MIDI |
| Font d'alimentació | Corded Electric (DC9V-12V) |
| Pes de l'article | 23.9 lliures |
| Dimensions del paquet | 39 x 14.6 x 12 polzades |
| Color | Pink Kit |
| Nivell d'habilitat | Principiant |
| Característica especial | Portàtil |
8. Garantia i Suport
For warranty information, product support, or technical assistance, please contact Donner customer service. Details regarding warranty coverage and support channels can typically be found on the official Donner weblloc web o a través de la documentació de compra.
