1. Introducció
Thank you for choosing the hansgrohe Rebris S Single Lever Basin Mixer 80. This manual provides essential information for the safe installation, correct operation, and proper maintenance of your new basin mixer. Please read these instructions carefully before installation and keep them for future reference.
The hansgrohe Rebris S mixer features innovative technologies such as CoolStart for energy saving, EcoSmart+ for water efficiency, and AirPower for a comfortable water jet with less splashing. It also includes a convenient pop-up waste.
2. Informació de seguretat
- Ensure all plumbing work is carried out by a qualified professional in accordance with local building and plumbing codes.
- Before installation, turn off the main water supply.
- Comproveu totes les connexions per detectar fuites després de la instal·lació.
- Do not use abrasive cleaners or solvents on the faucet's finish, as this may cause damage.
- The adjustable temperature limiter should be set to prevent scalding, especially in households with children or elderly individuals.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- 1 x hansgrohe Rebris S Single Lever Basin Mesclador 80
- Pop-up waste set
- Mànegues de connexió
- Fixació de l'eix
- Installation wrench
- Instruccions d'instal·lació (aquest manual)
4. Configuració i instal·lació
The hansgrohe Rebris S basin mixer is designed for single-hole, deck-mount installation. Follow these general steps, referring to the detailed technical drawing for specific measurements.
4.1 Technical Drawing and Dimensions
This diagram illustrates the key dimensions and connections for the hansgrohe Rebris S basin mixer, including projection (121 mm), overall height (173 mm), and connection thread size (G 3/8).
4.2 Passos d'instal·lació
- Prepareu el lloc d'instal·lació: Ensure the mounting surface is clean and flat. The maximum thickness for deck mounting is 30 mm.
- Muntar el mesclador: Insert the mixer's base into the basin hole. Secure it from underneath using the shaft attachment and installation wrench.
- Connecteu les mànegues d'aigua: Connect the flexible connection hoses from the mixer to your hot and cold water supply lines. The mixer is suitable for instantaneous water heaters.
- Install Pop-up Waste: Follow the separate instructions for installing the pop-up waste mechanism into your basin drain. Connect the pop-up rod to the mixer.
- Comproveu si hi ha fuites: Slowly turn on the main water supply and check all connections for any signs of leakage.
5. Instruccions de funcionament
Your hansgrohe Rebris S basin mixer is designed for intuitive and efficient use.
5.1 Single Lever Operation
The single lever controls both water flow and temperature. Move the lever up to increase flow and down to decrease it. Move the lever left for hot water and right for cold water.

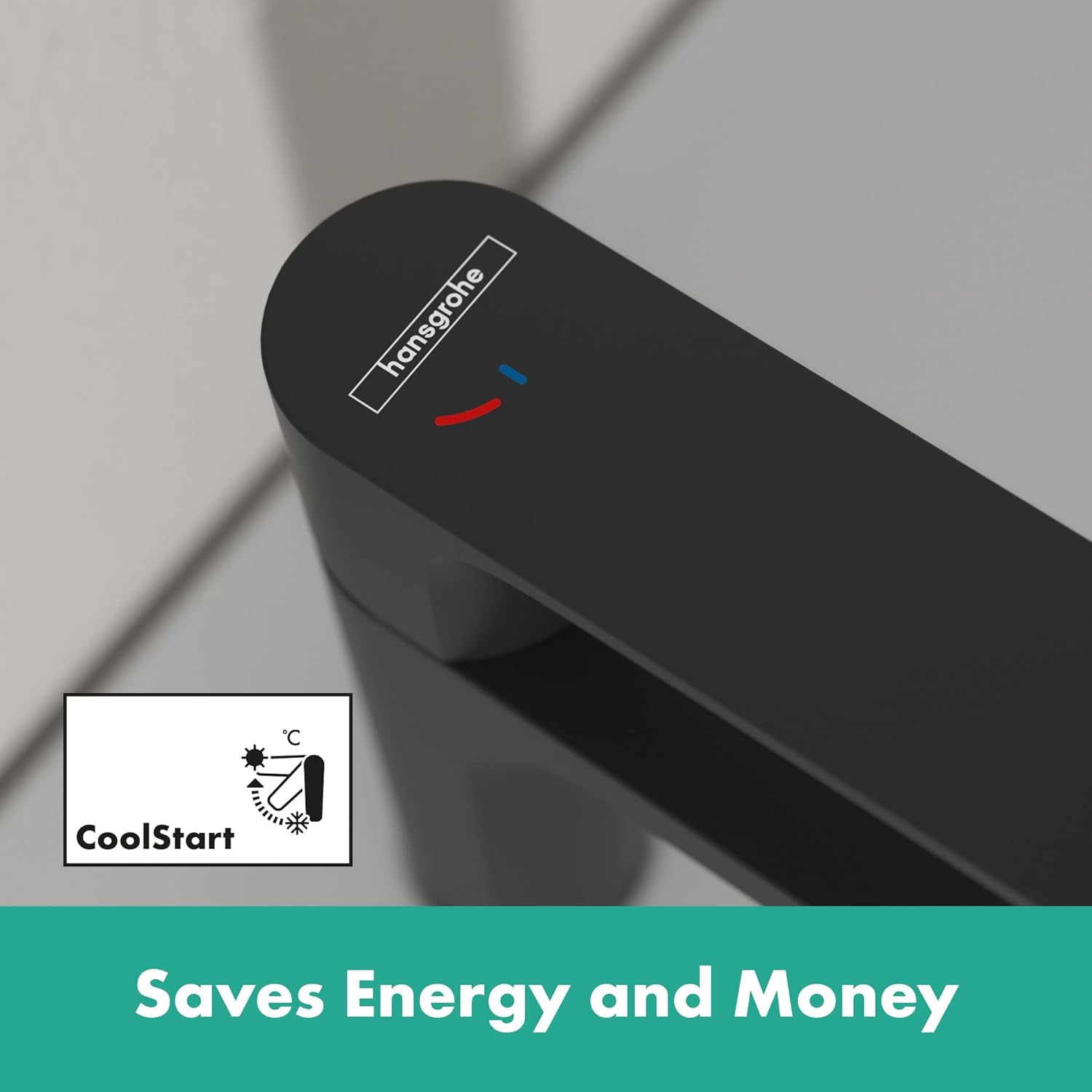

5.2 CoolStart Technology
The CoolStart feature ensures that only cold water flows when the lever is in the middle position. This prevents the unnecessary activation of your water heater, saving energy and money.
5.3 EcoSmart+ Water Saving
The EcoSmart+ technology limits the water flow to approximately 4 liters per minute (at 3 bar pressure), which is 20% less than standard hansgrohe EcoSmart models. This significantly reduces water consumption without compromising comfort.
5.4 AirPower Technology
AirPower enriches the water with air, creating a softer, fuller, and lighter water jet. This results in less splashing and a more pleasant experience.
5.5 Pop-up Waste Operation
The integrated pop-up waste is operated by a small rod located at the back of the faucet. Push down to close the drain and pull up to open it.
5.6 Adjustable Temperature Limiter
The mixer includes an adjustable temperature limiter to prevent excessively hot water. Consult the detailed installation instructions for how to adjust this setting.
6. Manteniment
Regular cleaning and maintenance will ensure the longevity and optimal performance of your hansgrohe basin mesclador.
6.1 Neteja de l'aixeta
Clean the matte black finish with a soft cloth and a mild, non-abrasive cleaning agent. Avoid using cleaners containing alcohol, acids, or abrasive particles, as these can damage the surface. Rinse thoroughly with clean water and dry with a soft cloth.
6.2 Aerator Descaling and Replacement
The aerator can be easily removed for cleaning and descaling. Use a coin to unscrew the aerator from the spout. Soak it in a descaling solution (e.g., vinegar and water) to remove limescale deposits. Rinse thoroughly and reattach. The aerator can also be quickly replaced if necessary.
6.3 Ceramic Cartridge
The mixer is equipped with a durable ceramic cartridge, designed for smooth and reliable operation. In case of persistent drips or stiffness, the cartridge may require professional inspection or replacement.
7. Solució De Problemes
If you encounter issues with your basin mixer, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Baix cabal d'aigua | Clogged aerator, partially closed shut-off valves, low water pressure | Clean or replace aerator (see Section 6.2). Ensure shut-off valves are fully open. Check household water pressure. |
| Leaking from spout | Worn ceramic cartridge, debris in cartridge | Contact a qualified plumber for cartridge inspection or replacement. |
| Leaking at connections | Connexions soltes, segells danyats | Tighten connections carefully. Replace seals if damaged. Ensure proper use of sealing tape/compound. |
| Sense aigua calenta/freda | Supply valves closed, issue with water heater, incorrect temperature limiter setting | Check hot/cold water supply valves. Verify water heater operation. Adjust temperature limiter if necessary. |
If the problem persists after attempting these solutions, please contact hansgrohe customer support or a qualified plumber.
8. Especificacions
- Marca: hansgrohe
- Nom del model: Rebris S Single Lever Basin Mixer 80 CoolStart
- Número de model: 72586670
- Tipus d'acabat: Mat
- Color: Negre mat
- Tipus de muntatge: Muntatge de coberta, forat únic
- Nombre de nanses: 1
- Projecció: 121 mm
- Flux d'aigua: Approximately 4 l/min (at 3 bar) with EcoSmart+
- Característiques especials: Water Saving (EcoSmart+), CoolStart, AirPower, Pop Up Drain
- Material: Llautó
- Pes de l'article: 2.68 lliures (1.22 quilograms)
- Dimensions del producte: 5.79 x 2.05 x 5.63 polzades
- Usos recomanats: Basin
9. Garantia i Suport
hansgrohe products are manufactured to the highest quality standards. For information regarding your product's warranty, please refer to the warranty card included with your purchase or visit the official hansgrohe website. For technical support or spare parts, please contact hansgrohe customer service directly.
Podeu trobar més informació i dades de contacte a Botiga Hansgrohe a Amazon o la seva empresa oficial weblloc.
