Patiowell 10' x 10' Metal Storage Shed User Manual

1. Informació important de seguretat

Before beginning assembly or using the Patiowell 10' x 10' Metal Storage Shed, please read and understand all instructions and safety warnings. Failure to follow these instructions may result in injury or damage to the product.

• Always check local building codes and Homeowners Association (HOA) policies to ensure compliance before construction.
• Ensure the shed is built on a perfectly level and square foundation or platform. An uneven base can lead to misalignment and structural instability.
• Wear appropriate personal protective equipment (PPE) during assembly, including gloves and eye protection.
• Exercise caution with sharp edges on metal components. Consider taping or adding padding to roof beams on the underside to prevent head injuries.
• Do not exceed the maximum weight limit of 440 pounds for stored items.
• Keep the shed doors locked when not in use to prevent unauthorized access and secure contents.
• Supervise children around the shed at all times.
• Do not lean against the shed walls, as the metal panels can dent easily.

2. Muntatge i muntatge

The Patiowell 10' x 10' Metal Storage Shed is designed for straightforward assembly. Clear, step-by-step instructions are provided to guide you through the process. While assembly is designed to be manageable, having an assistant is highly recommended for certain steps to ensure safety and proper alignment.

2.1 Comprovacions prèvies al muntatge

• Fundació: A stable, level, and square foundation is crucial for proper assembly and long-term stability. The shed does not include a base; you will need to construct one if required.
• Contingut del paquet: The shed is typically shipped in multiple packages (e.g., 2 packages). Verify all parts against the packing list provided in each box. Packages may arrive at different times. If you have questions about missing packages, scan the QR code on the package or contact customer support.
• Inspecció de peces: Inspect all metal panels for any damage or dents upon arrival. Minor cosmetic dents may occur during shipping but generally do not affect structural integrity.
• Pel·lícula protectora: Metal parts are covered with a protective plastic film. This film can be difficult to remove completely. Remove it from visible areas; for less noticeable sections, it may be left on if removal is too challenging.

2.2 Assembly Steps and Tips

1. Follow Instructions Precisely: Adhere strictly to the provided assembly manual and sequence of steps.
2. Utilize Online Resources: Patiowell provides YouTube assembly videos and step-by-step playlists. These visual guides can be invaluable for clarifying instructions and ensuring correct part alignment.
3. Assistance is Recommended: For steps involving large or flexible panels, such as installing sheet metal corners, upper rail installation, and gable ends, having a helper is essential to prevent bending or damage.
4. Screw Management: There are typically only a few types of screws. Extra screws and washers are usually provided.
5. Loose Fasteners: When instructed to leave screws loose, ensure they are very loose, especially for the center beam assembly, to allow for proper panel insertion.
6. Alineació del panell de la teulada: When installing roof panels, keep all screws loose until every hole is aligned. Verify that panels are perfectly straight before tightening to prevent misalignment issues further along the roof.
7. Ridge Cap: Follow instructions carefully to ensure access to center screws for the ridge cap. The ridge cap may need to be bent to reach screws for remaining panels.
8. Ajust de la porta: After assembly, check that the doors close correctly and adjust the latch mechanism as needed for smooth operation and secure closure.
9. Ús de l'eina: An impact driver can speed up assembly, but use caution with F1 screws as they strip easily. Snug them gently.
10. Rentadores: Always use plastic washers where indicated, ensuring they are tightened just enough to create a slight squish for proper sealing against rain.

Temps estimat de muntatge: While advertised times may vary, expect assembly to take approximately 12 hours, potentially split over several days, especially if working alone or with minimal experience.

Figure 2.1: Patiowell 10'x10' Metal Storage Shed with doors open, revealing interior storage space for a bicycle and various items on shelves.

Figure 2.2: Interior layout of the shed demonstrating its capacity for organizing tools, equipment, and boxes.

3. Funcionament i ús

The Patiowell 10' x 10' Metal Storage Shed provides a versatile and secure solution for outdoor storage needs.

3.1 Capacitat d'emmagatzematge

With dimensions of 10 feet by 10 feet, this shed offers a generous 504 cubic feet of storage capacity. It can comfortably accommodate a wide range of items, including:

• Large power tools
• Seasonal equipment (e.g., lawnmowers, snow blowers)
• Gardening supplies
• Bicycles and outdoor recreational gear
• General household overflow items

El ample space allows for neat organization, making it easier to locate items and maintain an uncluttered outdoor area.

3.2 Funcions de seguretat

The shed is equipped with reinforced doors and lockable handles to enhance security. This provides an added layer of protection against theft, ensuring your valuable equipment is safely stored. Always utilize the locking mechanism when the shed is not in use.

3.3 Aplicacions versàtils

Beyond standard tool storage, the shed's design allows for various uses:

• Espai de treball: Can be adapted as a small outdoor workspace for hobbies.
• Potting Shed: Ideal for gardening enthusiasts to store plants and supplies.
• Pet Shelter: Can serve as a shelter for outdoor pets, provided proper ventilation and comfort are ensured.

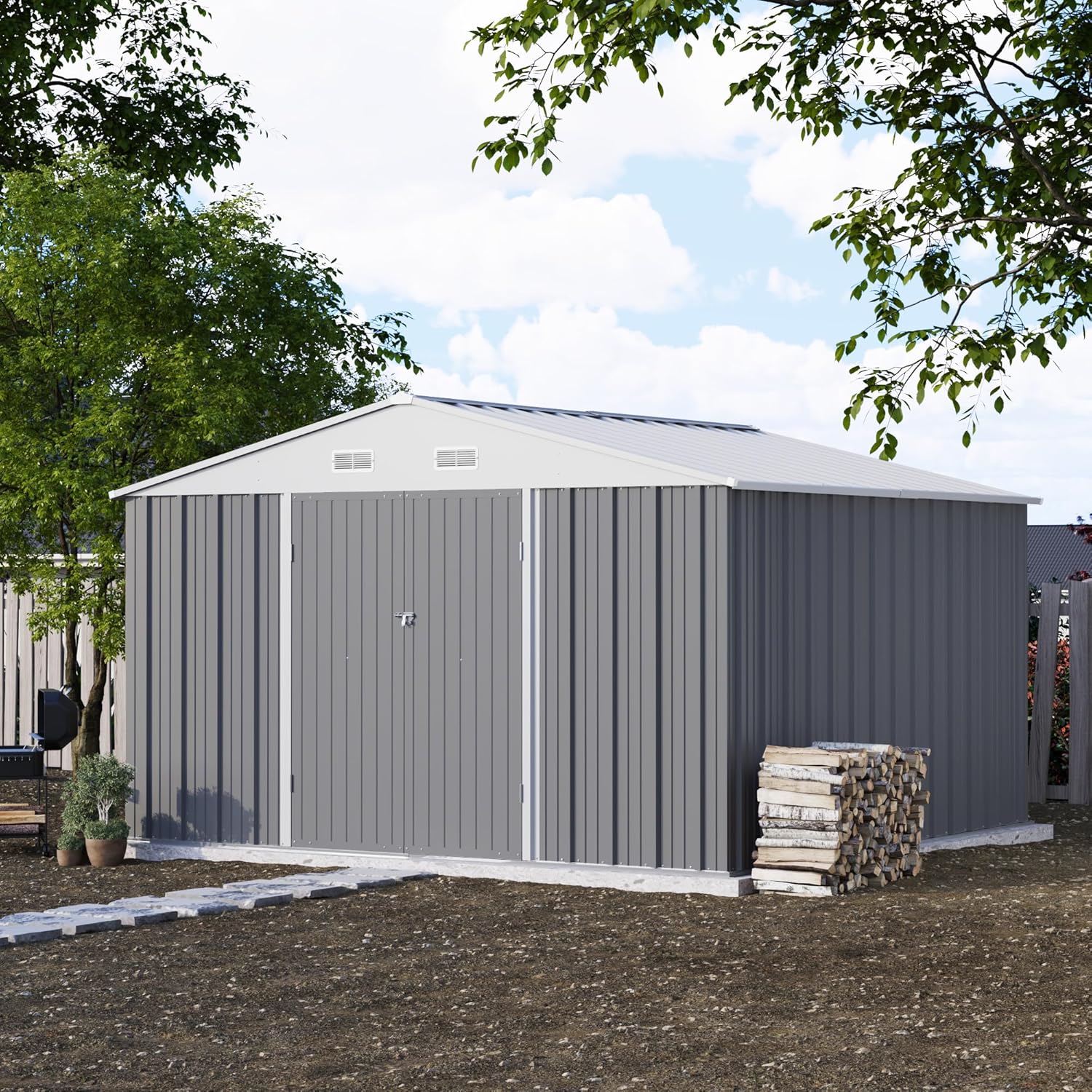

Figure 3.1: The shed with its doors closed, demonstrating its secure and integrated appearance in an outdoor setting.

Figure 3.2: Detail of the shed's door and security features, including the lockable handle and protective elements.

4. Manteniment

The Patiowell Metal Storage Shed is constructed from durable, corrosion-resistant metal, designed for low maintenance and long-lasting performance.

• Resistència a la intempèrie: The shed is built to withstand various weather conditions, including rain, snow, and sun exposure, protecting your stored items from environmental damage.
• Moisture and Mildew Resistance: The material's properties contribute to resistance against moisture and mildew, further reducing maintenance requirements.
• Snow and Ice: In areas with heavy snow or ice, regularly clear the roof to prevent excessive load, as the roof's load capacity, while adequate, may be compromised by extreme accumulation.
• Comprovació de fuites: Periodically inspect the roof and seams for any signs of leaks. If leaks are detected, apply appropriate sealant to ensure the interior remains dry. Ensure all screws with plastic washers are properly tightened to prevent water ingress.
• Neteja: Clean the exterior with mild soap and water as needed to remove dirt and debris. Avoid abrasive cleaners or tools that could scratch the metal finish.

Figure 4.1: Visual representation of the shed's all-weather protection capabilities.

5. Solució De Problemes

This section addresses common issues that may arise during assembly or use of your Patiowell Metal Storage Shed.

5.1 Reptes del muntatge

• Dented or Damaged Parts: If parts arrive with minor dents or damage, assess if they affect structural integrity. Small cosmetic dents often do not impede assembly or function. Contact customer support for significantly damaged or unusable parts.
• Confusing Instructions: If the written instructions are unclear, refer to the official Patiowell YouTube assembly videos for visual guidance. These resources often provide clearer step-by-step demonstrations.
• Forats desalineats: If pre-drilled holes do not align perfectly, ensure your foundation is perfectly level and square. Slight adjustments or gentle force may be necessary. In rare cases, minor drilling of new holes might be required, but this should be a last resort.
• Incorrect Hardware: If screws or other hardware appear to be the wrong size for certain sections, double-check the part numbers against the manual. If discrepancies persist, contact customer support for replacement parts.
• Dificultat per treure la pel·lícula protectora: The plastic film on metal panels can be stubborn. Focus on removing it from highly visible areas. For less critical sections, it may be left on if removal is too time-consuming or difficult.

5.2 Problemes operatius

• Fuga: If the shed leaks after assembly, inspect all roof screws and seams. Ensure plastic washers are present and adequately tightened. Apply a suitable outdoor sealant to any persistent leak points.
• Binding Doors: If doors bind or do not close smoothly, verify that the shed's foundation is still level and square. An uneven foundation can cause the frame to twist. Adjust the door latch mechanism if necessary.

6. Especificacions

Detailed specifications for the Patiowell 10' x 10' Metal Storage Shed.

Figure 6.1: Detailed dimensions of the Patiowell 10'x10' Metal Storage Shed.

7. Garantia i Suport

Per obtenir informació sobre la garantia i l'assistència al client, consulteu els recursos següents:

• Garantia: Specific warranty details are not provided in the available product information. Please contact Patiowell customer support directly for comprehensive warranty terms and conditions.
• Devolucions: This product is returnable until January 31, 2026. Please refer to your purchase platform's return policy for detailed instructions.
• Atenció al client: For any questions, missing parts, or assistance with assembly and troubleshooting, please contact Patiowell customer support. You can often find contact information on the product packaging or through the seller's page on the platform where you made your purchase.

You can visit the Patiowell Store for more information: Patiowell Store

8. Informació addicional

8.1 Environmental Commitment

Figure 8.1: GRS Certified Products logo.

Patiowell is committed to sustainability, offering GRS-certified products. These items meet stringent environmental standards, utilizing durable, recycled, and eco-friendly materials for outdoor storage solutions. Choosing Patiowell supports a circular economy and helps reduce waste.

8.2 Característiques de disseny

Figure 8.2: Close-up of the shed's wood-like texture.

The shed features a wood-like texture design, providing an aesthetic appeal that resembles natural wood while retaining the benefits of metal construction, including moisture and mildew resistance for low maintenance.
