1. Introducció i presentació del producteview
The Goobay 61667 Electric Air Duster is a powerful and versatile device designed for efficient and contactless cleaning of various electronics and surfaces. It serves as an eco-friendly and reusable alternative to traditional compressed air cans, offering multiple power levels and a long operating time.
This manual provides essential information for the safe and effective use of your electric air duster. Please read it thoroughly before operating the device.
Image 1.1: Goobay 61667 Electric Air Duster with its five exchangeable nozzles. This image illustrates the main unit and the various attachments included for different cleaning tasks.
2. Instruccions de seguretat
- Llegiu totes les instruccions abans d'utilitzar.
- Keep the device away from water and moisture. Do not operate with wet hands.
- No utilitzeu el dispositiu a prop de líquids o gasos inflamables.
- Ensure the charging cable and adapter are undamaged before charging.
- No bloquegeu l'entrada o la sortida d'aire durant el funcionament.
- Mantenir fora de l'abast dels nens.
- No intenteu desmuntar ni reparar el dispositiu vosaltres mateixos. Poseu-vos en contacte amb personal qualificat per al servei tècnic.
- Avoid directing the air stream directly at eyes or sensitive body parts.
- Emmagatzemar en un lloc fresc i sec quan no s'utilitzi.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- Goobay 61667 Electric Air Duster Unit
- 5 Exchangeable Nozzles (various shapes and sizes for different applications)
- Cable de càrrega USB-A a USB-C
- Manual d'usuari (aquest document)
4. Característiques i components del producte
Familiarize yourself with the key features and components of your Goobay Electric Air Duster:
- Sortida d'aire: The point from which compressed air is expelled.
- Exchangeable Nozzles: Five different nozzles are included to adapt to various cleaning needs, from precision dusting to broader air flow.
- Botó de control: Used to power on/off the device and cycle through the three available power levels.
- Pantalla LED integrada: Shows the currently selected operating mode (power level) and the remaining battery status.
- Port de càrrega USB-C: Per recarregar la bateria interna.
- 18650 Li-ion Battery: Provides power for extended operating times, up to 90 minutes on a single charge.
Imatge 4.1: acabatview of the Goobay Electric Air Duster's key benefits, including the integrated LED display, USB-C charging socket, and the long-lasting 18650 Li-ion battery.
Imatge 4.2: Detallada view of the air outlet and the control button, which manages the device's three power levels and up to 35,000 rpm.
5. Configuració
- Desembalar: Carefully remove the electric air duster and all accessories from the packaging.
- Càrrega de la bateria: Before first use, fully charge the device. Refer to Section 7 for detailed charging instructions.
- Col·loca el broquet: Select the appropriate nozzle for your cleaning task. Align the nozzle with the air outlet and firmly push it on until it is securely attached. Ensure it is properly seated to prevent air leakage during operation.
6. Instruccions de funcionament
The Goobay 61667 Electric Air Duster features simple operation with multiple power settings for various cleaning needs.
- Encès: Press and hold the control button for a few seconds until the device powers on and the LED display illuminates. The device will start at the lowest power level.
- Ajusta el nivell de potència: Briefly press the control button to cycle through the three available power levels. The LED display will indicate the current power level.
- Neteja: Direct the nozzle towards the area to be cleaned. Maintain a safe distance to avoid damaging sensitive components. The device is suitable for cleaning keyboards, computer interiors, car interiors, air conditioning vents, and more.
- Apagar: Press and hold the control button again for a few seconds until the device powers off.
Image 6.1: The electric air duster in use, demonstrating contactless and effective cleaning of a keyboard. The LED display shows the current power level and battery status.
Imatge 6.2: Ex.amples of the versatile applications of the air duster, including use in a living room, car interior, office desk, and for cleaning an air conditioning unit.
Image 6.3: The electric air duster can also function as an air pump, useful for inflating small items during vacation or recreation.
7. Instruccions de càrrega
To ensure optimal performance and battery life, follow these charging guidelines:
- Connectar el cable: Insert the USB-C end of the provided charging cable into the USB-C port on the air duster.
- Connecteu-vos a l'alimentació: Plug the USB-A end of the cable into a compatible USB power adapter (e.g., a phone charger or computer USB port) with an output of 5.0V and a maximum of 2.0A.
- Càrrega del monitor: The LED display will indicate the charging status. A full charge typically takes 4 to 4.8 hours.
- Desconnectar: Once fully charged, disconnect the charging cable from both the device and the power source.
Nota: Do not use damaged charging cables or adapters. Only use power sources that meet the specified voltage i requisits actuals.

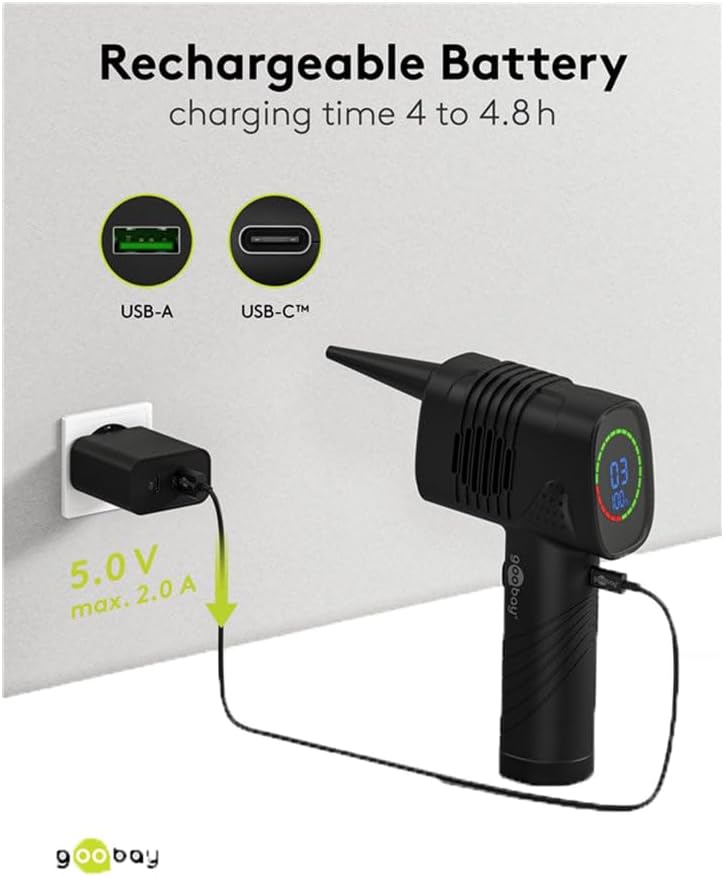

Image 7.1: The electric air duster connected to a power adapter via its USB-C port for charging. The image highlights the 5.0V, 2.0A charging specification.
8. Manteniment
- Neteja del dispositiu: Wipe the exterior of the air duster with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Cura del broquet: The nozzles can be cleaned with a damp drap si cal. Assegureu-vos que estiguin completament secs abans de tornar-los a enganxar.
- Emmagatzematge: Guardeu el dispositiu i els seus accessoris en un lloc net i sec, allunyat de la llum solar directa i de temperatures extremes.
9. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no s’encén. | La bateria està esgotada. | Carregueu el dispositiu completament. |
| Flux d'aire feble. | Low battery or incorrect power level. | Charge the battery or increase the power level using the control button. |
| El dispositiu s'atura inesperadament. | La bateria està esgotada. | Recarrega el dispositiu. |
| Nozzle does not stay attached. | Nozzle not properly seated or damaged. | Ensure the nozzle is firmly pushed onto the air outlet. Check for any damage to the nozzle or outlet. |
If you encounter issues not listed here or if the problem persists after attempting the solutions, please contact Goobay customer support.
10. Especificacions
| Característica | Detall |
|---|---|
| Número de model | 61667 |
| Marca | encerclat |
| Poder | 46.8 W |
| Tipus de bateria | 18650 Li-ion |
| Capacitat de la bateria | 2,000 mAh |
| Temps de funcionament | Fins a 90 minuts |
| Nivells de potència | 3 (up to 35,000 rpm) |
| Port de càrrega | USB-C |
| Entrada de càrrega | 5.0 V, màx. 2.0A |
| Temps de càrrega | De 4 a 4.8 hores |
| Dimensions (L x A x A) | 190 x 110 x 58 mm |
| Pes | 376 g |
| Material | Plàstic |
| Color | Negre |
| País d'origen | Xina |
Image 10.1: The compact dimensions and light weight of the Goobay Electric Air Duster, making it handy for various uses.
11. Garantia i Suport
Goobay products are designed for reliability and performance. For warranty information, please refer to the terms and conditions provided at the point of purchase or visit the official Goobay weblloc.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Goobay customer service through their official channels. Please have your model number (61667) and purchase details ready when contacting support.
Informació de contacte: Please refer to the Goobay official weblloc web o la documentació de compra per obtenir la informació de contacte més actualitzada.
