Introducció
This manual provides essential information for the safe and effective use of your Deryan EVY V2 Double Stroller. Please read all instructions carefully before assembly and use, and retain this manual for future reference. The Deryan EVY V2 is a versatile modular stroller designed to accommodate two children, from newborns (with bassinet) to preschoolers, with a maximum capacity of 50 kg.
Image: The Deryan EVY V2 Double Stroller shown with one seat unit and one bassinet attached, illustrating its dual-child capacity.
Informació de seguretat
Pautes generals de seguretat
- Always ensure children are properly secured with the 5-point harness.
- No deixeu mai els nens sense vigilància al cotxet.
- Engage the foot brake when the stroller is stationary.
- Do not overload the stroller or the storage basket. The maximum weight capacity for children is 50 kg, and the storage basket capacity is 10 kg.
- Ensure the stroller is fully unfolded and locked before placing children in it.
- Avoid placing hot liquids or heavy items on the handlebar.
- Regularly inspect the stroller for loose parts, damage, or wear. Discontinue use if any damage is found.
- Mantingueu els nens allunyats de les parts mòbils durant el plegat i el desplegat.
- This stroller is designed for use with two children. Do not attempt to carry more than the recommended number of children.
Contingut del paquet
Your Deryan EVY V2 Double Stroller package includes the following components:
- Marc de cotxet (1)
- Stroller Seat (1)
- Bassinet (1)
- Rodes (4)
- Manual d'instruccions (1)
Note: Additional accessories, such as a second seat or car seat adapter, may be sold separately.
Instruccions de configuració
1. Unfolding the Stroller Frame
Place the folded stroller on a flat surface. Release the folding latch (if present) and lift the handlebar until the frame locks into place. Ensure all locking mechanisms are securely engaged before proceeding.
Image: The Deryan EVY V2 stroller in its folded configuration, demonstrating its compact storage size.
2. Attaching the Wheels
Insert the rear wheels into the axle until they click securely. Attach the front swivel wheels by pushing them into their designated slots until they lock. Pull on each wheel to confirm it is firmly attached.
3. Installing the Seat or Bassinet
The Deryan EVY V2 is a modular stroller, allowing various configurations. To attach the seat or bassinet, align the connectors on the seat/bassinet with the corresponding slots on the stroller frame. Push down firmly until you hear a click, indicating it is securely locked. Ensure the attachment is stable before use.
Image: A visual representation of the Deryan EVY V2 stroller showcasing various seating configurations, including single seat, single bassinet, double seat, seat and bassinet, and car seat adapter options.
Image: The Deryan EVY V2 stroller configured with a single bassinet, suitable for newborns.
Image: The Deryan EVY V2 stroller configured with a single seat unit, suitable for older infants and toddlers.
Instruccions de funcionament
1. Protegir el vostre fill/a
Place your child in the seat or bassinet. Fasten the 5-point harness by connecting the shoulder straps to the waist straps, then inserting the buckles into the central buckle until they click. Adjust the straps for a snug, secure fit without being too tight.

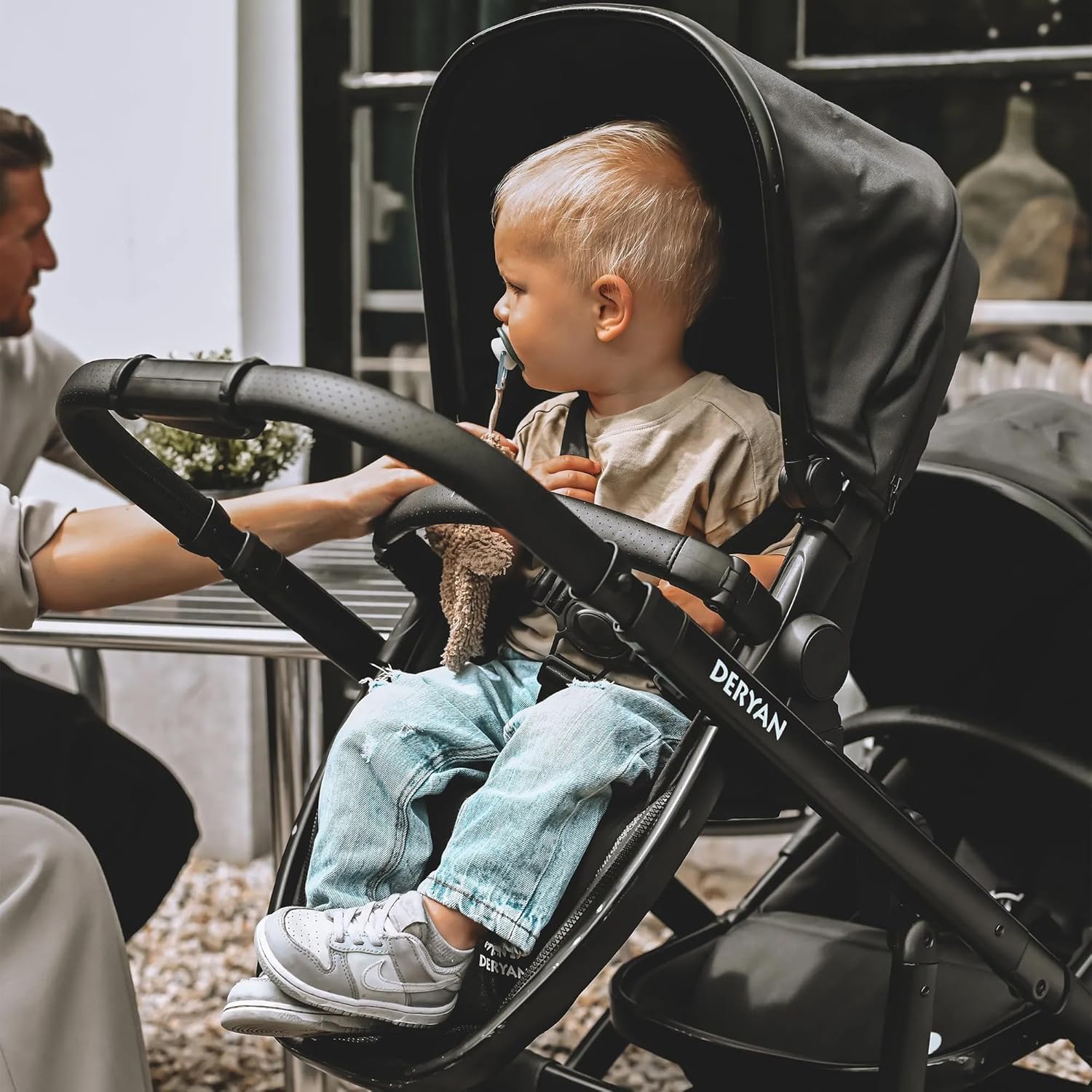

Image: A child seated comfortably in the Deryan EVY V2 stroller, demonstrating the proper use of the harness system.
2. Engaging the Brake
To engage the foot brake, press down firmly on the brake pedal located near the rear wheels. Ensure the stroller does not move. To release, lift the pedal upwards.
3. Adjusting the Handlebar
The handlebar height can be adjusted for user comfort. Locate the adjustment buttons on either side of the handlebar and press them simultaneously while moving the handlebar to the desired height. Release the buttons to lock it in place.
4. Plegar el cotxet
Before folding, ensure both children are removed from the stroller and the storage basket is empty. Engage the brake. Follow the specific folding mechanism instructions (usually involves pressing buttons or pulling levers on the frame) to collapse the stroller. Secure the folding latch once folded.
Image: The Deryan EVY V2 stroller shown in its compact, folded state, ready for transport or storage.
5. Using the Storage Basket
The under-seat storage basket can hold up to 10 kg of items. Distribute weight evenly and do not exceed the maximum capacity to maintain stroller stability.

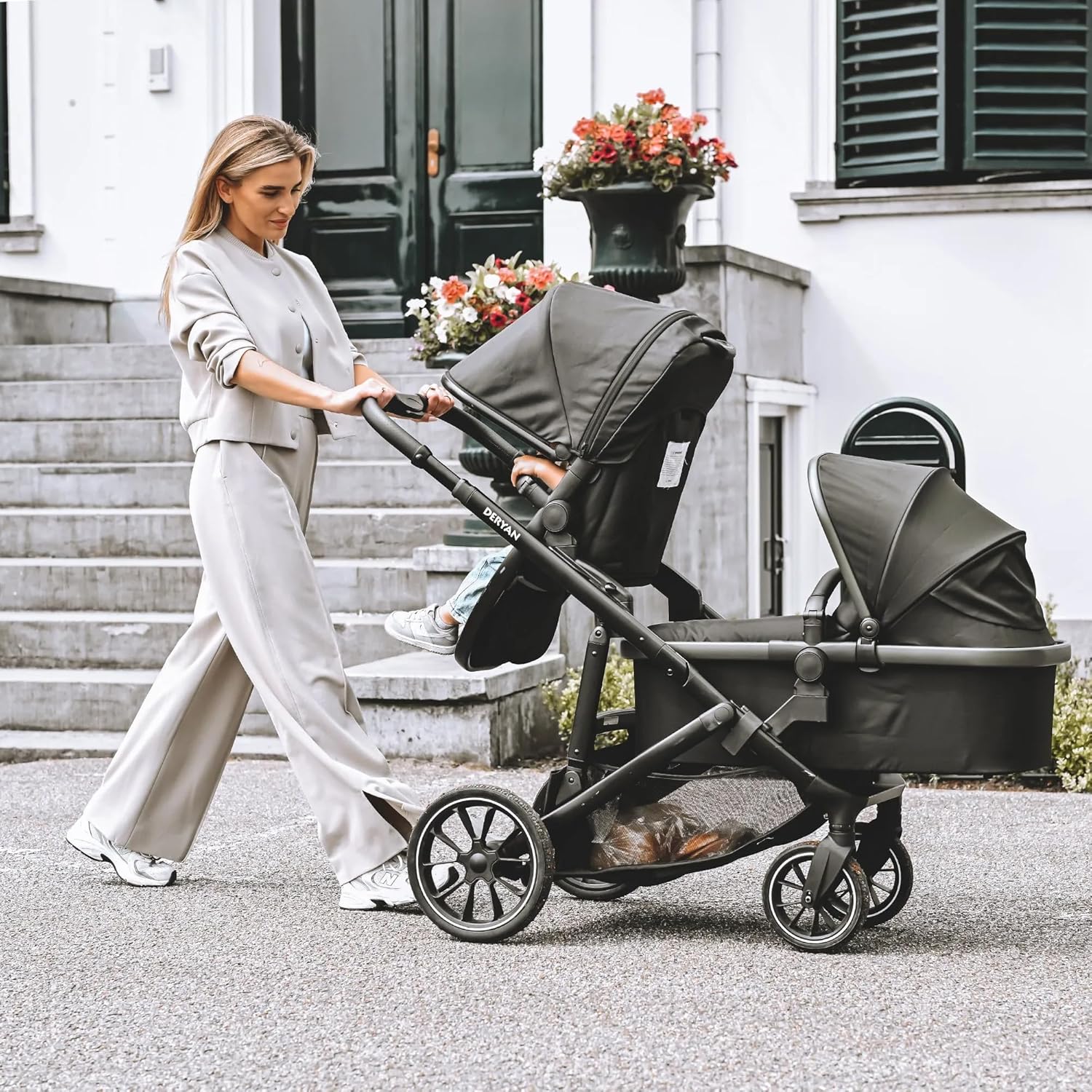

Image: A woman pushing the Deryan EVY V2 Double Stroller with a child in the seat and a bassinet attached, demonstrating ease of maneuverability.
Manteniment
Instruccions de neteja
- Components de la tela: The main material is Polyester. Hand wash fabric components with mild soap and cold water. Do not bleach. Air dry thoroughly away from direct sunlight.
- Marc: Netegeu el marc d'alumini amb anuncisamp cloth and mild soap. Dry immediately to prevent rust.
- Rodes: Regularly clean the wheels to remove dirt and debris. Check for any foreign objects that may impede movement.
Emmagatzematge
Store the stroller in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure it is clean and dry before storage to prevent mold or mildew.
Inspecció periòdica
Periodically check all screws, rivets, and fasteners to ensure they are tight. Inspect the harness, buckles, and straps for any signs of wear or damage. Ensure the brake mechanism is functioning correctly.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El cotxet no es plega/desplega suaument. | Folding mechanism is jammed or not fully disengaged/engaged. | Ensure all locking mechanisms are released before folding. Check for obstructions. Refer to setup instructions. |
| Wheels are squeaking or difficult to maneuver. | Brutícia o restes als rodaments de les rodes; manca de lubricació. | Clean wheels and axles. Apply a silicone-based lubricant to moving parts if necessary. |
| El fre no s'activa ni s'alliberaasing correctament. | Debris in the brake mechanism; cable adjustment needed. | Clear any debris from the brake pedal and mechanism. If the issue persists, contact customer support. |
| Seat/bassinet not securely attached. | Not fully clicked into place; obstruction in connectors. | Ensure connectors are aligned and pushed down firmly until a click is heard. Check for obstructions. |
Especificacions
| Característica | Detall |
|---|---|
| Número de model | EVY V2 |
| Gènere | Unisex |
| Capacitat màxima de pes | 50 quilos |
| Material principal | Polièster |
| Instruccions de cura | Rentat només a mà |
| Característiques especials | Modular design, suitable for two children, easy to fold, expandable with accessories |
| Tipus d'arnès | 5 punts |
| Capacitat de seients | 2 |
| Material de la roda | Cautxú |
| Mides plegades (L x A x A) | 45 x 63 x 94 cm |
| Dimensions del producte (L x A x A) | 102 x 52 x 102 cm |
| Pes del producte | 17 quilos |
| Material del marc | Alumini |
| Franja d'edat | Baby (suitable for newborns with bassinet) |
| Tipus de cotxet | Cotxet modular |
Garantia i Suport
Deryan products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Deryan weblloc.
If you encounter any issues or require assistance with your Deryan EVY V2 Double Stroller, please contact Deryan customer support. Contact details can typically be found on the product packaging or the official Deryan weblloc.
