1. Introducció
This manual provides detailed instructions for the proper use, setup, and maintenance of your OLEVS Men's Chronograph Quartz Watch, Model WD-S-G2871PZ-MG. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.

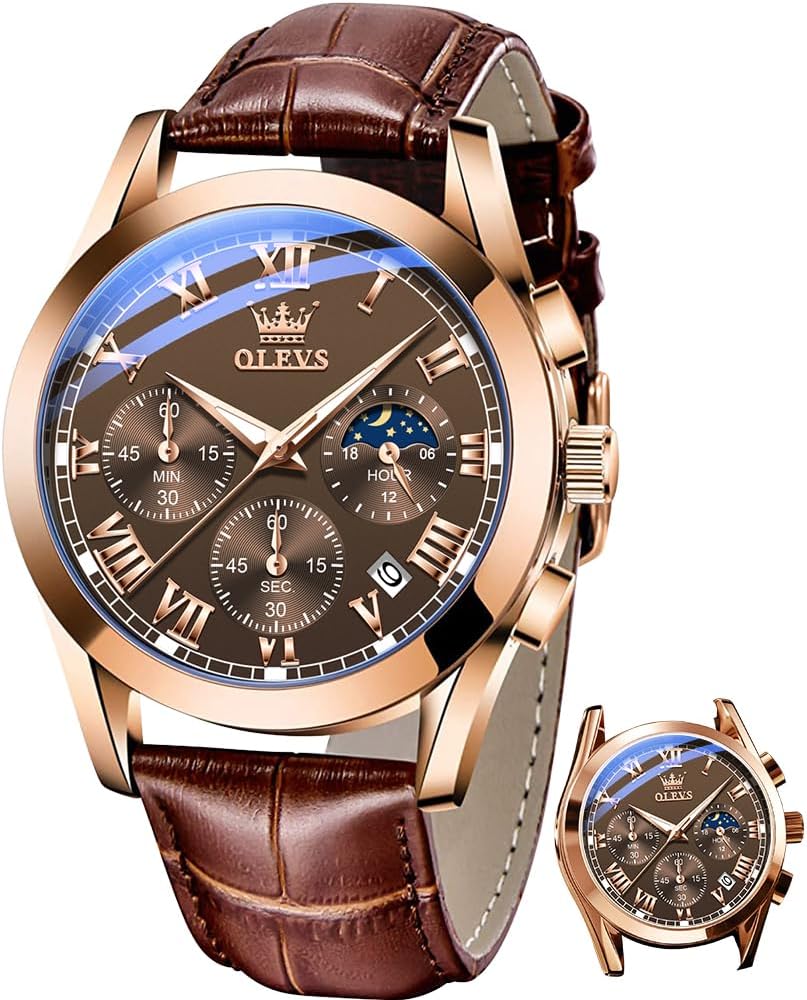

Image 1.1: The OLEVS Men's Chronograph Quartz Watch, Model WD-S-G2871PZ-MG.
2. Característiques del producte
- Chronograph Multifunction Design: Features chronograph second hand, chronograph minute hand, and 24-hour moon phase display.
- High-Quality Leather Strap: Designed for comfort and durability.
- Resistència a l'aigua: Water resistant to 30 meters (100 feet), suitable for daily use.
- Pantalla lluminosa: Watch hands and markers glow in the dark after absorbing sufficient light.
- Construcció duradora: Equipped with high hardness coated glass mirror.
Image 2.1: Visual representation of the watch's key features including water resistance, durable glass, leather strap, and luminous elements.
3. Components mésview
Familiarize yourself with the main components of your OLEVS watch:
- Corona: S'utilitza per configurar l'hora i la data.
- Empenyedors (A i B): S'utilitza per fer funcionar les funcions del cronògraf.
- Agulles de les hores, els minuts i els segons: Indica l'hora actual.
- Chronograph Subdials: Measure elapsed time (seconds, minutes).
- 24-Hour Moon Phase Subdial: Displays day/night and moon phase.
- Finestra de data: Mostra la data actual.
- Corretja de cuir: Secures the watch to your wrist.
Imatge 3.1: Una imatge detallada view of the watch face, highlighting the various indicators and controls.
4. Configuració i funcionament
4.1 Configuració de l'hora
- Estireu la corona fins a la segona posició de clic.
- Gireu la corona per ajustar les agulles de les hores i els minuts a l'hora desitjada.
- Empenyeu la corona de nou a la posició normal per engegar el rellotge.
4.2 Configuració de la data
- Estireu la corona fins al primer clic.
- Turn the crown clockwise to set the date. Avoid setting the date between 9 PM and 3 AM to prevent damage to the movement.
- Empenyeu la corona cap a la posició normal.
4.3 Ús del cronògraf
- Start/Stop Chronograph: Premeu el polsador superior (A) per iniciar el cronògraf. Torneu-lo a prémer per aturar-lo.
- Reset Chronograph: While the chronograph is stopped, press the lower pusher (B) to reset all chronograph hands to zero.
4.4 Moon Phase Adjustment
The 24-hour subdial indicates day and night. This subdial typically synchronizes with the main time setting and does not require separate adjustment.
Image 4.1: Explanation of the 24-hour moon phase subdial, showing how it differentiates between day and night.
5. Pautes de resistència a l'aigua
Your OLEVS watch is water resistant to 30 meters (100 feet). This means it is suitable for daily use, such as splashes, rain, or brief immersion in water. However, it is no recommended for swimming, diving, or showering with hot water, as steam and temperature changes can compromise the seals.
- No feu funcionar la corona ni els polsadors quan el rellotge estigui mullat o submergit a l'aigua.
- Assegureu-vos que la corona estigui completament empenta abans de qualsevol contacte amb l'aigua.
6. Manteniment i cura
6.1 Neteja
Wipe the watch case and crystal with a soft, dry cloth. For the leather strap, avoid excessive moisture and harsh chemicals. If the strap gets wet, allow it to air dry naturally.
6.2 Substitució de la bateria
The watch is powered by a quartz movement and requires a battery. When the battery runs low, the watch may stop or the second hand may skip. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and function.
6.3 Atenció general
- Eviteu exposar el rellotge a temperatures extremes o a la llum solar directa durant períodes prolongats.
- Mantingueu el rellotge allunyat de camps magnètics forts, que poden afectar la precisió.
- Protect the watch from impacts and drops.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El rellotge no funciona | Depleted battery; Crown not pushed in | Replace battery (professional service recommended); Push crown fully into normal position. |
| La data no canvia | Incorrect time setting (AM/PM); Date set during restricted hours | Advance time past 12 AM to ensure correct AM/PM; Reset date outside of 9 PM - 3 AM. |
| Les agulles del cronògraf no es reinicien a zero | Chronograph not stopped before reset; Internal mechanism issue | Ensure chronograph is stopped before pressing reset pusher; Consult a watch technician. |
8. Especificacions
- Número de model: WD-S-G2871PZ-MG
- Moviment: Quars
- Diàmetre de la caixa: 40 mm
- Gruix de la caixa: 11.5 mm
- Amplada de banda: 20 mm
- Pes del rellotge: 56 g
- Resistència a l'aigua: 30 metres (100 peus)
- Material: Gold-tone case, high hardness coated glass mirror, brown leather strap.
Image 8.1: Diagram illustrating the physical dimensions and weight of the OLEVS watch.
9. Producte acabatview Vídeo

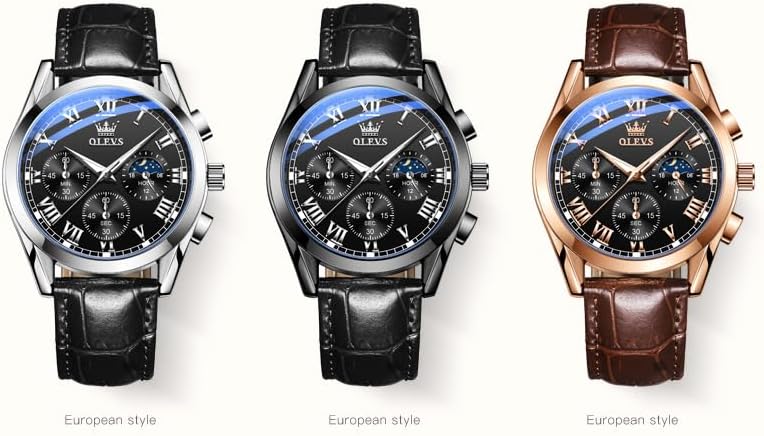

Mireu aquest vídeo per obtenir una visió generalview of the OLEVS chronograph watch, showcasing its design and various color options.
Video 9.1: An official product video from OLEVS WATCHES 1989, demonstrating the watch's features and appearance on a wrist.
10. Garantia i Suport
For warranty information or technical support, please refer to the documentation included with your purchase or contact OLEVS customer service. Specific warranty terms and conditions may vary.
