Introducció
Thank you for choosing the EUGAD Narrow Nightstand. This compact and versatile furniture piece is designed to provide practical storage solutions in limited spaces, such as bedrooms and living rooms. Crafted from high-quality particle board with a melamine coating, it offers durability and ease of maintenance. This manual will guide you through the assembly process, provide usage tips, and outline maintenance procedures to ensure long-lasting enjoyment of your product.
Image: A pair of EUGAD Narrow Nightstands, showcasing their design and potential use in a room setting.
Informació de seguretat
- Munteu sempre el producte sobre una superfície neta, plana i tova per evitar ratllades.
- Assegureu-vos que tots els cargols i elements de fixació estiguin ben ajustats abans d'utilitzar-los. Comproveu-los periòdicament i torneu-los a apretar segons calgui.
- Do not overload the shelves or drawer. The maximum recommended weight capacity is 9 kg (approximately 19.8 lbs).
- Mantingueu les peces petites i els materials d'embalatge lluny dels nens per evitar perills d'asfixia.
- Eviteu col·locar objectes calents directament sobre la superfície sense protecció.
- No us poseu dret ni us enfileu a la tauleta de nit.
Contingut del paquet
Before beginning assembly, please verify that all components and hardware are present and undamaged. Refer to the included illustrated manual for a detailed list of numbered accessories and parts.
Components típics:
- Panell superior
- Panells laterals
- Panell inferior
- Panells de prestatgeries
- Drawer Components (Front, Back, Sides, Bottom)
- Pom del calaix
- Metal Drawer Guides
- Peus antilliscants
- Maquinari de muntatge (cargols, espigues, panys de lleva, etc.)
Instruccions de muntatge
Assembly is designed to be straightforward with the provided detailed illustrated manual and numbered accessories. A screwdriver is typically required. Allow approximately 30 minutes to 1 hour for assembly per unit.
- Step 1: Identify Parts. Lay out all components and hardware. Match each piece to its corresponding number or letter in the instruction manual.
- Pas 2: Muntar el calaix. Follow the diagrams to connect the drawer front, back, and side panels. Insert the drawer bottom and attach the drawer knob.
- Step 3: Attach Drawer Guides. Secure the metal drawer guides to the side panels of the nightstand and to the drawer itself, as indicated in the manual.
- Step 4: Construct the Frame. Begin by attaching the bottom panel to the side panels. Then, insert the fixed shelf panels.
- Step 5: Install the Top Panel. Fixeu el panell superior al marc muntat.
- Step 6: Attach Anti-slip Feet. Install the anti-slip feet to the bottom of the nightstand to protect your floors and reduce noise during movement.
- Pas 7: Inseriu el calaix. Carefully slide the assembled drawer into its designated slot.
- Pas 8: Comprovació final. Ensure all connections are tight and the nightstand is stable.
Imatge: Example of a panel with hardware during assembly.
Image: Diagram illustrating the assembly of the drawer component.
Instruccions de funcionament
The EUGAD Narrow Nightstand is designed for versatile use and efficient storage.
- Col·locació: Its narrow design (25x30x66cm) makes it ideal for tight spaces next to beds, sofas, or in hallways. The semi-open compartment can be oriented to the left or right side of the bed for convenience.
- Emmagatzematge:
- El tauleta provides space for an alarm clock, lamp, or decorative items.
- El two open compartments are perfect for books, magazines, or small decorative objects.
- El calaix inferior (17x24x11.5 cm internal dimensions) offers concealed storage for personal items, protecting them from dust and moisture.
- Funcionament del calaix: Gently pull the round knob to open the drawer. Ensure no obstructions are present in the drawer slides for smooth operation.
Imatge: Detallada view of the nightstand's storage capabilities.
Image: Multi-scenario application of the nightstand, demonstrating its versatility.
Manteniment i cura
Proper care will extend the life and appearance of your EUGAD Narrow Nightstand.
- Neteja: Netegeu la superfície amb un suau, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the melamine coating.
- Vessaments: Immediately wipe up any spills to prevent water damage or staining. The melamine coating offers resistance to wear and moisture.
- Protecció: Use coasters under drinks and protective pads under decorative items to prevent scratches and heat marks.
- Estabilitat: Reviseu periòdicament tots els cargols i connexions per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal per mantenir l'estabilitat.
- Moviment: When moving the nightstand, lift it rather than dragging it to prevent damage to the feet and your flooring. The anti-slip feet also help reduce noise during repositioning.
Image: The melamine coating provides moisture resistance, making cleaning easier.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La tauleta de nit està trontollant. | Els cargols estan fluixos; terra irregular. | Tighten all assembly screws. Place shims under the feet if the floor is uneven. |
| El calaix no llisca sense problemes. | Drawer guides are misaligned or obstructed. | Ensure drawer guides are correctly installed and free of debris. Check that the drawer is not overloaded. |
| Falten peces. | Error d'embalatge. | Contact EUGAD customer support with your purchase details and the specific missing part numbers. |
| Surface scratches. | Rough handling or abrasive objects. | Use protective pads under items. Minor scratches may be concealed with furniture repair markers. |
Especificacions
- Marca: EUGAD
- Model: 0192ZZ-2
- Color: Roure
- Material: Engineered Wood (15mm thick E1 class particle board), Melamine coating, Metal (drawer guides)
- Dimensions totals (L x A x A): 30 x 25 x 66 cm (aproximadament 11.8 x 9.8 x 26.0 polzades)
- Drawer Internal Dimensions (L x W x H): 17 x 24 x 11.5 cm (aproximadament 6.7 x 9.4 x 4.5 polzades)
- Pes del producte: 8.7 kg (aproximadament 19.2 lliures)
- Maximum Recommended Weight Capacity: 9 kg (aproximadament 19.8 lliures)
- Característiques especials: Storage, Raised Base (for moisture protection), Anti-slip Feet
Image: Detailed dimensions of the nightstand and its drawer.

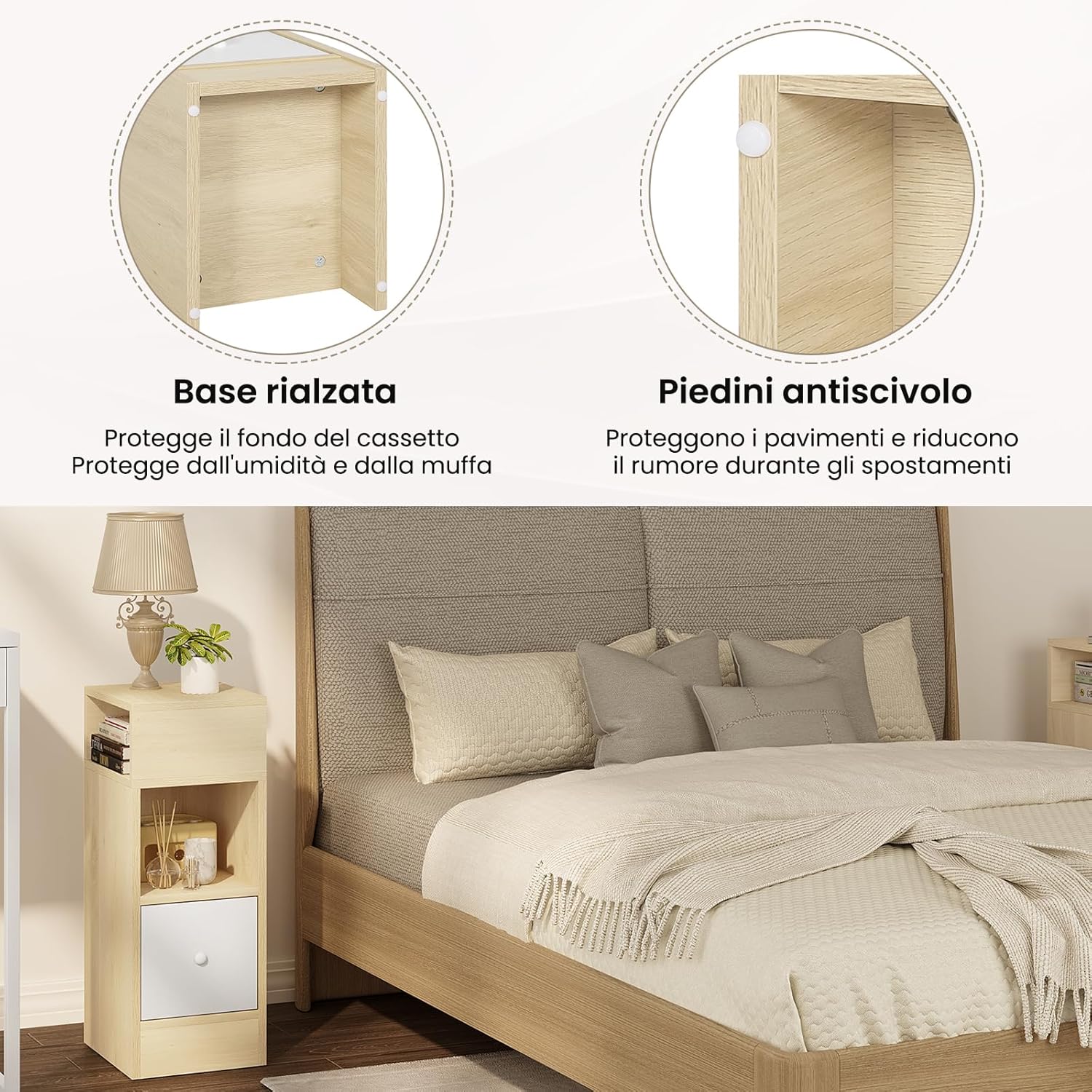

Image: Features like the raised base and anti-slip feet for enhanced durability and floor protection.
Garantia i Suport
EUGAD is committed to providing high-quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase for any potential warranty claims. For assistance with assembly, missing parts, or any product-related inquiries, please contact EUGAD customer support through the retailer where you purchased the product.
For more information about EUGAD products, you may visit the official EUGAD store: EUGAD Store on Amazon.
Vídeos oficials de productes
En aquest moment no hi ha vídeos oficials del venedor disponibles per a aquest model específic.
