Introducció
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Patio 7'W x 16'L Pergola Canopy Shade Cover. Designed for outdoor gazebos, decks, and porches, this retractable shade fabric offers dynamic shading and UV protection, enhancing your outdoor living space. Please read this manual thoroughly before beginning installation or use to ensure proper setup and longevity of your product.
Figura 1: Mésview of the Patio Retractable Pergola Canopy Shade Cover in an outdoor setting.
Característiques del producte
- Dosser retràctil: The sliding structure allows for dynamic adjustment of the shaded area, providing control over sunlight exposure.
- Upgrade Fabric: Constructed from 240 GSM high-density Polyethylene, offering 90-95% UV protection. The breathable material promotes air circulation and allows rainwater to pass through, resisting fading and effectively cooling the area.
- Fàcil instal·lació: Designed for straightforward setup with detailed instructions and pre-drilled holes for attaching hardware to existing structures.
- Aplicació versàtil: Ideal for various outdoor spaces including dining areas, swimming pools, backyards, courtyards, gardens, porches, garages, and greenhouses.
- Opcions de personalització: Available in various sizes and colors, with options for breathable or waterproof materials.
- 3 any de garantia: The product comes with a 3-year warranty, ensuring quality and durability.

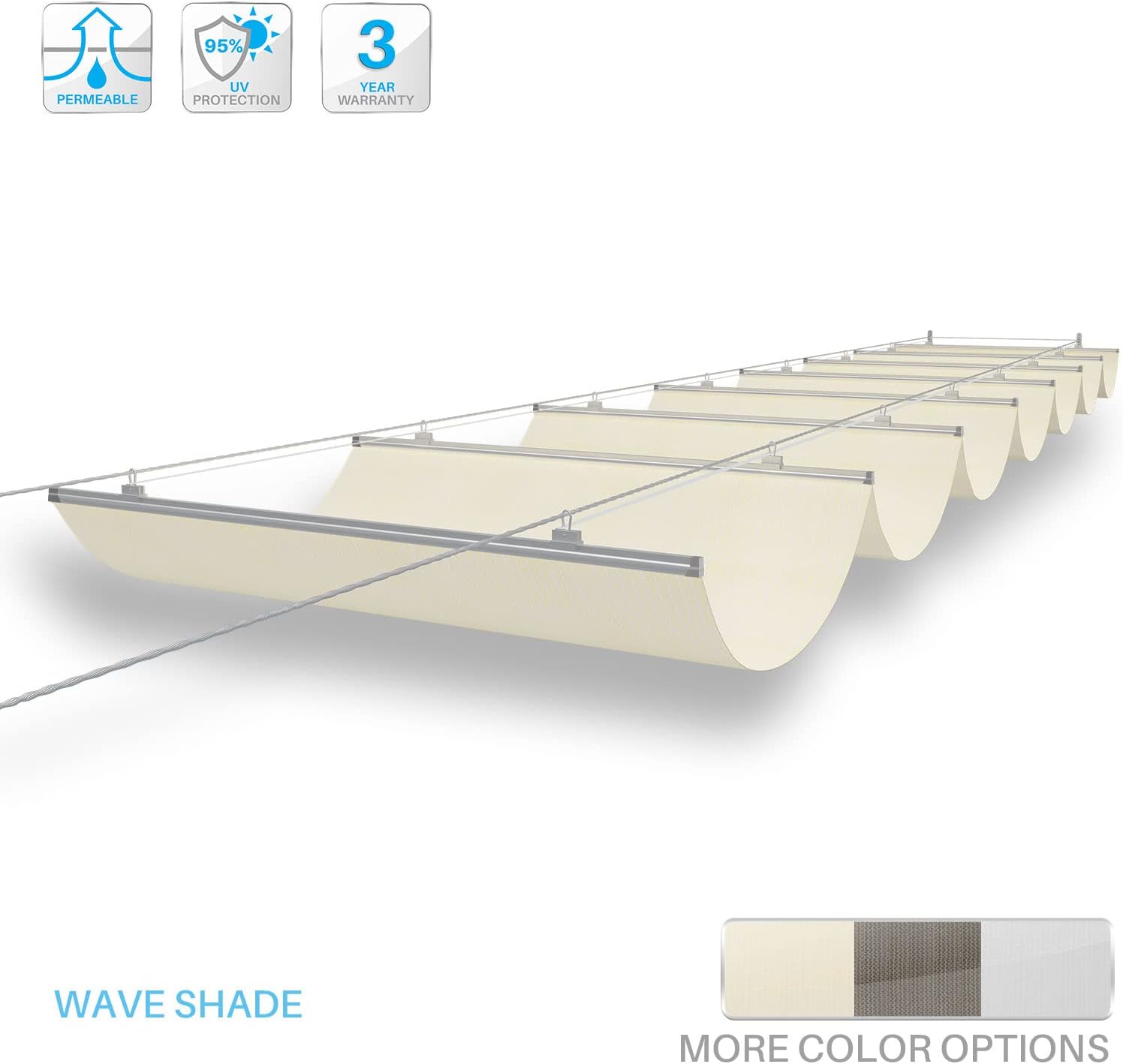

Figure 2: Key features of the wave shade design, highlighting permeability, UV protection, and warranty.
Figure 3: Comparison of breathable and waterproof fabric properties for the shade cover.
Informació de seguretat
It is crucial to ensure proper anchoring of the pergola canopy according to local building codes. Always check the load-bearing capacity of your existing structure before installation. Be aware of wind resistance limitations, as strong winds can damage the canopy or structure. Follow all detailed installation instructions provided in this manual to prevent injury or product damage.
Contingut del paquet
Before beginning installation, verify that all components are present and undamaged. The package typically includes:
- Pergola Canopy Shade Fabric (7'W x 16'L, Breathable Material, Beige)
- Slide-On Wire Cables
- Hardware for attachment (shackles, snap hooks, pad eyes, turnbuckles)
- Estirar la vareta
- Instruccions d'instal·lació
Figure 4: Illustration of the components included in the package for installation.
Configuració i instal·lació
The pergola canopy is designed for easy installation on existing canopies, trellises, gazebos, or newly constructed frame structures. Follow these general steps, referring to the detailed instructions provided in your package for specific measurements and procedures:
- Prepare the Structure: Ensure your pergola or frame structure is sturdy, level, and capable of supporting the canopy.
- Install Wire Cables: Mount the wire cables along the length of your pergola beams. Each rod of the canopy fabric has pre-drilled holes for attaching the shackle and snap hook to these cables.
- Attach Canopy Fabric: Securely attach the canopy fabric to the installed wire cables using the provided hardware. Ensure the fabric is evenly distributed and aligned.
- Ajustar la tensió: Use the turnbuckles to adjust the tension of the wire cables, ensuring the canopy hangs smoothly and can retract and extend without obstruction.
- Extrems segurs: Install hooks or anchors to secure the canopy in its open or closed position, especially in windy conditions.
Figure 5: Detail of the slide-on wire cable and fabric attachment during installation.
Instruccions de funcionament
The Patio Pergola Canopy features a retractable design, allowing you to easily adjust the amount of shade. To operate:
- To Extend the Shade: Gently pull the fabric outwards using the designated pull rod or handle. The canopy will slide along the wire cables, extending the shaded area.
- To Retract the Shade: Push the fabric inwards. The canopy will gather, reducing the shaded area and allowing more sunlight.
- Adjusting Shading Area: The sliding structure allows for partial extension or retraction, enabling you to dynamically control the desired level of shade throughout the day.
Figure 6: How to operate the retractable shade for dynamic sun control.
Video 1: Demonstration of the retractable function of the Patio Pergola Canopy Shade Cover.
Manteniment
To ensure the longevity and optimal performance of your pergola canopy, regular maintenance is recommended:
- Neteja: The high-density Polyethylene fabric is fade-resistant. For general cleaning, simply rinse with water and a mild soap solution. Avoid harsh chemicals or abrasive brushes that could damage the fabric.
- Inspecció de maquinari: Periodically inspect all hardware components, including cables, shackles, snap hooks, and turnbuckles, for any signs of wear, corrosion, or loosening. Tighten or replace as necessary.
- Emmagatzematge d'hivern (opcional): While durable, consider retracting and securing the canopy during extreme weather conditions, such as heavy snow or strong winds, to prevent damage. For prolonged off-season storage, the fabric can be removed and stored in a dry, protected area.
Resolució de problemes
If you encounter issues with your pergola canopy, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La capota no es retreu/estén suaument. | Cables are loose or misaligned; debris in the sliding mechanism; fabric snagged. | Check cable tension and alignment; clear any obstructions from the tracks; ensure fabric is not caught. |
| Canopy sags excessively. | Insufficient cable tension; incorrect installation. | Adjust cable tension using turnbuckles; review installation steps to ensure correct setup. |
| Fabric appears stained or dirty. | Accumulation of dirt, pollen, or mildew. | Clean with water and mild soap; for stubborn stains, a soft brush may be used gently. |
| Hardware shows rust. | Exposure to moisture; non-stainless components. | Clean rust with appropriate rust remover; consider applying a protective coating or replacing affected components with stainless steel alternatives if rust is severe. |
Especificacions
| Atribut | Detall |
|---|---|
| Marca | Pati |
| Número de model | B0C3WNLXBK |
| Dimensions | 7'W x 16'L |
| Material | High-density Polyethylene (240 GSM) |
| Estil | Material transpirable |
| Color | Beix |
| Protecció UV | 90-95% |
| Nivell de resistència a l'aigua | Not Water Resistant (Breathable) |
| Muntatge obligatori | Sí |
| Pes de l'article | 23 lliures |
Garantia i Suport
This Patio Pergola Canopy Shade Cover is backed by a 3 any de garantia from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. For warranty claims, technical support, or any questions regarding your product, please contact Patio Paradise Inc. customer service through the retailer's platform or directly via the contact information provided on the product packaging or official weblloc.
Note: Extended protection plans may be available for purchase separately and are not part of the standard manufacturer's warranty.
