Introducció
This manual provides instructions for the safe and efficient operation of your iLiving 12-Inch Rechargeable Battery Operated Camping Floor Fan. Please read all instructions carefully before use and retain this manual for future reference.
Instruccions importants de seguretat
- Assegureu-vos sempre que el ventilador estigui col·locat sobre una superfície estable i plana per evitar que bolqui.
- Do not insert fingers or any objects through the fan grilles when the fan is operating.
- Keep the fan away from water or excessive moisture. This product has an IPx4 rating for indoor and outdoor use, but should not be submerged.
- No feu funcionar el ventilador amb un cable o un endoll danyats.
- Mantingueu els nens i les mascotes allunyats del ventilador durant el funcionament.
- Disconnect the power adapter when not in use or before cleaning.
- Utilitzeu només l'adaptador proporcionat per carregar.
Contingut del paquet
- iLiving 12-Inch Rechargeable Fan
- Adaptador d'alimentació
- Manual del propietari

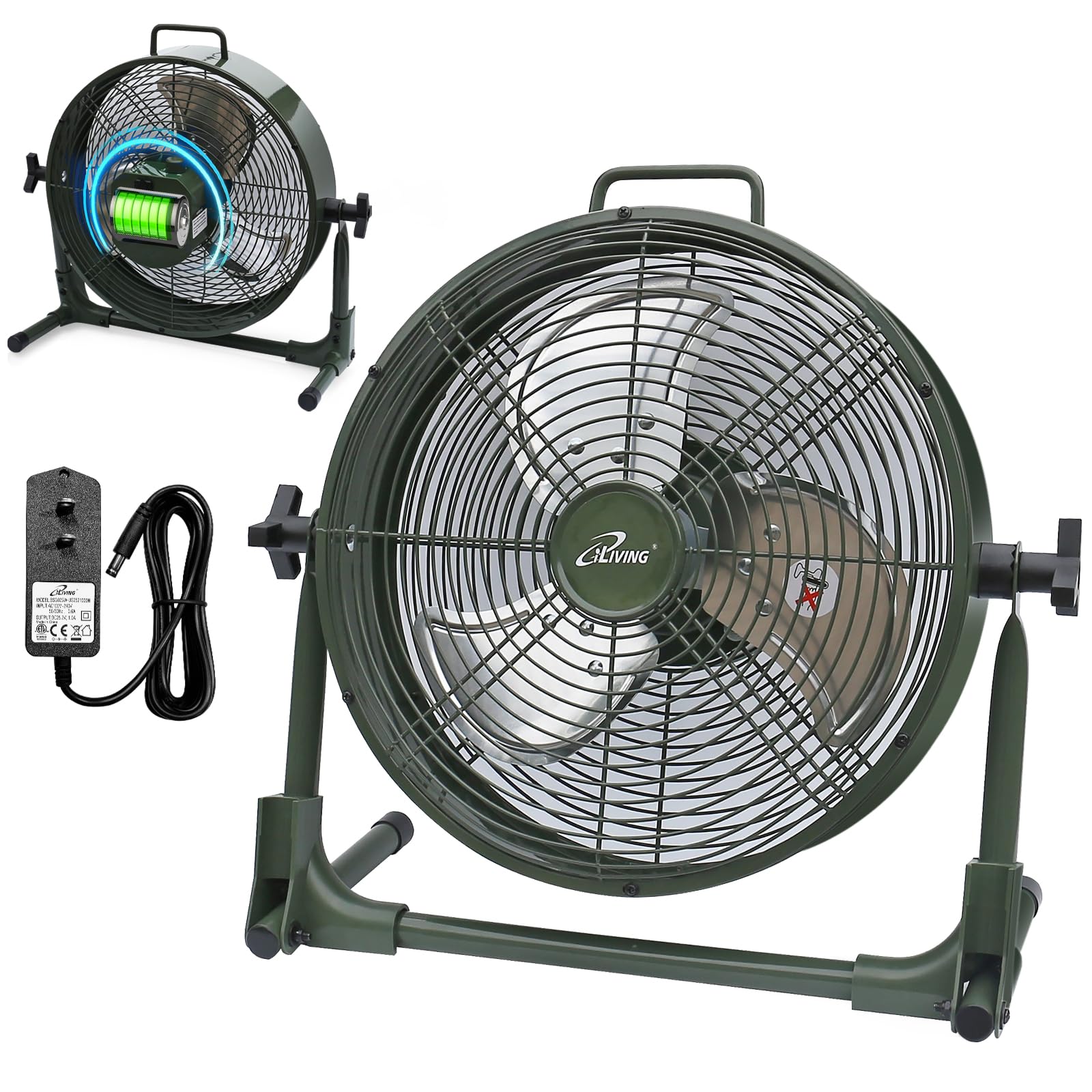

Producte acabatview
Familiarize yourself with the main parts of your iLiving fan.
Configuració
Your iLiving fan comes mostly pre-assembled. Follow these steps for initial setup:
- Unpack the fan and all accessories from the box.
- Col·loqueu el ventilador sobre una superfície plana i estable.
- Adjust the fan head to your desired angle by loosening the side knobs, tilting the fan, and then tightening the knobs.
- Before first use, fully charge the fan using the provided power adapter. Connect the adapter to the charging port on the fan and plug it into a standard electrical outlet. The battery indicator lights will show charging progress.
Instruccions de funcionament
Turning On/Off and Adjusting Speed
The fan features a control knob located on the back for power and speed adjustment.
- To turn the fan on, rotate the control knob clockwise from the "OFF" position.
- Continue rotating the knob clockwise to increase the fan speed from "LOW" to "MAX".
- To decrease the fan speed, rotate the knob counter-clockwise.
- To turn the fan off, rotate the knob counter-clockwise until it reaches the "OFF" position.

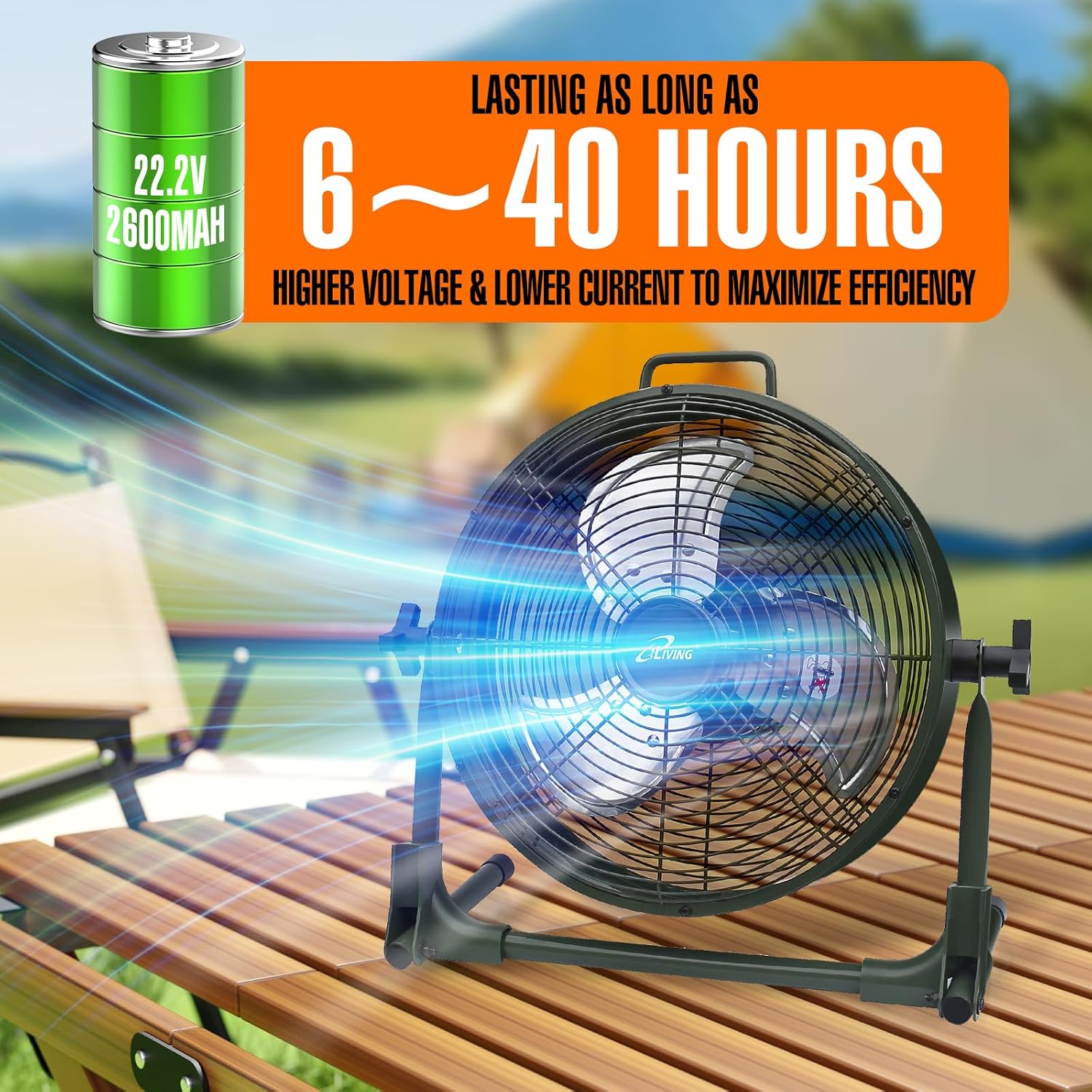

Indicador de bateria
The LED lights next to the control knob indicate the current battery level. When charging, these lights will illuminate to show progress.
Funció Power Bank
Your iLiving fan can also function as a portable power bank to charge mobile devices.
- Locate the USB charging port on the back of the fan.
- Connect your mobile device's USB cable (not included) to this port.
- Press the "USB ON/OFF" button to activate the charging function.
- The fan's internal battery will provide power to charge your device.
Manteniment
Cura i Neteja
- Desconnecteu sempre el ventilador abans de netejar-lo.
- Utilitzeu un suau, damp drap per netejar les superfícies exteriors del ventilador.
- To clean the fan blades, carefully remove the front grille (if removable, otherwise use a vacuum cleaner with a brush attachment). Ensure the fan is completely off and unplugged.
- No utilitzeu netejadors abrasius ni dissolvents, ja que poden danyar l'acabat del ventilador.
- Guardeu el ventilador en un lloc fresc i sec quan no l'utilitzeu.
Resolució de problemes
Problemes comuns
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no s'encén. | Sense alimentació o bateria baixa. | Ensure the fan is charged or plugged into a working outlet. Check the power adapter connection. |
| El ventilador funciona lentament o feblement. | Bateria baixa o obstrucció. | Charge the battery fully. Check for any obstructions around the fan blades or grilles. |
| El port de càrrega USB no funciona. | USB function not activated or low fan battery. | Press the "USB ON/OFF" button. Ensure the fan has sufficient battery charge to power external devices. |
| Soroll inusual durant el funcionament. | Loose parts or foreign object. | Turn off and unplug the fan. Inspect for any loose parts or foreign objects within the fan grille. If the issue persists, contact customer support. |
Especificacions del producte
| Característica | Detall |
|---|---|
| Nom del model | ILG8RX12 |
| Marca | iLiving |
| Dimensions del producte | 7.25 "P x 16" W x 15.25" H |
| Pes de l'article | 6.4 lliures |
| Font d'alimentació | Rechargeable Battery Operated |
| Bateria | 22.2 V, 2600 mAh d'ions de liti |
| Wattage | 13 watts |
| Velocitat | 1360 RPM |
| Nivell de soroll | 58 decibels |
| Material | Metall (casing), Plastic (blade) |
| Característica especial | Adjustable Tilt, Power Bank Function |
| Ús interior/exterior | Interior, Exterior |
| Resistència a l'aigua | Classificació IPx4 |
| Components inclosos | Rechargeable Fan, Adapter, Owner's Manual |
| Certificacions | UL, cUL |
Informació de la garantia
This iLiving product comes with a 1-Year Limited Component Warranty. For warranty claims or technical assistance, please contact iLiving customer service.
Atenció al client
For any questions, concerns, or support needs, please visit the official iLiving weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
You can also leave a review for the product at Amazon Product Review Pàgina.
