Introducció
The Poolex Poolican is a compact, centralized, and connected 4-in-1 solution designed for pools up to 25m³. It integrates essential pool functions: circulation, filtration, heating, and water treatment (salt electrolysis). This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your Poolican system.
Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your device.
Informació de seguretat
Observeu sempre les següents precaucions de seguretat per reduir el risc de lesions o danys:
- Assegureu-vos que la font d'alimentació coincideixi amb les especificacions de la unitat.
- No feu servir la unitat si el cable d'alimentació o l'endoll estan danyats.
- Mantingueu els nens i les mascotes allunyats de la unitat durant el funcionament.
- No intenteu reparar o modificar la unitat vosaltres mateixos. Poseu-vos en contacte amb personal de servei qualificat.
- Assegureu-vos una ventilació adequada al voltant de la unitat per evitar el sobreescalfament.
- Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o neteja.
- Install the unit on a stable, level surface, away from direct sunlight and extreme weather conditions.
Producte acabatview
The Poolex Poolican combines four key pool functions into one compact unit:
- Bomba de circulació: For water movement and filtration.
- Filtre de cartutx: For effective water purification.
- Salt Electrolyzer: For automatic water treatment.
- Full Inverter Heat Pump (5 kW): For efficient pool water heating.
Figura 1: Frontal view of the Poolex Poolican heat pump, showcasing el seu disseny compacte.
Figura 2: Angle view of the Poolex Poolican, highlighting its sleek profile.
Figura 3: superior view of the Poolican unit, showing the integrated control panel.

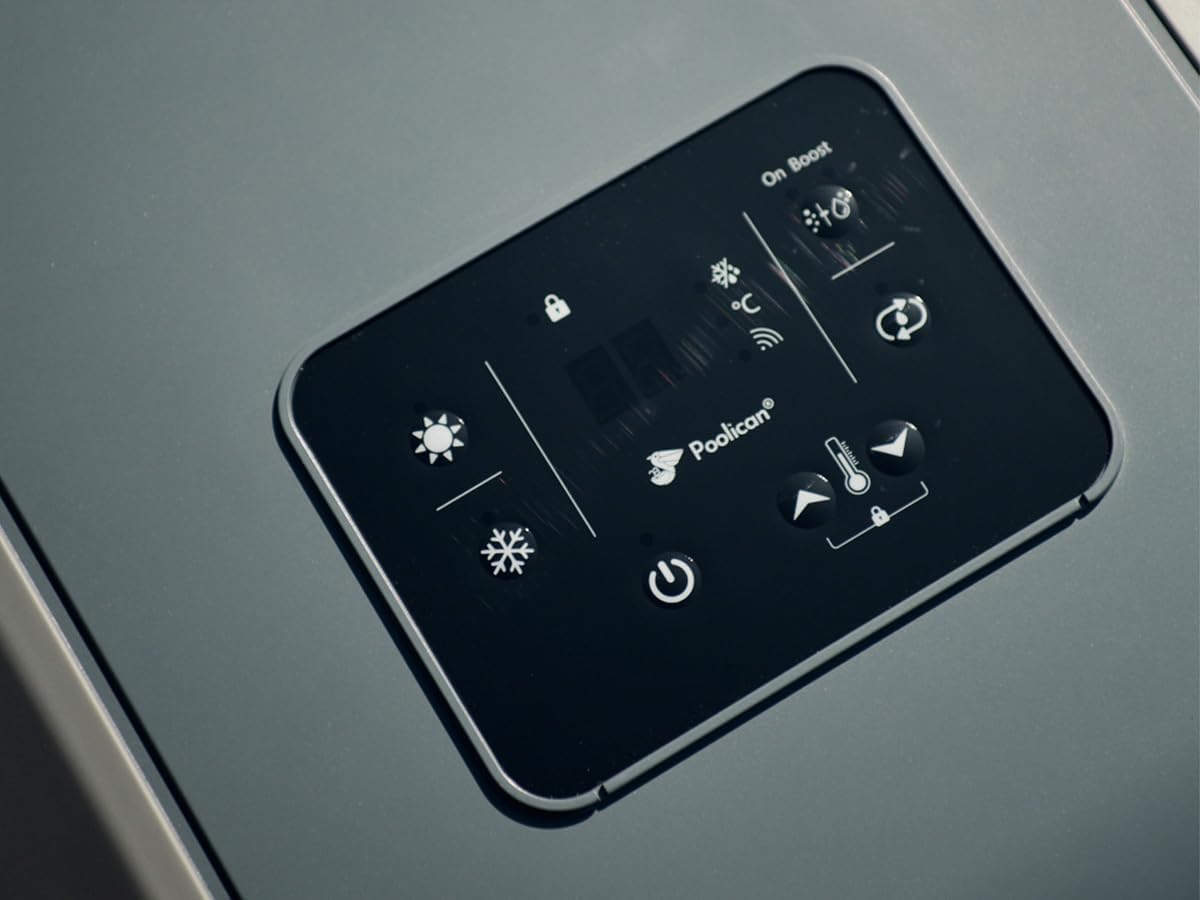

Figura 4: Detallada view of the Poolican's intuitive control panel with various function indicators.
Figure 5: Diagram illustrating the four integrated functions: Circulation (0.75 CV pump), Filtration (anti-bacterial, eco-filtration), Heating (5kW Full Inverter heat pump), and Treatment (salt electrolyzer, max 5gr/h production).
Figure 6: Dimensions of the Poolican unit (405mm x 805mm x 595mm) and emphasis on its "Plug & Play" installation.
Figura 7: posterior view of the Poolican, showing the air intake grille.
Figura 8: lateral view of the Poolican, indicating the water connection port.
Figure 9: Illustration of the Poolican's WiFi connectivity and control via a smartphone application, allowing users to choose ideal temperature, adjust circulation/filtration, control salt electrolyzer, and program usage.
Configuració i instal·lació
The Poolican is designed for quick and easy "Plug & Play" installation. The UConnect kit allows for setup by the poolside in minutes.
1. Selecció de l'emplaçament
- Place the Poolican unit on a stable, level surface near your pool.
- Ensure adequate space around the unit for proper air circulation (refer to Figure 7 for air intake/outlet).
- Avoid direct exposure to prolonged sunlight or extreme weather.
2. Connexions d'aigua
- Connect the provided suction hose to the water inlet of the Poolican.
- Connect the discharge hose to the water outlet of the Poolican.
- Ensure all connections are secure and watertight.
3. Connexió elèctrica
- Plug the Poolican unit directly into a standard 230V AC power outlet.
- The integrated 230V to 12V electrical transformer simplifies the setup for the salt electrolyzer.
- Ensure the outlet is protected by a Residual Current Device (RCD) for safety.
4. Posada en marxa inicial
- Once all connections are made, turn on the power to the unit.
- Follow the on-screen prompts on the control panel (Figure 4) for initial configuration.
Instruccions de funcionament
The Poolican features an intuitive control panel and can also be managed via a smartphone application.
Funcionament del tauler de control
Vegeu la Figura 4 per veure la disposició del panell de control.
- Botó d'encesa: Premeu per encendre o apagar la unitat.
- Configuració de la temperatura: Use the up/down arrows to adjust the desired pool water temperature.
- Selecció del mode: Cycle through different operating modes (e.g., heating, cooling, automatic).
- Funció de temporitzador: Set specific operating times for circulation and heating.
- Funció de bloqueig: Bloqueja el tauler de control per evitar canvis accidentals.
Control d'aplicacions per a telèfons intel·ligents
The Poolican can be connected to your home WiFi network for remote control via a dedicated smartphone application (Figure 9).
- Download the official Poolex app from your device's app store.
- Follow the in-app instructions to connect your Poolican unit to the app.
- A través de l'aplicació, pots:
- Choose your ideal water temperature.
- Adjust circulation and filtration settings.
- Control the salt electrolyzer.
- Program usage schedules.
Manteniment
Regular maintenance ensures the longevity and efficient operation of your Poolican system.
1. Filter Cartridge Cleaning/Replacement
- The integrated cartridge filter requires regular cleaning. Frequency depends on pool usage and water quality.
- Disconnect power to the unit before accessing the filter.
- Remove the filter cartridge and rinse it thoroughly with a hose.
- Replace the cartridge if it is damaged or cannot be cleaned effectively.
2. Salt Electrolyzer Cell Cleaning
- Periodically inspect the salt electrolyzer cell for scale buildup.
- If scale is present, follow the manufacturer's instructions for cleaning the cell, typically involving a mild acid solution.
3. Neteja general
- Mantingueu l'exterior de la unitat net i lliure de residus.
- Ensure the air intake and outlet grilles (Figure 7) are not obstructed.
- Utilitzeu un suau, damp drap per netejar. No utilitzeu netejadors abrasius ni dissolvents.
4. Hivernació
- Before winter, drain all water from the unit and hoses.
- Store the Poolican in a dry, protected area where temperatures do not drop below freezing.
Resolució de problemes
This section addresses common issues you might encounter with your Poolican unit.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | Sense subministrament d'alimentació; interruptor automàtic saltat; cable d'alimentació danyat. | Comproveu la connexió d'alimentació; reinicieu l'interruptor automàtic; inspeccioneu el cable d'alimentació per si hi ha danys. |
| Poor water circulation. | Clogged filter cartridge; air in the system; pump malfunction. | Clean or replace filter; bleed air from the system; contact support if pump is faulty. |
| Pool not heating effectively. | Incorrect temperature setting; low ambient temperature; heat pump issue. | Verify temperature setting; ensure unit is operating in suitable conditions; contact support. |
| Salt electrolyzer not producing chlorine. | Low salt level; dirty cell; flow sensor issue. | Check and adjust salt level; clean electrolyzer cell; ensure proper water flow. |
If the problem persists after attempting these solutions, please contact Poolex customer support.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | PC-POOLICAN-100 |
| Marca | POOLEX |
| Tipus de producte | Centralized and Connected Heat Pump for Pools |
| Volum de piscina recomanat | Fins a 25 m³ |
| Tipus de bomba de calor | Full Inverter, Reversible |
| Heat Pump Power | 5 kW |
| Circulation Pump Power | 0.75 CV |
| Tipus de filtració | Cartridge Filter (Anti-bacterial, Eco-filtration) |
| Salt Electrolyzer Production | Max. 5 gr/h |
| Connectivitat | WiFi, Smartphone App Control |
| Font d'alimentació | 230V AC (with integrated 230V/12V transformer) |
| Pes de l'article | 50 quilos |
| Dimensions (aprox.) | 805 mm (L) x 405 mm (A) x 595 mm (Al) |
Garantia i Suport
For warranty information and technical support, please refer to the official Poolex weblloc web o poseu-vos en contacte amb el vostre distribuïdor autoritzat. Conserveu el comprovant de compra per a reclamacions de garantia.
Fabricant: Poolex
Contacte: Refer to the official Poolex weblloc web per obtenir la informació de contacte i els recursos d'assistència més actualitzats.
