1. Informació de seguretat
Si us plau, llegiu i comprengui tots els avisos i instruccions de seguretat abans del muntatge i l'ús d'aquest producte. Si no segueix aquestes instruccions, pot patir lesions o danys materials.
- This freestanding shelter is not intended for use as a permanent structure or to support significant weight.
- Secure the shelter to a stable, level foundation to prevent tipping or collapse.
- In windy conditions, ensure the shelter is properly secured using ground stakes or other anchoring methods.
- During assembly or disassembly, use caution when handling heavy components.
- Protect your eyes and skin from potential injury when working with sharp edges or tools.
- Allow proper ventilation when using a grill underneath the shelter to prevent carbon monoxide buildup.
2. Producte acabatview
The Aoodor 8x5ft BBQ Grill Gazebo Shelter provides a dedicated space for outdoor grilling, offering protection from sun and light rain. It features a sturdy steel frame, a double-tier polycarbonate canopy, and convenient side shelves.
Característiques principals:
- Dimensions: 94.5" L × 59" W × 91.3" H, providing ample space for grilling.
- Estructura robusta: Durable steel frame construction with a protective powder-coated finish for rust resistance and weather durability.

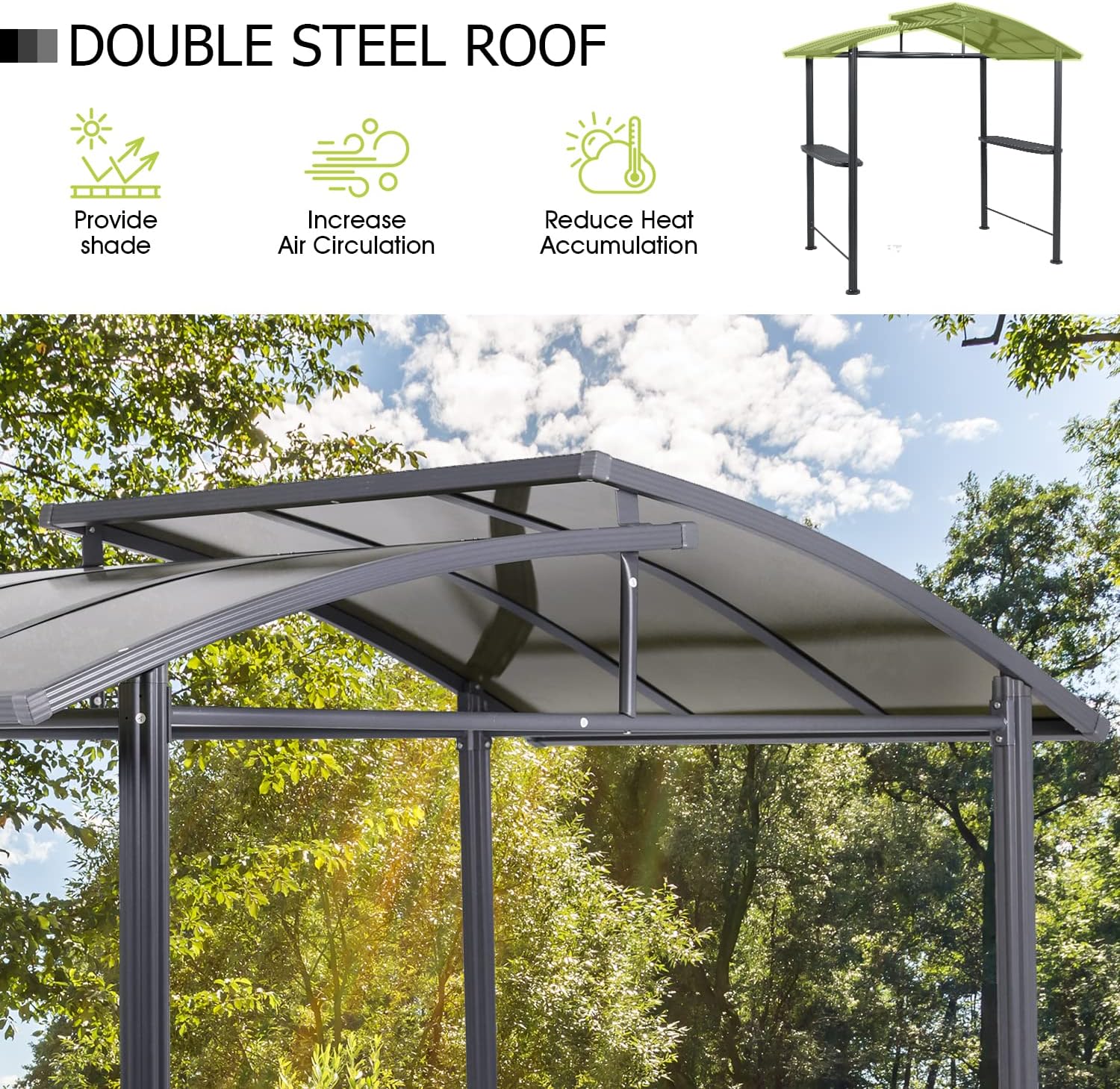

- Double-Layer Polycarbonate Top: Blocks most ultraviolet rays, offers waterproofing, ensures proper ventilation, and allows natural sunlight.
- Ventilació eficient: Intersecting roof design promotes air circulation, preventing smoke and heat stagnació.
- Rational Design: Two integrated side shelves for placing food items, tableware, cutlery, or grilling accessories.
Dimensions del producte:
Image: Detailed diagram illustrating the length (94.5"), width (59"), and height (91.3") of the gazebo, including shelf heights and distances.
Image: Two perspective views of the gazebo with key dimensions labeled, including overall height, shelf height, and roof span.
3. Llista de peces
Before beginning assembly, ensure all parts listed in your product packaging are present and undamaged. Refer to the detailed parts diagram included in your physical manual for identification.
Els components típics inclouen:
- Main support posts (4)
- Roof frame sections
- Panells de teulada de policarbonat
- Side shelves (2)
- Crossbars and reinforcement bars
- Ground stakes/anchors
- Hardware kit (screws, bolts, washers, nuts, tools)
4. Muntatge i muntatge
Assembly typically requires two adults and can take several hours. Follow the step-by-step instructions and diagrams provided in your physical assembly manual. Ensure you have adequate space and the necessary tools (usually included or standard household tools).
Passos de l'Assemblea General:
- Desempaquetar i identificar les peces: Col·loca tots els components i comprova'ls amb la llista de peces.
- Muntar l'estructura base: Connect the main support posts using the lower crossbars.
- Fixeu els prestatges laterals: Secure the two side shelves to the main support posts.
- Construct Roof Frame: Assemble the roof frame sections, including any reinforcement bars.
- Instal·lar panells de sostre: Carefully place and secure the polycarbonate roof panels onto the roof frame.
- Secure Gazebo: Anchor the gazebo to the ground using the provided ground stakes or other suitable anchoring methods for stability.
Detalls del muntatge:
Image: Detail of the pre-drilled stake panel at the base of a support post, indicating where ground anchors are secured for stability.
Image: Close-up showing how a side shelf attaches to the main support post with screws, highlighting the secure connection.
Image: Detail of the roof frame connection, showing multiple screws securing the roof beams to the central support structure.
Image: Close-up of a frame joint, illustrating the use of bolts to connect structural components for a solid assembly.
5. Instruccions de funcionament
The Aoodor BBQ Grill Gazebo Shelter is designed to provide a comfortable and protected area for outdoor grilling and entertaining.
Using the Gazebo:
- Position your grill centrally under the gazebo for optimal smoke ventilation through the double-tier roof.
- Utilize the two side shelves for convenient placement of grilling tools, plates, condiments, and beverages.
- Ensure adequate clearance around the grill and within the gazebo to prevent fire hazards.
- Always maintain proper ventilation when grilling to prevent carbon monoxide accumulation.
Image: The gazebo in use, showing a grill placed underneath and people enjoying a barbecue, with items on the side shelves.
Imatge: Un primer pla view of a grill positioned under the gazebo, with various grilling accessories and condiments on the side shelves.
6. Manteniment
Regular maintenance will extend the life and appearance of your Aoodor BBQ Grill Gazebo Shelter.
- Neteja del marc: Netegeu el marc d'acer amb anunciamp cloth and mild soap. Rinse thoroughly and dry to prevent water spots and rust. Avoid abrasive cleaners.
- Cleaning the Polycarbonate Roof: Clean the polycarbonate panels with a soft cloth, warm water, and a non-abrasive cleaner. Do not use harsh chemicals or scrub brushes, as these can scratch the surface.
- Comprovació de maquinari: Periodically inspect all bolts and screws to ensure they are tight. Re-tighten if necessary.
- Emmagatzematge d'hivern (opcional): While designed for outdoor use, consider disassembling and storing the gazebo in a dry, protected area during extreme winter weather to prolong its lifespan.
- Ancoratge: Regularly check the ground stakes or anchors for security, especially after strong winds or heavy rain.
7. Solució De Problemes
Aquesta secció tracta els problemes habituals que podeu trobar amb el vostre mirador.
| Problema | Causa possible | Solució |
|---|---|---|
| El gazebo sembla inestable o trontolla. | Connexions fluixes; ancoratge inadequat; terreny irregular. | Ensure all bolts and screws are tightened. Verify ground stakes are securely in place. Relocate to a level surface if possible. |
| Aigua acumulada a la teulada. | Instal·lació incorrecta dels panells de la teulada; deixalles que bloquegen el drenatge. | Check roof panel alignment and ensure they are correctly seated. Clear any leaves or debris from the roof channels. |
| Dificultat durant el muntatge. | Misaligned parts; incorrect hardware; insufficient manpower. | Double-check the instruction manual diagrams. Ensure you are using the correct hardware for each step. Seek assistance from another person. Do not force parts. |
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | Aoodor |
| Model | 8x5ft BBQ Grill Gazebo Shelter |
| Dimensions del producte (L x A x A) | 94.5" x 59" x 91.3" |
| Pes de l'article | 94.82 lliures |
| Material del marc | Acer d'aliatge |
| Material de la teulada | Policarbonat |
| Nivell de resistència a l'aigua | Impermeable |
| Protecció contra la llum ultraviolada | És cert |
| Muntatge obligatori | Sí |
| Color | Dark Gray Frame, Brown Canopy |
9. Vídeo del producteview
Mireu aquest vídeo per obtenir una visió generalview of the Aoodor BBQ Grill Gazebo Shelter and its features.
Video: A visual demonstration of the Aoodor 8x5ft BBQ Grill Gazebo Shelter, showcasing its design, features, and how it looks in various outdoor settings. This video highlights the product's utility and aesthetic appeal.
10. Garantia i Suport
For warranty information, product support, or to order replacement parts, please refer to the contact details provided in your product packaging or visit the official Aoodor weblloc.
Keep your purchase receipt and model number handy for any warranty claims or support inquiries.
