1. Introducció
This manual provides instructions for the safe and efficient operation of your Jebao Jecod EP-10000M Smart DC Pump. This pump is designed for use in both marine and freshwater aquarium systems, offering precise control via an LCD display controller and 2.4G Wi-Fi connectivity through the Jebao App.

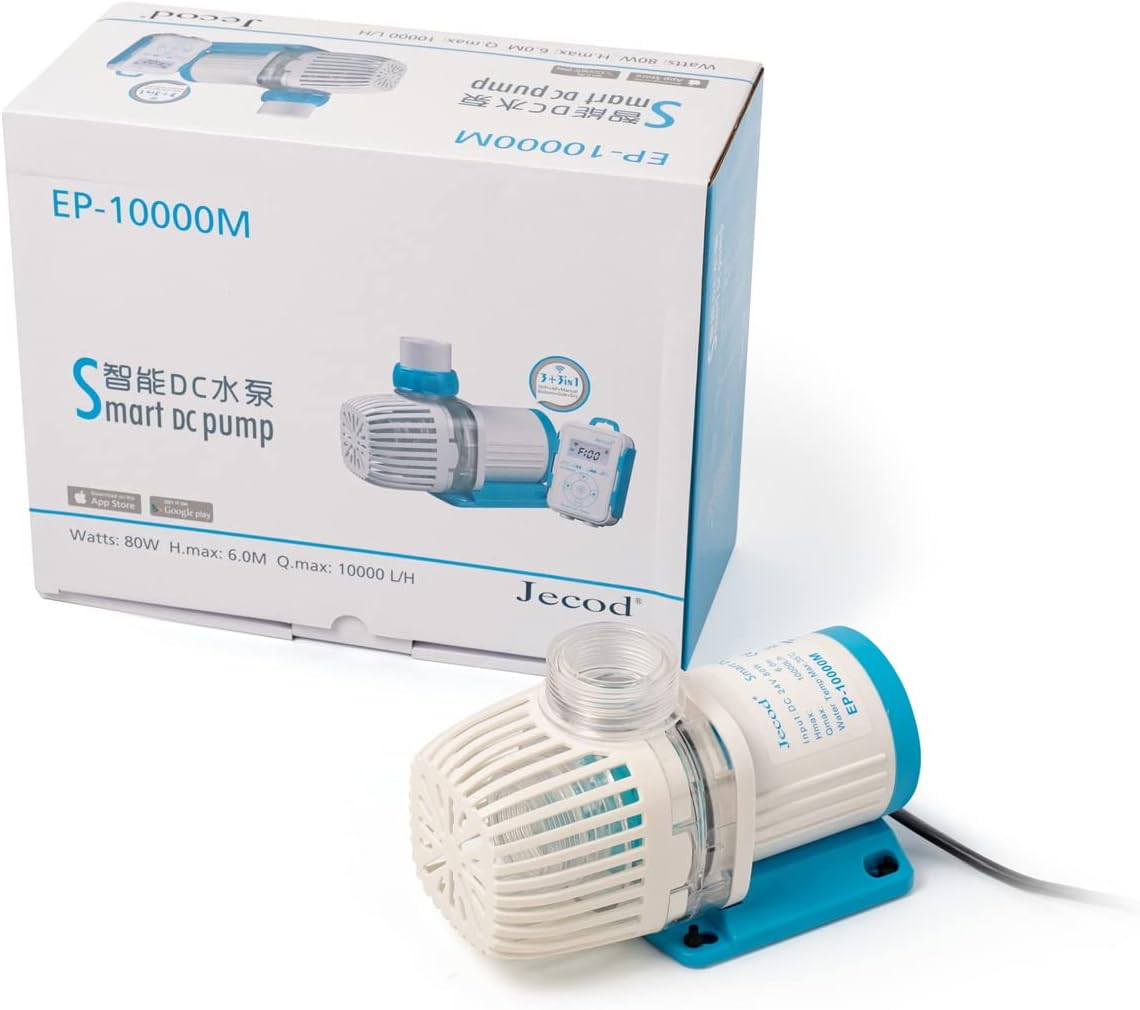

Image 1.1: The Jebao Jecod EP-10000M Smart DC Pump with its retail packaging.
2. Informació de seguretat
Please read all safety warnings and instructions carefully before operating the pump. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Seguretat elèctrica: Ensure the power supply matches the pump's requirements (24V DC). Always disconnect power before performing any maintenance or installation.
- Contacte amb l'aigua: The pump is designed for submersible use. Ensure all electrical connections are dry and away from water. There are no exposed copper elements, making it suitable for both marine and fresh water environments.
- Protecció automàtica: The pump features IC electronic detection for automatic power-off protection if no water is detected. It also includes motor protection if the rotor becomes blocked. Do not bypass these safety features.
- Col·locació: Position the pump securely to prevent accidental movement or damage.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents al paquet:
- Jebao Jecod EP-10000M DC Pump
- LCD Display Controller
- Power Adapter (110-120V 60Hz input, 24V DC output)
- Various hose connectors/fittings
- juntes tòriques
- Manual d'instruccions (aquest document)
Image 3.1: All included components: pump, controller, power adapter, and various fittings.
4. Configuració
Follow these steps to set up your EP-10000M pump:
- Prepareu la bomba: Attach the appropriate hose connectors/fittings to the pump's inlet and outlet. Ensure O-rings are correctly seated for a watertight seal.
- Posició de la bomba: Place the pump in your desired location within the aquarium or sump. Ensure it is fully submerged if intended for submersible operation.
- Connectar al controlador: Connect the pump's cable to the LCD display controller. Ensure the connection is secure.
- Connecteu l'adaptador d'alimentació: Connect the power adapter to the LCD display controller.
- Encès: Plug the power adapter into a suitable electrical outlet. The LCD display should illuminate.
- Connexió Wi-Fi (opcional):
- Download the Jebao App from your smartphone's app store (iOS or Android).
- Follow the in-app instructions to connect the pump to your 2.4G Wi-Fi network. The controller also supports AP (Access Point) mode, allowing direct connection without a router if needed.

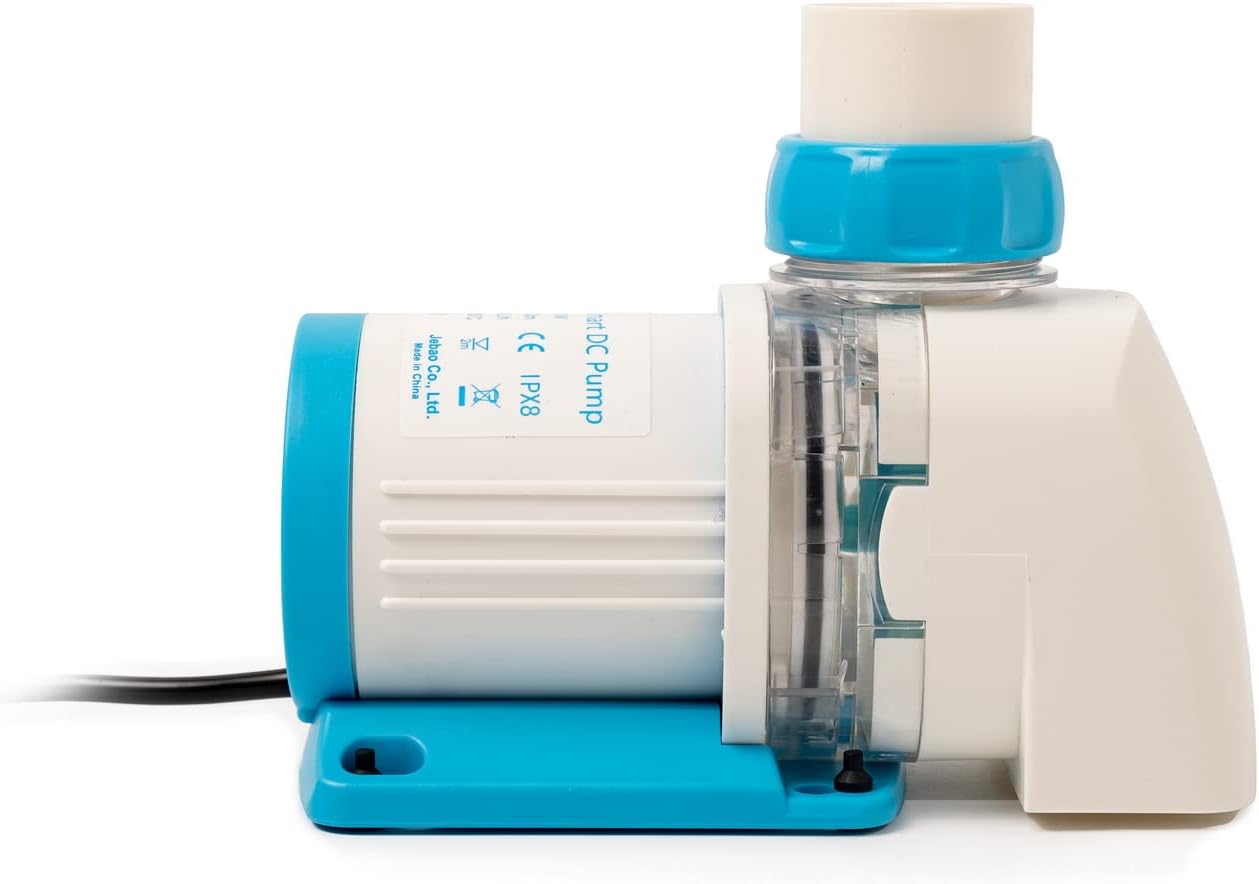

Image 4.1: The pump with an output adapter installed, ready for hose connection.
5. Instruccions de funcionament
The EP-10000M pump offers flexible control options:
- Controlador de pantalla LCD: Use the buttons on the LCD controller to adjust flow rate, switch modes, and access settings. Refer to the controller's specific interface for detailed button functions.
- Jebao App: Once connected via Wi-Fi, the Jebao App provides comprehensive control over the pump's functions, including scheduling, power adjustments, and mode selection.
- SINE Wave Technology: This pump utilizes SINE wave technology for ultra-quiet operation and stable performance, minimizing noise and vibrations in your aquarium system.
Imatge 5.1: Una imatge detallada view of the pump's intake section, highlighting its design.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil de la bomba.
- Desconnecteu l'alimentació: Desendolleu sempre la bomba de la font d'alimentació abans de qualsevol manteniment.
- Rotor Cleaning: Periodically remove the pump's front cover and impeller assembly. Clean the impeller and its housing to remove any debris, algae, or calcium buildup. A small brush can be used.
- Neteja de l'habitatge: Wipe down the pump's exterior and controller with a damp tela. No utilitzeu productes químics durs.
- Inspecció del cable: Regularly inspect the power cable and pump cable for any signs of damage or wear. Replace if necessary.
- Remuntatge: Ensure all parts are correctly reassembled and seals are properly seated before reconnecting power.
7. Solució De Problemes
If you encounter issues with your EP-10000M pump, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La bomba no funciona | No power; blocked impeller; no water detected (safety shutdown) | Check power connection; clean impeller; ensure pump is submerged and water level is adequate. |
| Caudal reduït | Clogged impeller or intake; kinked tubing; incorrect setting | Clean impeller and intake; check tubing for obstructions; adjust flow setting on controller/app. |
| Soroll/vibració inusuals | Debris in impeller; worn impeller; pump not securely placed | Clean impeller; inspect impeller for damage (replace if necessary); ensure pump is stable. |
| Problemes de connexió Wi-Fi | Incorrect Wi-Fi password; 5Ghz network; distance from router; app issues | Ensure 2.4Ghz network is used; re-enter password; move closer to router; restart app/controller. |
8. Especificacions
Technical specifications for the Jebao Jecod EP-10000M Smart DC Pump:
| Característica | Especificació |
|---|---|
| Model | EP-10000M |
| Caudal màxim | 2641 GPH (10000 L/H) |
| Cap Max | 19.7 peus (6.0 m) |
| Consum d'energia | 80W |
| Entrada Voltage | 110-120V, 60Hz (for power adapter) |
| Vol. De sortidatage | DC 24V (to pump) |
| Dimensions (LxWxH) | 8 x 4 x 5 inches (approximate pump dimensions) |
| Material | Plàstic, Polipropilè (PP) |
| Color | Blanc |
| Pes | 7 pounds (item weight) |
| Connectivitat | 2.4G Wi-Fi, AP Mode, Manual Controller |
| Tipus d'aigua | Marine and Fresh Water |
| Protecció | IC electronic detection, automatic power-off (no water), motor protection (rotor blocked) |
9. Garantia i Suport
For warranty information and customer support, please refer to the documentation provided with your purchase or contact Jebao customer service directly. Specific warranty terms may vary by region and retailer.
