1. Introducció
This manual provides essential information for the safe installation, operation, and maintenance of your Maxlite 03621 A19 LED Light Bulb. Please read these instructions thoroughly before use and retain them for future reference.
The Maxlite 03621 is a 6-watt, 120-volt A19 LED light bulb featuring a Twist and Lock (GU24) base. It emits a natural white light at 3,000K color temperature, is dimmable, and has a frosted finish. This bulb is designed for general illumination purposes.
2. Informació de seguretat
- ADVERTIMENT: Risc de descàrrega elèctrica. Desconnecteu l'alimentació abans de la instal·lació o el manteniment.
- Do not use with dimmers not specifically designed for LED bulbs. Refer to dimmer manufacturer's instructions for compatibility.
- Not suitable for use in totally enclosed luminaires unless specified by the luminaire manufacturer.
- No desmunteu ni modifiqueu la bombeta. No hi ha peces a l'interior que l'usuari pugui reparar.
- Ensure the bulb is installed in a fixture rated for the bulb's wattage i voltage.
- Eviteu l'exposició directa dels ulls a la font de llum quan estigui il·luminada.
- Elimineu les bombetes usades d'acord amb la normativa local.
3. Configuració i instal·lació
Follow these steps to safely install your Maxlite A19 LED light bulb:
- Apagueu l'alimentació: Locate the light switch or circuit breaker controlling the fixture and turn off the power supply. Ensure the power is completely off before proceeding.
- Treure la bombeta antiga: Allow the old bulb to cool completely before carefully unscrewing it from the fixture.
- Inspect fixture: Check the fixture for any damage or wear. Ensure the socket is clean and dry.
- Instal·lar una bombeta nova: Gently align the GU24 Twist and Lock base of the Maxlite LED bulb with the socket. Push the bulb into the socket and twist clockwise until it is securely seated. Do not overtighten.
- Restaurar l'energia: Turn the power back on at the light switch or circuit breaker.
- Prova: Engegueu l'interruptor de la llum per confirmar que la bombeta funciona correctament.

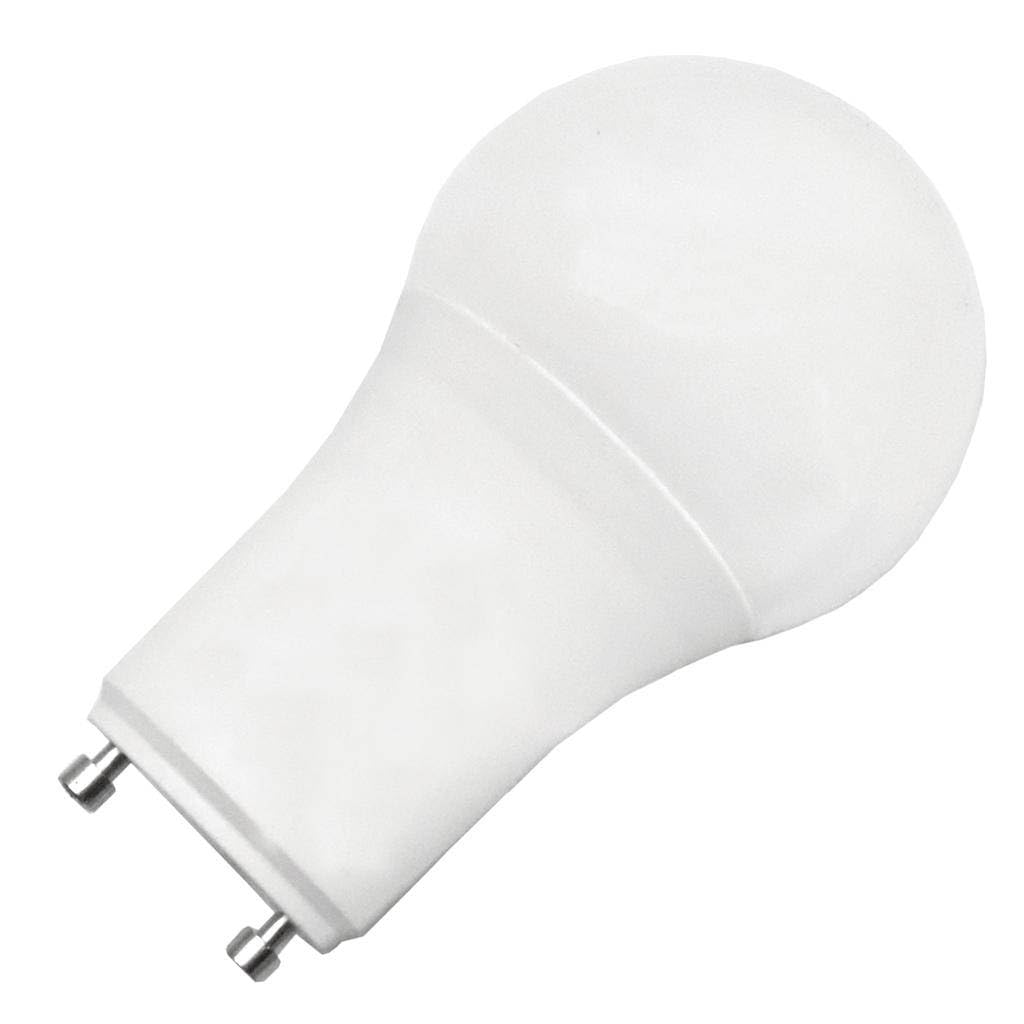

Figure 1: Maxlite 03621 A19 LED Light Bulb. This image shows the frosted A19 shape and the GU24 Twist and Lock base of the bulb.
4. Instruccions de funcionament
The Maxlite 03621 LED light bulb operates like a standard light bulb once installed. Simply use the wall switch or fixture switch to turn the light on or off.
Funcionalitat d'atenuació
This LED bulb is dimmable. If connected to a compatible dimmer switch, you can adjust the light output by operating the dimmer control. Ensure your dimmer switch is specifically designed for LED lighting to prevent flickering or damage to the bulb.
5. Manteniment
The Maxlite 03621 LED light bulb requires minimal maintenance. Follow these guidelines:
- Neteja: Assegureu-vos que l'aparell estigui apagat i que la bombeta estigui freda abans de netejar-la. Netegeu la bombeta amb un drap suau i sec. No utilitzeu netejadors líquids ni materials abrasius.
- Substitució: Due to its long average lifetime of 25,000 hours, frequent replacement is not expected. When replacement is necessary, follow the installation steps in Section 3.
6. Solució De Problemes
If you encounter issues with your Maxlite LED bulb, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La bombeta no s'encén. | No power to the fixture, bulb not properly seated, or faulty bulb. | Check power supply (switch/breaker). Re-install bulb securely. Test bulb in another working fixture. |
| La bombeta parpelleja o brunzeix. | Incompatible dimmer switch, loose connection, or voltage fluctuacions. | Ensure dimmer is LED-compatible. Check bulb seating. Consult an electrician for voltage qüestions. |
| La sortida de llum és massa baixa. | Dimmer setting is too low, or bulb is not suitable for the application. | Adjust dimmer to maximum setting. Verify bulb specifications meet lighting requirements. |
If troubleshooting steps do not resolve the issue, contact Maxlite customer support for further assistance.
7. Especificacions
| Atribut | Valor |
|---|---|
| Número de model | 03621 (E6A19GUDLED30/G8S1) |
| Wattage | 6 watts |
| Voltage | 120 Volts |
| Tipus de bombeta | LED A19 |
| Tipus de base | Twist and Lock (GU24) |
| Temperatura de color | 3,000K (Blanc Natural) |
| Lúmens (sortida de llum) | 480 lúmens |
| CRI (índex de reproducció del color) | 80 |
| Acabar | Gebrat |
| Regulable | Sí |
| Vida mitjana | 25,000 hores |
Figure 2: Energy Efficiency Product Fiche. This image provides detailed energy consumption and performance data for the Maxlite LED bulb.
8. Garantia i Suport
Maxlite products are manufactured to high-quality standards. For specific warranty information regarding your 03621 A19 LED Light Bulb, please refer to the warranty statement included with your purchase or visit the official Maxlite weblloc.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Maxlite customer service through their official channels. Contact information can typically be found on the product packaging or the Maxlite weblloc.
Maxlite Official Weblloc: Visit the Maxlite Store on Amazon
