Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your VASTFIRE Twinkle & Meteor Starlight Headliner Kit. This kit is designed to create a dynamic starry sky effect in various environments, including vehicle interiors, home theaters, and other spaces.

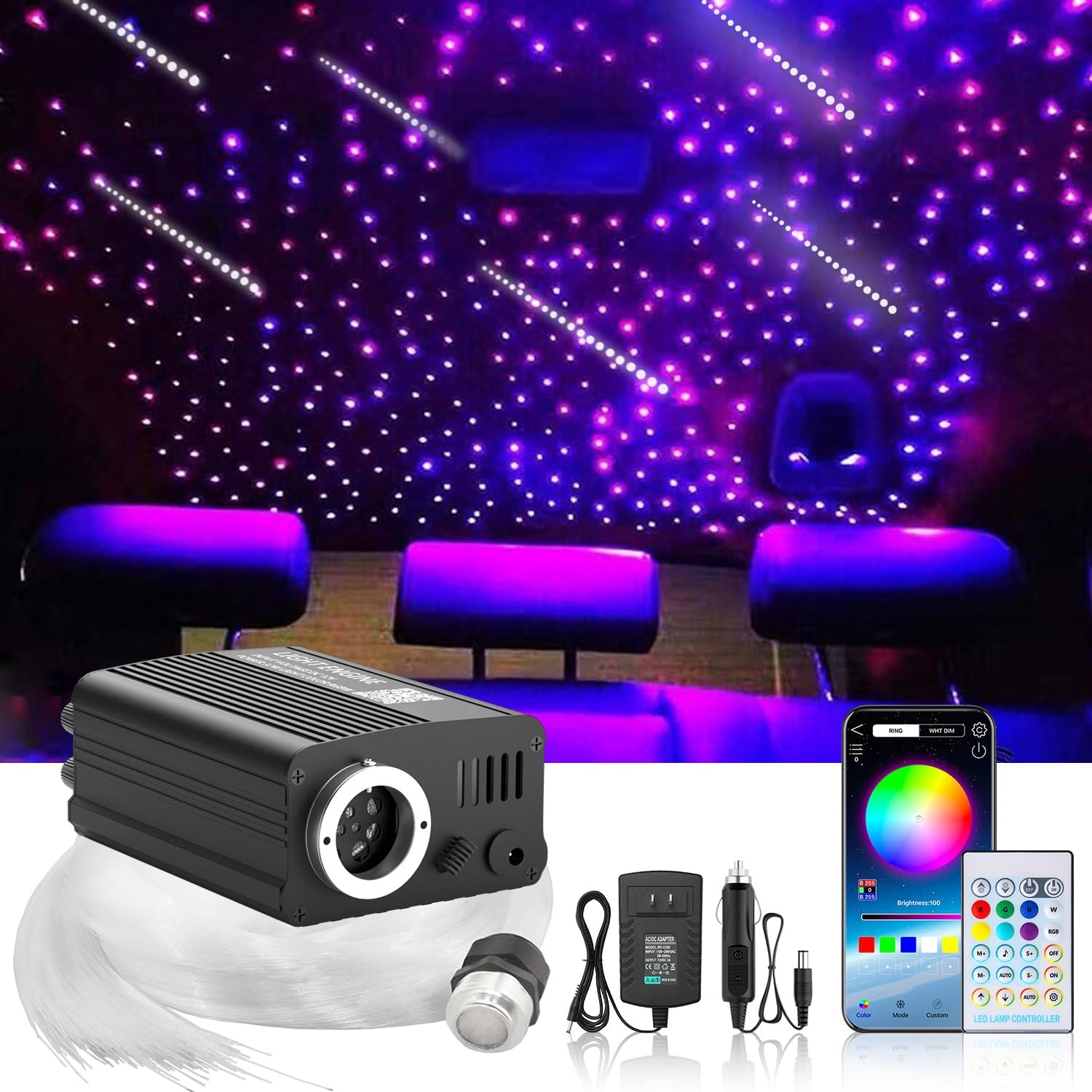

Imatge: Més deview of the VASTFIRE Twinkle & Meteor Starlight Headliner Kit, showing the light engine, fiber optic strands, remote, power adapters, and an example of the illuminated car interior.
Contingut del paquet
Verifiqueu que tots els components siguin presents al vostre paquet:
- 16W RGBW Light Engine with Music Sync & Meteor Effects
- RF Remote Control (28-key wireless)
- 750 Fiber Optic Strands (0.03in x 9.8ft, trimmable) - 550 Twinkle, 200 Shooting Stars
- Adaptador de corrent domèstic de 110 V
- Carregador de cotxe de 12V
- Manual d'usuari
Image: The main components of the kit laid out, featuring the 16W light engine, bundled fiber optic cables, and the remote control.
Configuració i instal·lació
Professional installation is recommended, especially for vehicle headliner adjustments. The process involves careful planning and execution.
- Remove Car Roof/Headliner: Carefully detach and remove the vehicle's headliner.
- Mark Pattern and Drill Holes: Design your desired star pattern on the headliner. Mark points and drill holes according to the pattern.
- Tie Up Fibers: Group fiber optic strands into small bundles to prevent tangling during insertion.
- Insert and Fix Fibers: Insert the fiber optic strands into the drilled holes. Secure them with hot melt adhesive or glass cement.
- Apply Sponge/Leather: Stick a layer of sponge or leather on the back of the roof to protect the fibers and extend their lifespan.
- Cut Excess Fibers: Trim any fiber optic strands that extend beyond the surface of the car roof.
- Connect Wires and Install Roof: Connect the light engine and associated wiring. Reinstall the headliner.
- Light Engine Placement: It is recommended to hide the light engine on the C-Pillar or behind the rear seat, possibly beside an amplifier, to ensure proper cooling and discreet placement.

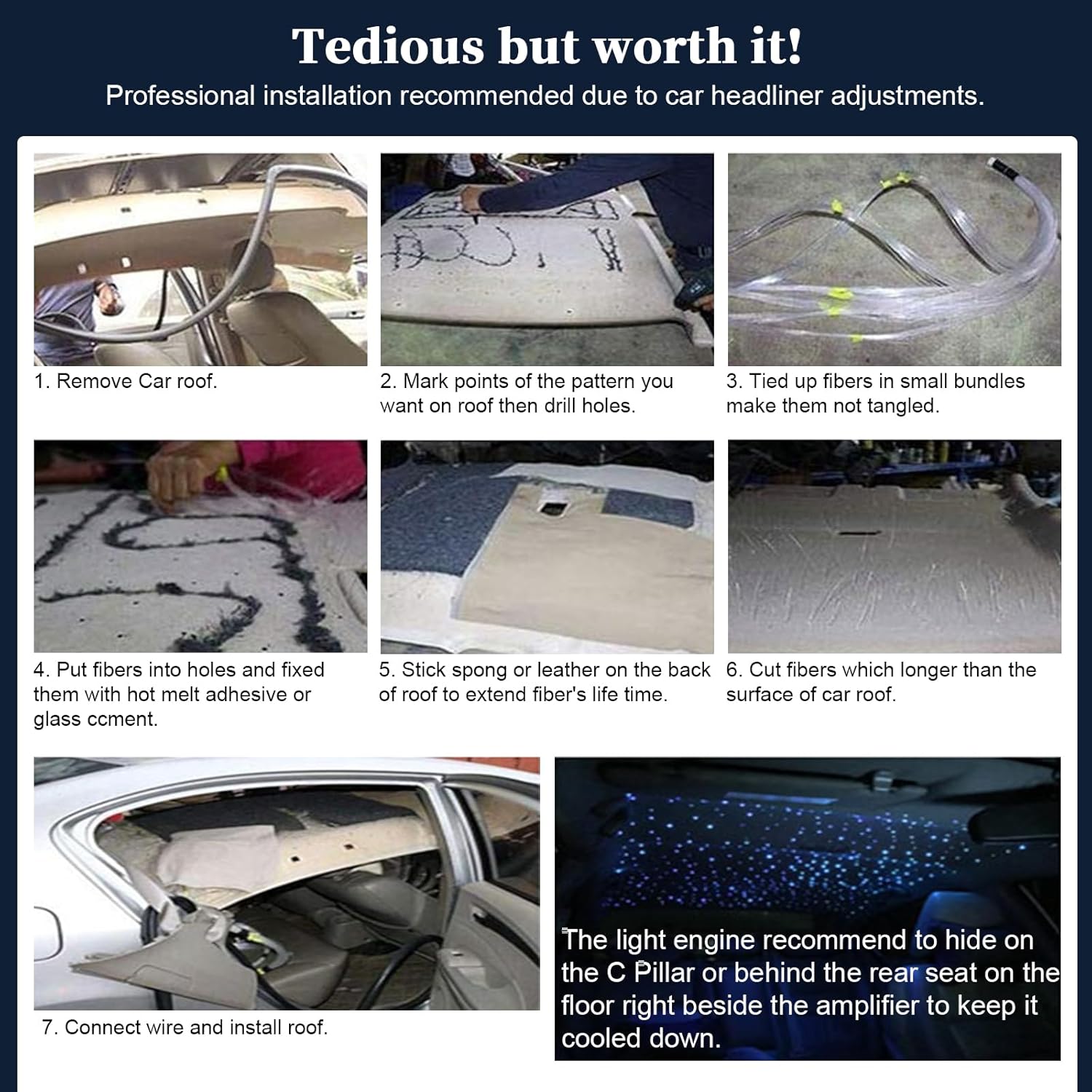

Image: Visual representation of the installation steps for the starlight headliner kit, from removing the headliner to connecting the light engine.
For a visual guide on the installation process, refer to the following video:
Vídeo: Una revisió detalladaview and unboxing of the VASTFIRE Car Starlight Kit, demonstrating the components and discussing installation considerations.
Instruccions de funcionament
Alimentació del dispositiu
The light engine can be powered using either the provided 110V home adapter or the 12V car charger, offering flexibility for various applications.
Image: The two power options for the light engine: a standard 110V wall plug and a 12V car charger.
Opcions de control
The VASTFIRE Starlight Headliner Kit offers dual control methods: a physical RF remote and a Bluetooth-enabled smartphone application.
Comandament a distància RF
The 28-key RF remote allows for quick adjustments to lighting effects. Functions include:
- Encès/Apagat
- Color selection (RGBW and preset colors)
- Ajust de brillantor
- Dynamic modes (Flash, Jump, Fade, Breath)
- Mode de sincronització de música
- Twinkle speed adjustment
- Meteor effect control
Image: The dual control options: a physical remote and a smartphone app, both capable of adjusting the lighting effects.
Control d'aplicacions Bluetooth
For advanced customization and convenience, download the "LED LAMP" app (available for Android and iOS) and connect via Bluetooth. The app provides:
- 16 Million Colors: Full color wheel for precise color selection.
- Brightness Control: Adjust intensity from 1% to 100%.
- 23 Dynamic Effects: Pre-programmed modes for various lighting patterns.
- Music Sync Mode: Lights react to music played through your phone's microphone.
- Timer Function: Schedule specific on/off times and modes.
- DIY Mode: Create and save custom lighting effects.
Video: Demonstration of the smartphone app control for the starlight kit, showcasing color changes, brightness, and various modes.
Video: Illustrates the 23 dynamic light modes, color customization, and brightness adjustment features available via the app.
Twinkle and Meteor Effects
The 2-in-1 light engine provides both twinkling star effects and dynamic meteor (shooting star) effects from a single unit. These effects can be controlled via the remote or the app.

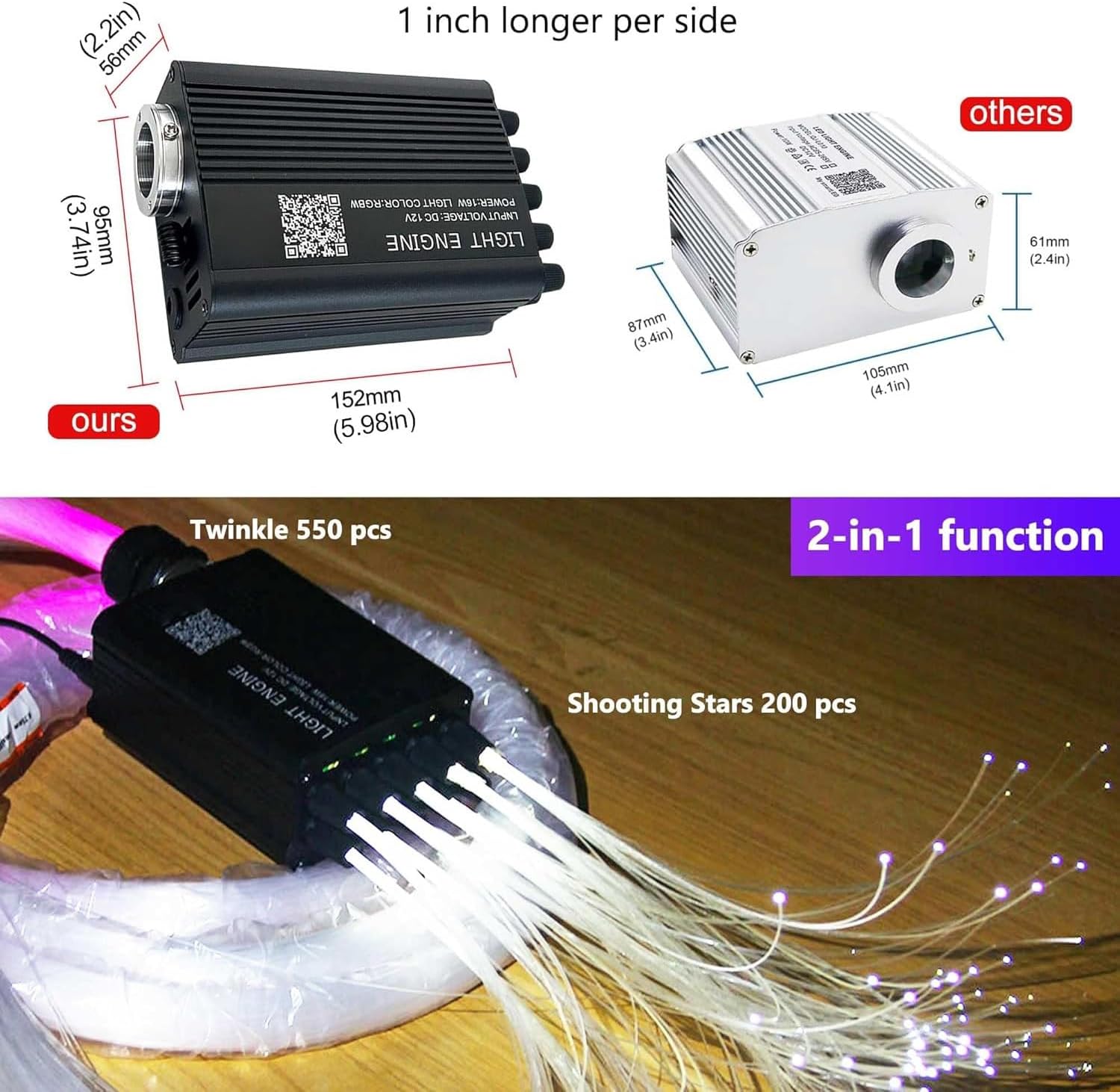

Image: The light engine's 2-in-1 capability, separating fibers for twinkle and shooting star effects.
Video: A short demonstration of the 16W Twinkle & Meteor 2-in-1 Light Engine, highlighting the shooting star effects.
Manteniment
- Neteja: Gently wipe the light engine and fiber optic ends with a dry, soft cloth. Avoid using liquid cleaners directly on electrical components.
- Cura de la fibra: The fiber optic strands are designed for high toughness and resistance to bending and aging. Avoid sharp bends or excessive force that could damage the fibers.
- Gestió de la calor: Ensure the light engine is placed in a well-ventilated area to prevent overheating, which can affect performance and lifespan.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Els llums no s'encenen | Sense alimentació, connexió fluixa, bateria del comandament a distància morta. | Check power adapter/car charger connection. Ensure remote battery is functional or use app control. |
| El comandament a distància no respon | Remote battery dead, obstruction, out of range. | Replace remote battery. Ensure clear line of sight to light engine. Use app control as an alternative. |
| L'aplicació no es connecta per Bluetooth | Bluetooth off, app not refreshed, device not paired. | Ensure Bluetooth is enabled on your phone. Refresh the device list in the app. Restart the app and light engine. |
| Inconsistent light output/dimming | Damaged fiber, light engine overheating. | Inspect fiber optic strands for damage. Ensure light engine has adequate ventilation. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | VASTFIRE |
| Número de model | 750 piece starlight headliner kit |
| Light Engine Wattage | 16 watts |
| Entrada Voltage | DC 12V |
| Color clar | RGBW (16 milions de colors) |
| Fiber Optic Strands | 750 strands (0.03in x 9.8ft) |
| Característiques especials | Twinkle & Meteor Effect, Music Sync Mode, Bluetooth App & Remote Control, Adjustable Brightness/Speed, Universal Compatibility, Durability & Energy Efficiency |
| Material | Aluminum (Light Engine) |
| Dimensions del producte | 3.26 x 2.95 x 1.94 inches (Light Engine) |
| Pes de l'article | 12.8 unces |
Garantia i Suport
The VASTFIRE Twinkle & Meteor Starlight Headliner Kit comes with a 2 any de garantia. For any inquiries or assistance, 24-hour pre-sale and after-sale service online support is available.
Please refer to the contact information provided with your purchase for support details.
