Manual d'instruccions de la guitarra elèctrica de cos sòlid Donner DMT-100

Introducció

This manual provides essential information for the setup, operation, and maintenance of your Donner DMT-100 Solid Body Electric Guitar. Please read through these instructions carefully to ensure optimal performance and longevity of your instrument.

Què hi ha a la caixa

Your Donner DMT-100 Electric Guitar kit includes the following items:

• Donner DMT-100 Solid Body Electric Guitar
• Bossa encoixinada
• Guitar Cable (1/4 inch / 6.35mm jack)
• Corretja de guitarra
• Full Set of Extra Strings (Cobalt-nickel steel)
• Strings Dampener

Image: The Donner DMT-100 electric guitar in Gradient Violet, accompanied by its padded gig bag, a guitar cable, a strap, a set of extra strings, and a strings dampener.

Característiques del producte

• H-H High-Output Pickups: The tailored H-H pickup combination is designed for rock music, allowing for clear melodic phrases. The dynamic tone control system features 3-way switches and a tone knob for versatile sound shaping.
• Curved Body: The guitar features a curved body, polished through a 30-process method to enhance aesthetics and optimize ergonomic fit.
• Stable Fixed Bridge: A string-thru fixed bridge improves tone accuracy and allows for effective string bending, contributing to consistent tones across the fretboard.
• C-Shape Maple Neck: Constructed with an Indian Laurel fingerboard, solid Poplar body, and a C-Shape Maple neck, providing a punchy tone. It features 24 Copper-nickel frets for an extended tonal range and easier playability at higher frets.

Imatge: Una imatge detallada view of the guitar's H-H high-output pickups, highlighting their design for powerful sound and granular melodic phrases.

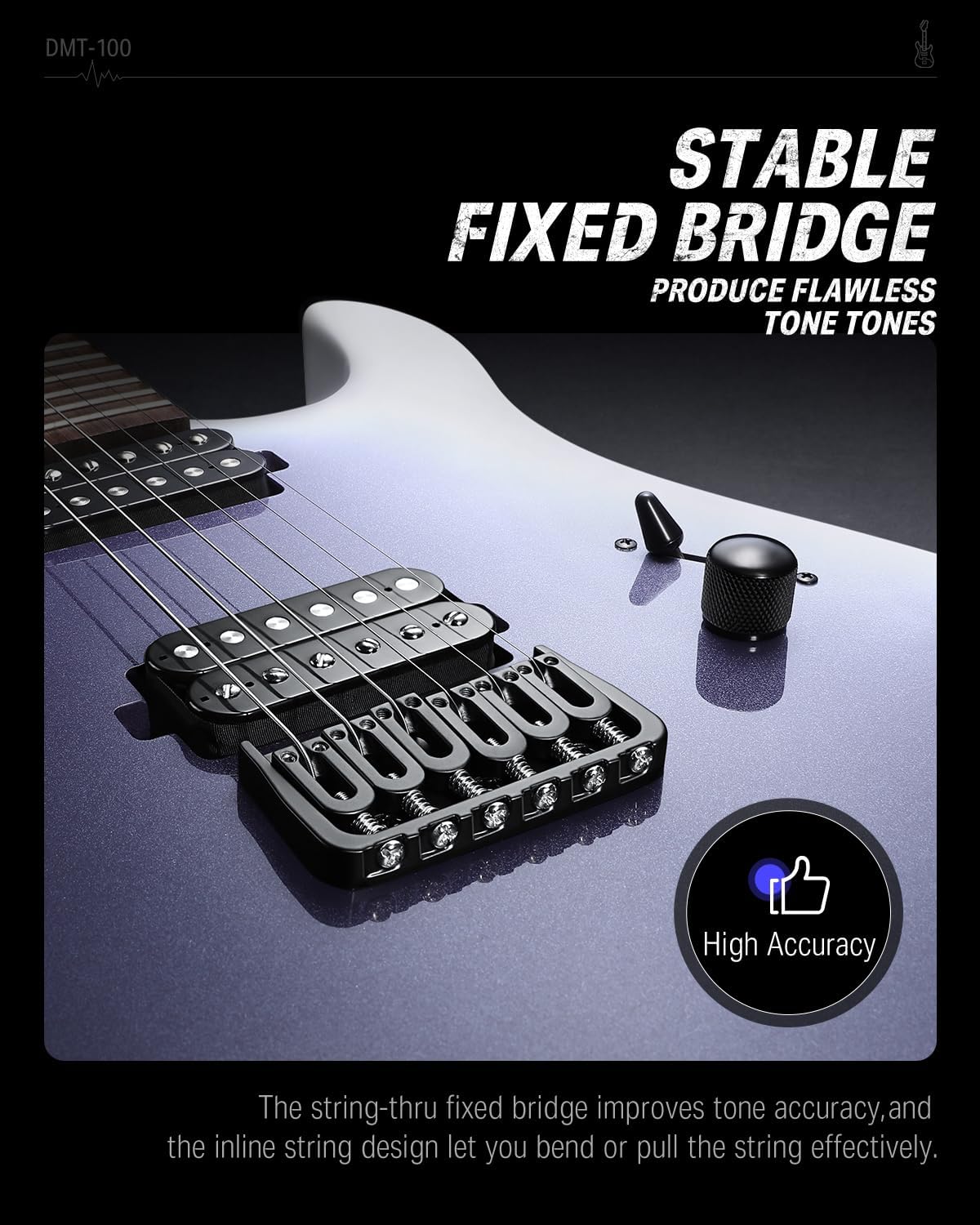

Image: A close-up of the guitar's stable fixed bridge, emphasizing its string-thru design for improved tone accuracy and effective string manipulation.

Image: The curved body of the Donner DMT-100 electric guitar, showcasing its ergonomic design and polished finish.

Configuració

1. Desembalatge: Carefully remove the guitar and all accessories from the gig bag. Inspect for any shipping damage.
2. Encordar: The guitar comes pre-strung. If new strings are needed, refer to standard electric guitar stringing procedures. Ensure strings are properly seated in the tuning pegs and bridge saddles.
3. tuning: Use a digital tuner to accurately tune each string to standard E-A-D-G-B-e tuning. Allow new strings to stretch and re-tune as necessary.
4. Connectant a Ampmés viu: Connect one end of the included guitar cable to the guitar's output jack and the other end to your ampl'entrada del lificador.

Funcionament de la guitarra

• Pom de volum: Controls the overall output volume of the guitar. Turn clockwise to increase volume, counter-clockwise to decrease.
• Botó de to: Adjusts the tonal characteristics, typically from brighter (clockwise) to warmer (counter-clockwise).
• Selector de captació de 3 vies: Aquest interruptor permet seleccionar diferents configuracions de captació:
  • Posició 1 (Pont): Activates the bridge humbucker pickup for a brighter, more aggressive tone.
  • Position 2 (Both): Activates both bridge and neck humbucker pickups for a balanced, full-bodied tone.
  • Posició 3 (coll): Activates the neck humbucker pickup for a warmer, smoother tone.

Image: A hand adjusting the tone knob on the Donner DMT-100, illustrating the dynamic tone control system with its 3-way switches and tone knob.

Manteniment

• Neteja: Wipe down the guitar body, neck, and strings with a soft, dry cloth after each use to remove sweat and grime. Use guitar-specific cleaning products sparingly.
• Substitució de cordes: Canvieu les cordes regularment, normalment cada 1-3 mesos depenent de l'ús, per mantenir un to i una tocabilitat òptims.
• Emmagatzematge: Store the guitar in its padded gig bag when not in use to protect it from dust, humidity changes, and physical damage. Avoid extreme temperatures.
• Cura del diapasó: Periodically clean and condition the Indian Laurel fretboard with a suitable fretboard oil to prevent drying and cracking.

Resolució de problemes

• Sense so: Check all cable connections, ensure the amplifier is on and volume is up, and verify the guitar's volume knob is not at zero.
• Cordes brunzidores: This can be caused by low action, worn frets, or improper neck relief. Professional setup may be required.
• Mala estabilitat d'afinació: Ensure strings are properly installed and stretched. Check tuning pegs for looseness. Extreme temperature changes can also affect tuning.
• Weak or Uneven Output: Check pickup height and wiring connections. Ensure the pickup selector switch is fully engaged in a position.

Especificacions

Vídeos oficials de productes

Garantia i Suport

For warranty information and customer support, please refer to the official Donner weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el rebut de compra per a reclamacions de garantia.
