Zendure SuperBase V 6.4KWh Solar Generator

Introducció

The Zendure SuperBase V is a versatile and powerful LFP portable power station designed to provide reliable energy for various applications, including home backup, emergency situations, van life, RVs, tiny houses, and off-grid living. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your SuperBase V system.

Image: The Zendure SuperBase V solar generator unit shown alongside a folded 400W portable solar panel, illustrating the complete power solution.

Informació de seguretat

Always read and understand all safety warnings and instructions before using the SuperBase V. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

• No desmunteu, no repareu ni modifiqueu la unitat.
• Mantingueu la unitat allunyada de fonts de calor, la llum solar directa i materials inflamables.
• Assegureu-vos una ventilació adequada durant l'ús per evitar el sobreescalfament.
• No exposeu la unitat a l'aigua ni a una humitat excessiva.
• Feu servir només accessoris i cables de càrrega aprovats.
• Mantenir fora de l'abast dels nens i mascotes.

Producte acabatview

Característiques clau

• 120V/240V Dual Voltage Sortida: Provides 3800W AC output, suitable for a wide range of household and heavy-duty appliances.
• Capacitat ampliable: Base capacity of 4608Wh, expandable up to 46080Wh with additional battery packs.
• Seamless Online UPS: Offers 0ms switchover for connected devices, protecting sensitive electronics from power interruptions.
• 6,600W Multi-Charge: Supports various charging methods including AC, solar, and EV charger for rapid recharging.
• RV Life Ready: Features a TT-30 port for direct RV power supply and an Anderson port for RV essentials.
• 400W Portable Solar Panel: High-efficiency polycrystalline solar panel for sustainable charging.

Ports i interfícies

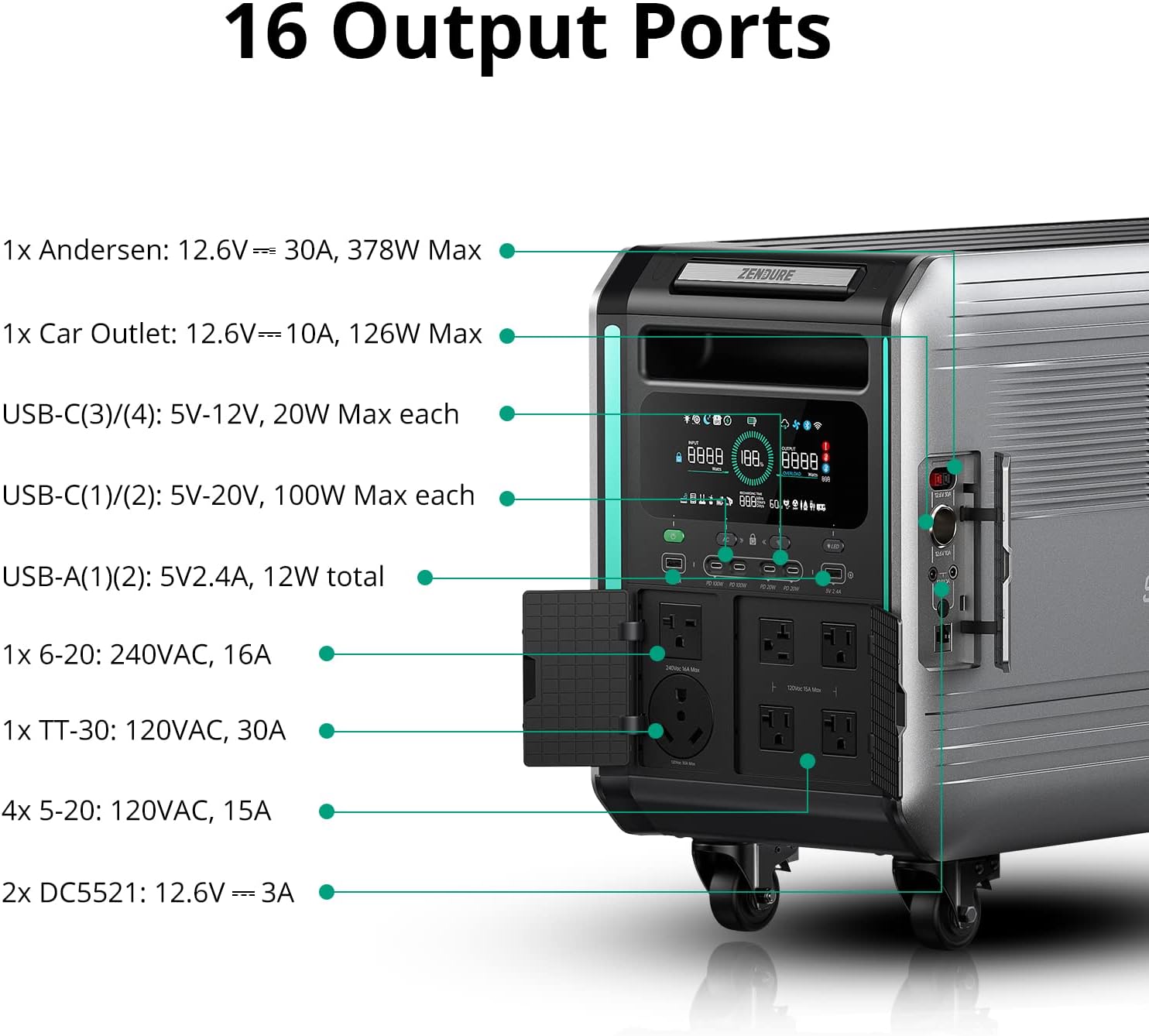

Imatge: Detallada view of the Zendure SuperBase V's front and rear panels, highlighting the 16 available output ports including AC outlets, USB-C, USB-A, TT-30, and DC5521 ports.

• 1x Andersen Port: 12.6V, 30A, 378W Max
• 1x Car Outlet: 12.6V, 10A, 126W Max
• USB-C(3)/(4): 5V-12V, 20W Max each
• USB-C(1)/(2): 5V-20V, 100W Max each
• USB-A(1)(2): 5V2.4A, 12W total
• 1x 6-20: 240VAC, 16A
• 1x TT-30: 120VAC, 30A
• 4x 5-20: 120VAC, 15A
• 2x DC5521: 12.6V, 3A
• AC Input, AC Charge Speed Switch, Overload Switches, XT90 Input, Battery Port

Pantalla i controls

Image: Close-up of the SuperBase V's digital display, which provides real-time information on power input, output, battery level, and various system indicators.

The intuitive display provides real-time information on battery status, input/output power, and operational modes. Control buttons allow for easy navigation and setting adjustments.

Configuració

Desembalatge i inspecció inicial

Carefully remove all components from the packaging. Inspect the SuperBase V and accessories for any signs of damage. Report any damage to Zendure customer support immediately.

Càrrega inicial

Before first use, fully charge the SuperBase V. Connect the AC charging cable to a standard wall outlet. The display will indicate charging status. For fastest charging, use a 240V outlet if available, which can fully charge the unit in 2 hours.

Image: The SuperBase V unit being charged simultaneously by an AC wall outlet and multiple solar panels, demonstrating its multi-charge capability.

Connexió de plaques solars

The SuperBase V supports up to 3000W solar input. Connect the 400W portable solar panel (or other compatible solar panels) to the XT90 input port on the SuperBase V. Ensure panels are positioned for maximum sunlight exposure.

Image: The SuperBase V power station connected to several large solar panels laid out in a grassy area, illustrating solar charging in an outdoor setting.

Expanding Capacity with Satellite Batteries

To expand the capacity, connect additional Zendure Satellite Batteries to the Battery Port. The system automatically recognizes and integrates the added capacity, allowing for up to 46080Wh.

Image: A Zendure SuperBase V unit with a satellite battery stacked on top, connected to solar panels, positioned next to an RV in a natural outdoor environment.

Instruccions de funcionament

Turning On/Off and Using Outputs

Press and hold the main power button to turn the unit on or off. Activate specific output groups (AC, DC, USB) using their respective buttons on the control panel. The display will show active outputs and power consumption.

Image: The Zendure SuperBase V in a modern kitchen setting, illustrating its dual 120V/240V output capability by powering various appliances simultaneously.

Online UPS Functionality

When connected to a 120V or 240V AC input, the SuperBase V can function as an Online UPS. For devices directly connected to the two 5-20 ports at the bottom, the switchover time is 0ms, ensuring uninterrupted power. For other ports, the switchover time is 13ms.

Image: A collage demonstrating the 0ms UPS feature of the SuperBase V, showing it providing backup power to a desktop computer, refrigerator, PlayStation 5, fish tank, self-service pet feeder, and medical equipment during a power outage.

Càrrega EV

The SuperBase V can charge electric vehicles using its 240V output. Connect your EV charging cable to the appropriate port on the unit. This allows for convenient EV charging anywhere, anytime, especially useful in off-grid scenarios.

Image: The Zendure SuperBase V system, including stacked satellite batteries and solar panels, charging an electric vehicle inside a garage, highlighting its home backup and EV charging capabilities.

Video: Demonstrates the Zendure SuperBase V's 120V/240V dual voltage output and its ability to charge electric vehicles, showcasing its versatility for various power needs.

App Control and Voice Control

Manage your SuperBase V in real-time using the Zendure app via Wi-Fi or Bluetooth. The unit also supports voice control with Alexa or Google Home for convenient operation.

Image: A smartphone displaying the Zendure app interface for managing the SuperBase V, with the power station in the background, illustrating its smart control features.

Video: Highlights the Zendure SuperBase V's capabilities as a home backup battery, demonstrating its seamless integration and power delivery for household appliances.

Manteniment

• Neteja: Feu servir un drap sec i suau per netejar l'exterior de la unitat. No utilitzeu productes químics agressius ni materials abrasius.
• Emmagatzematge: Store the SuperBase V in a cool, dry place, away from direct sunlight and extreme temperatures. For long-term storage, charge the unit to 50-80% every 3-6 months to preserve battery health.
• Cura de la bateria: The LFP battery is designed for long life. Avoid fully discharging the battery frequently. Regular partial discharges and recharges are beneficial.

Resolució de problemes

If you encounter issues with your SuperBase V, refer to the following common troubleshooting steps:

• La unitat no s'encén: Ensure the battery is charged. If not, connect to a power source. Check if the main power button is pressed and held for a few seconds.
• Sense potència de sortida: Verify that the specific output group (AC/DC/USB) is activated. Check for overload indicators on the display; if overloaded, disconnect devices and restart the unit.
• Problemes de càrrega: Ensure all charging cables are securely connected. Check the power source for functionality. If using solar, confirm panels are in direct sunlight and clean.
• Problemes de connectivitat de l'aplicació: Ensure Bluetooth/Wi-Fi is enabled on your device and the SuperBase V. Try restarting both the app and the unit.

For persistent issues, contact Zendure customer support.

Especificacions

Garantia i Suport

The Zendure SuperBase V comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, product inquiries, or warranty claims, please visit the official Zendure weblloc o poseu-vos en contacte amb el seu equip d'atenció al client.

Online resources and FAQs may also be available on the Zendure support page.
